Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

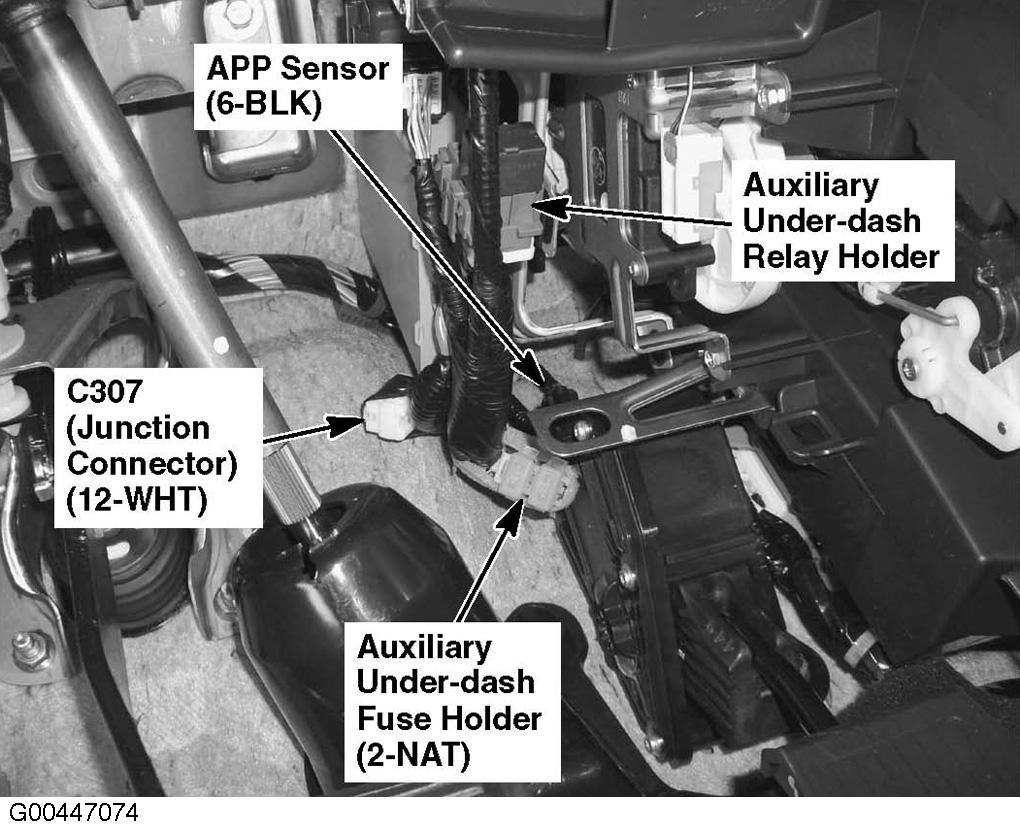

Auxiliary Under-Dash Fuse Holder Under left side of dash. See Figure.
Auxiliary Under-Dash Relay Box Under left side of dash. See Figure.
Auxiliary Under-Dash Relay Holder Under left side of dash. See Figure.

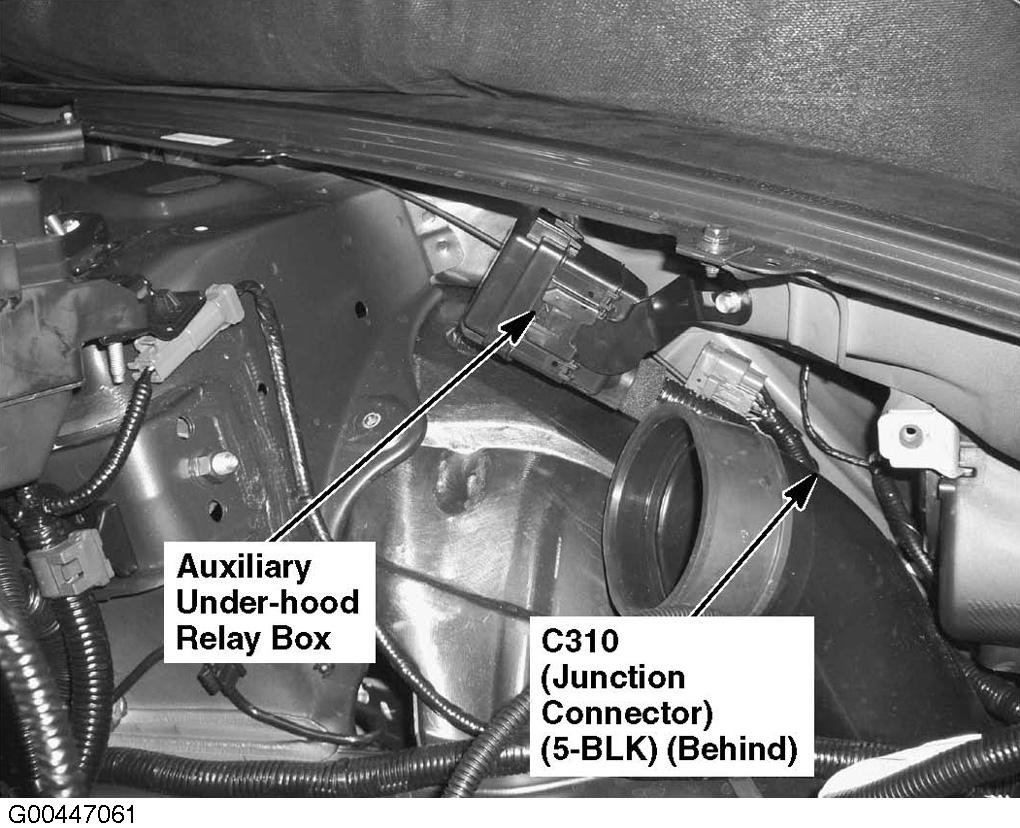

Auxiliary Under-Hood Relay Box Left side of engine compartment. See Figure.

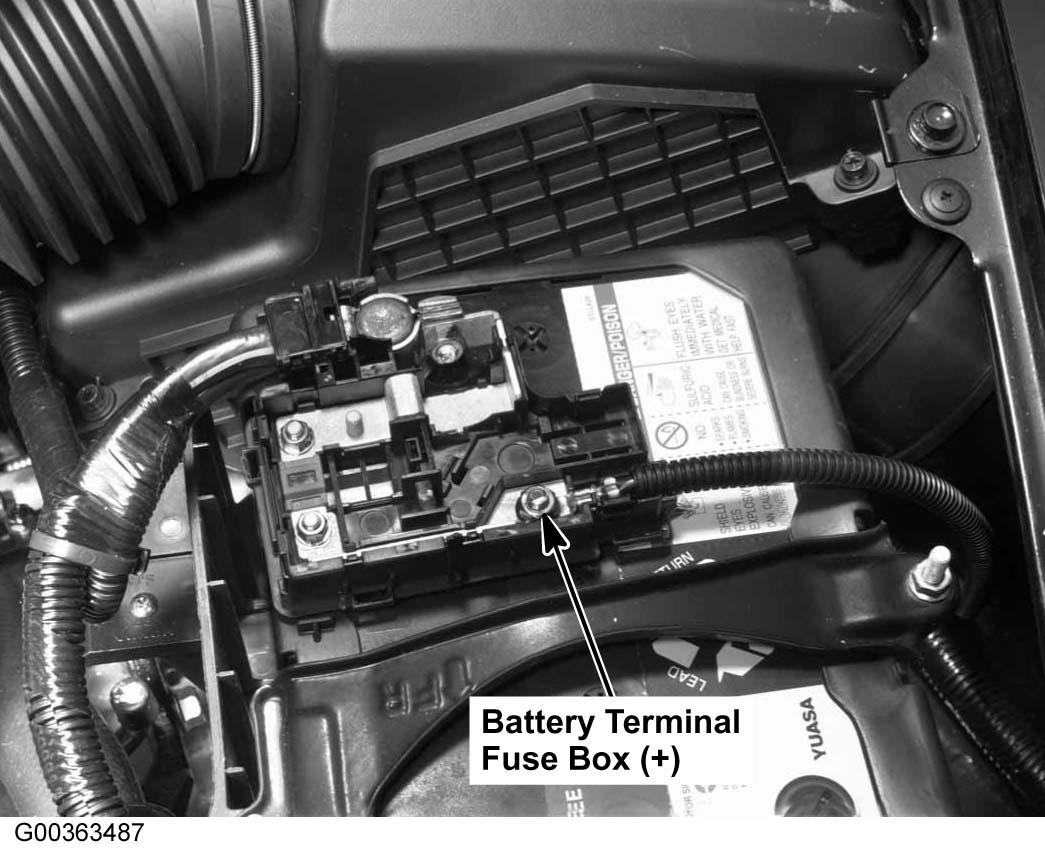

Battery Terminal Fuse Box (+) In battery terminal fuse box. See Figure.

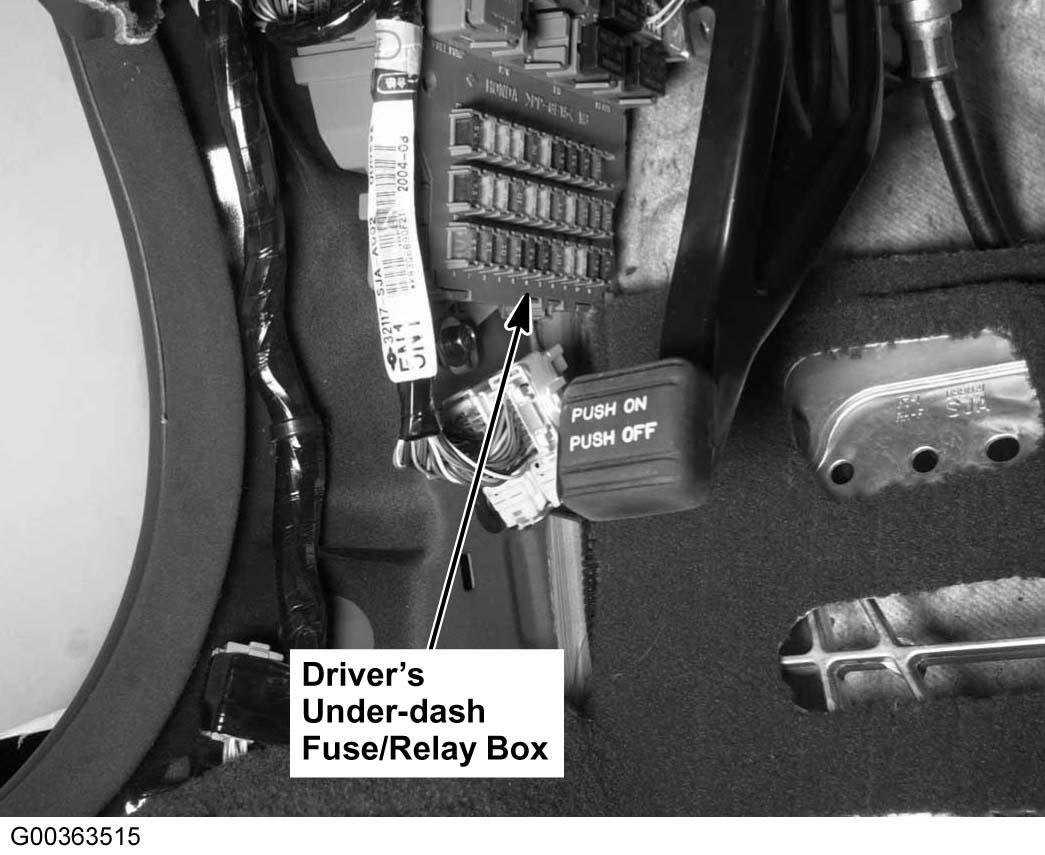

Driver's Under-Dash Fuse/Relay Box Behind left kick panel. See Figure.

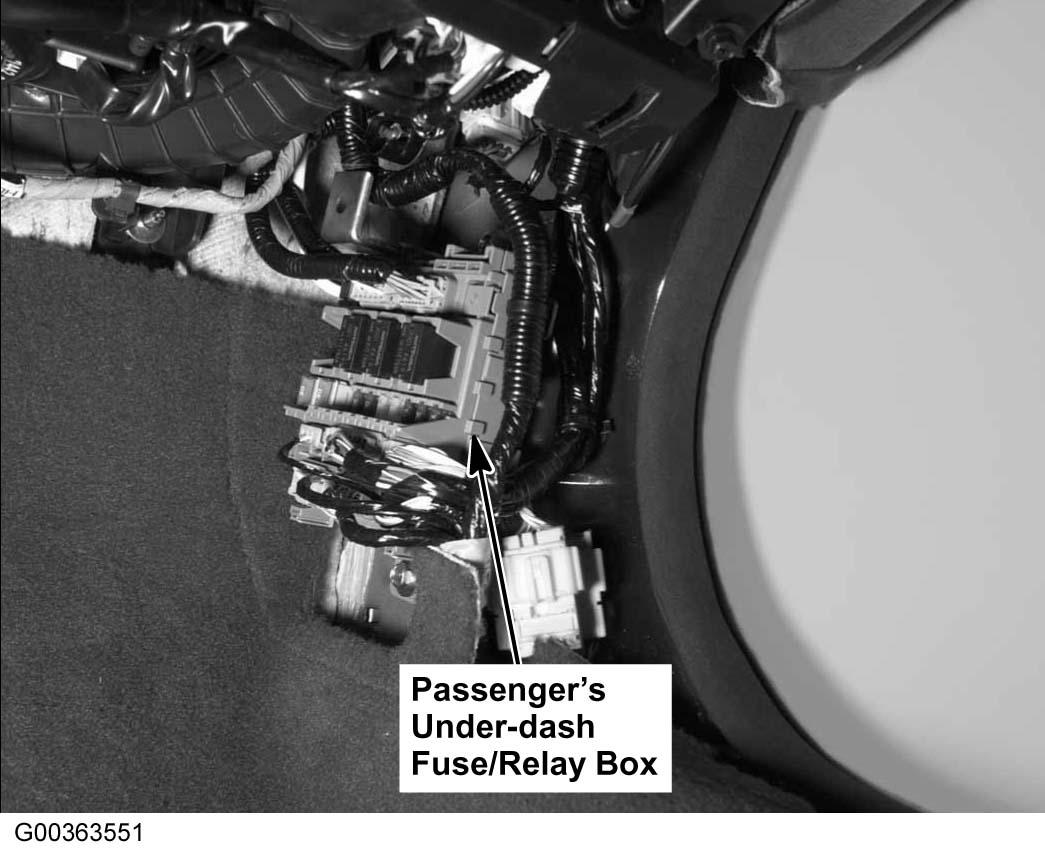

Passenger's Under-Dash Fuse/Relay Box Behind right kick panel. See Figure.

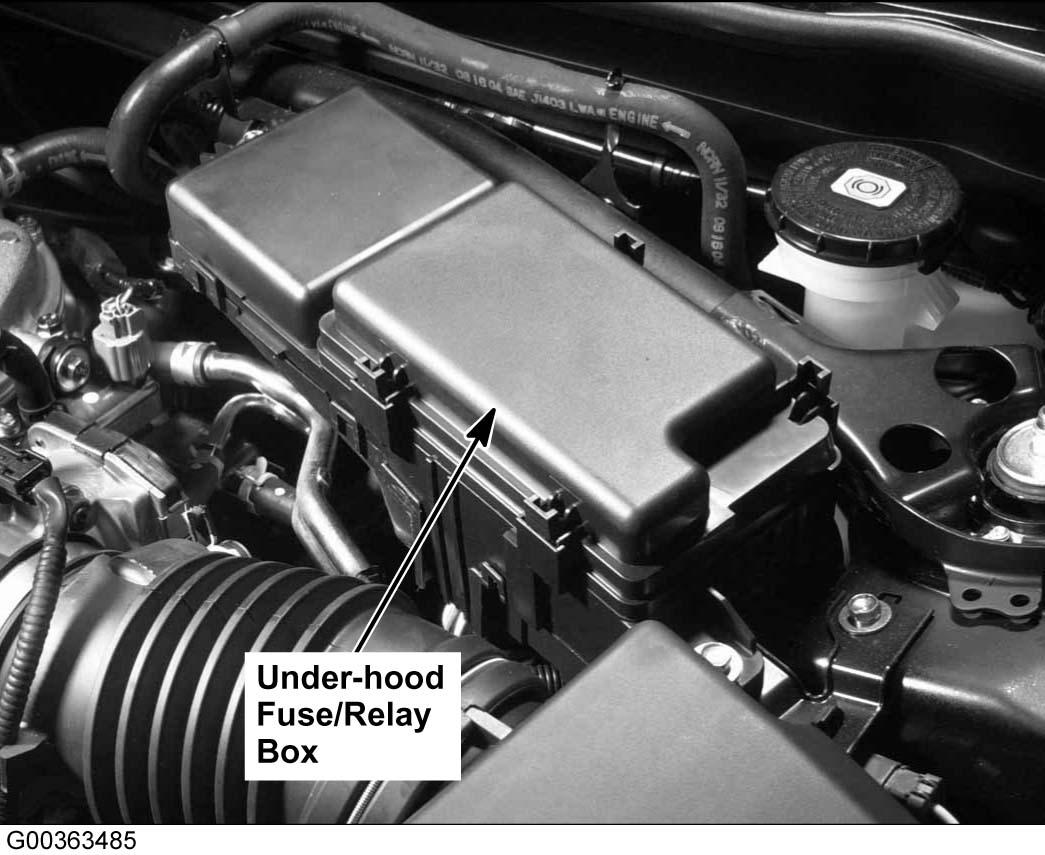

Under-Hood Fuse/Relay Box Left rear of engine compartment. See Figure.
