Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

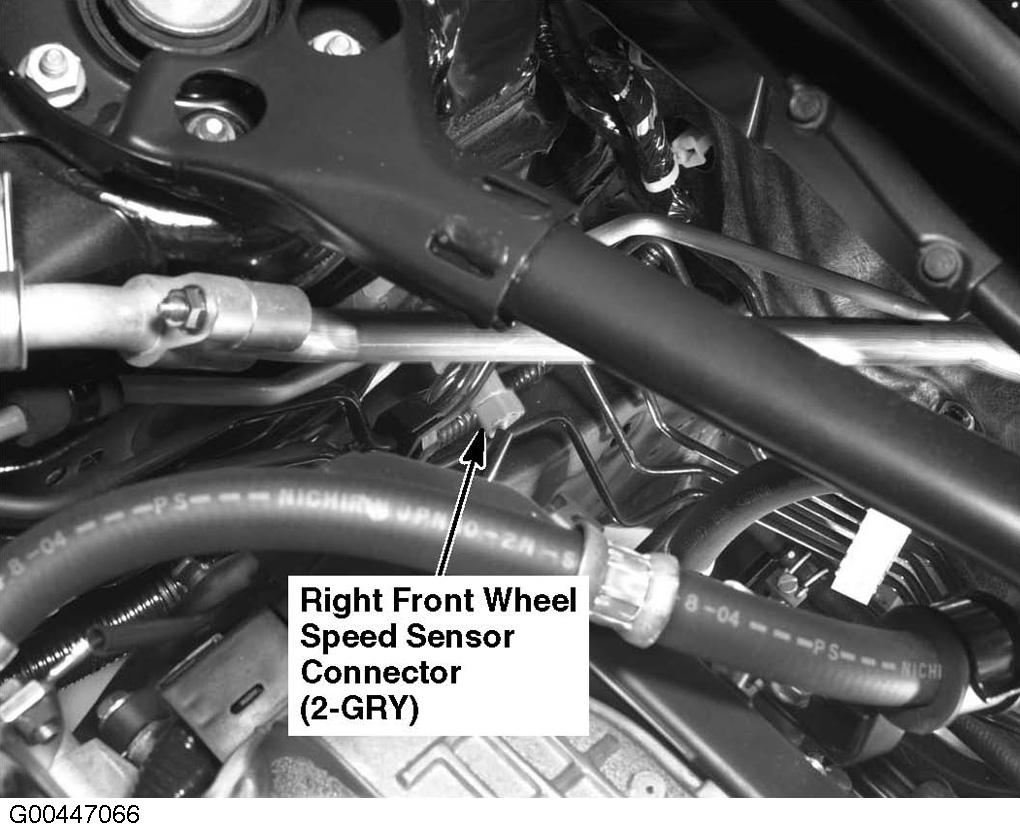

Fig 1: Right Side Of Engine Compartment

G00447066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00447065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

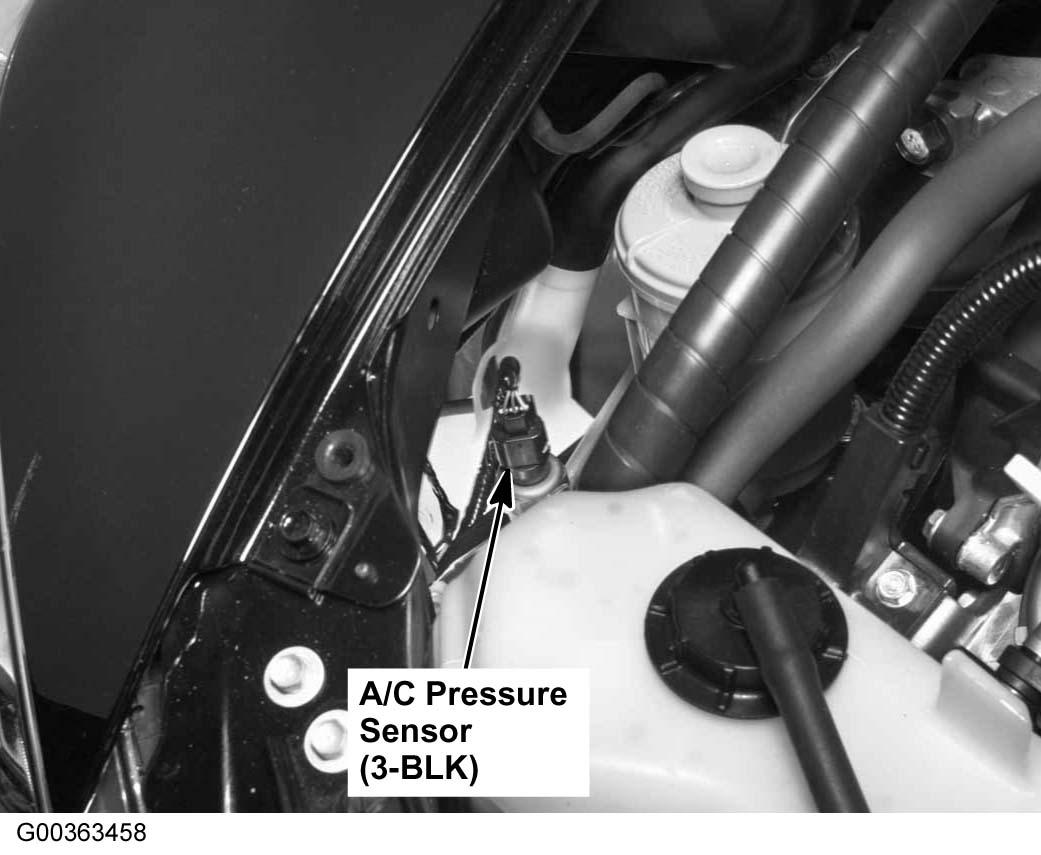

Fig 3: Right Side Of Engine Compartment

G00363458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

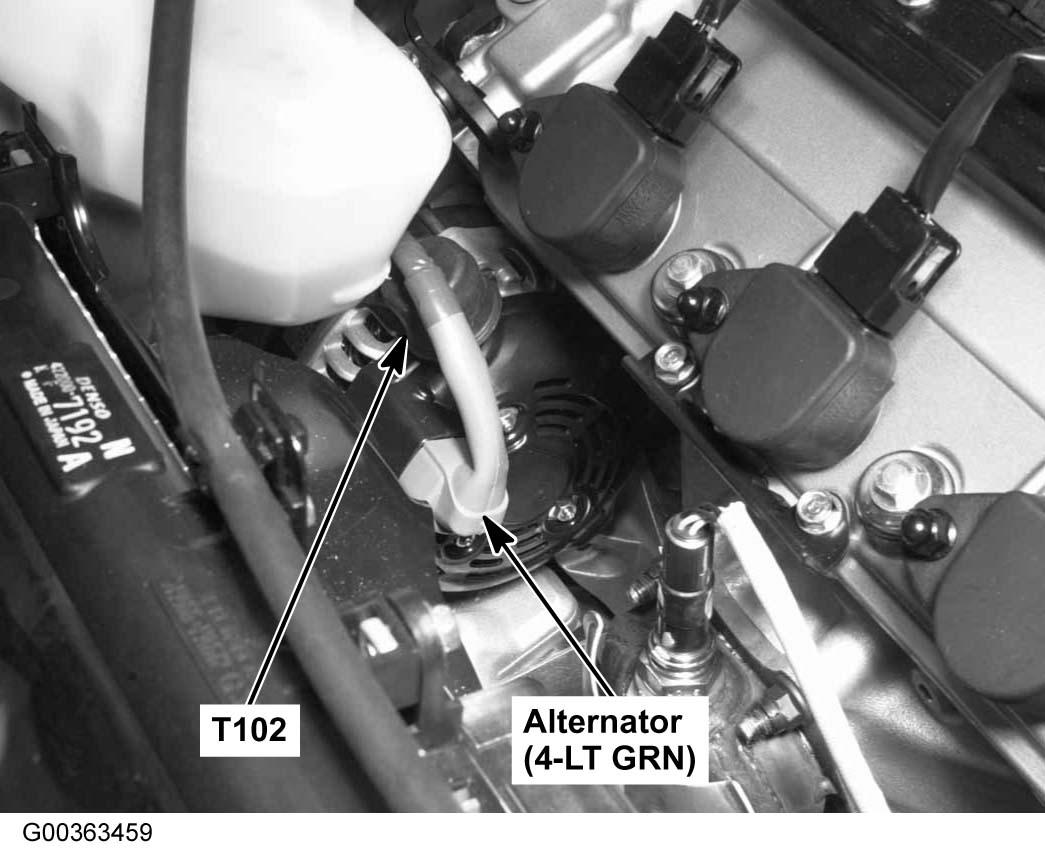

Fig 4: Right Side Of Engine Compartment

G00363459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

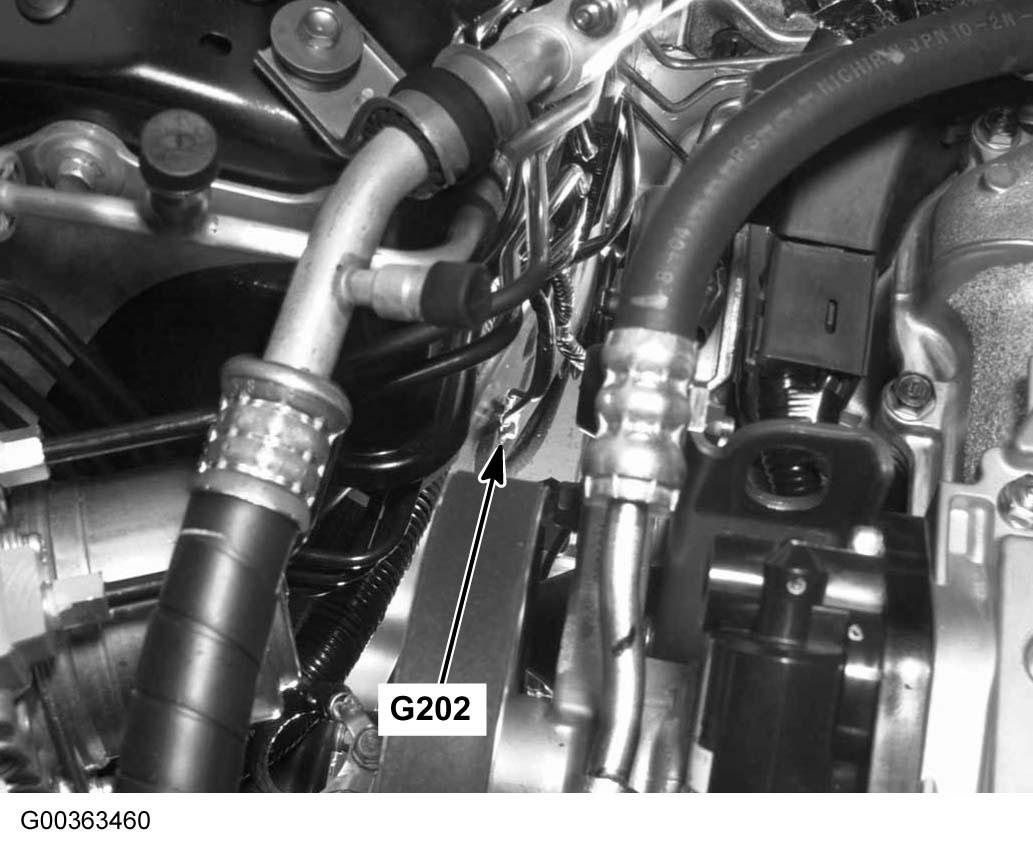

Fig 5: Right Side Of Engine Compartment

G00363460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

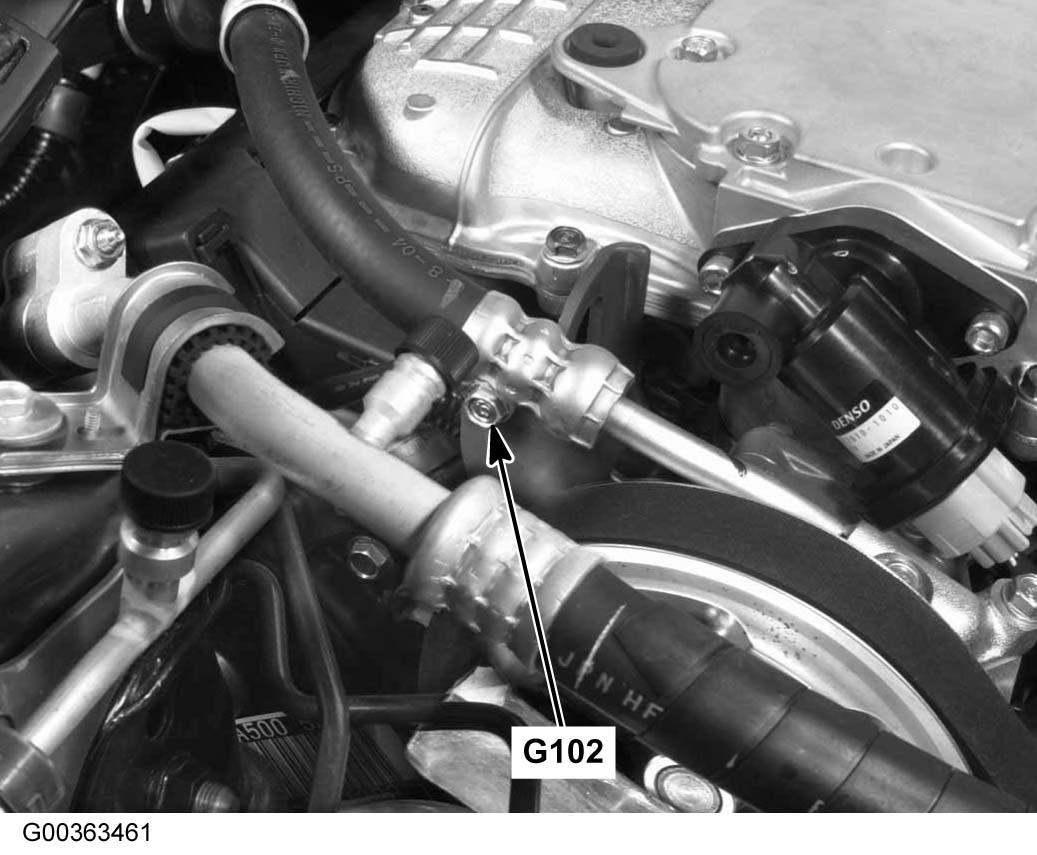

Fig 6: Right Side Of Engine

G00363461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

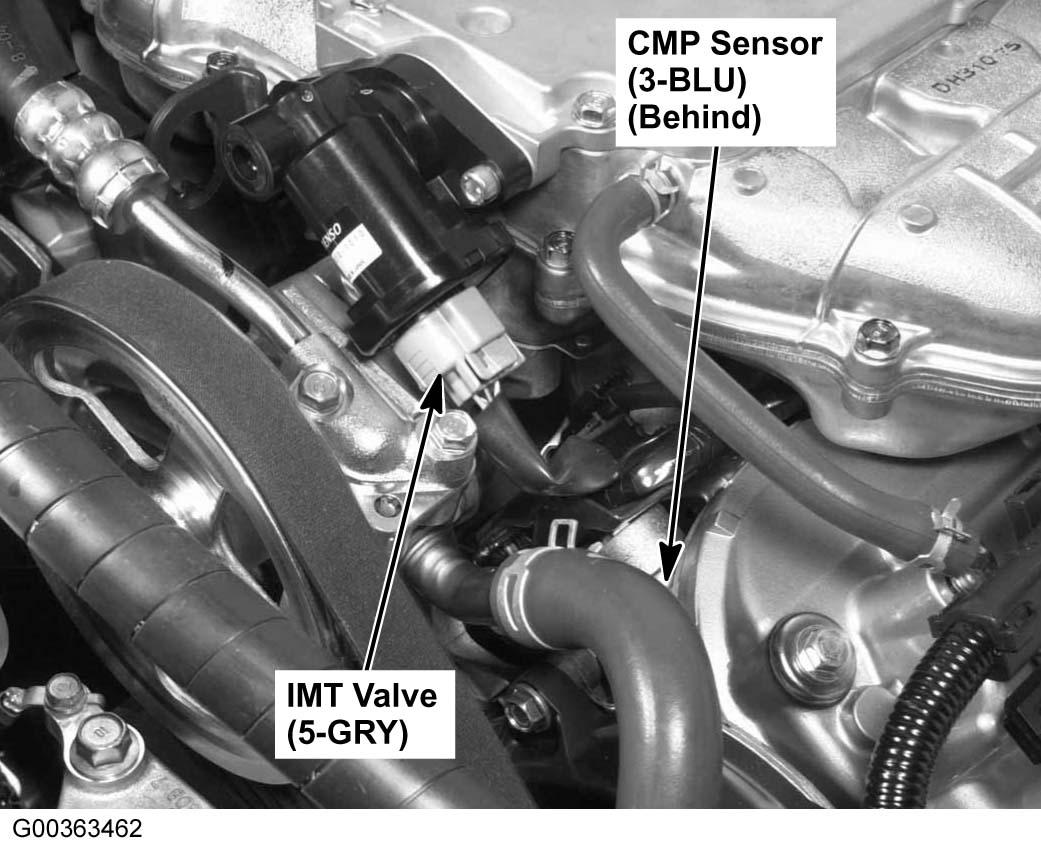

Fig 7: Right Side Of Engine

G00363462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Middle Of Engine

G00363463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

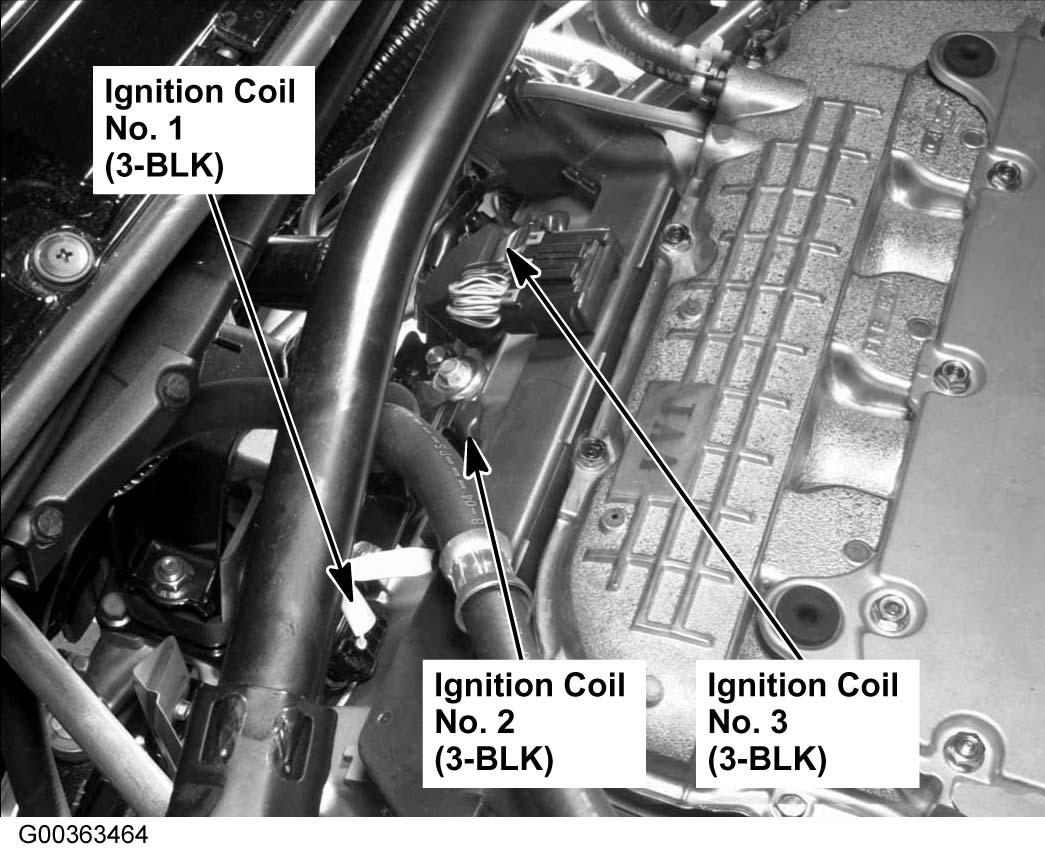

Fig 9: Middle Of Engine

G00363464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

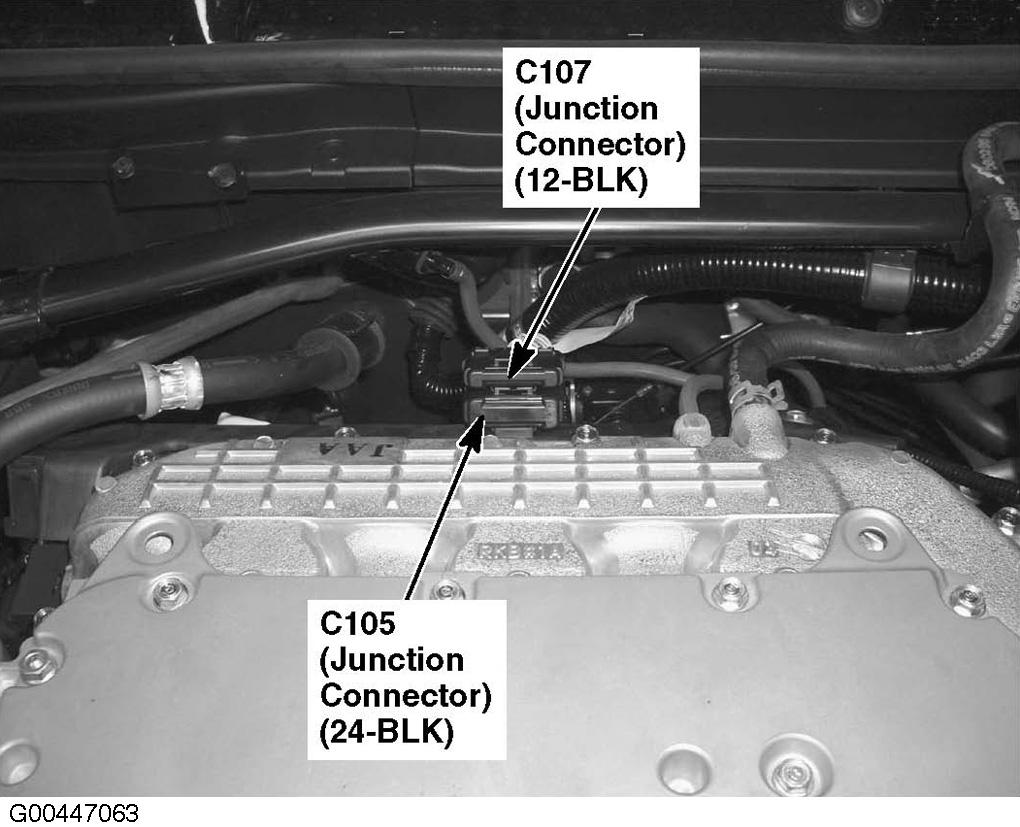

Fig 10: Middle Of Engine

G00447063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

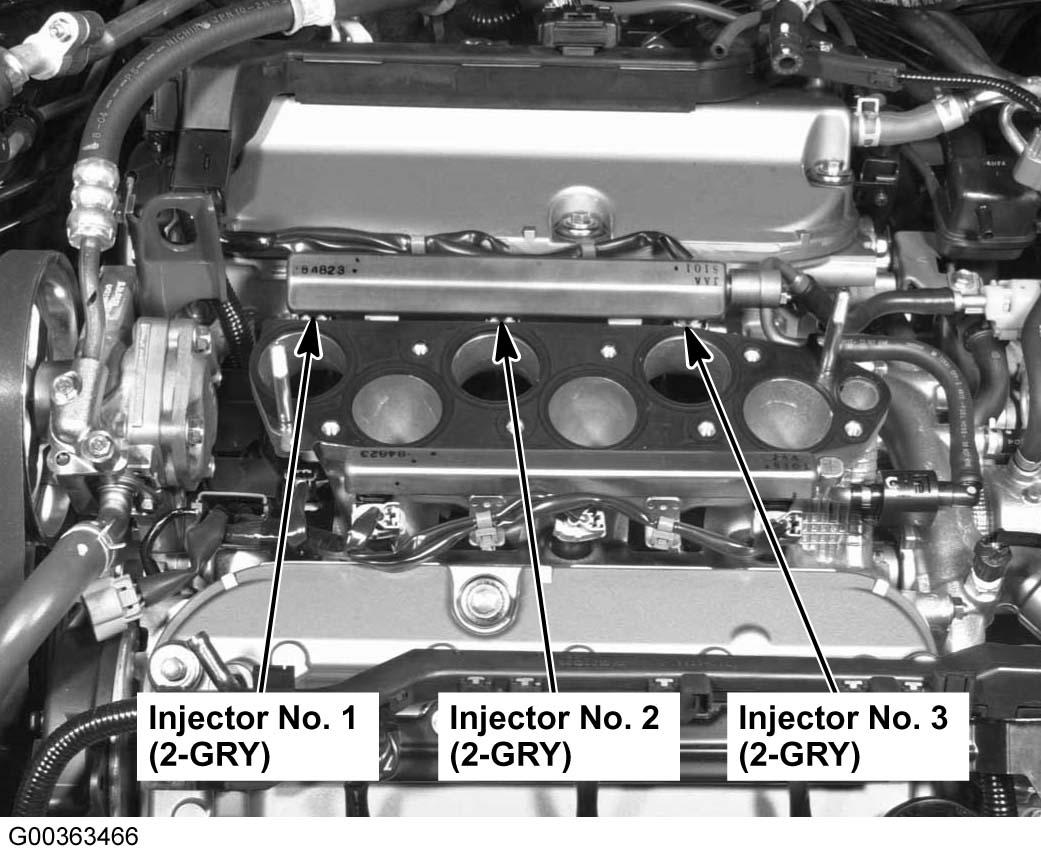

Fig 11: Middle Of Engine

G00363466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

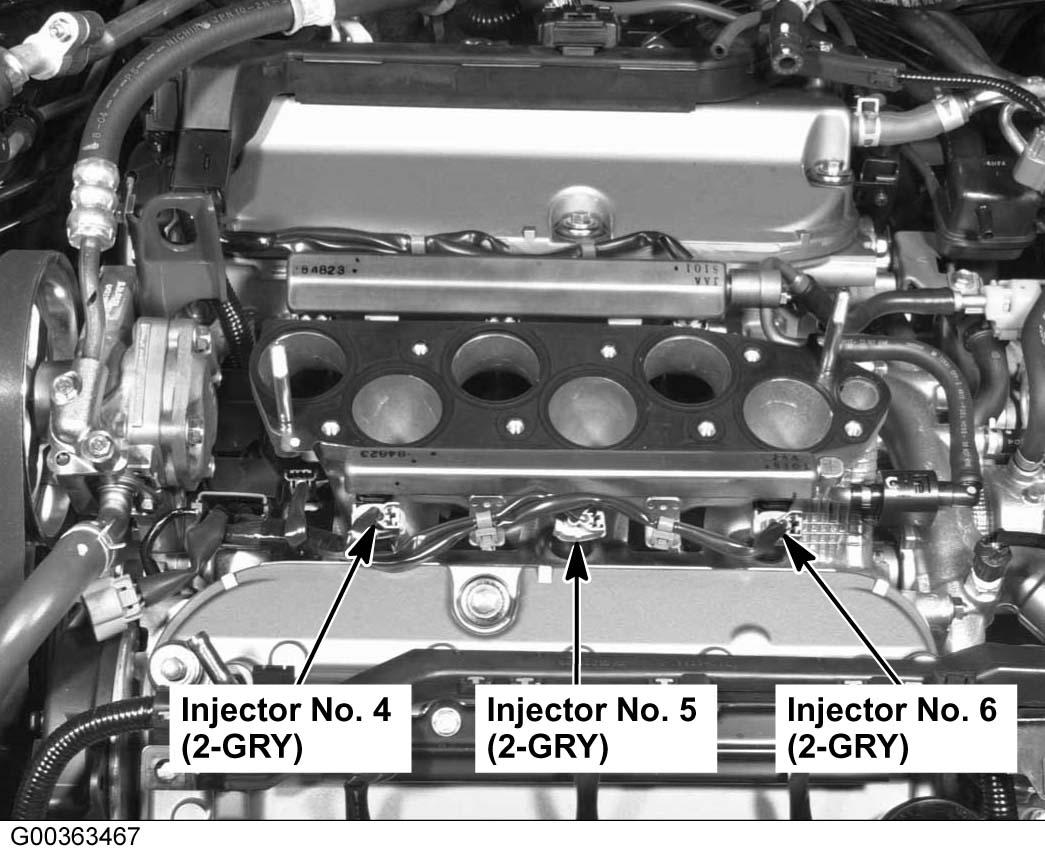

Fig 12: Middle Of Engine

G00363467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

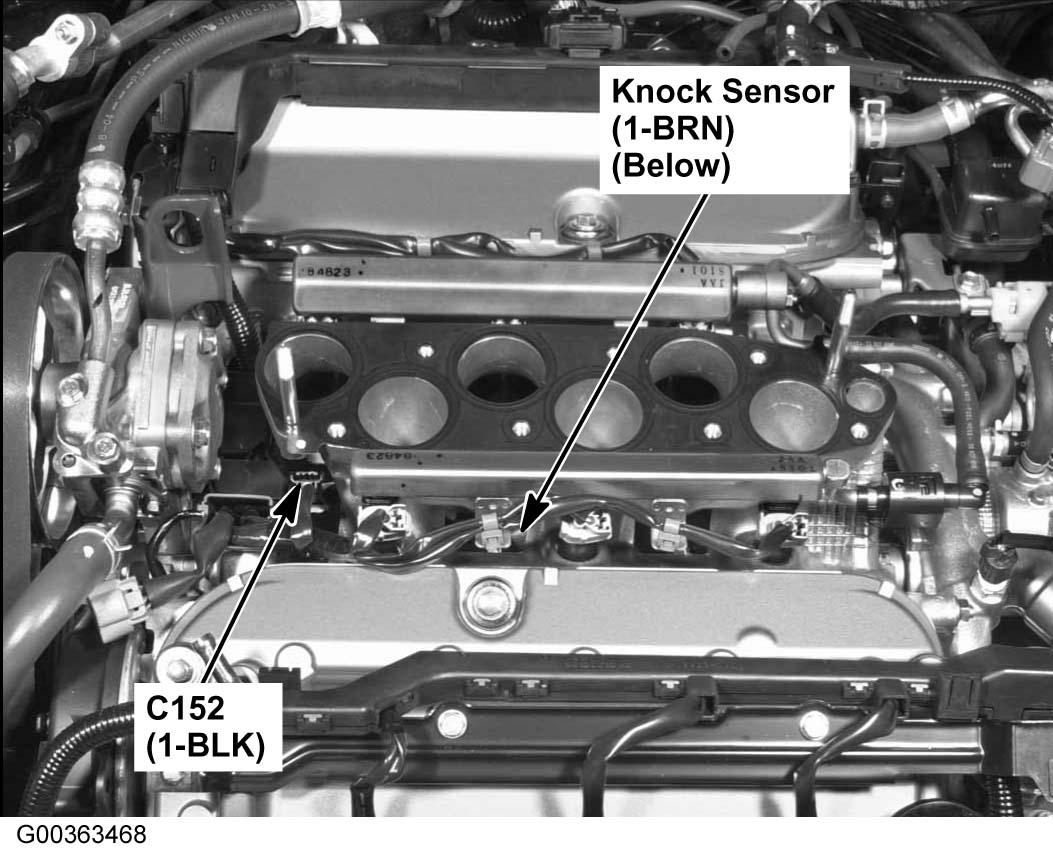

Fig 13: Middle Of Engine

G00363468

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Middle Of Engine

G00363469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

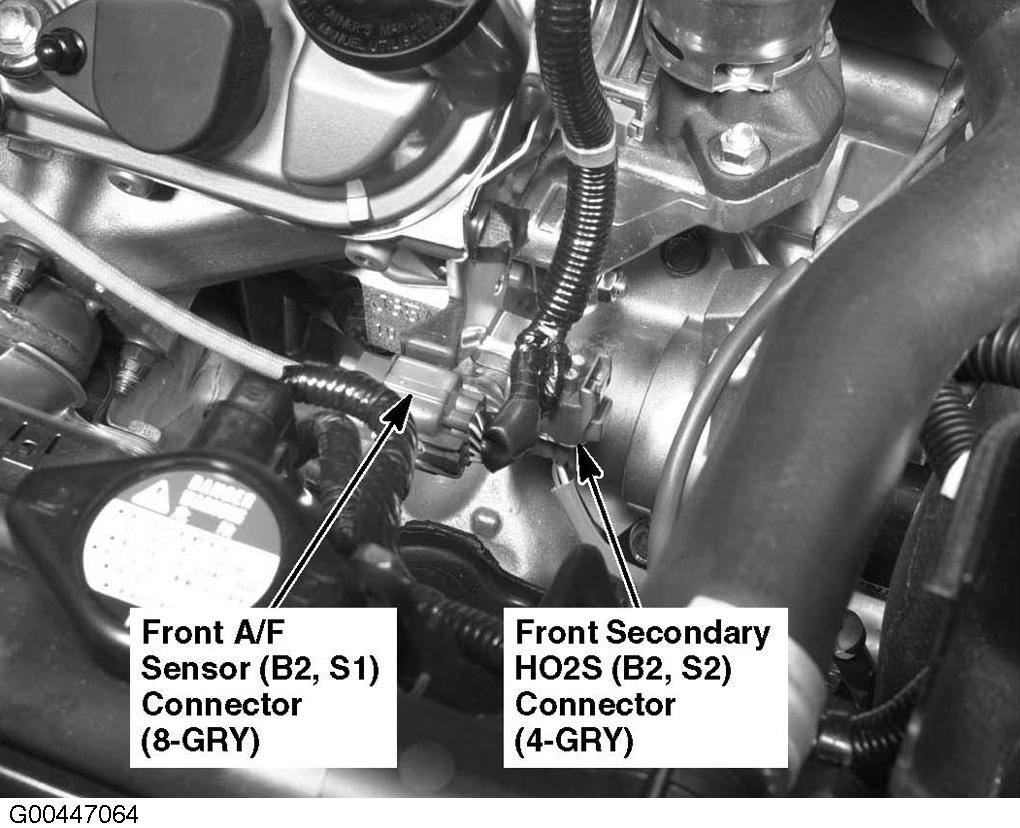

Fig 15: Middle Of Engine

G00447064

Courtesy of AMERICAN HONDA MOTOR CO., INC.

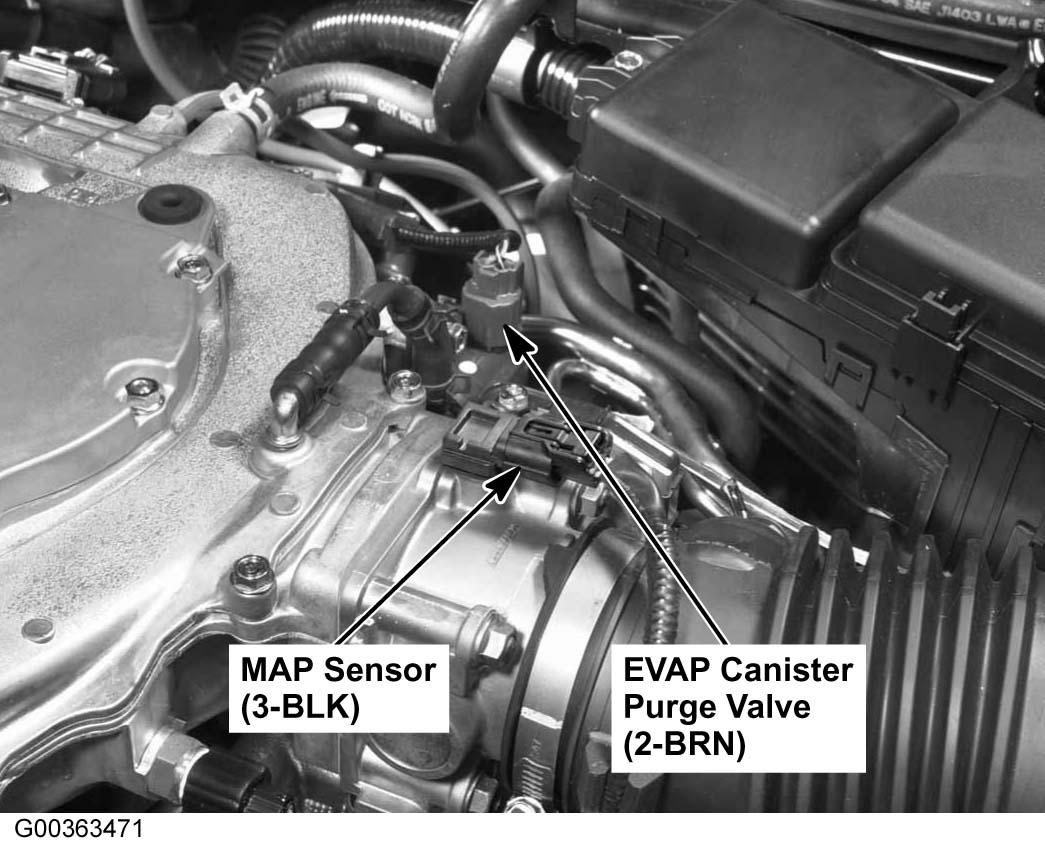

Fig 16: Left Side Of Engine

G00363471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

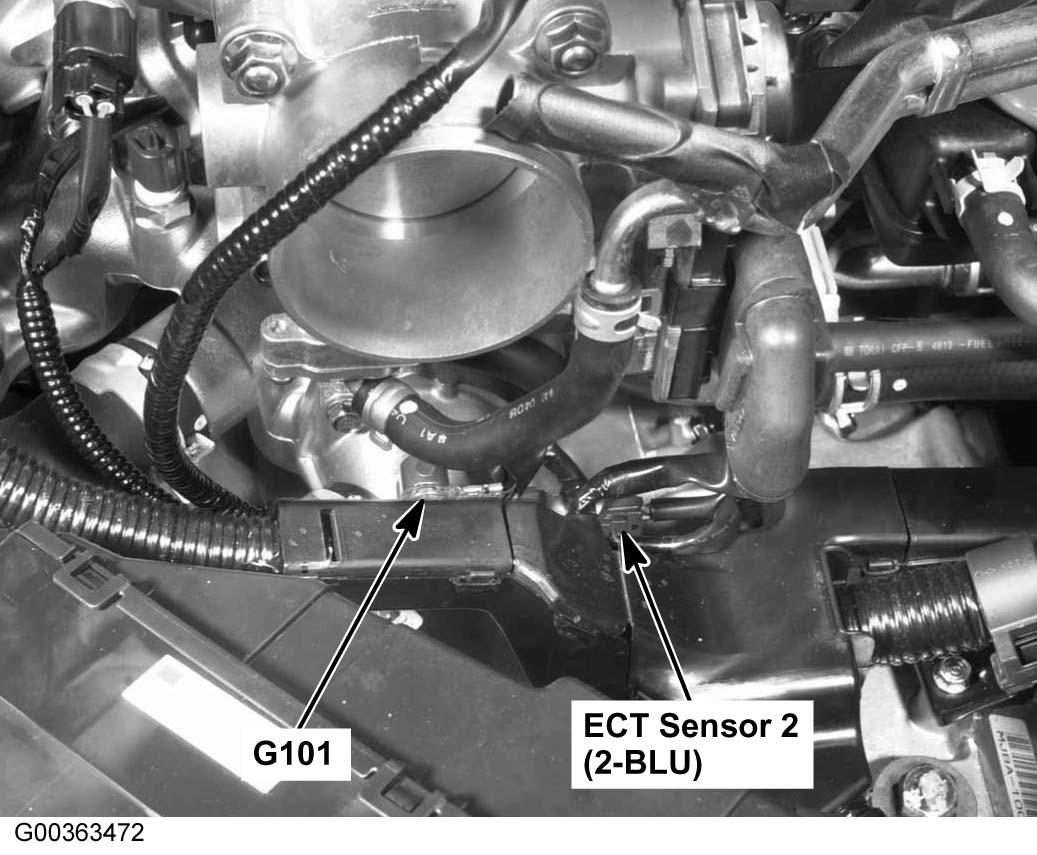

Fig 17: Left Side Of Engine

G00363472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Left Side Of Engine

G00363473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

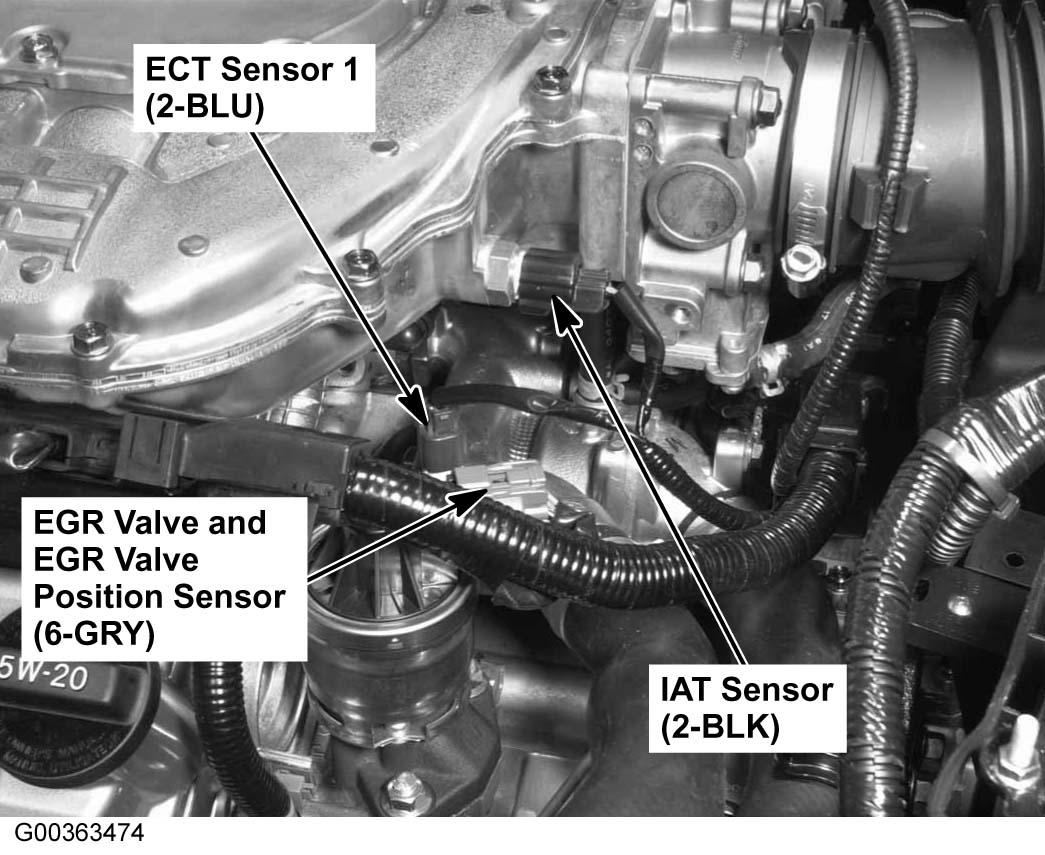

Fig 19: Left Side Of Engine

G00363474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

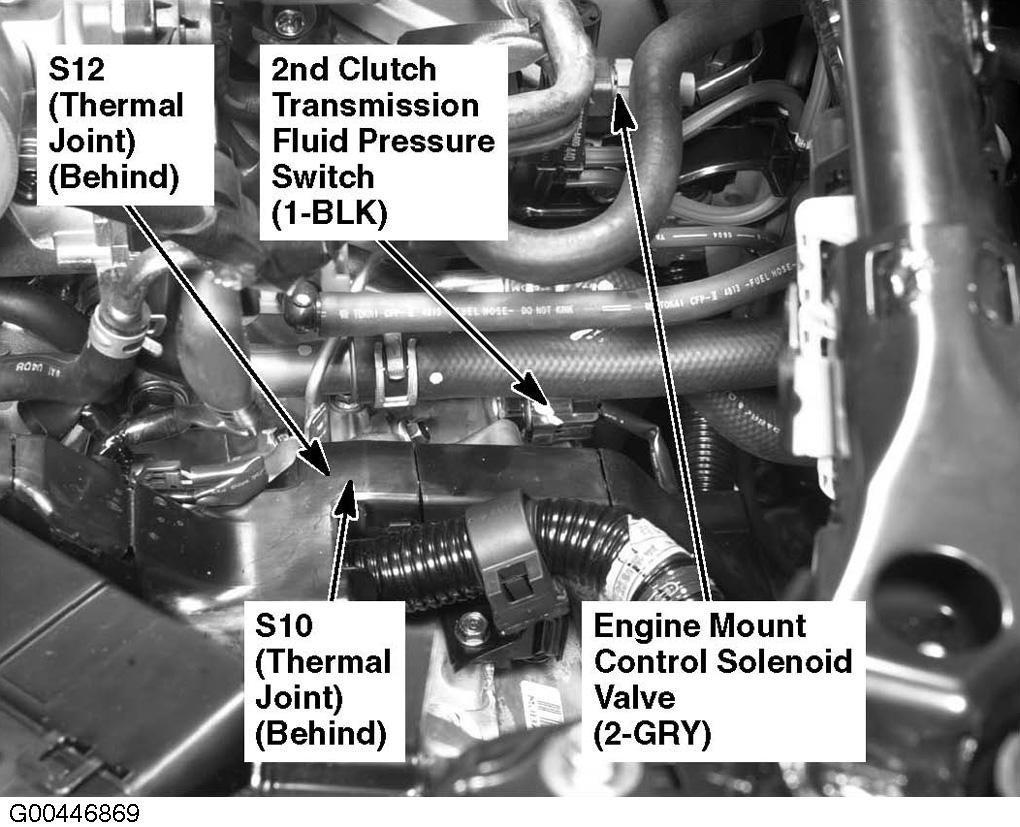

Fig 20: Left Side Of Engine

G00446869

Courtesy of AMERICAN HONDA MOTOR CO., INC.

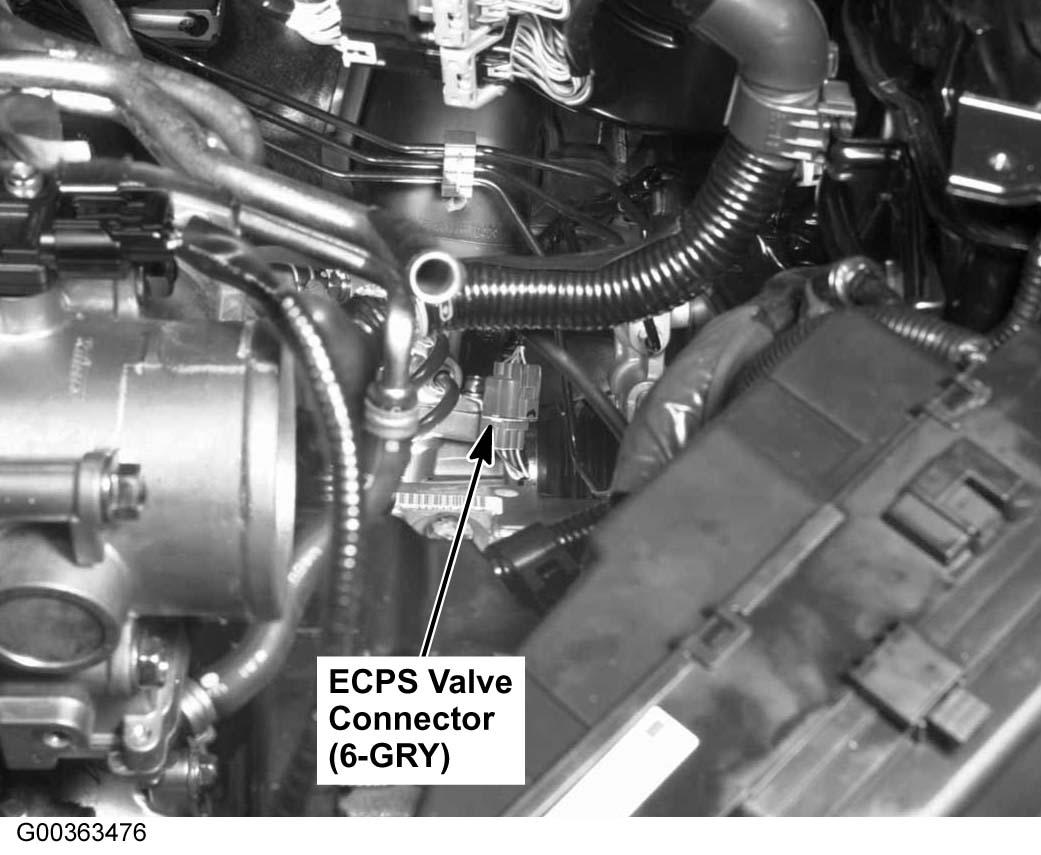

Fig 21: Left Side Of Engine Compartment

G00363476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

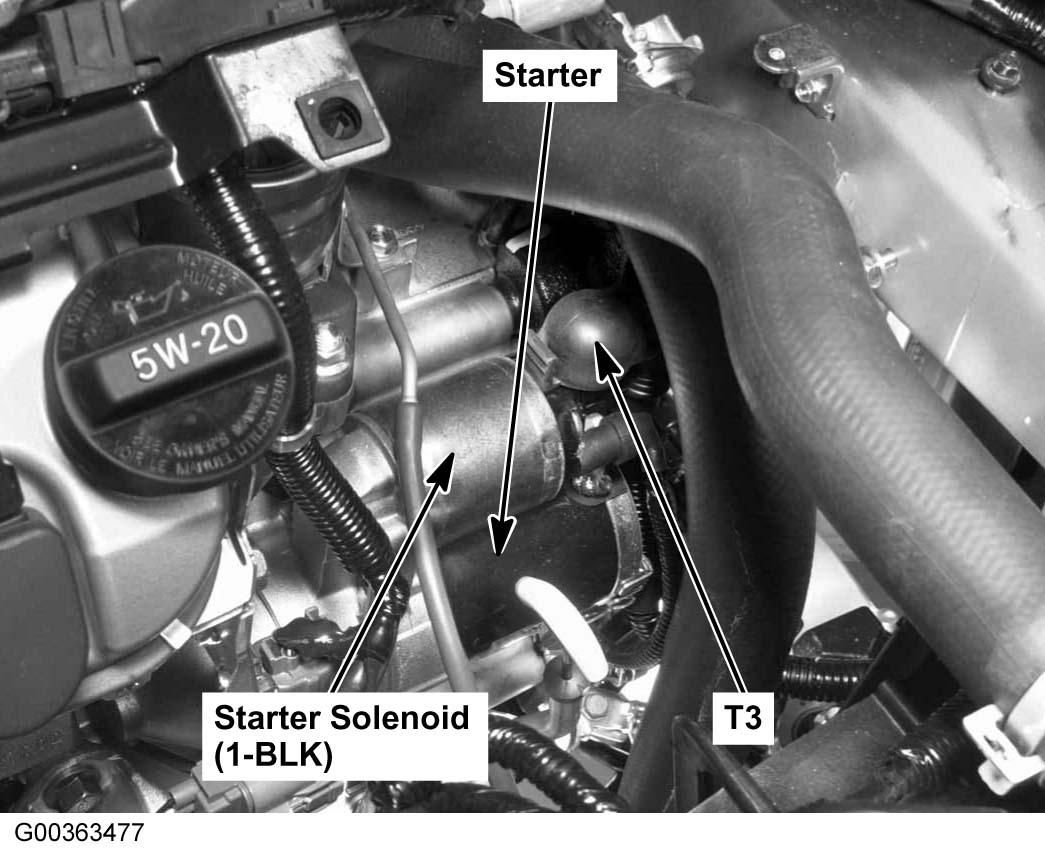

Fig 22: Transmission Housing

G00363477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

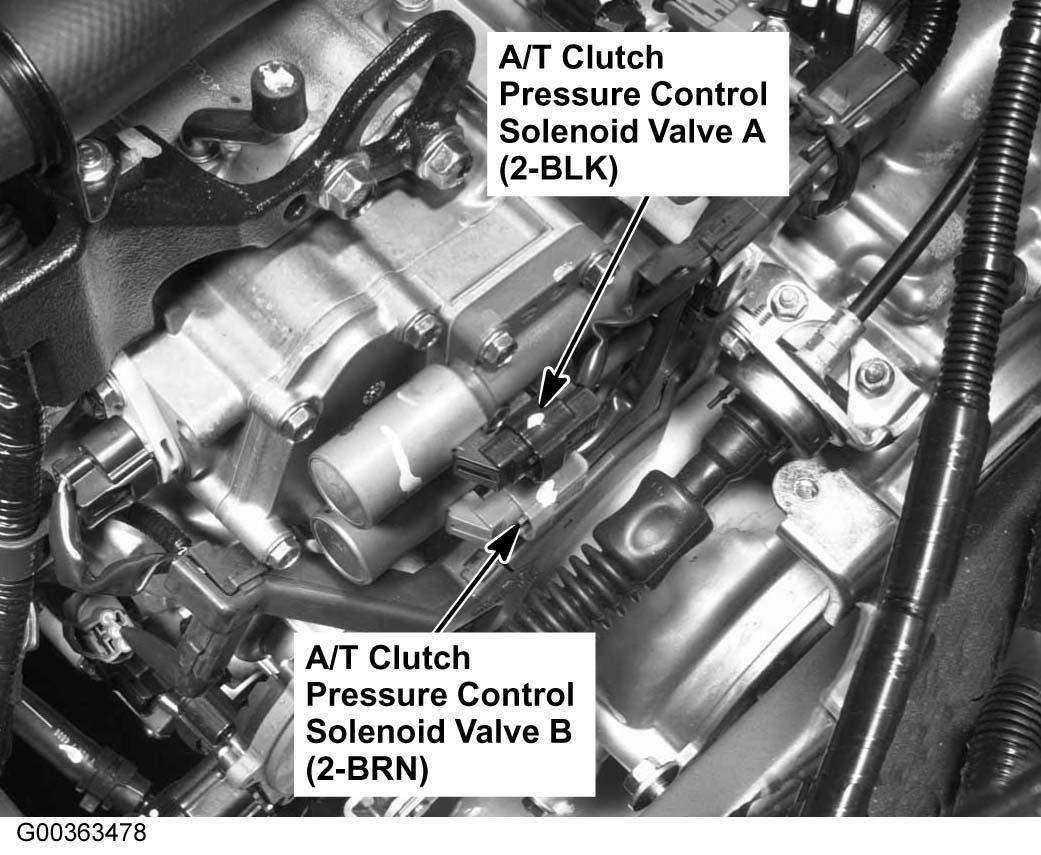

Fig 23: Transmission Housing

G00363478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Transmission Housing

G00447070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

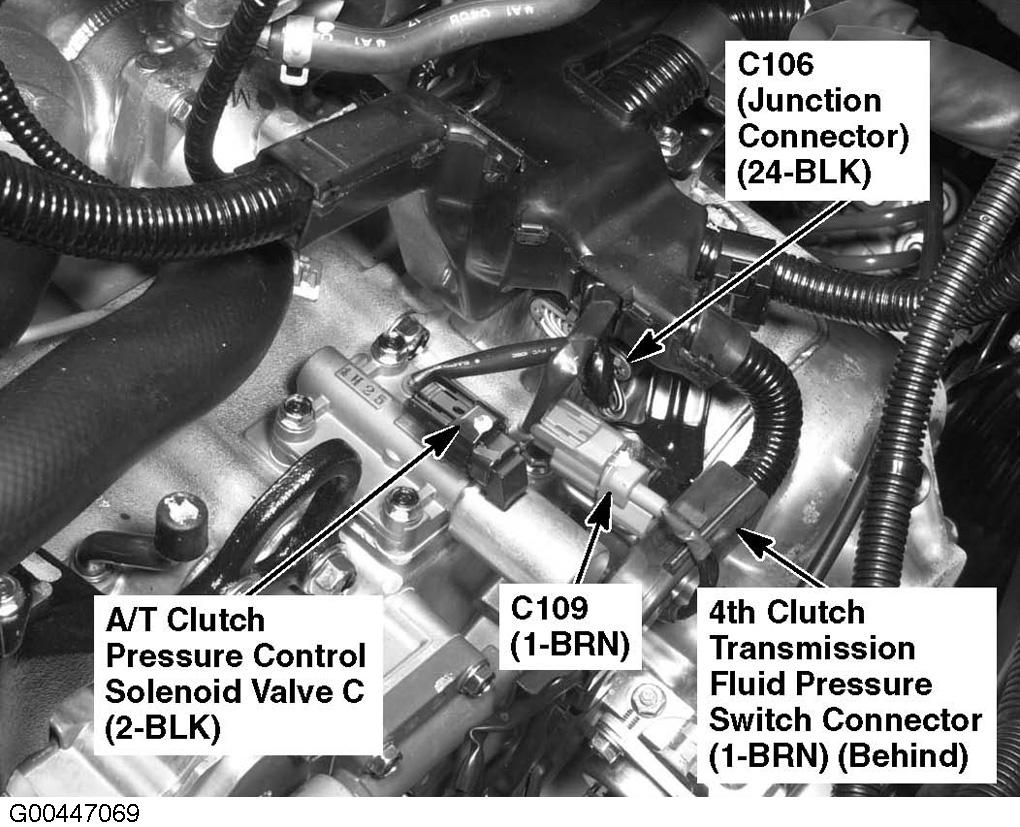

Fig 25: Transmission Housing

G00447069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

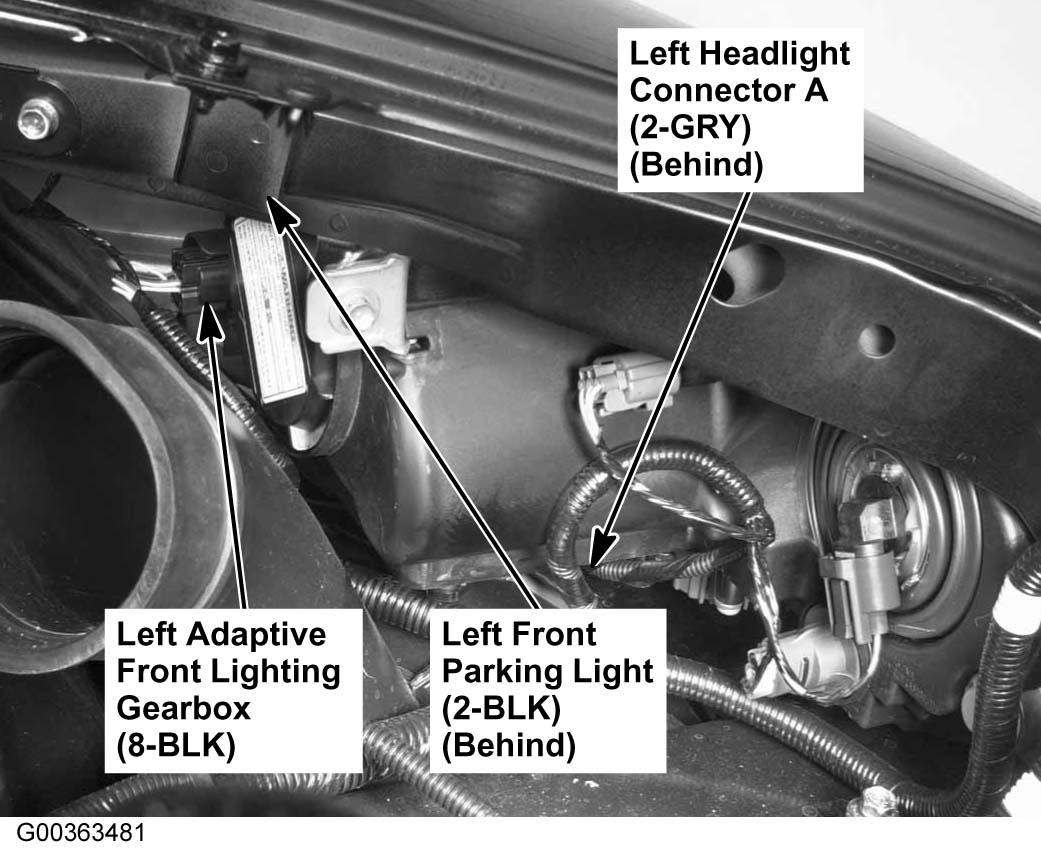

Fig 26: Behind Left Headlight Assembly (Right Similar)

G00363481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

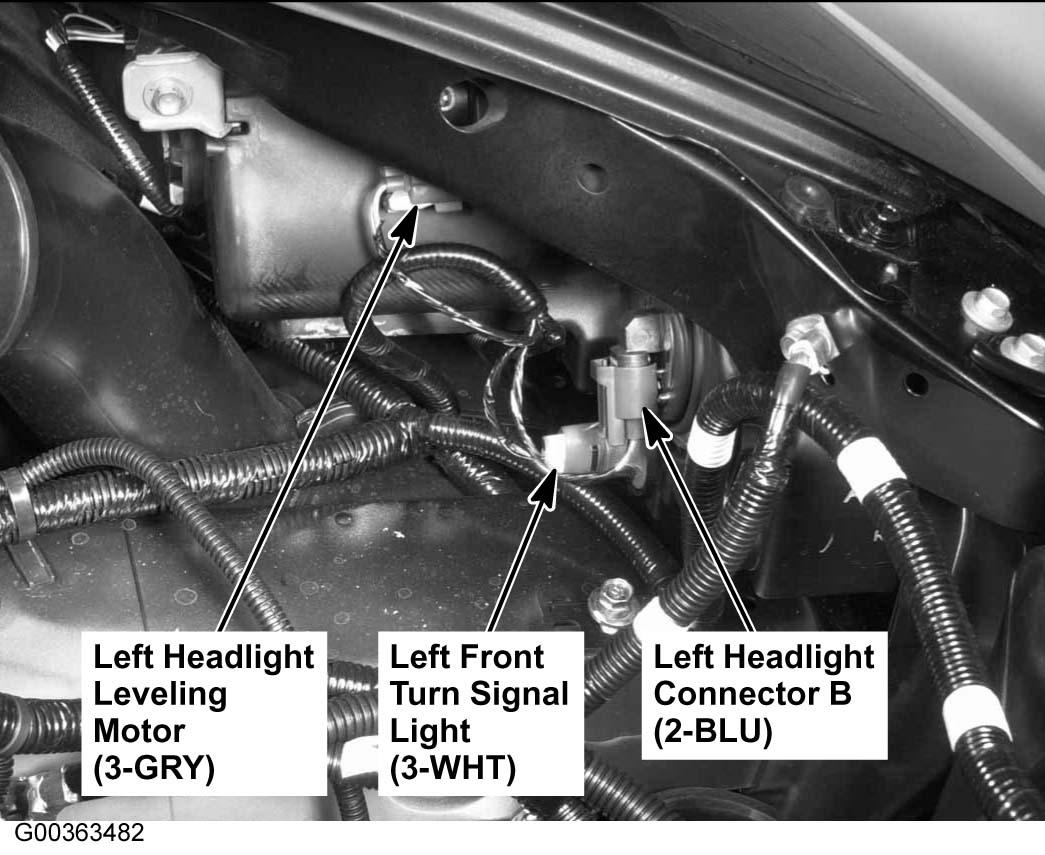

Fig 27: Behind Left Headlight Assembly (Right Similar)

G00363482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Middle Of Engine Compartment

G00363483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

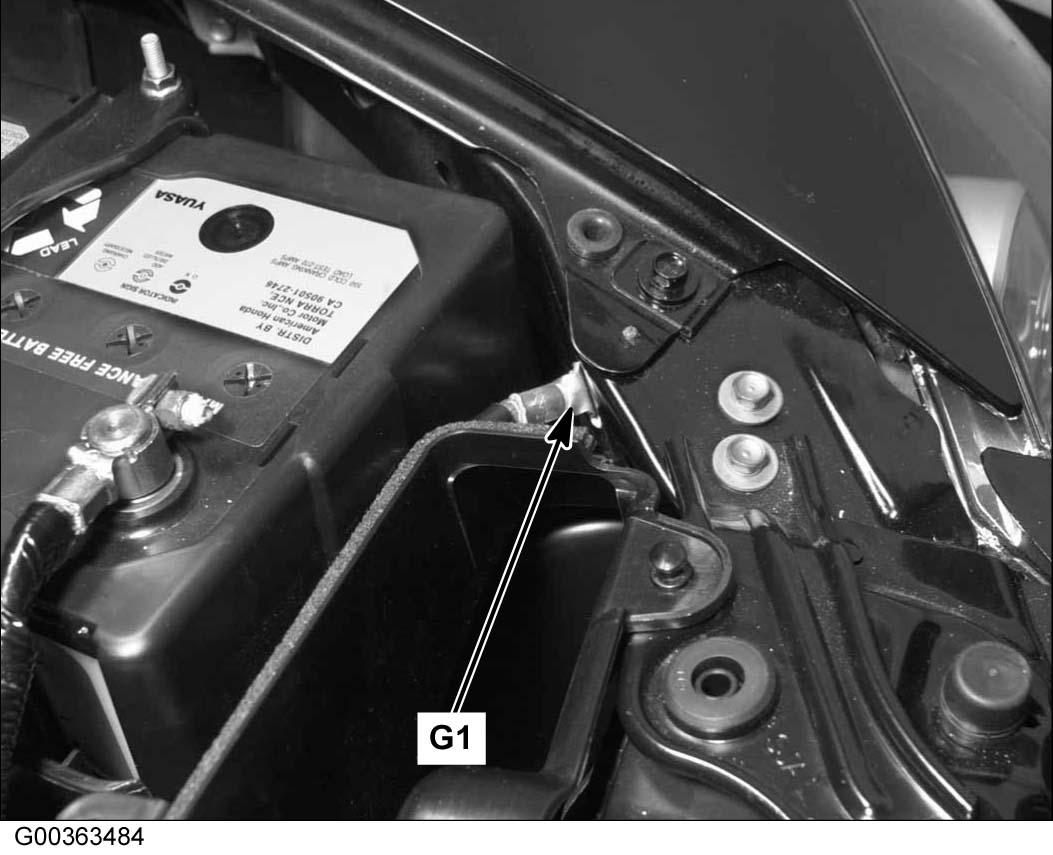

Fig 29: Left Side Of Engine Compartment

G00363484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Left Side Of Engine Compartment

G00363485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

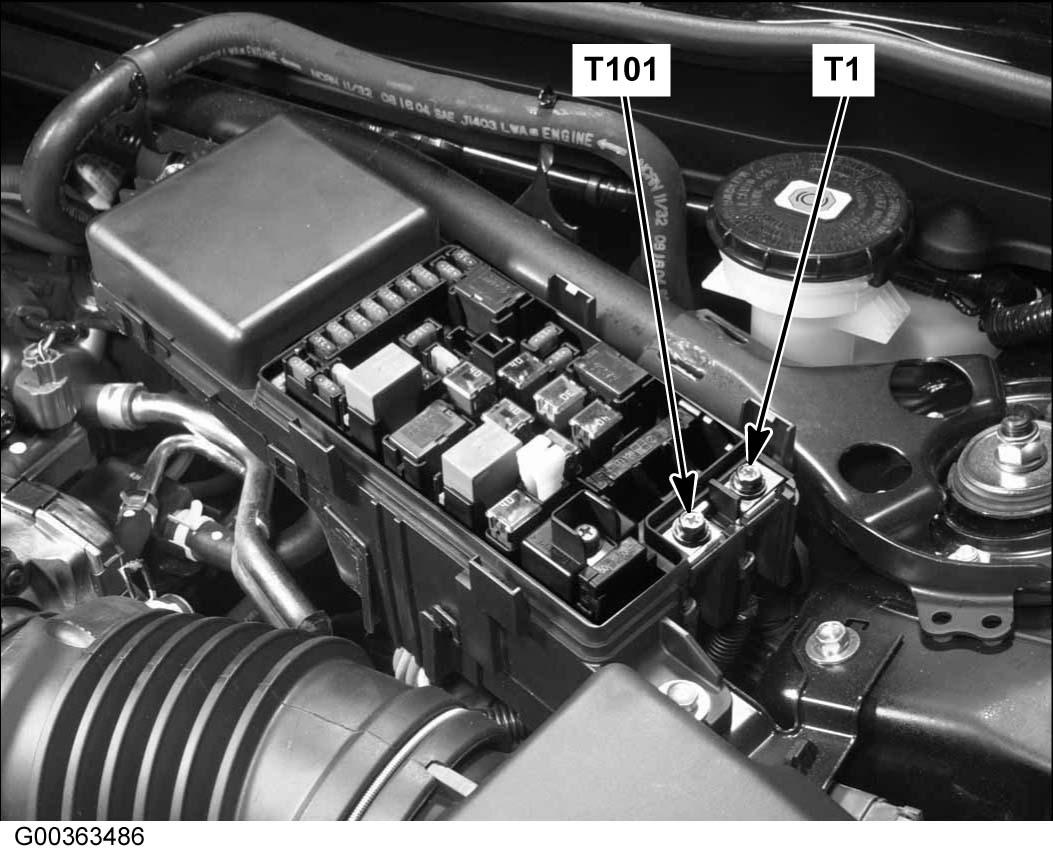

Fig 31: Left Side Of Engine Compartment

G00363486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Left Side Of Engine Compartment

G00363487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

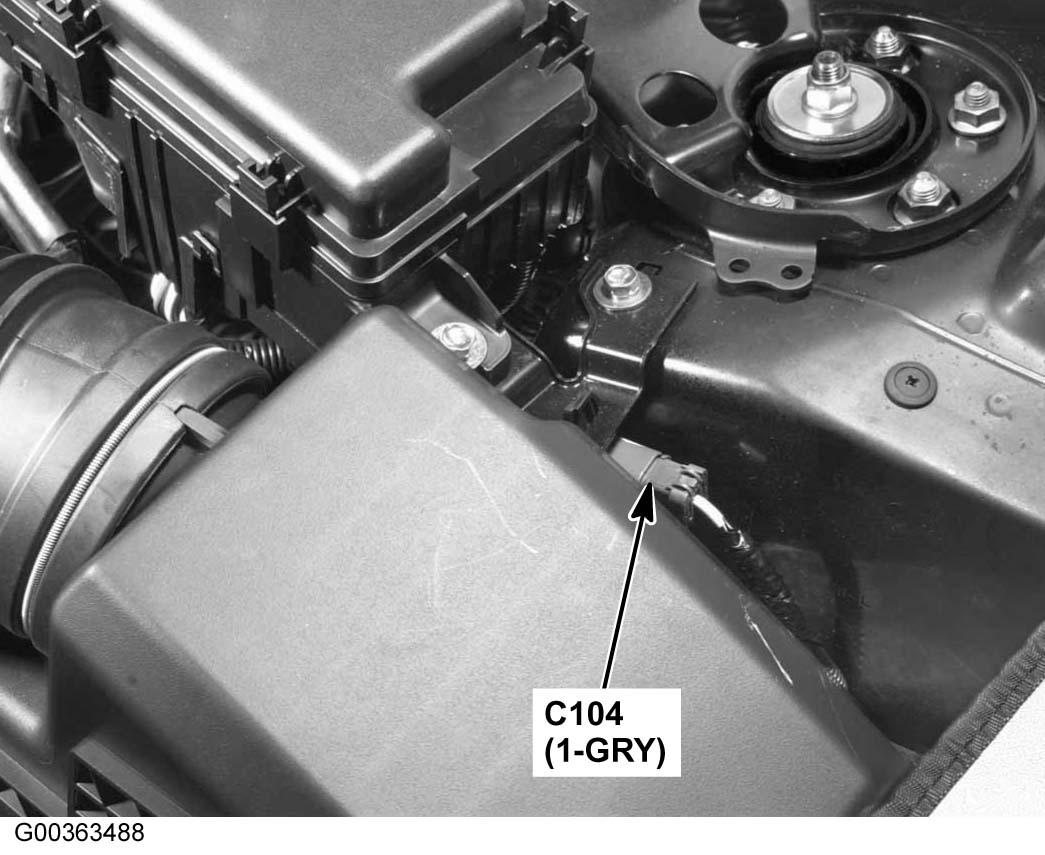

Fig 33: Left Side Of Engine Compartment

G00363488

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Left Side Of Engine Compartment

G00447061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

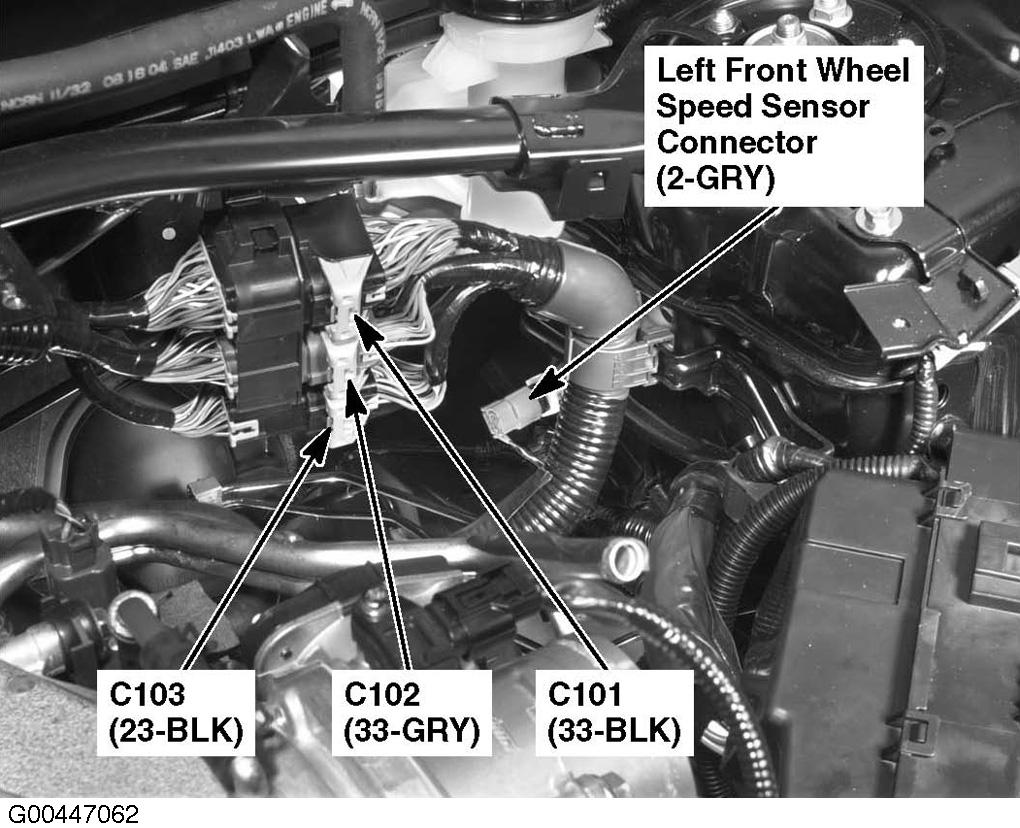

Fig 35: Left Side Of Engine Compartment

G00447062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Left Side Of Engine Compartment

G00363491

Courtesy of AMERICAN HONDA MOTOR CO., INC.

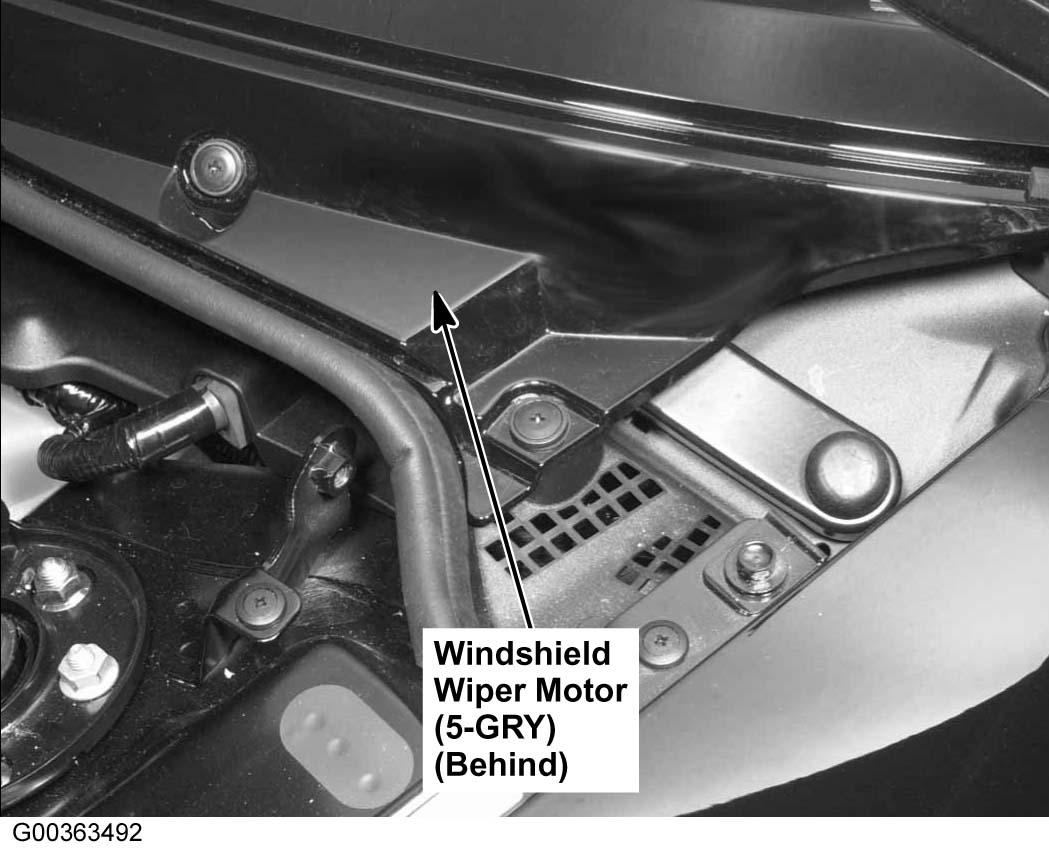

Fig 37: Under Left Side Of Cowl Cover

G00363492

Courtesy of AMERICAN HONDA MOTOR CO., INC.

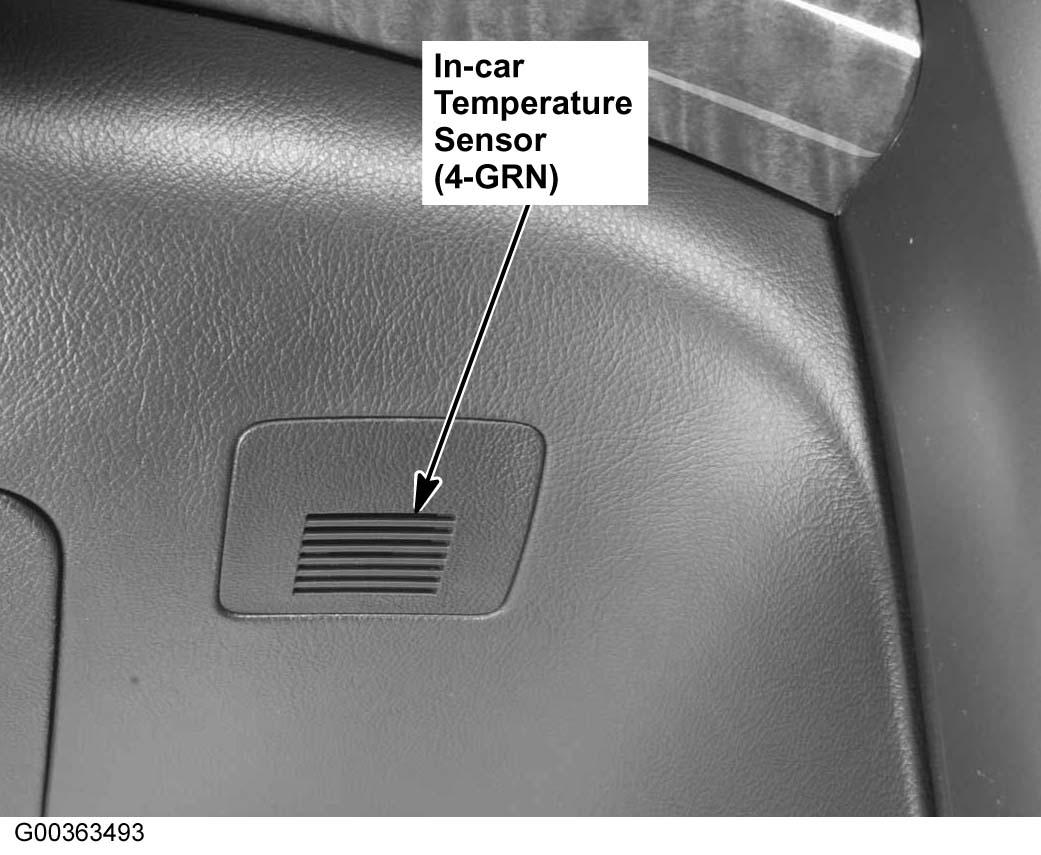

Fig 38: Left Side Of Dash

G00363493

Courtesy of AMERICAN HONDA MOTOR CO., INC.

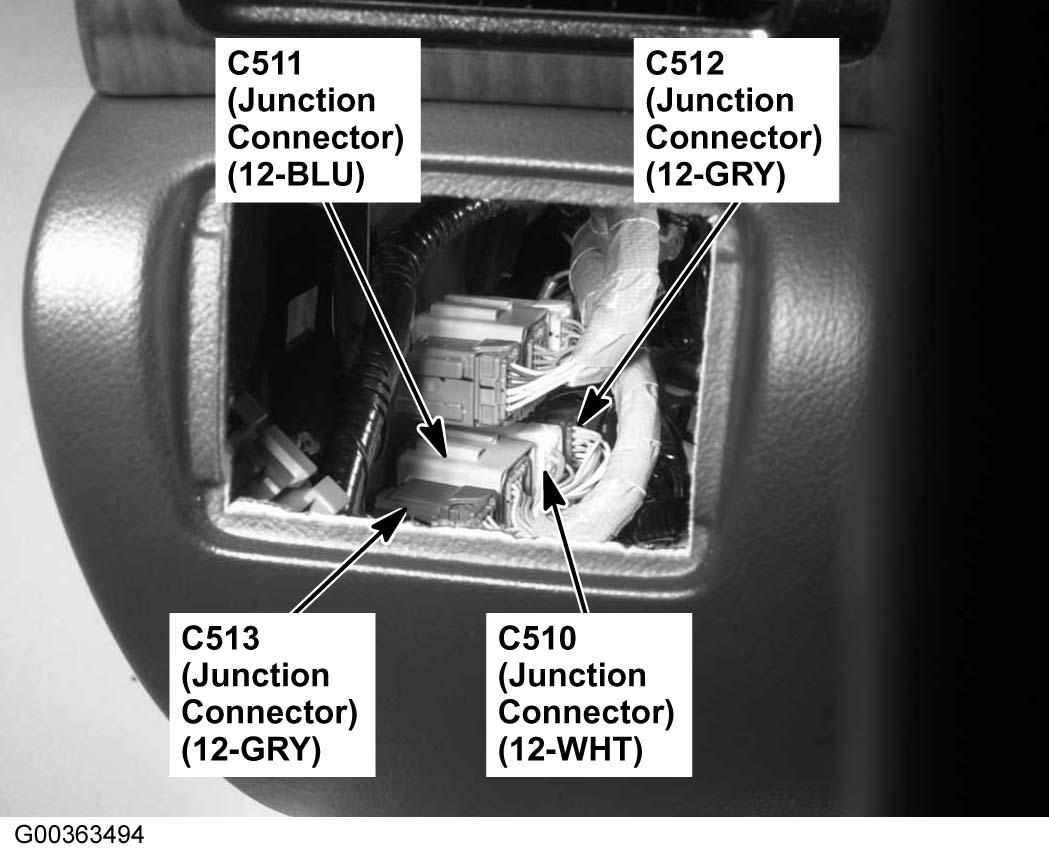

Fig 39: Left Side Of Dash

G00363494

Courtesy of AMERICAN HONDA MOTOR CO., INC.

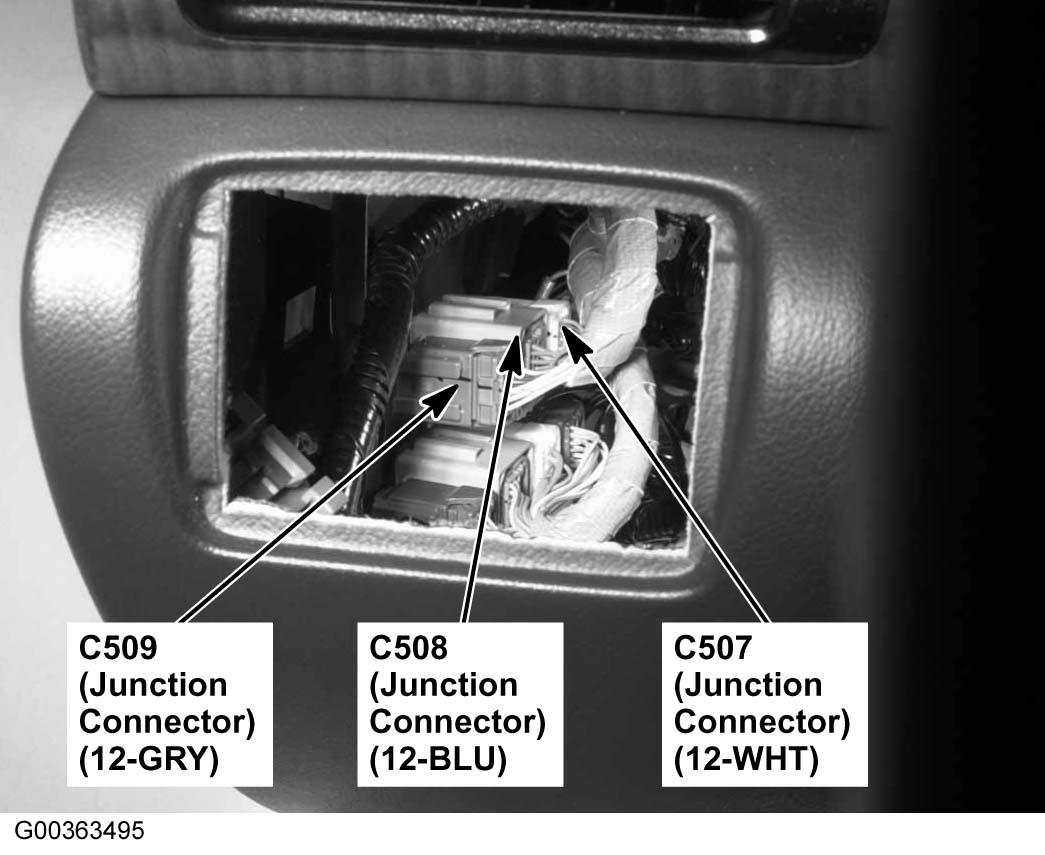

Fig 40: Left Side Of Dash

G00363495

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Under Left Side Of Dash

G00447072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

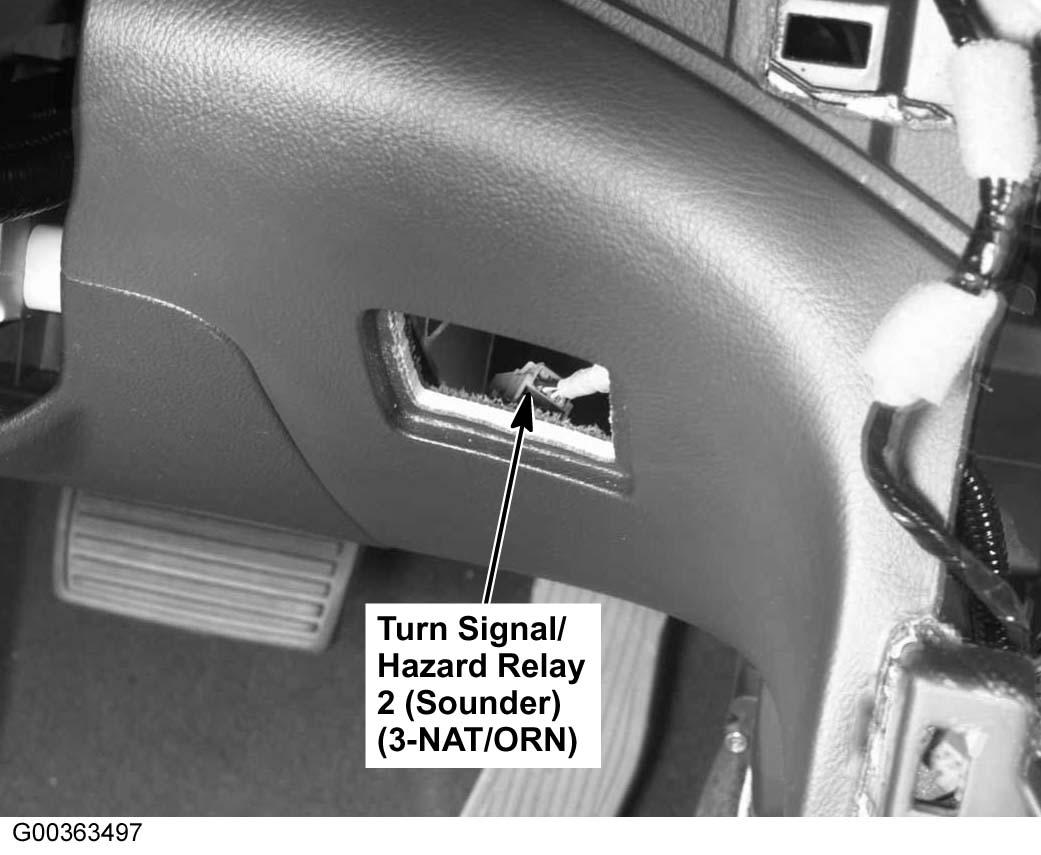

Fig 42: Under Left Side Of Dash

G00363497

Courtesy of AMERICAN HONDA MOTOR CO., INC.

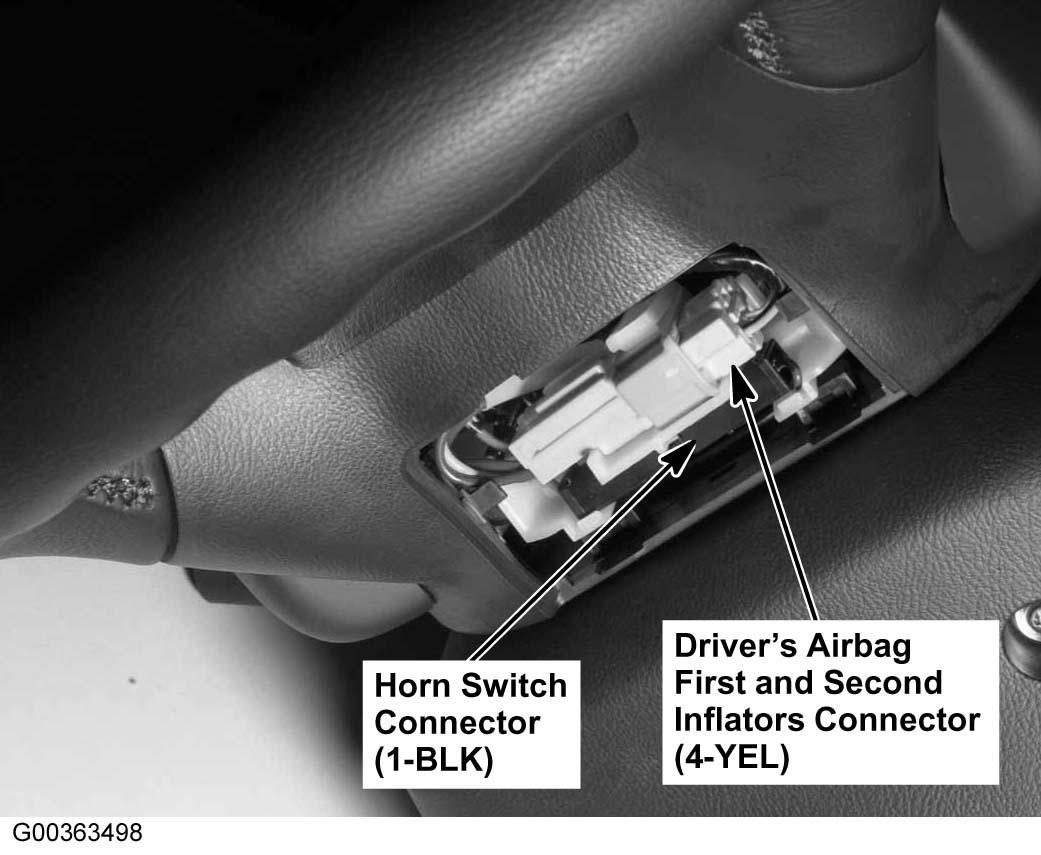

Fig 43: Base Of Steering Wheel

G00363498

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Inside Steering Wheel

G00363499

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: In Steering Wheel Cover

G00363500

Courtesy of AMERICAN HONDA MOTOR CO., INC.

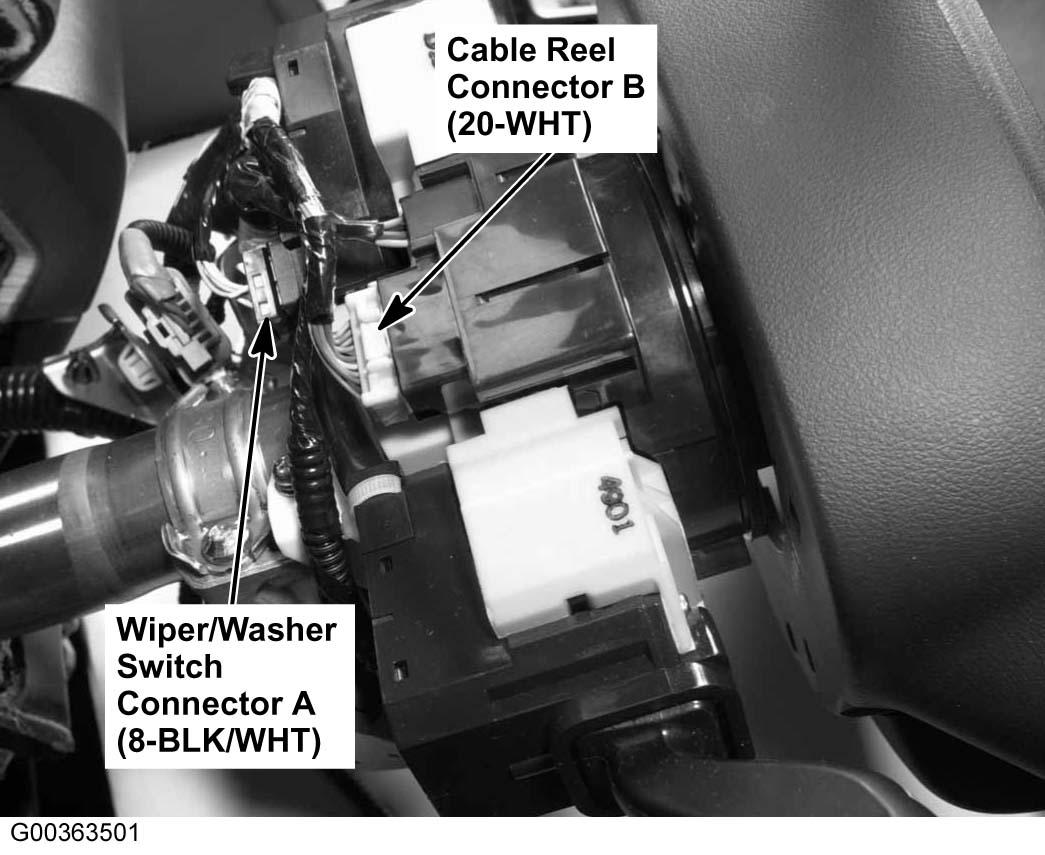

Fig 46: In Steering Wheel Cover

G00363501

Courtesy of AMERICAN HONDA MOTOR CO., INC.

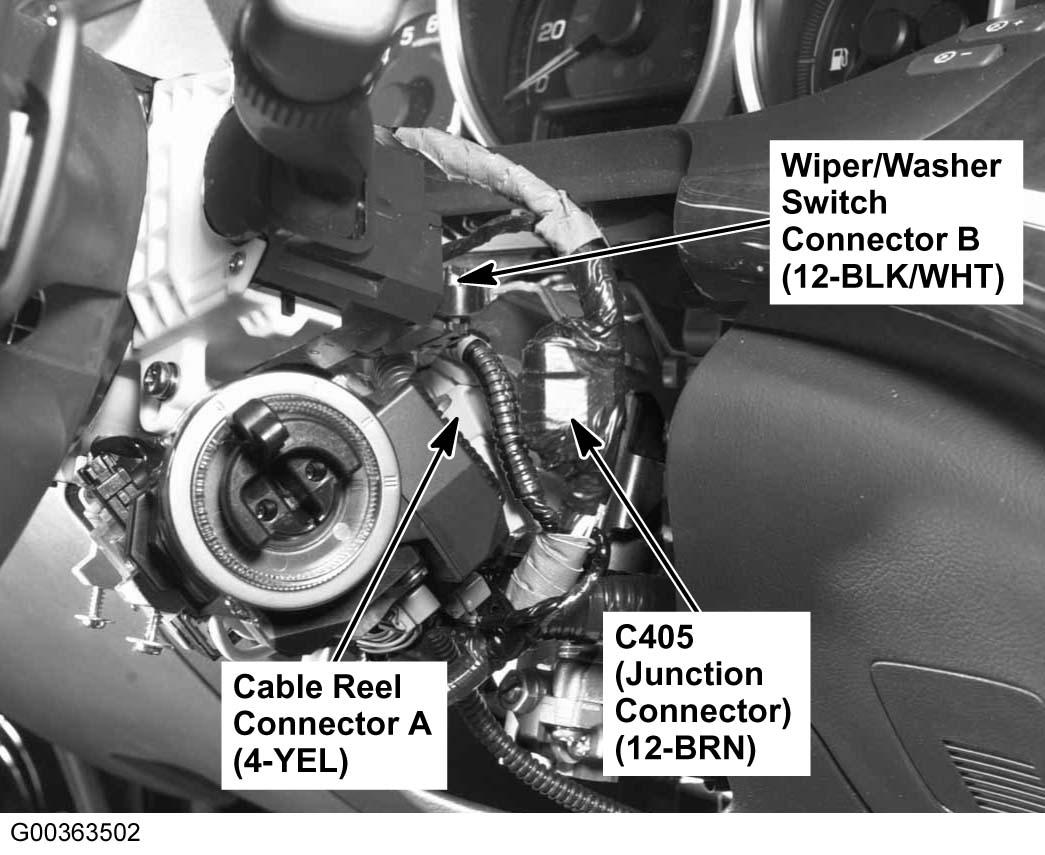

Fig 47: In Steering Wheel Cover

G00363502

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: In Steering Wheel Cover

G00363503

Courtesy of AMERICAN HONDA MOTOR CO., INC.

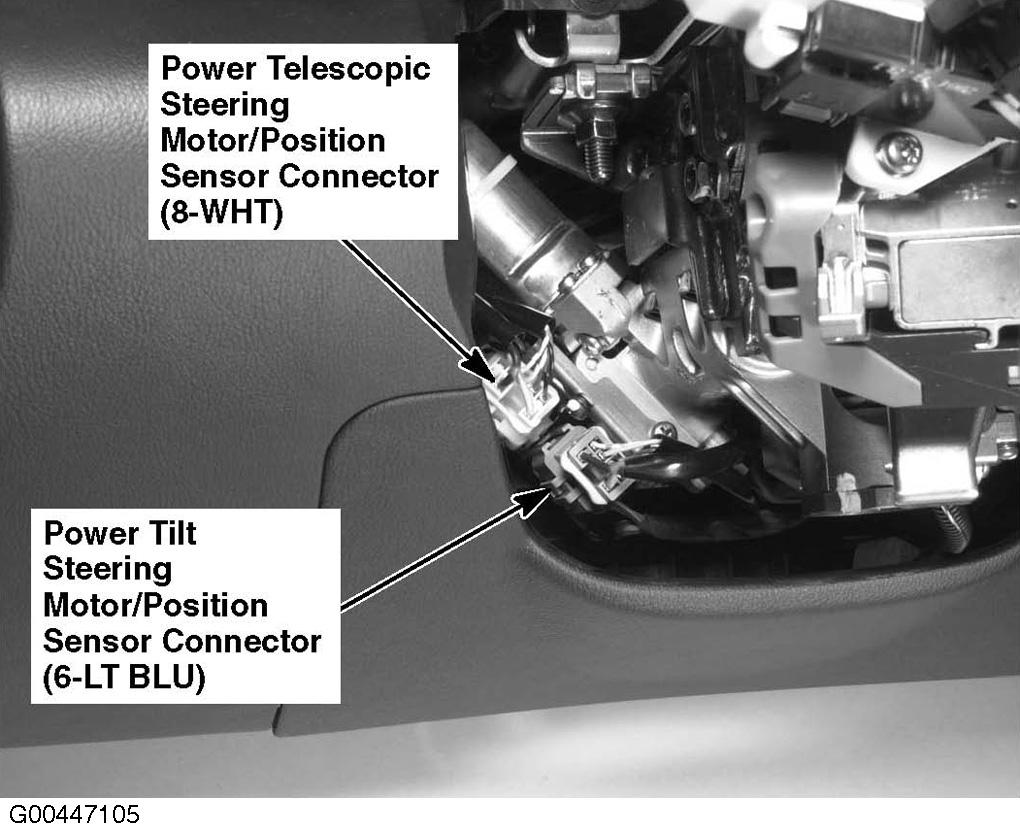

Fig 49: In Steering Wheel Cover

G00447105

Courtesy of AMERICAN HONDA MOTOR CO., INC.

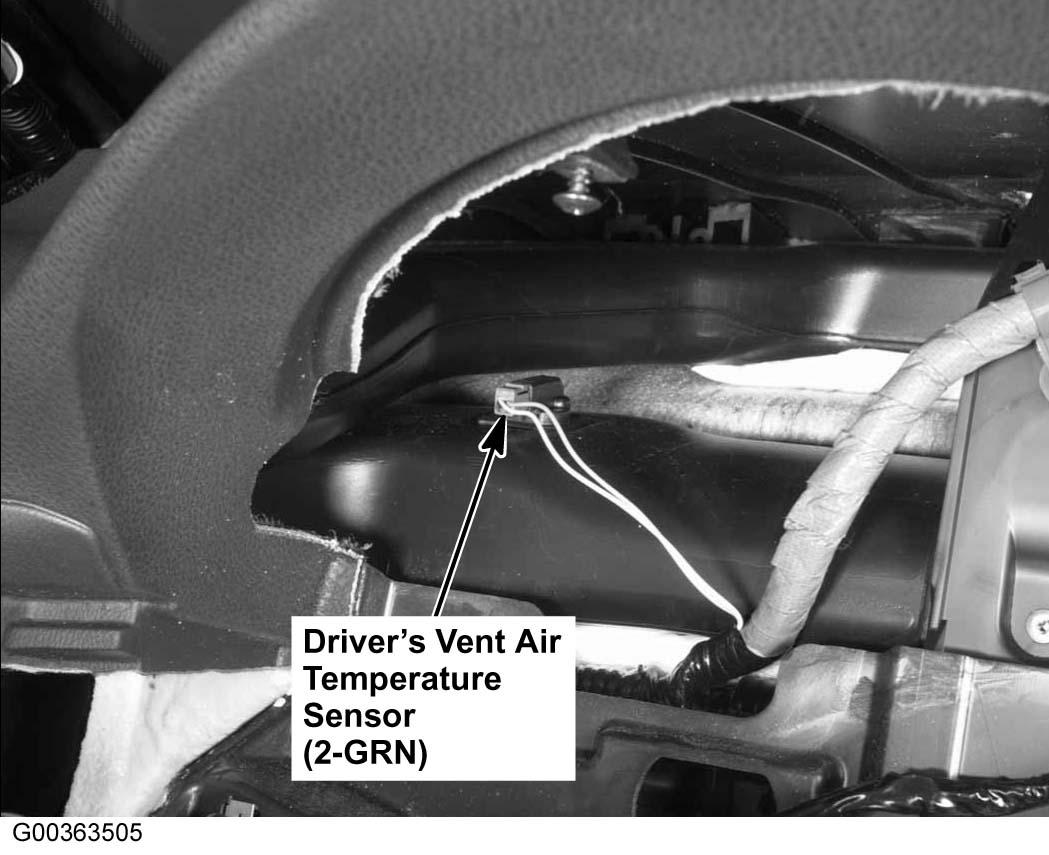

Fig 50: Behind Gauge Control Module

G00363505

Courtesy of AMERICAN HONDA MOTOR CO., INC.

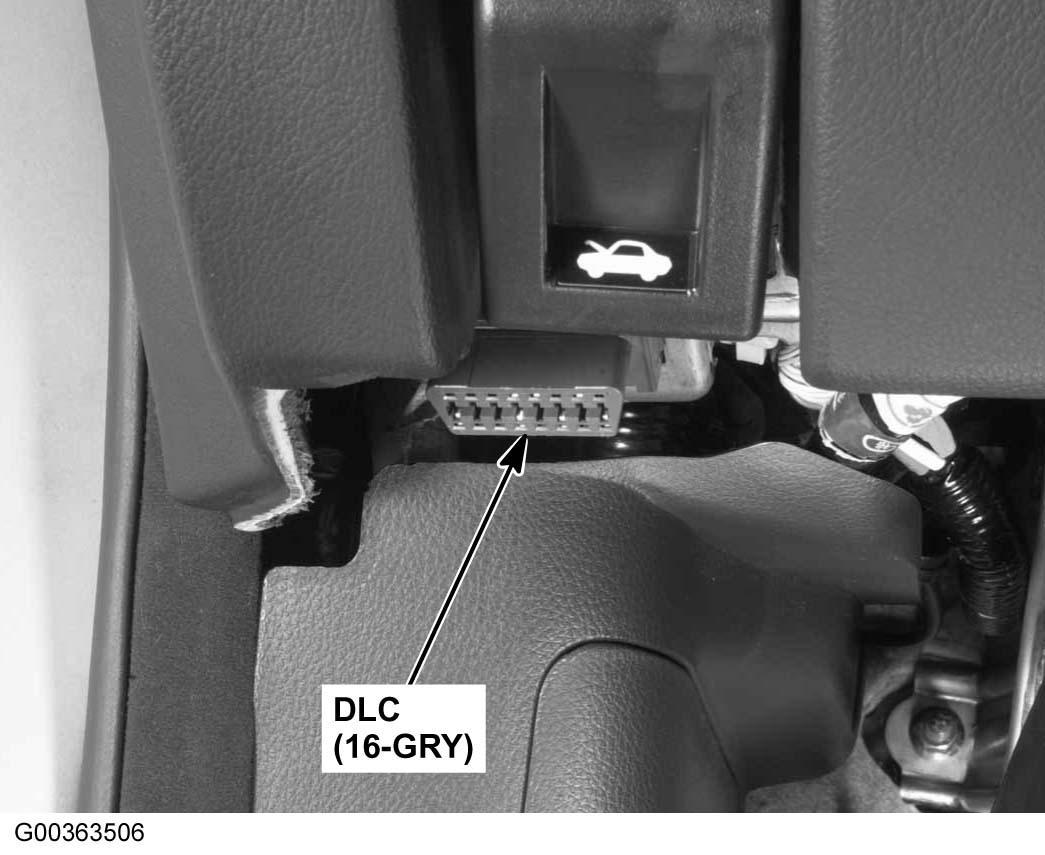

Fig 51: Under Left Side Of Dash

G00363506

Courtesy of AMERICAN HONDA MOTOR CO., INC.

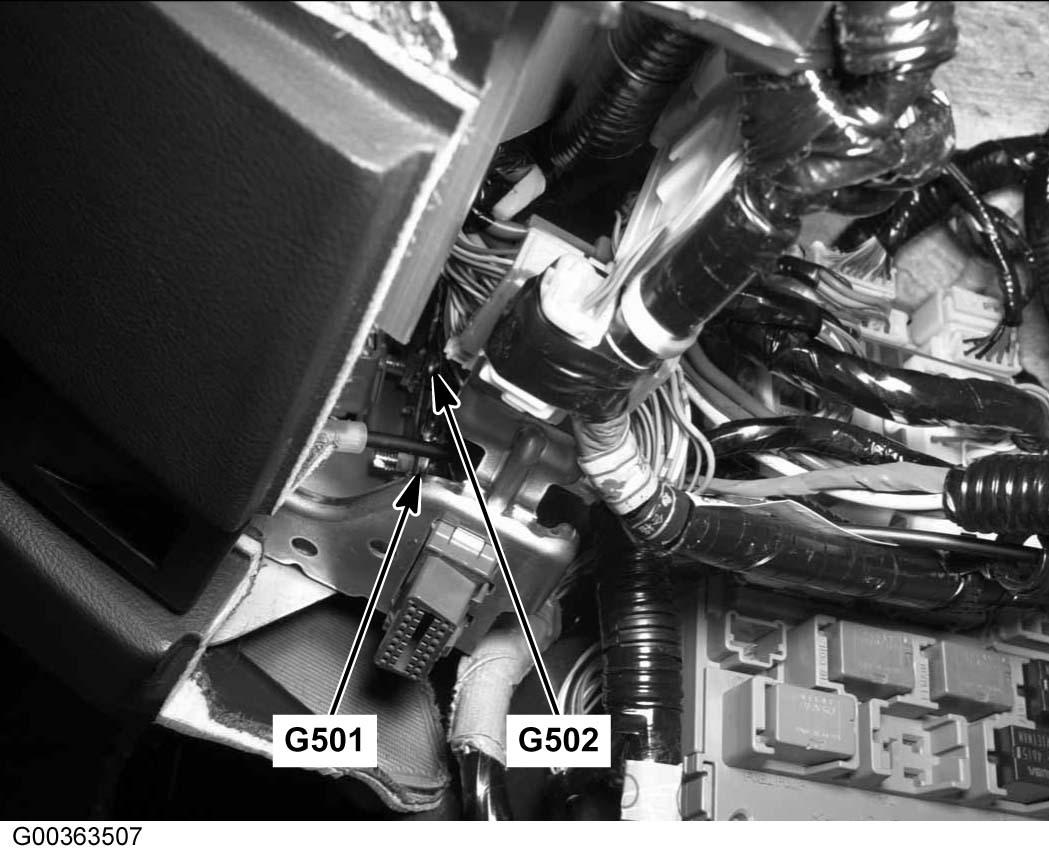

Fig 52: Under Left Side Of Dash

G00363507

Courtesy of AMERICAN HONDA MOTOR CO., INC.

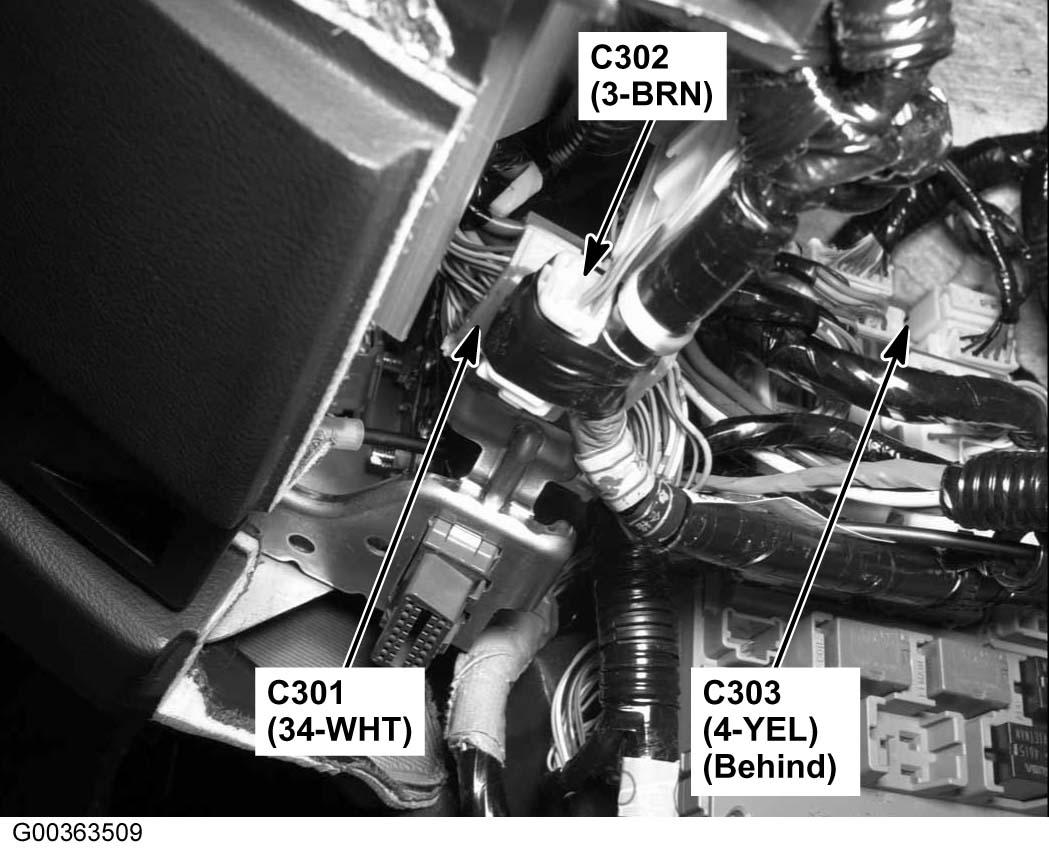

Fig 53: Under Left Side Of Dash

G00363509

Courtesy of AMERICAN HONDA MOTOR CO., INC.

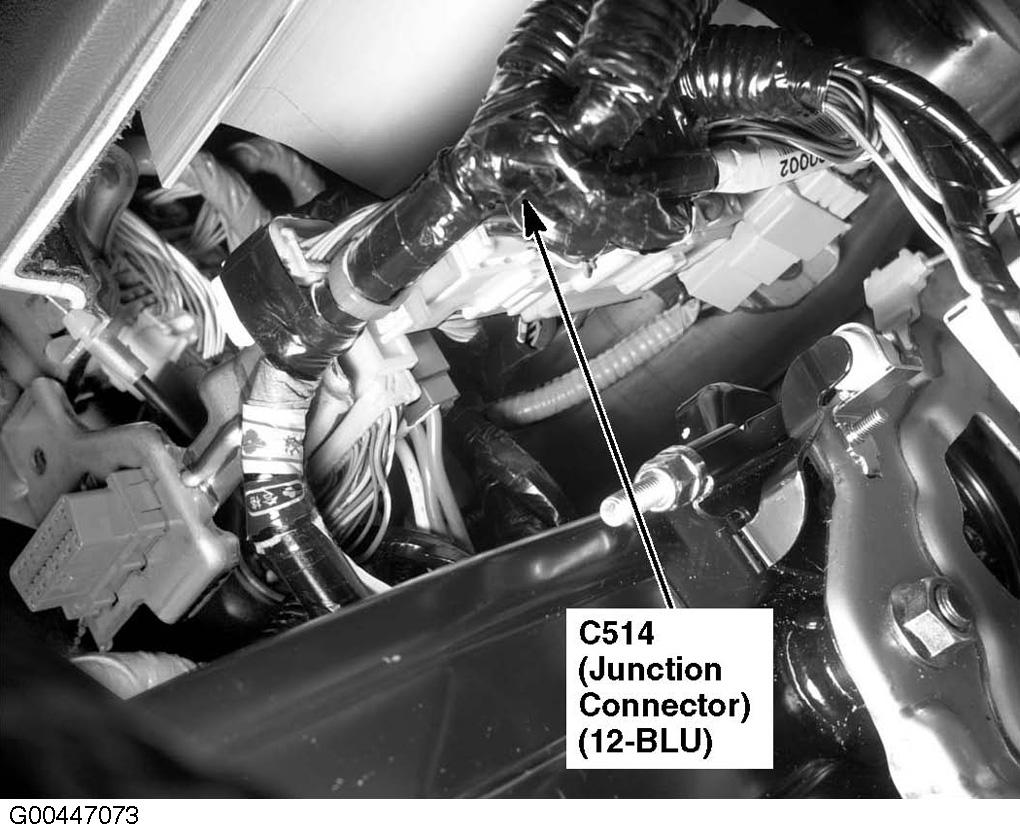

Fig 54: Under Left Side Of Dash

G00447073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

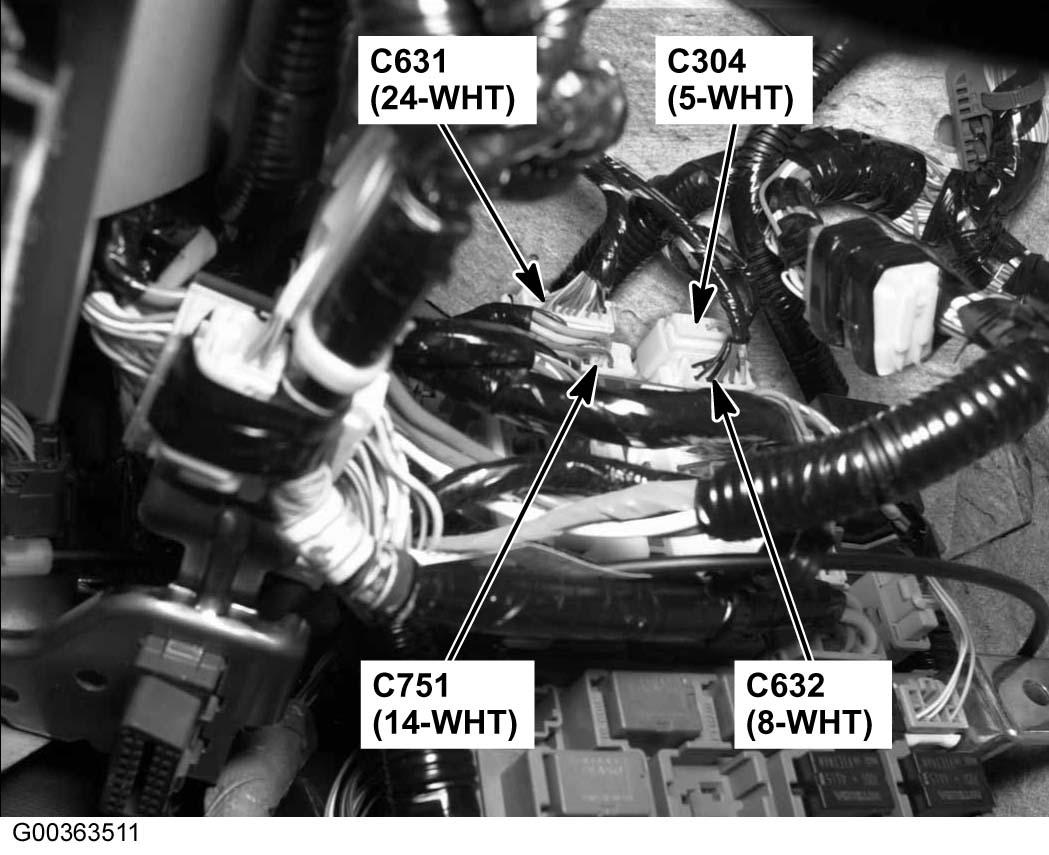

Fig 55: Under Left Side Of Dash

G00363511

Courtesy of AMERICAN HONDA MOTOR CO., INC.

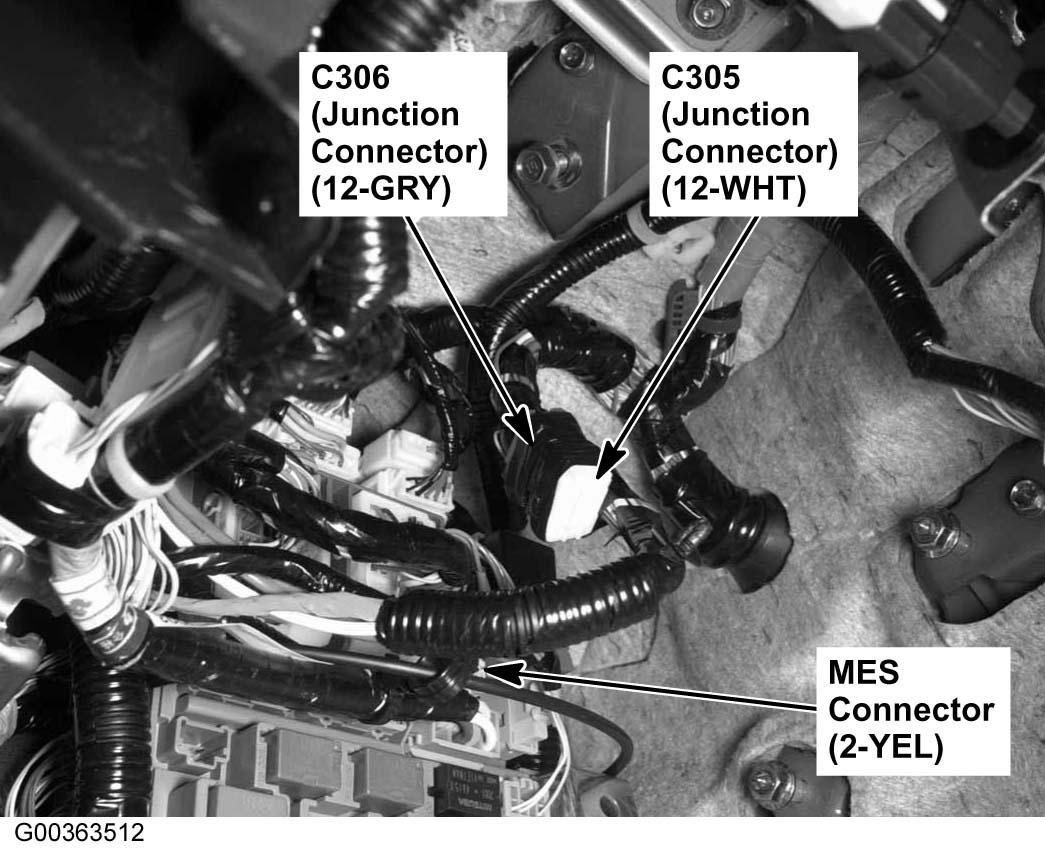

Fig 56: Under Left Side Of Dash

G00363512

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Left Side Of Dash

G00363513

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Left Side Of Dash

G00363514

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Behind Left Kick Panel

G00363515

Courtesy of AMERICAN HONDA MOTOR CO., INC.

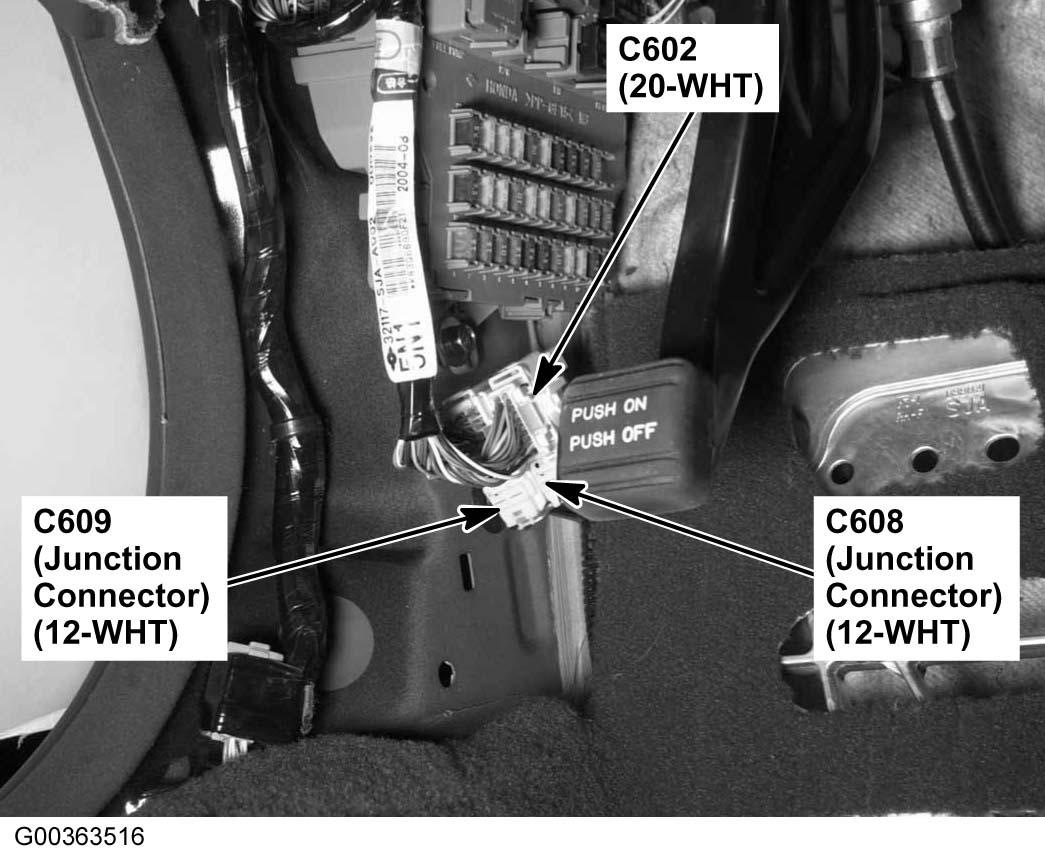

Fig 60: Behind Left Kick Panel

G00363516

Courtesy of AMERICAN HONDA MOTOR CO., INC.

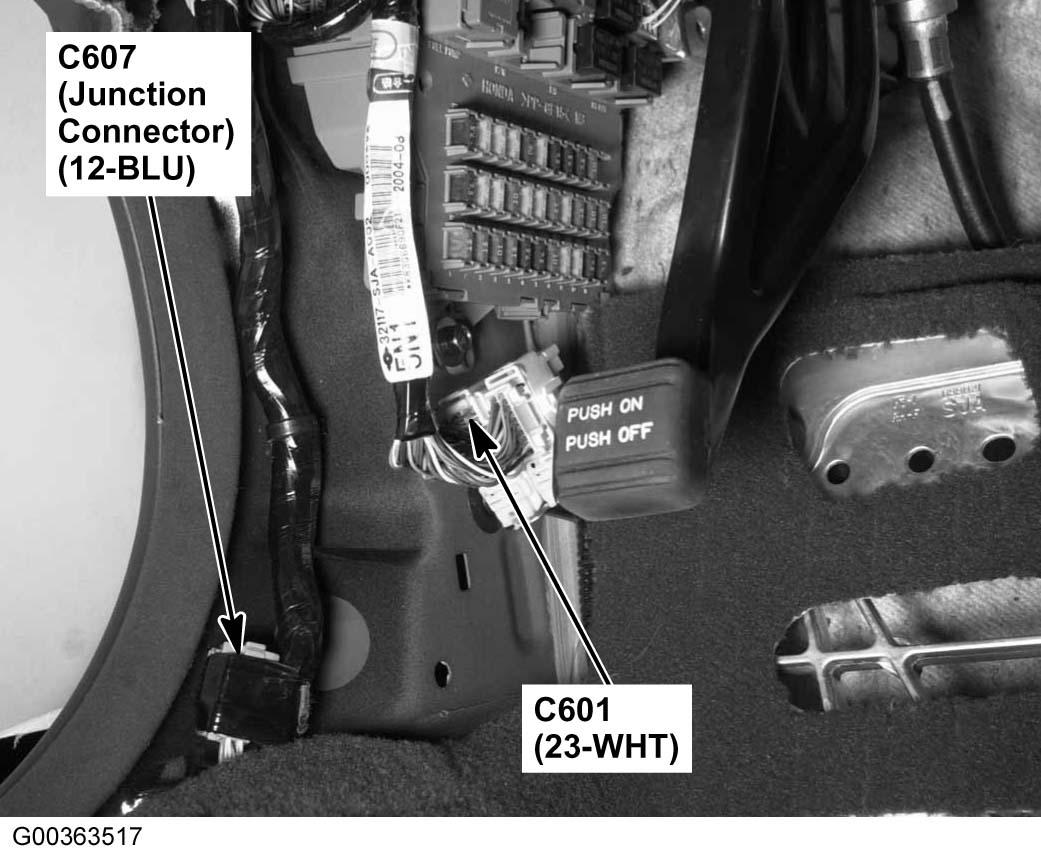

Fig 61: Behind Left Kick Panel

G00363517

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Under Left Side Of Dash

G00447074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Under Left Side Of Dash

G00447075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Under Left Side Of Dash

G00363521

Courtesy of AMERICAN HONDA MOTOR CO., INC.

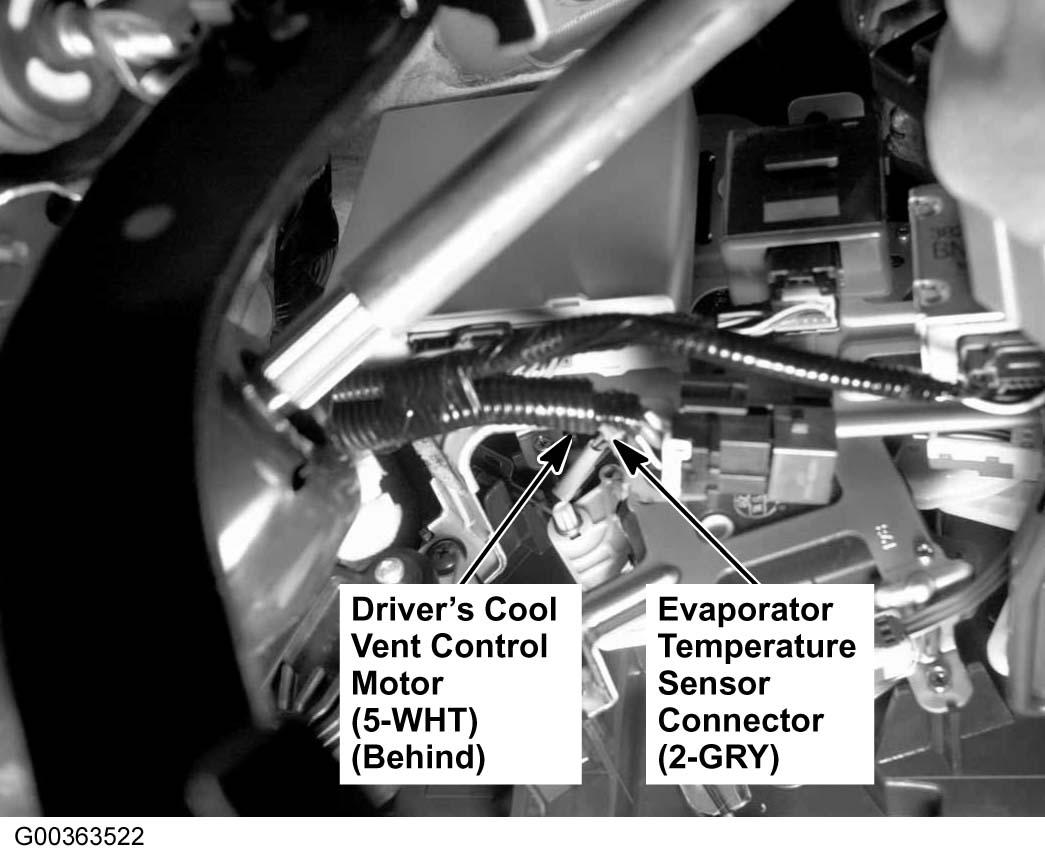

Fig 65: Under Left Side Of Dash

G00363522

Courtesy of AMERICAN HONDA MOTOR CO., INC.

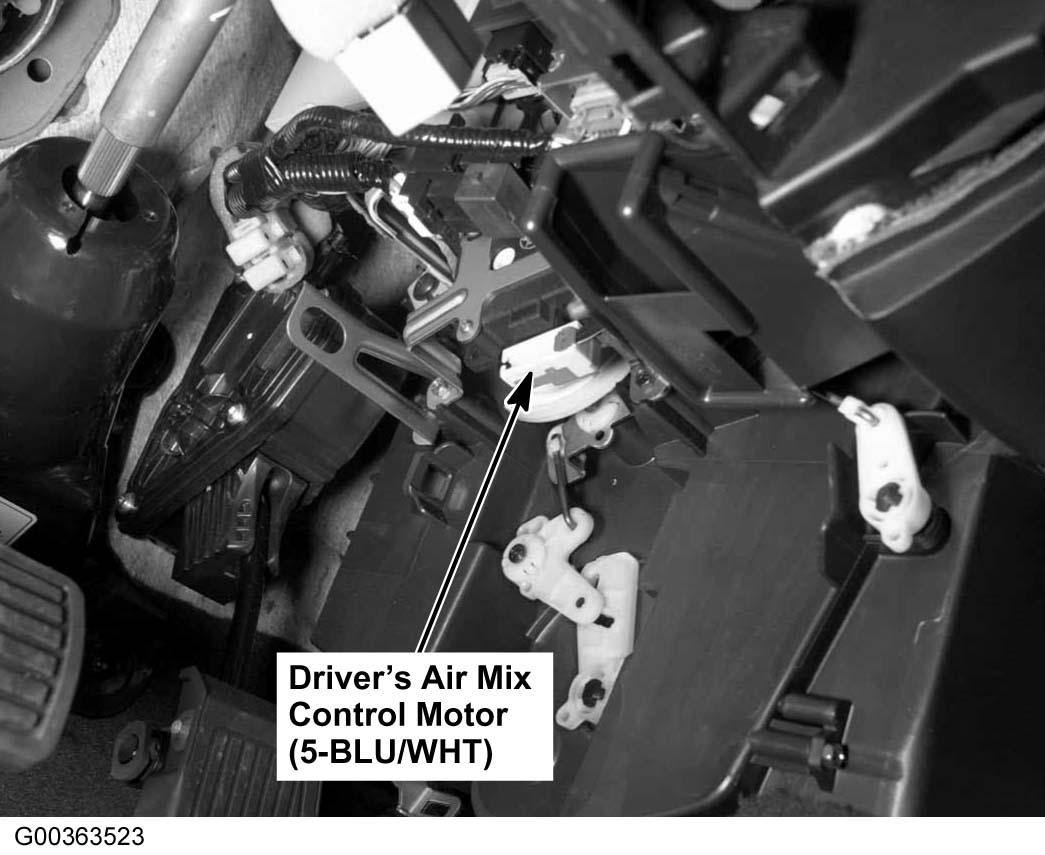

Fig 66: Under Left Side Of Dash

G00363523

Courtesy of AMERICAN HONDA MOTOR CO., INC.

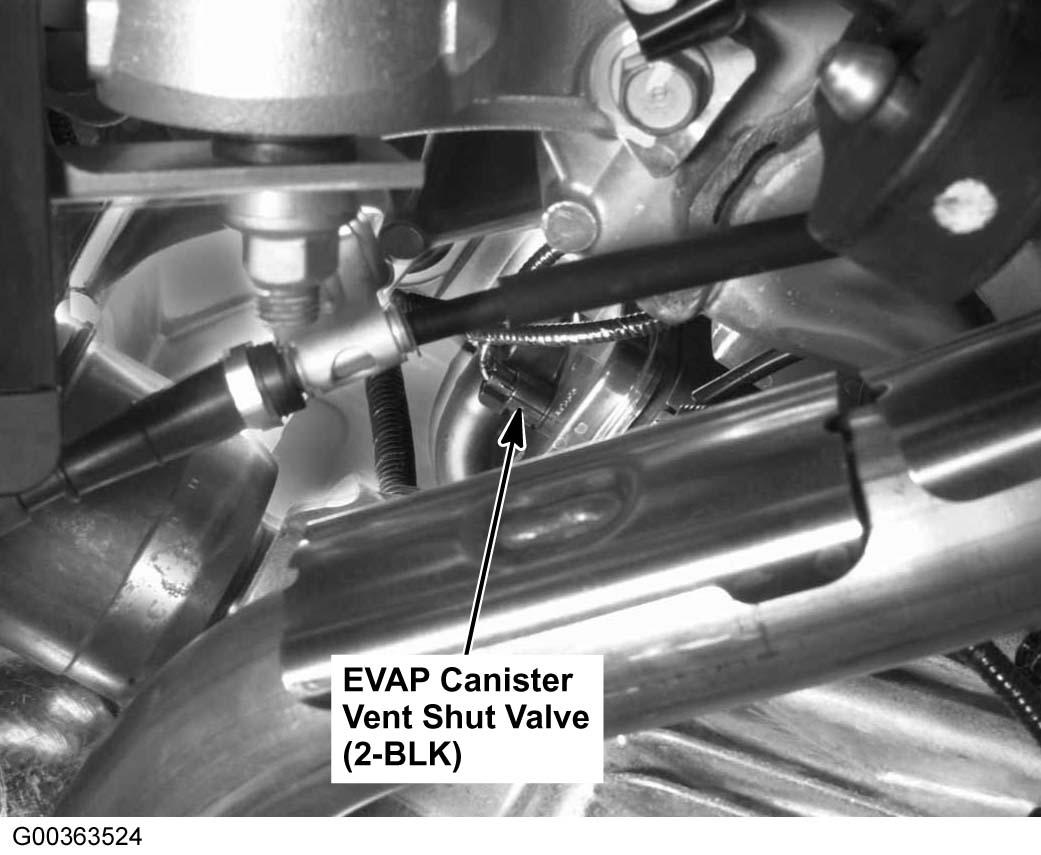

Fig 67: Above Rear Differential

G00363524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

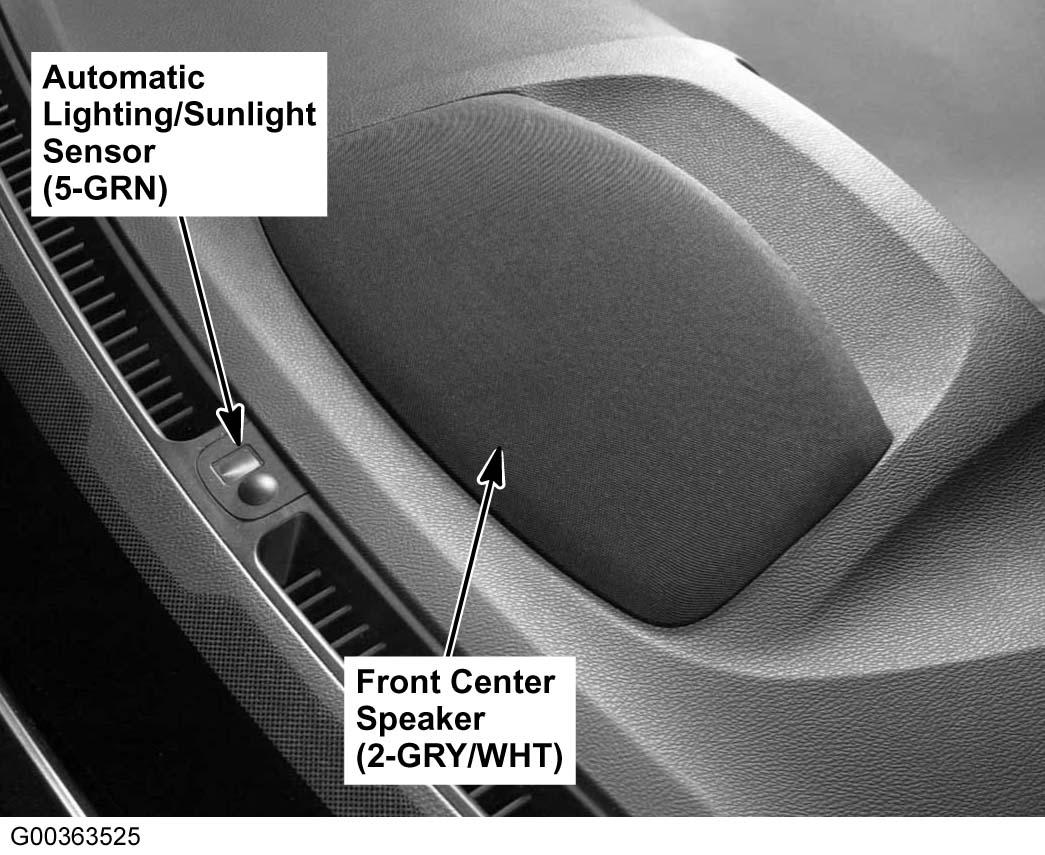

Fig 68: Middle Of Dash

G00363525

Courtesy of AMERICAN HONDA MOTOR CO., INC.

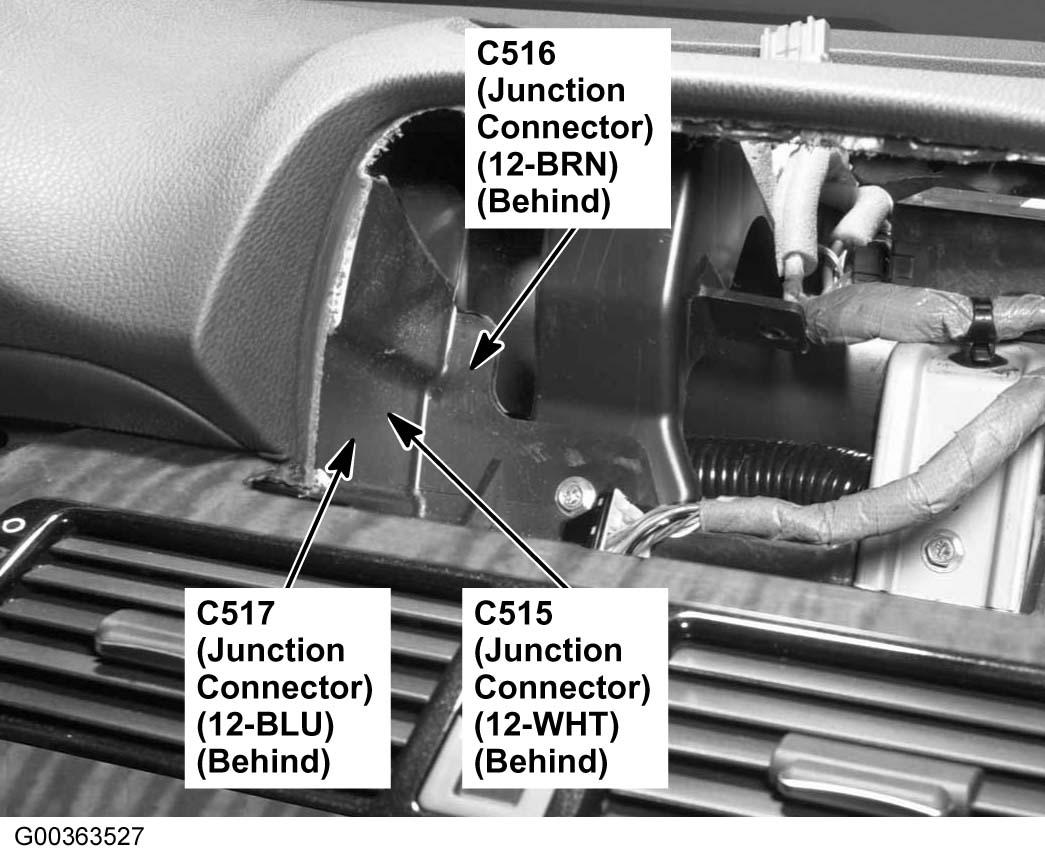

Fig 69: Behind Middle Of Dash

G00363527

Courtesy of AMERICAN HONDA MOTOR CO., INC.

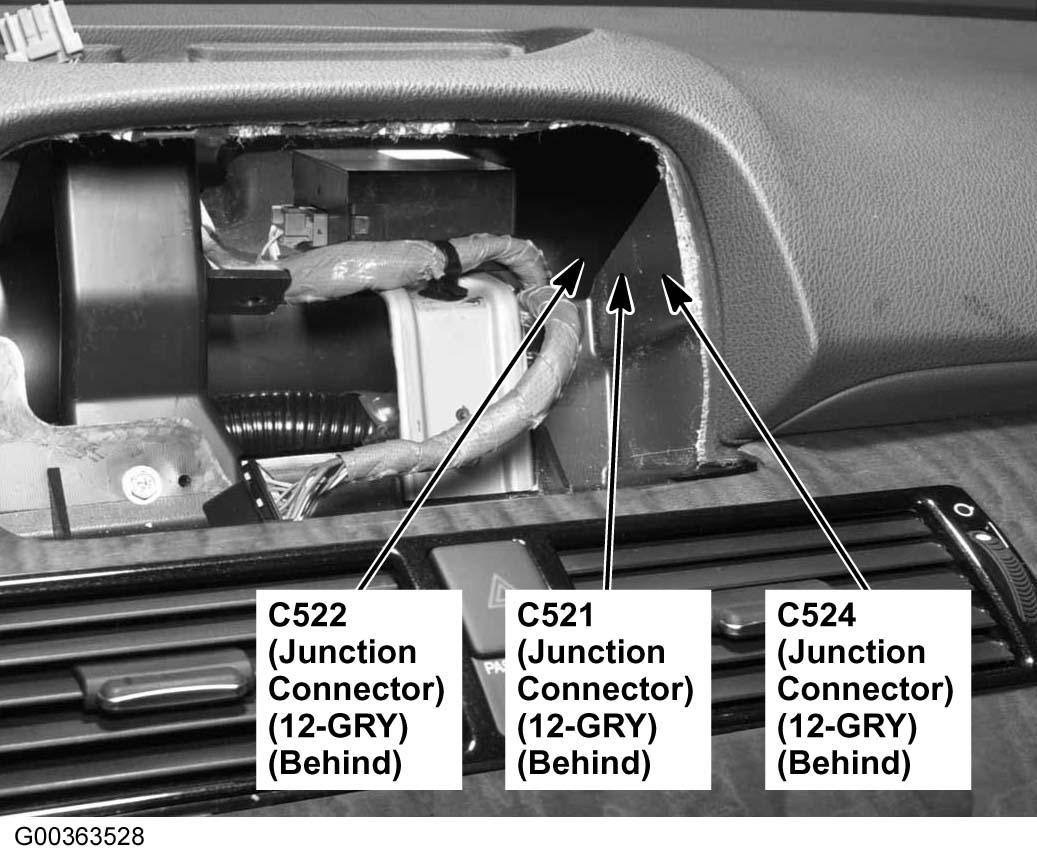

Fig 70: Behind Middle Of Dash

G00363528

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Behind Middle Of Dash

G00363529

Courtesy of AMERICAN HONDA MOTOR CO., INC.

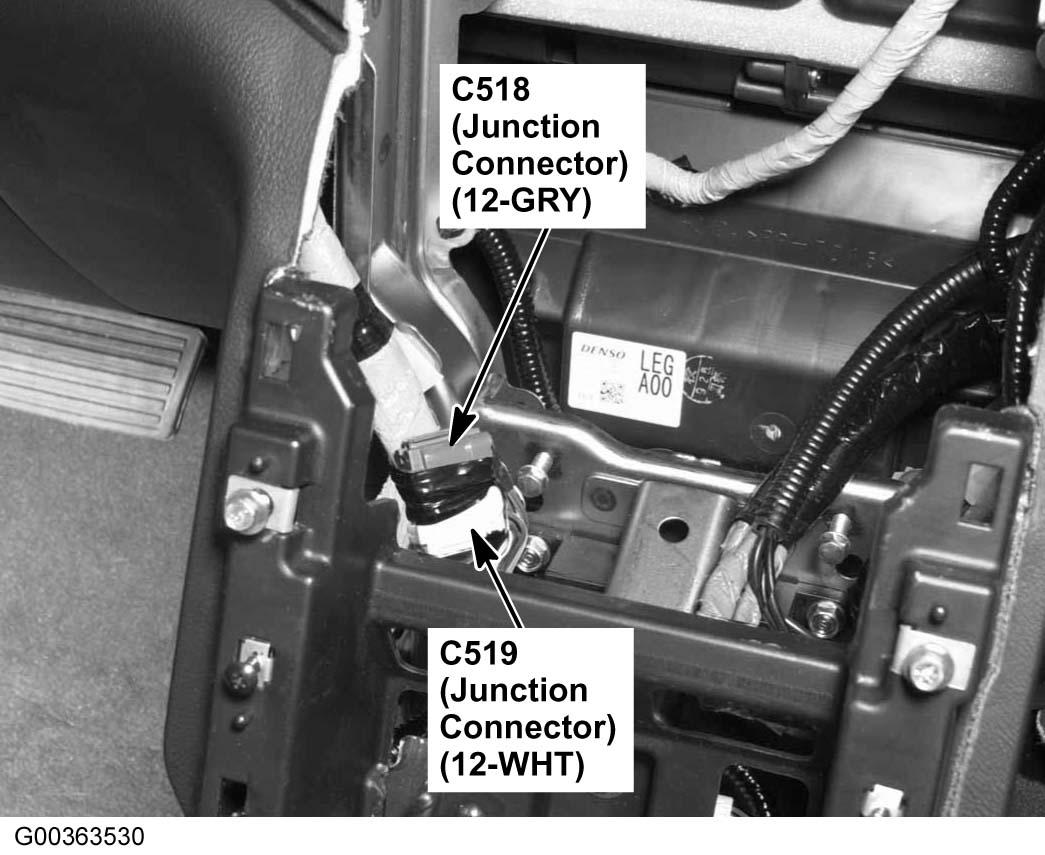

Fig 72: Behind Middle Of Dash

G00363530

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Behind Middle Of Dash

G00447077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

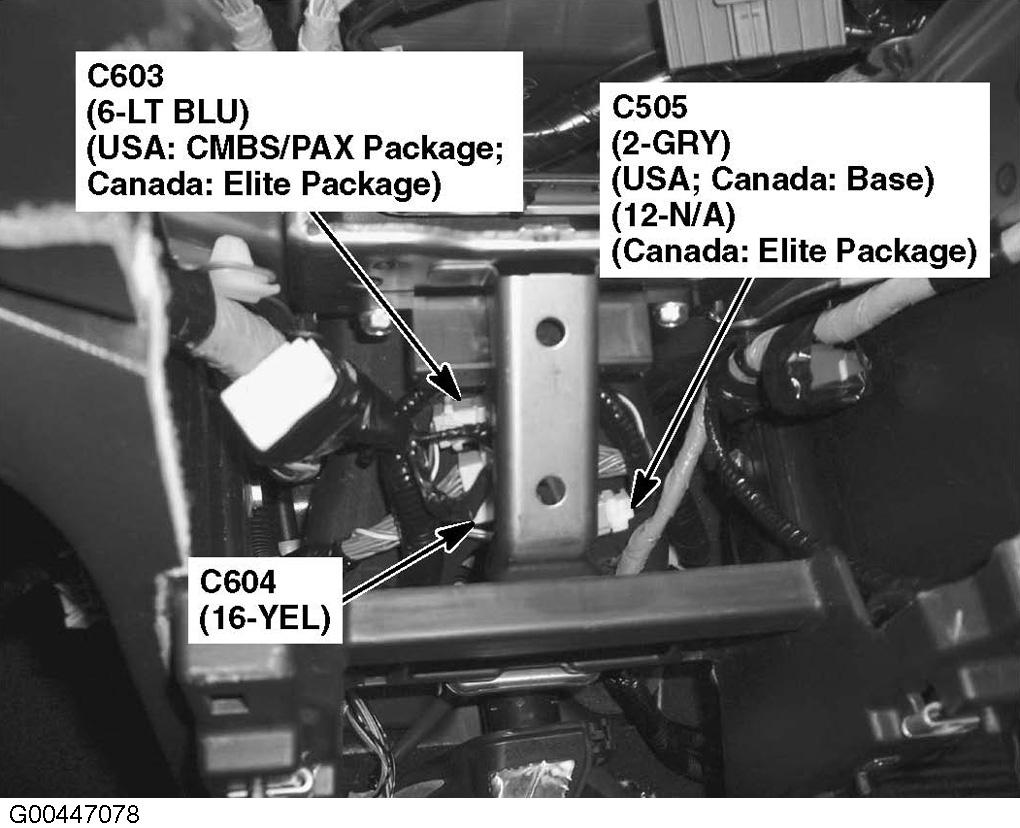

Fig 74: Behind Middle Of Dash

G00447078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

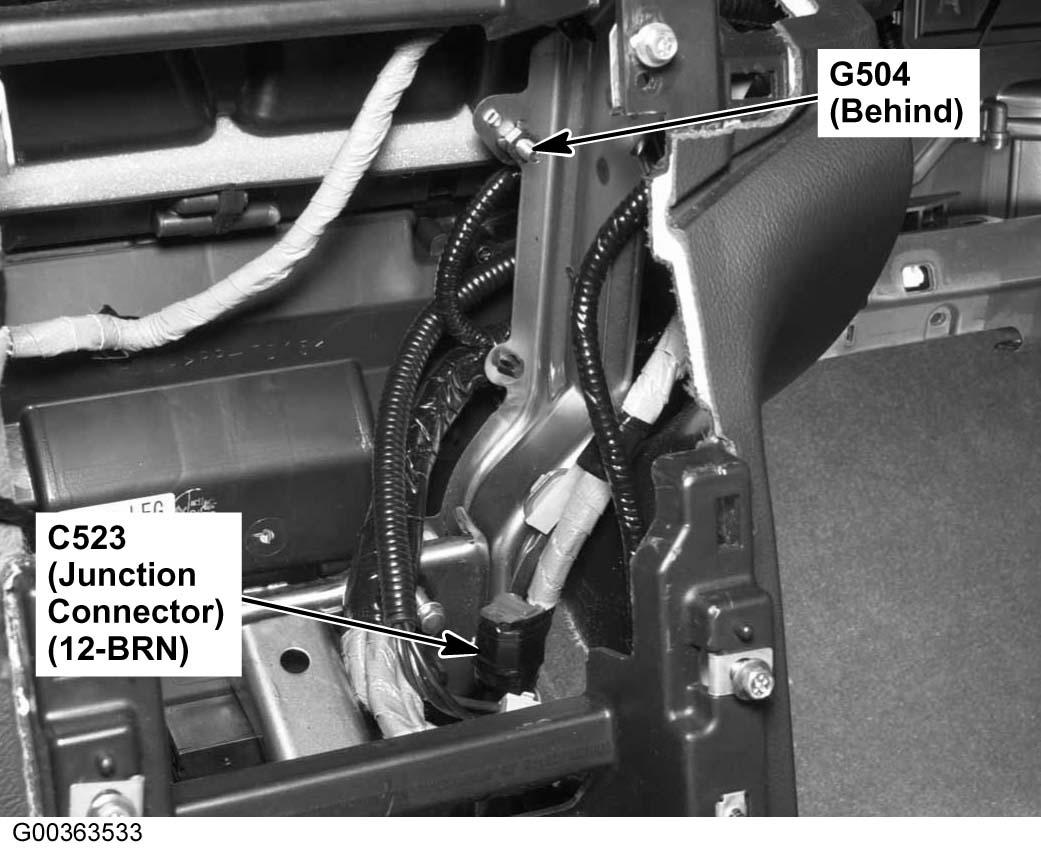

Fig 75: Behind Middle Of Dash

G00363533

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Behind Middle Of Dash

G00363534

Courtesy of AMERICAN HONDA MOTOR CO., INC.

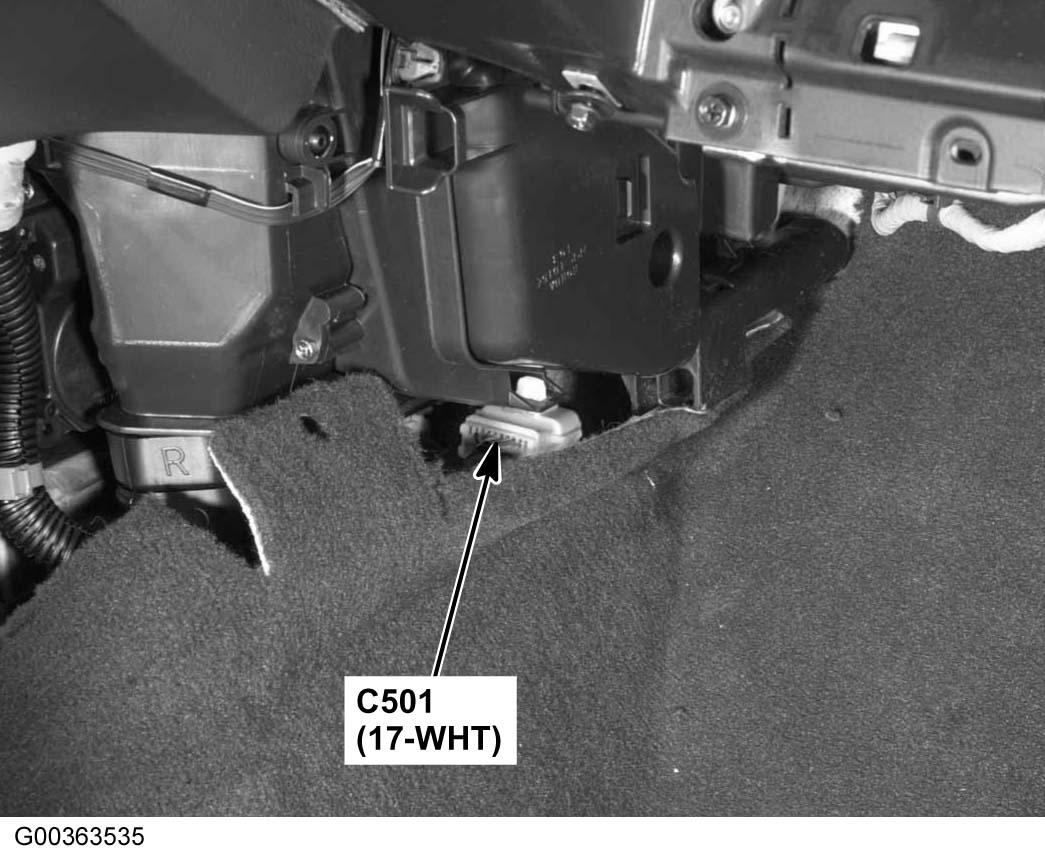

Fig 77: Under Middle Of Dash

G00363535

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Under Middle Of Dash

G00363536

Courtesy of AMERICAN HONDA MOTOR CO., INC.

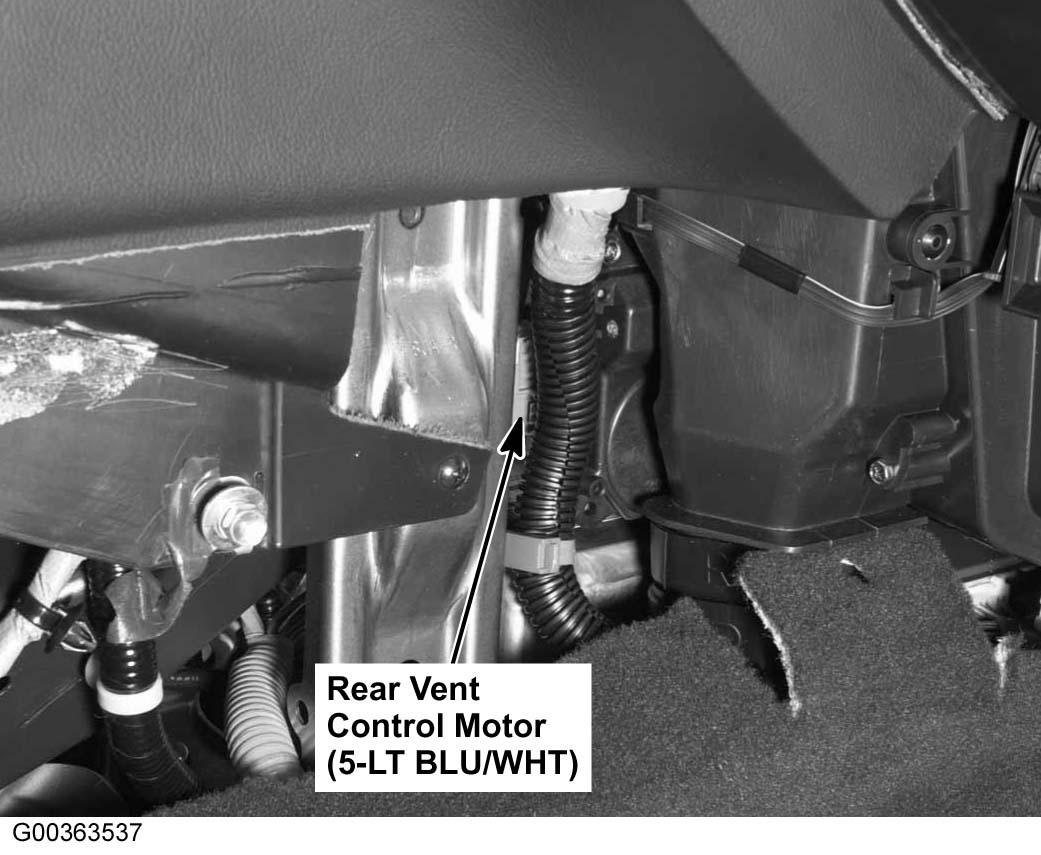

Fig 79: Under Middle Of Dash

G00363537

Courtesy of AMERICAN HONDA MOTOR CO., INC.

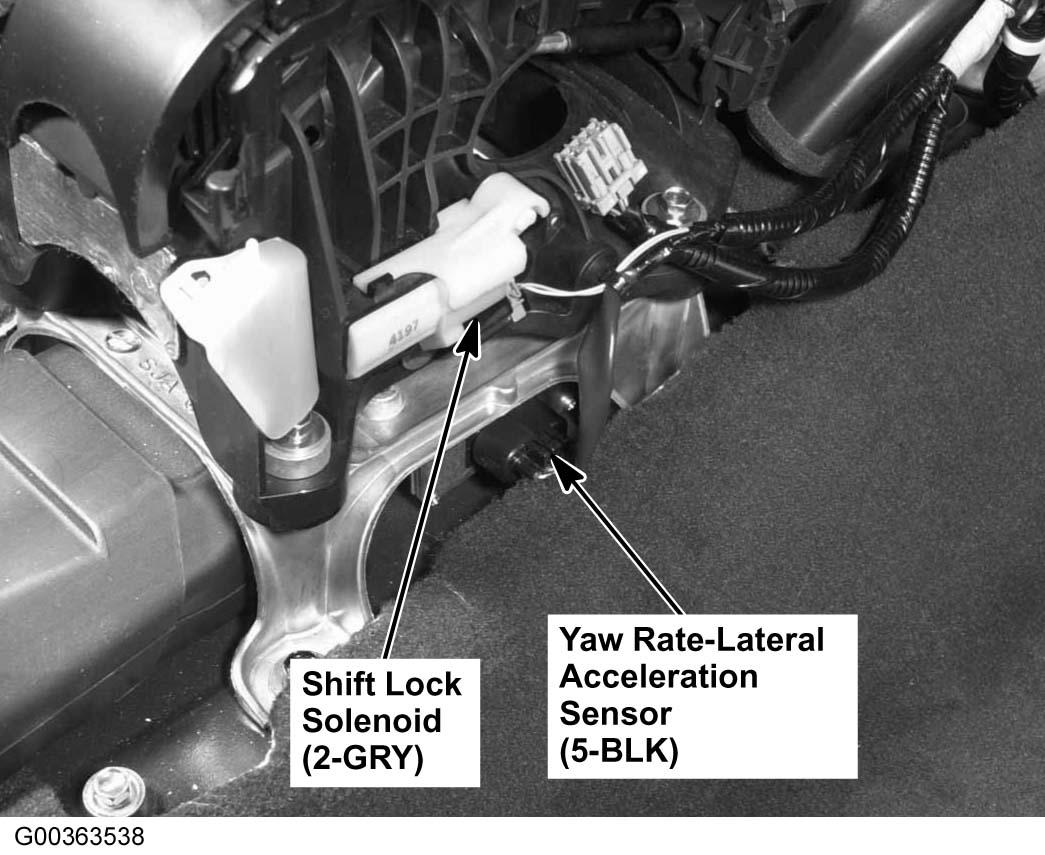

Fig 80: Under Center Console

G00363538

Courtesy of AMERICAN HONDA MOTOR CO., INC.

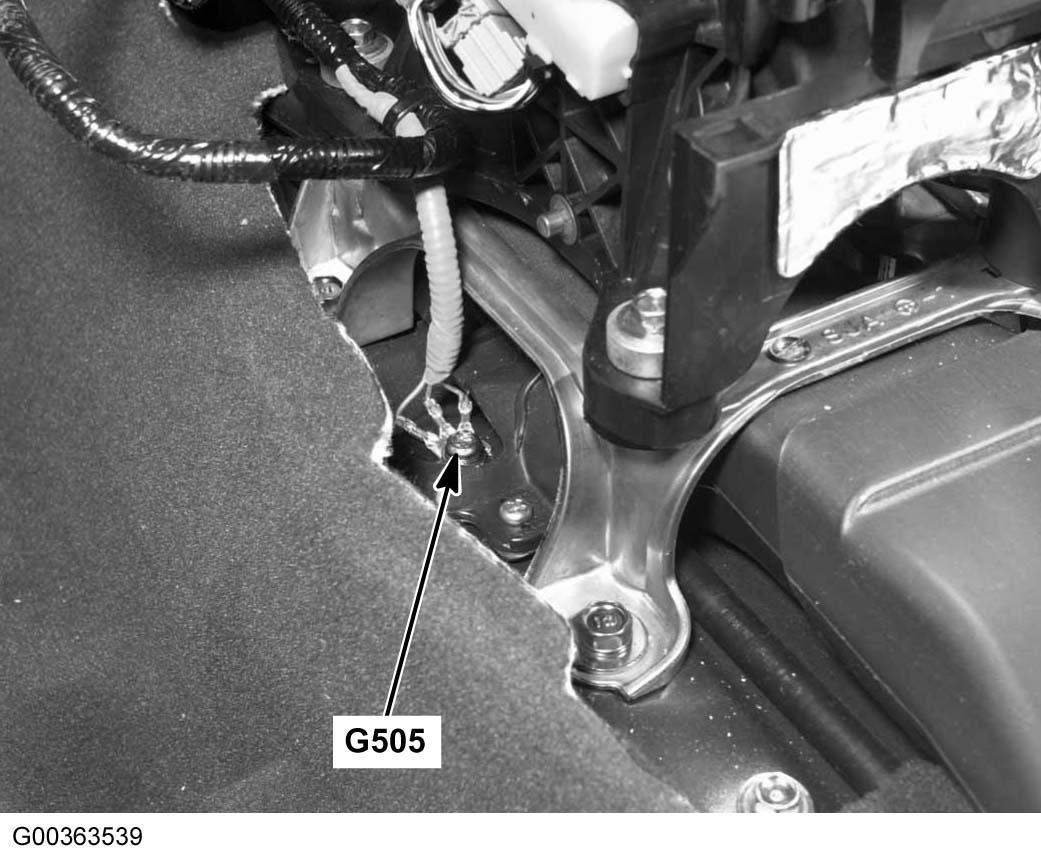

Fig 81: Under Center Console

G00363539

Courtesy of AMERICAN HONDA MOTOR CO., INC.

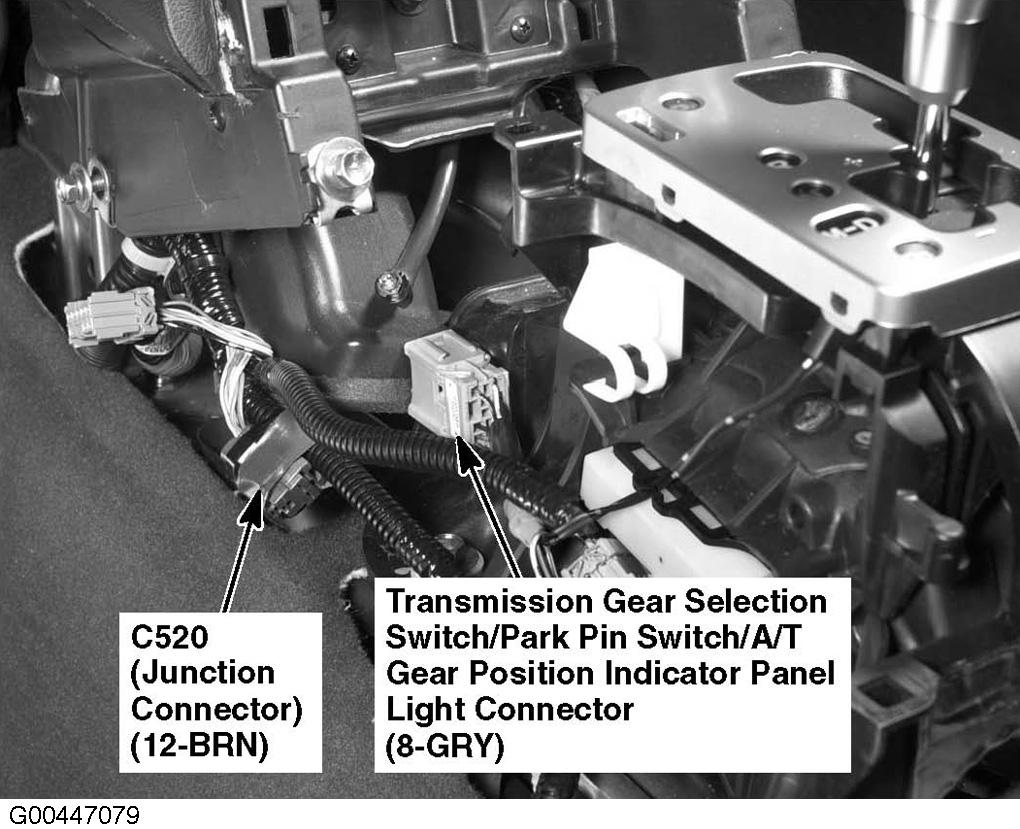

Fig 82: Under Center Console

G00447079

Courtesy of AMERICAN HONDA MOTOR CO., INC.

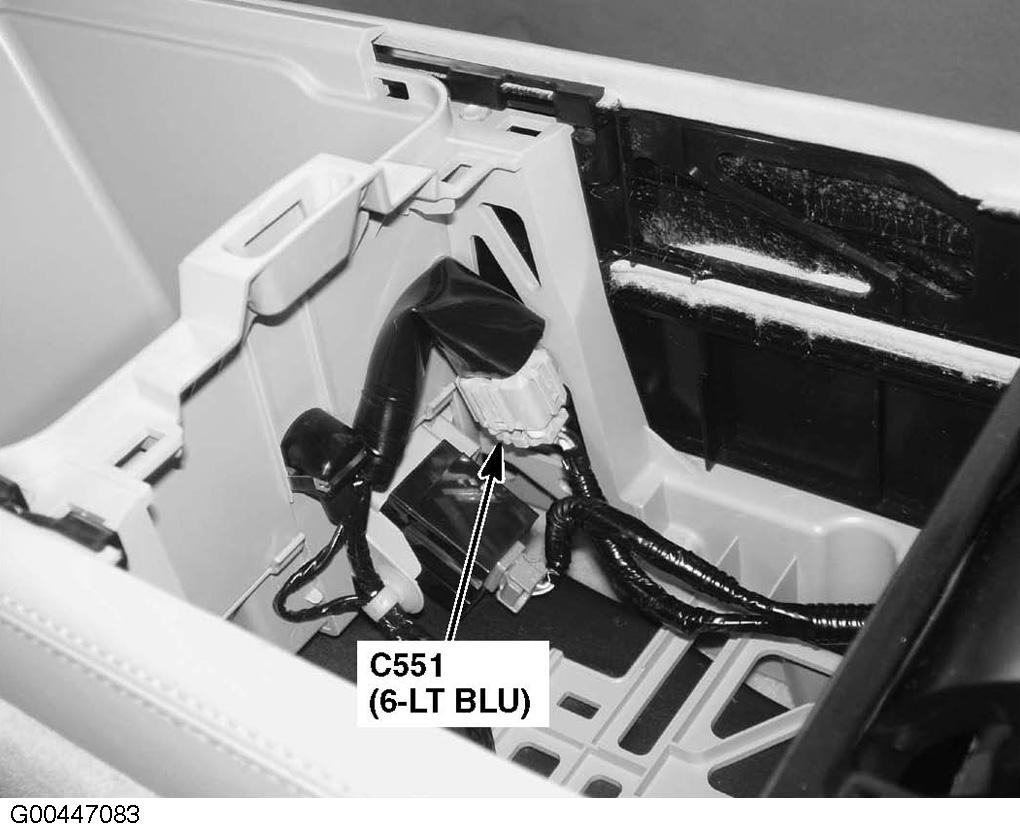

Fig 83: Under Center Console

G00447083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

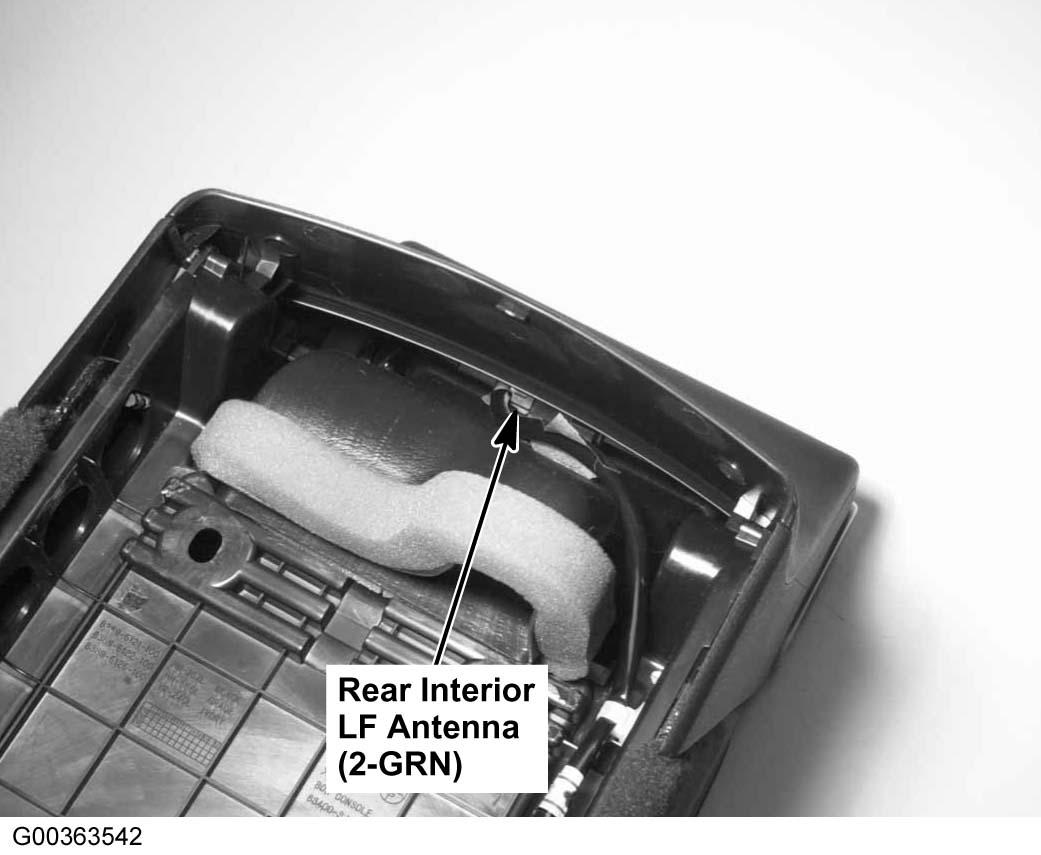

Fig 84: Under Center Console

G00363542

Courtesy of AMERICAN HONDA MOTOR CO., INC.

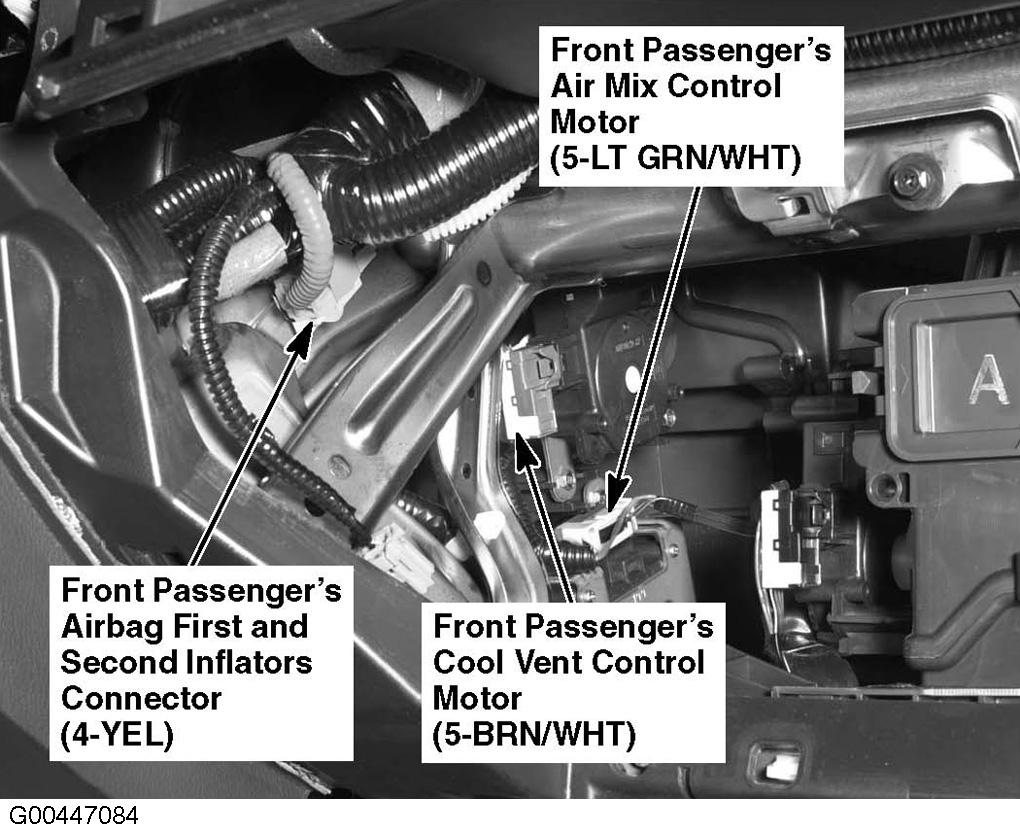

Fig 85: Behind Glove Box

G00447084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

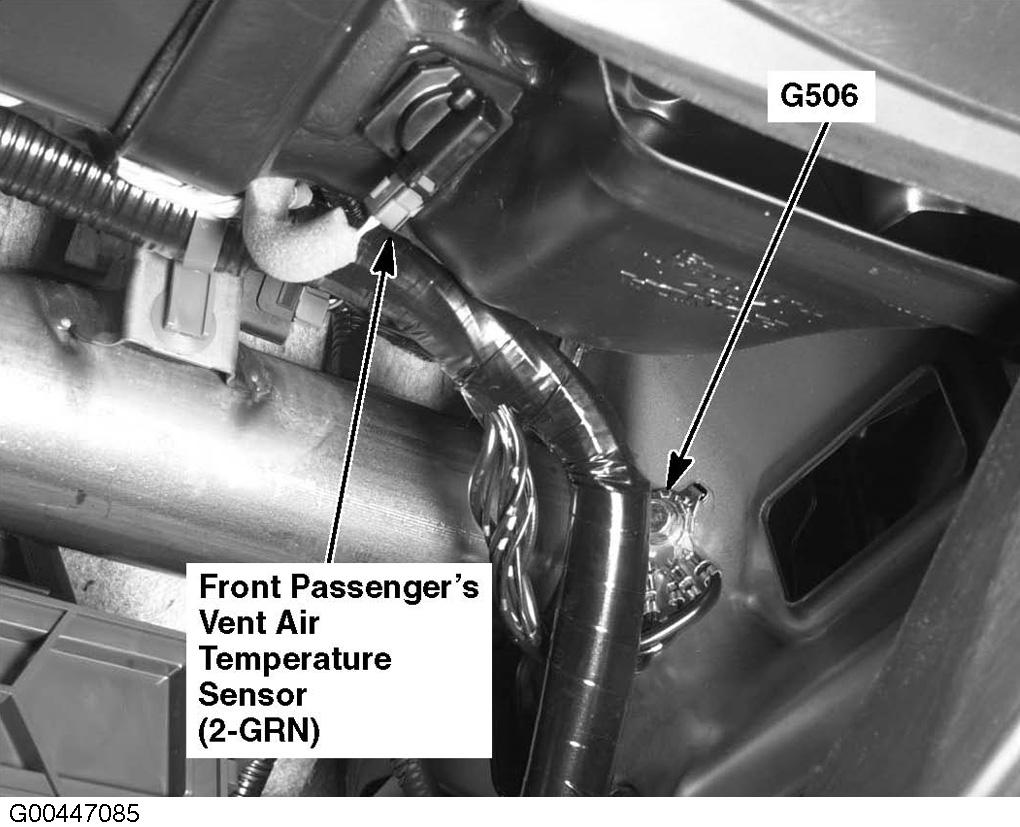

Fig 86: Behind Glove Box

G00447085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

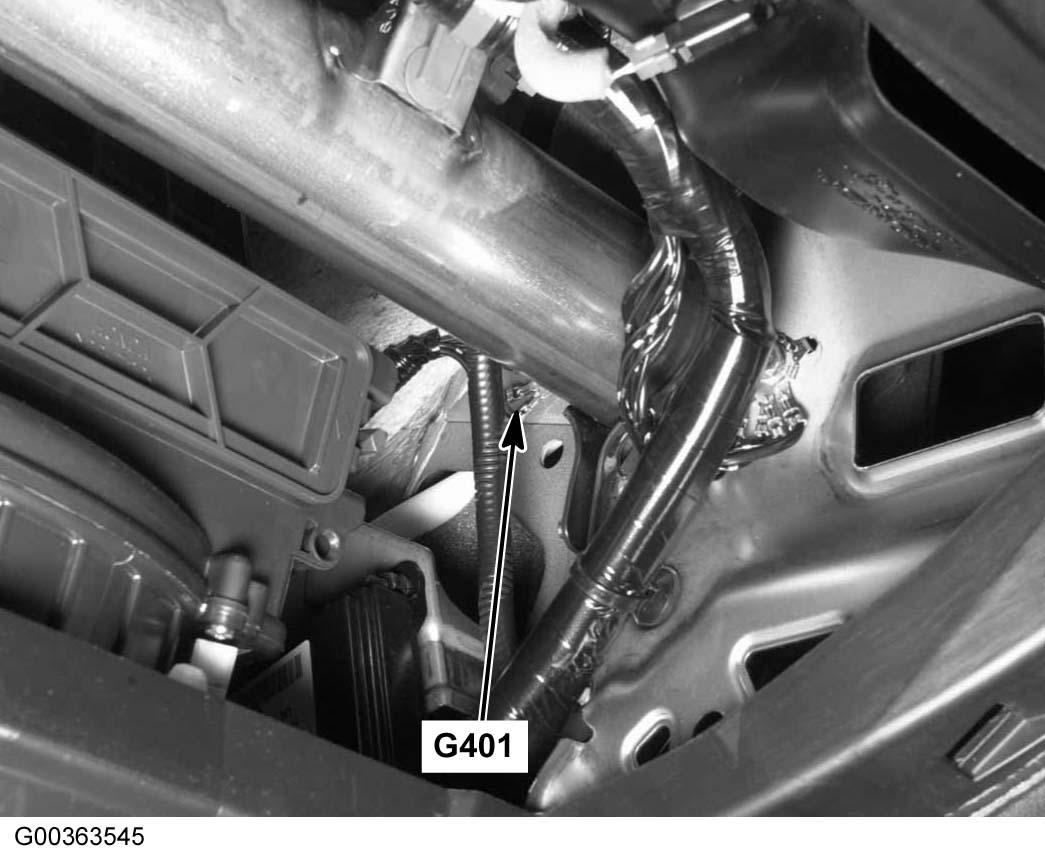

Fig 87: Behind Glove Box

G00363545

Courtesy of AMERICAN HONDA MOTOR CO., INC.

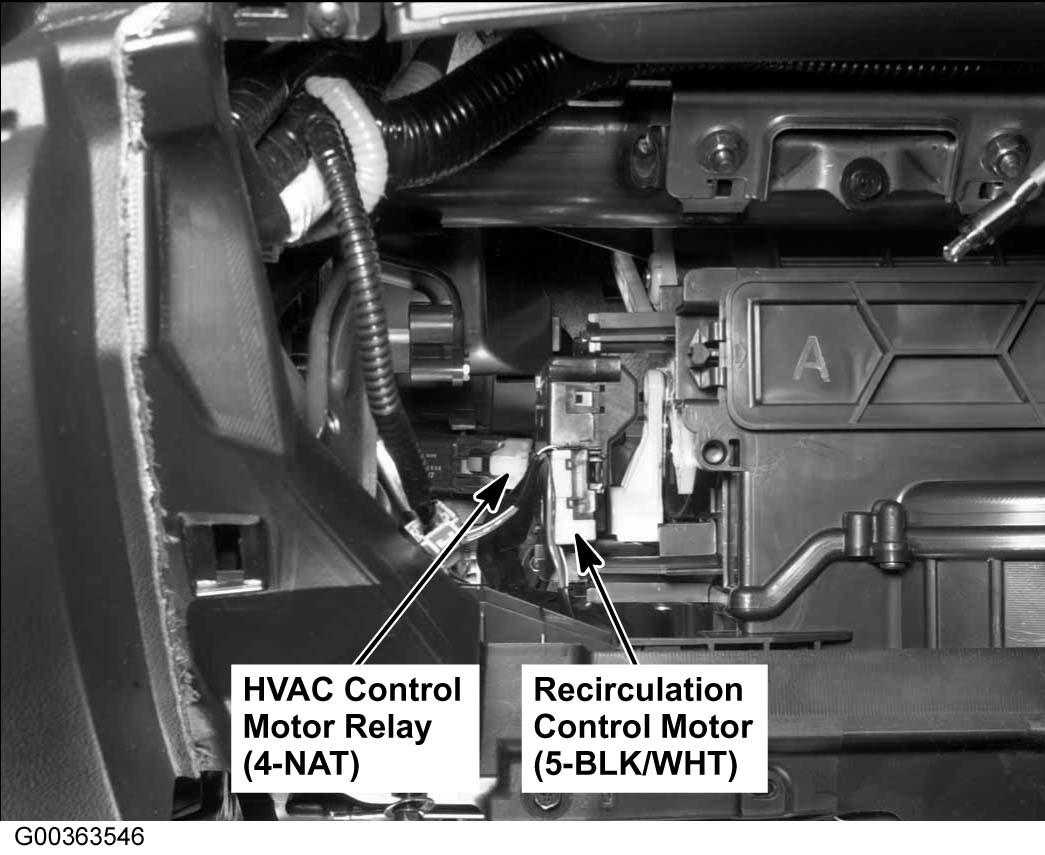

Fig 88: Behind Glove Box

G00363546

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Under Right Side Of Dash

G00363547

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Under Right Side Of Dash

G00363548

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Under Right Side Of Dash

G00363549

Courtesy of AMERICAN HONDA MOTOR CO., INC.

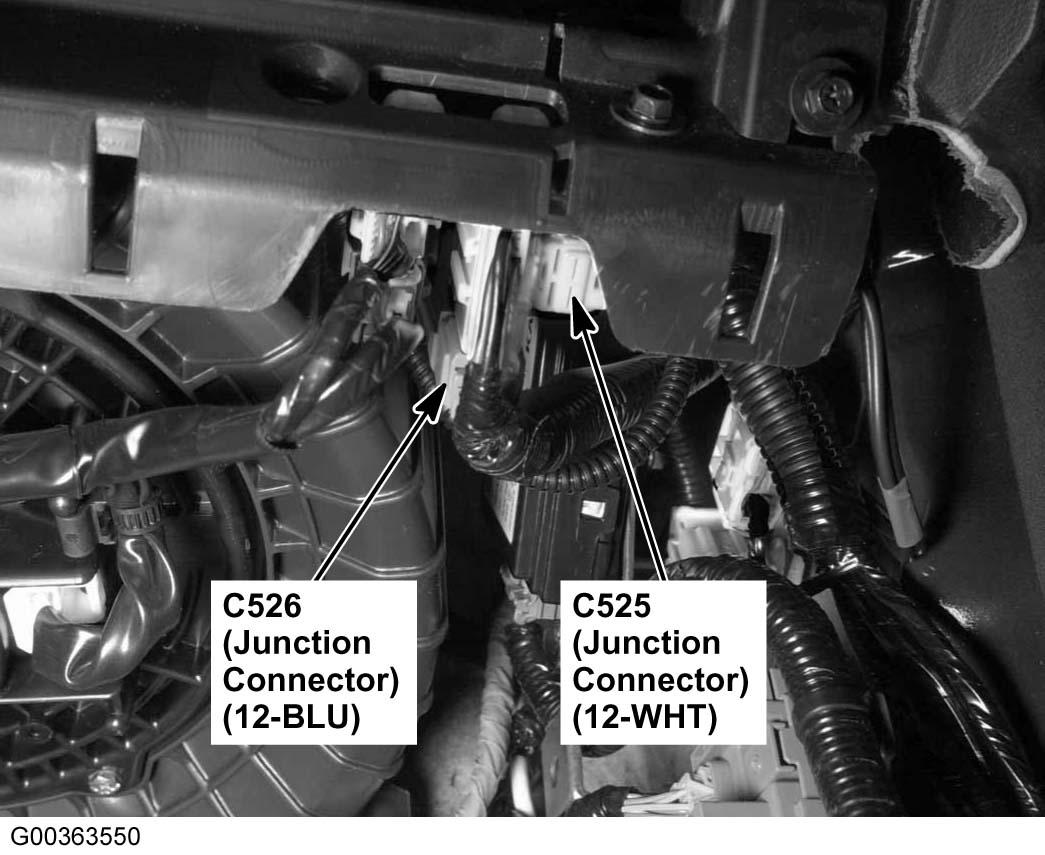

Fig 92: Under Right Side Of Dash

G00363550

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Behind Right Kick Panel

G00363551

Courtesy of AMERICAN HONDA MOTOR CO., INC.

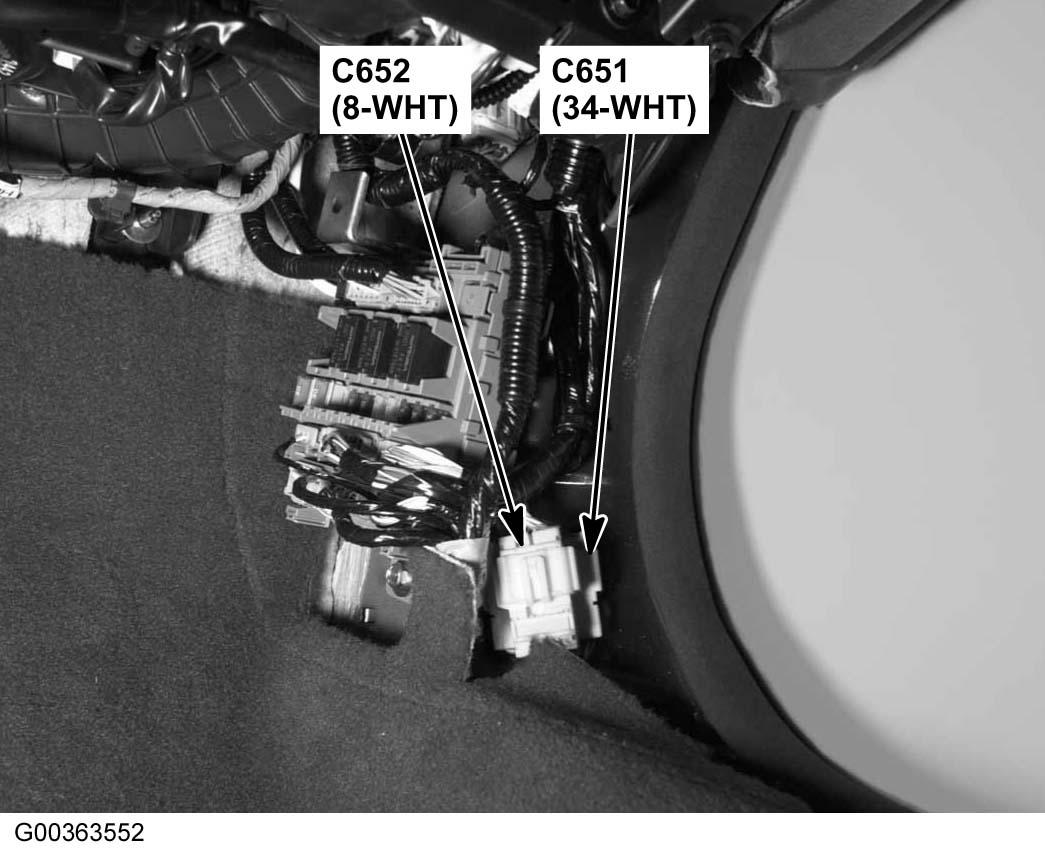

Fig 94: Behind Right Kick Panel

G00363552

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Behind Right Kick Panel

G00363553

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Behind Right Kick Panel

G00363554

Courtesy of AMERICAN HONDA MOTOR CO., INC.

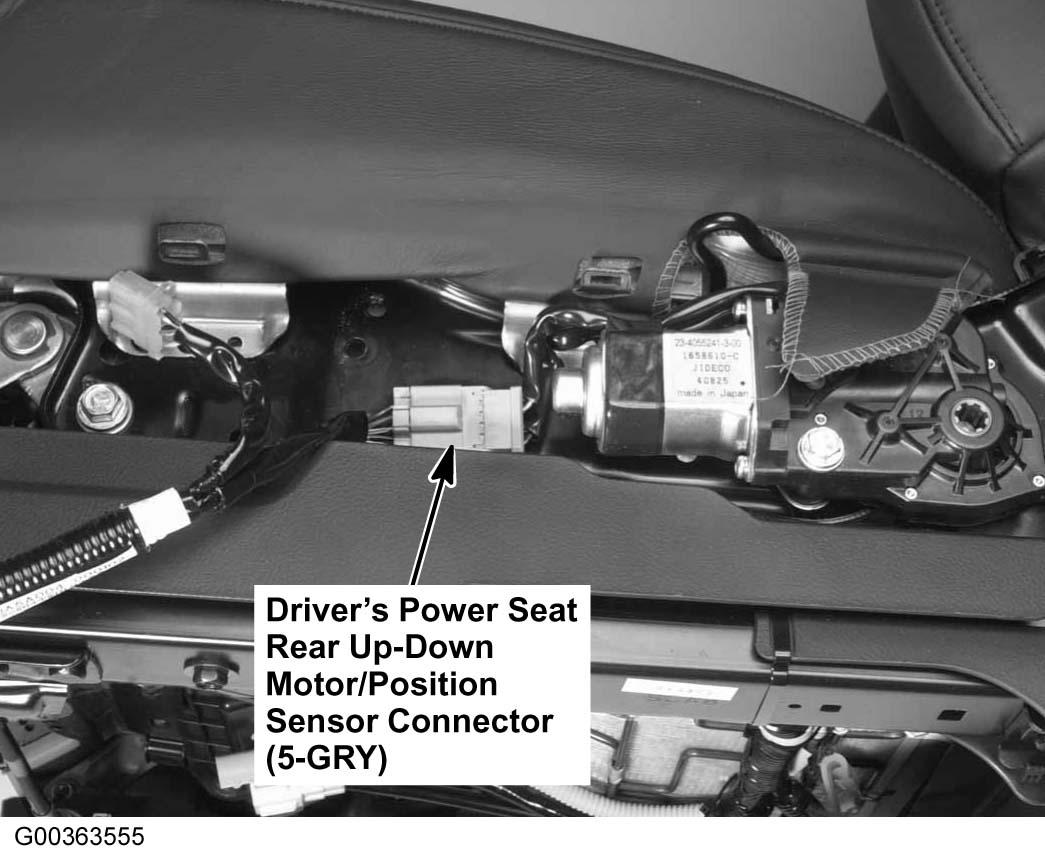

Fig 97: Left Side Of Driver's Seat

G00363555

Courtesy of AMERICAN HONDA MOTOR CO., INC.

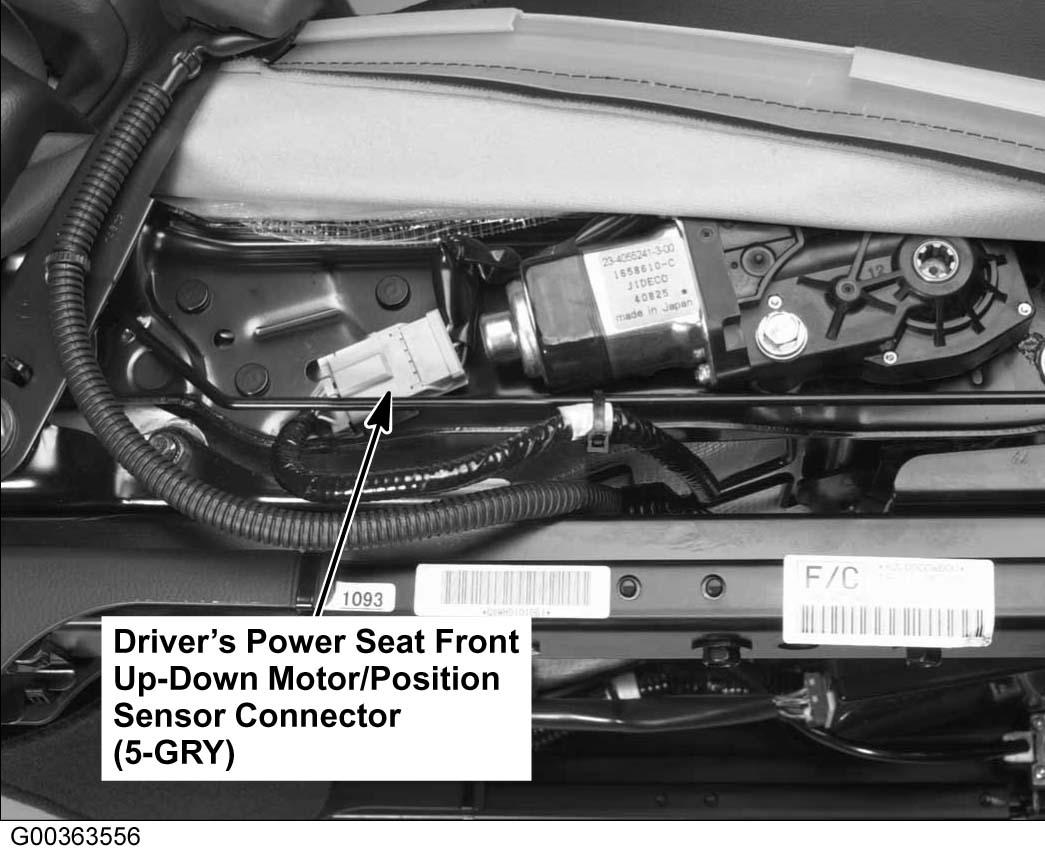

Fig 98: Right Side Of Driver's Seat

G00363556

Courtesy of AMERICAN HONDA MOTOR CO., INC.

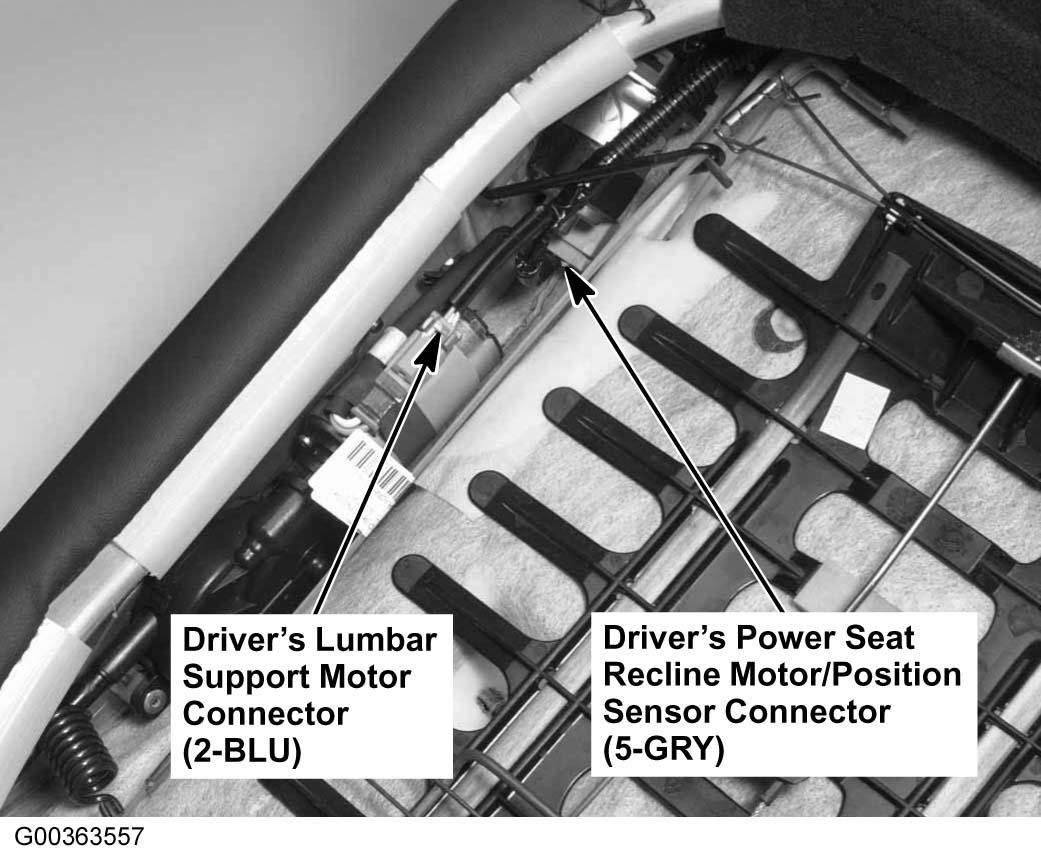

Fig 99: Right Side Of Driver's Seat

G00363557

Courtesy of AMERICAN HONDA MOTOR CO., INC.

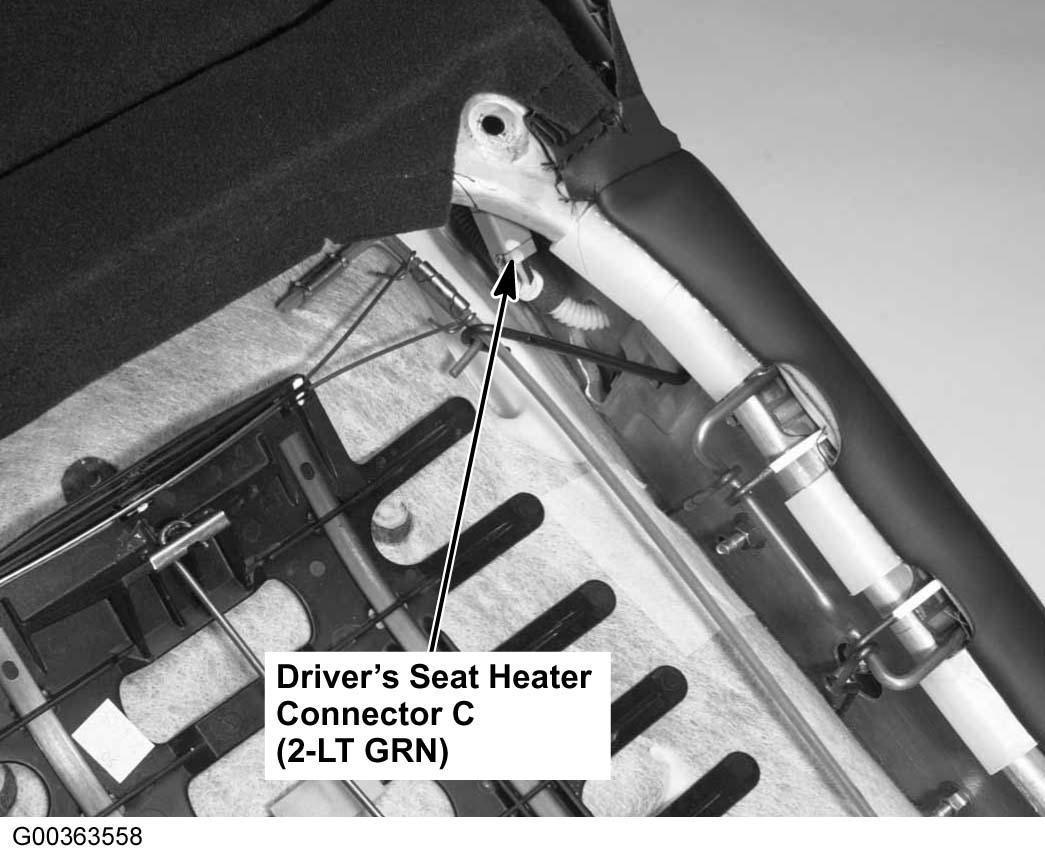

Fig 100: Right Side Of Driver's Seat

G00363558

Courtesy of AMERICAN HONDA MOTOR CO., INC.

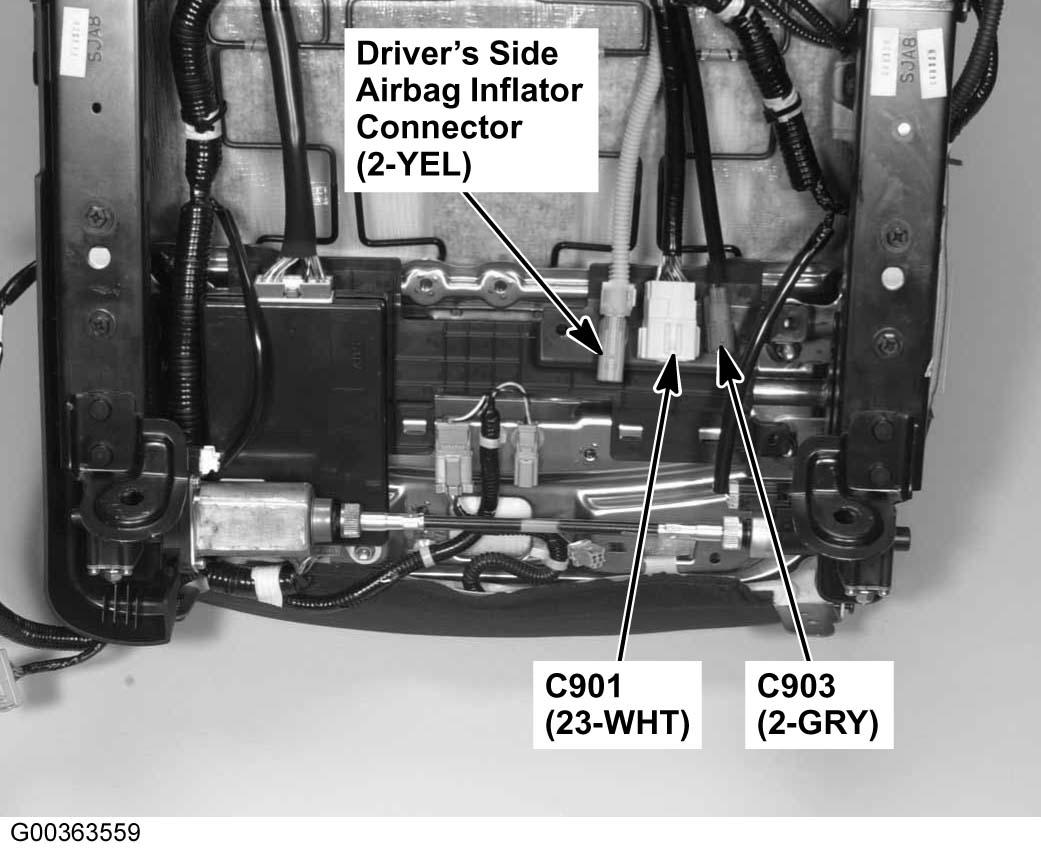

Fig 101: Under Driver's Seat

G00363559

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Under Driver's Seat

G00363560

Courtesy of AMERICAN HONDA MOTOR CO., INC.

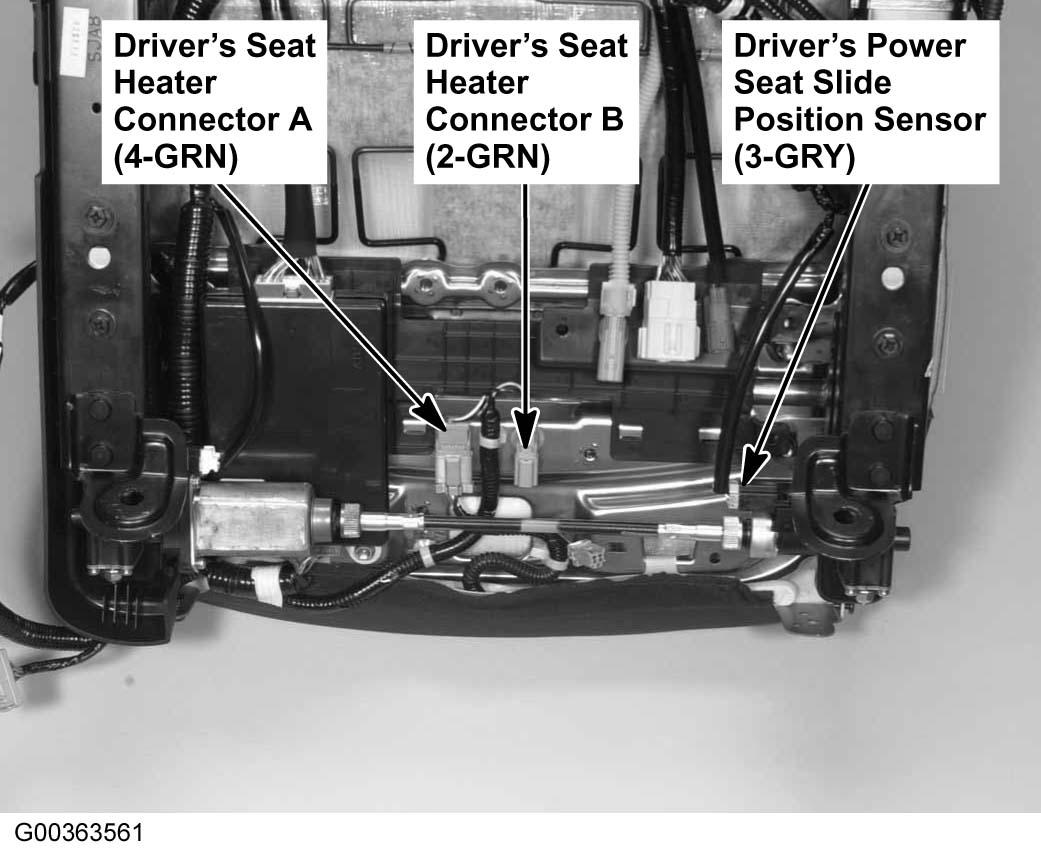

Fig 103: Under Driver's Seat

G00363561

Courtesy of AMERICAN HONDA MOTOR CO., INC.

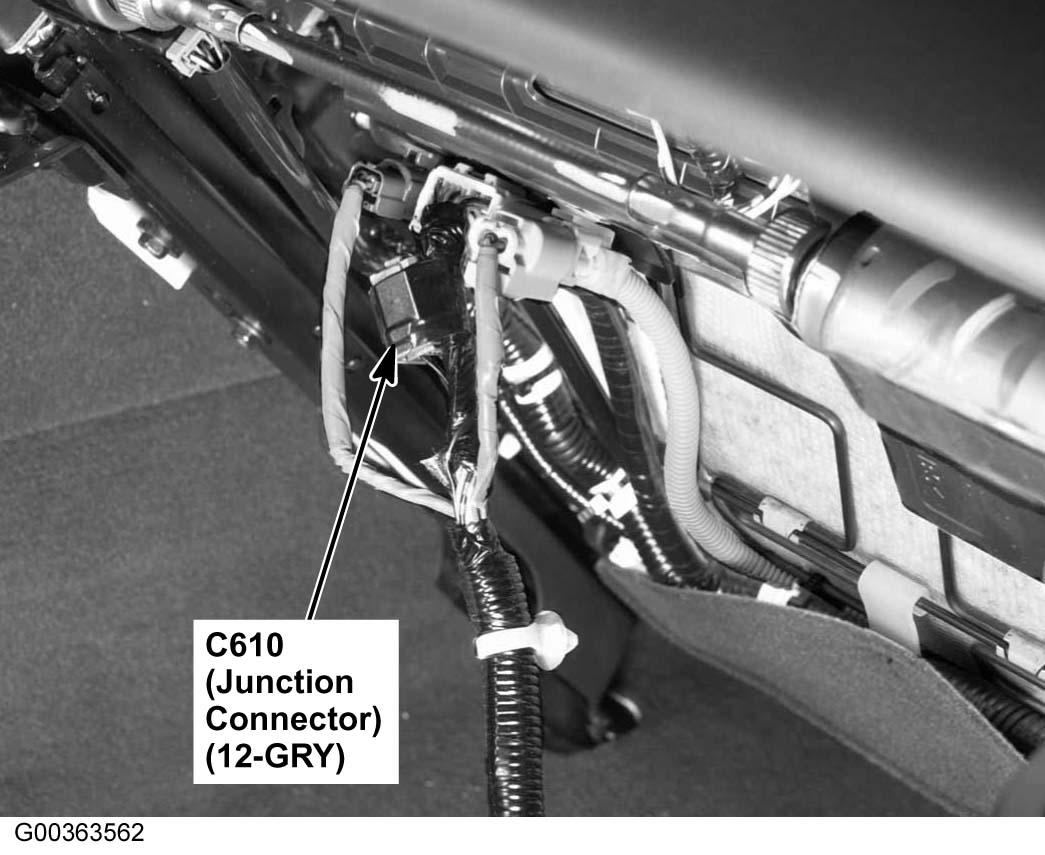

Fig 104: Under Driver's Seat

G00363562

Courtesy of AMERICAN HONDA MOTOR CO., INC.

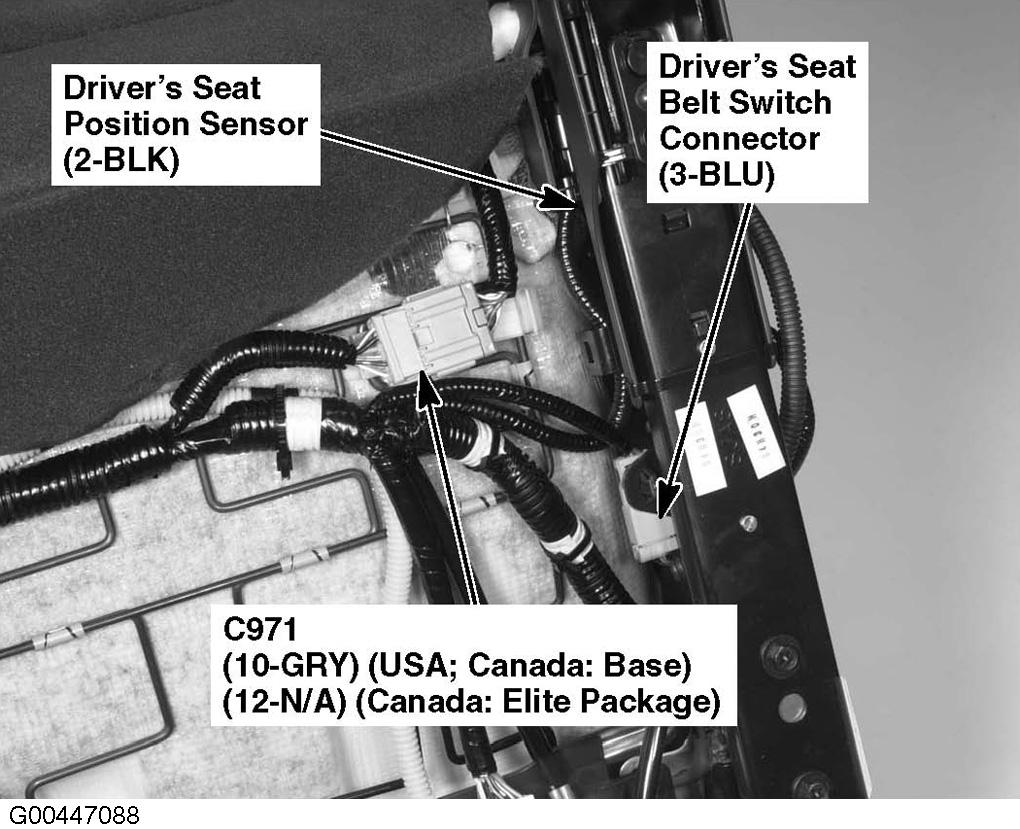

Fig 105: Under Driver's Seat

G00447088

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: In Front Passenger's Seat

G00363564

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Left Side Of Front Passenger's Seat

G00447089

Courtesy of AMERICAN HONDA MOTOR CO., INC.

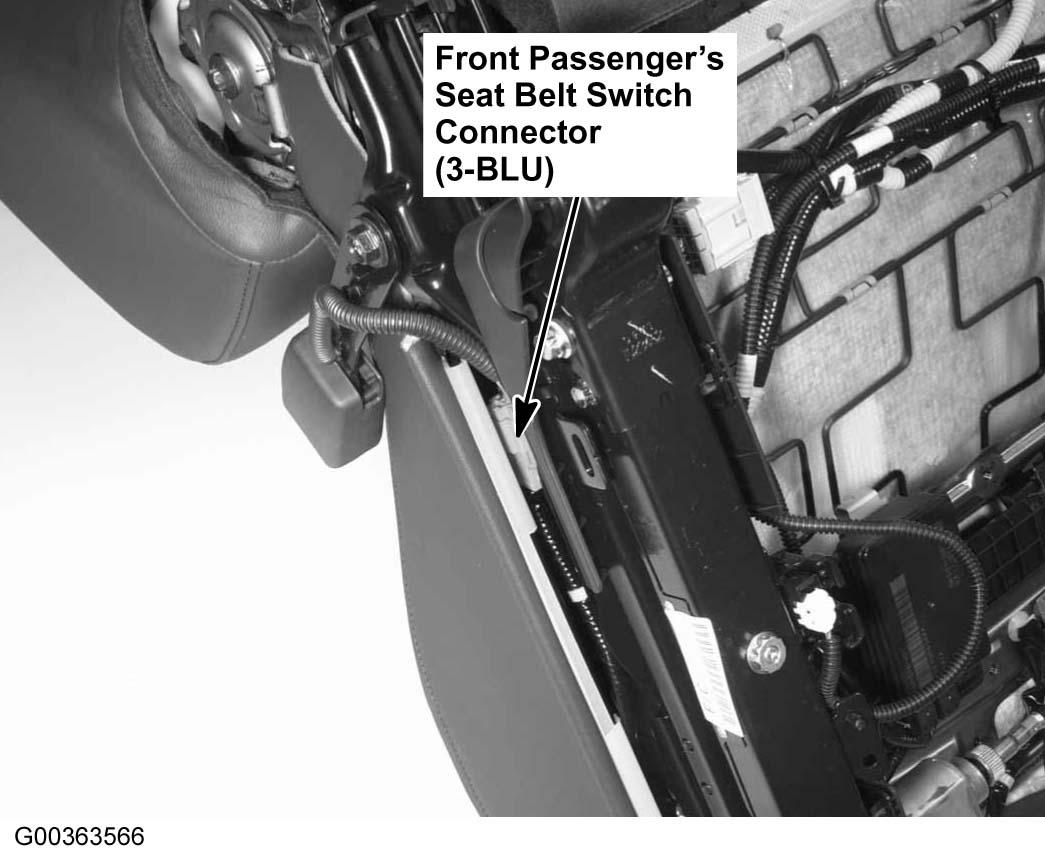

Fig 108: Left Side Of Front Passenger's Seat

G00363566

Courtesy of AMERICAN HONDA MOTOR CO., INC.

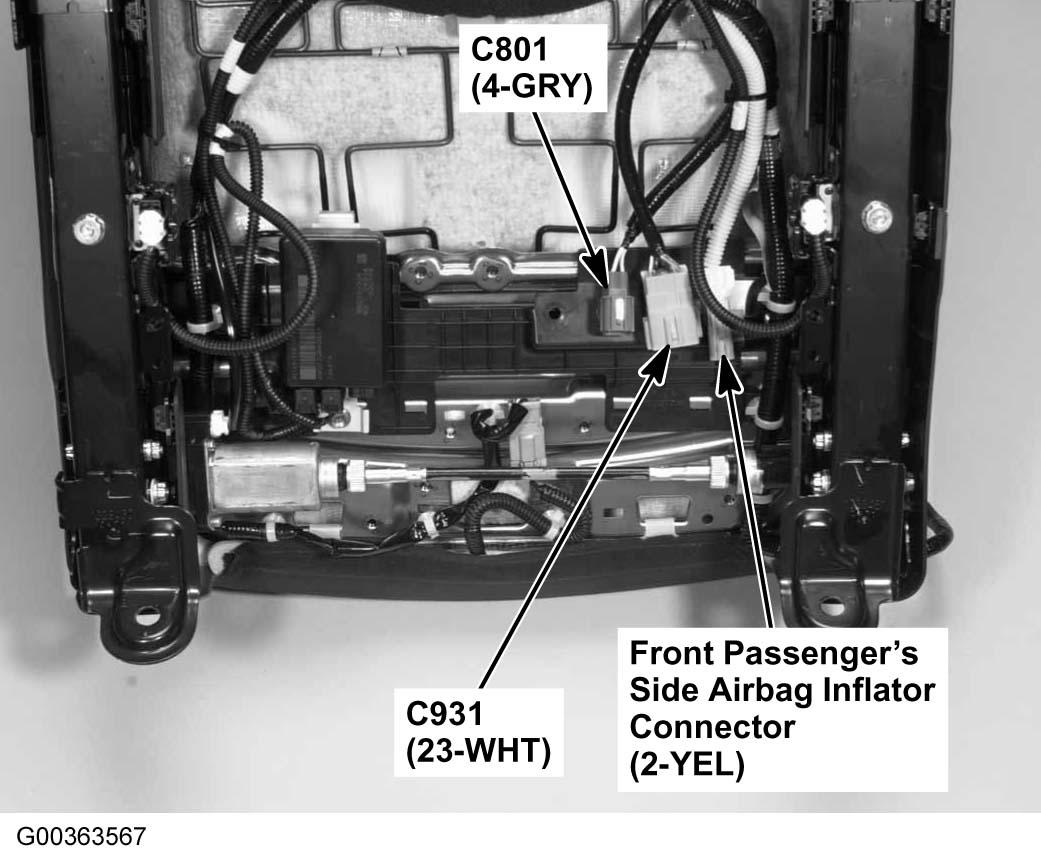

Fig 109: Under Front Passenger's Seat

G00363567

Courtesy of AMERICAN HONDA MOTOR CO., INC.

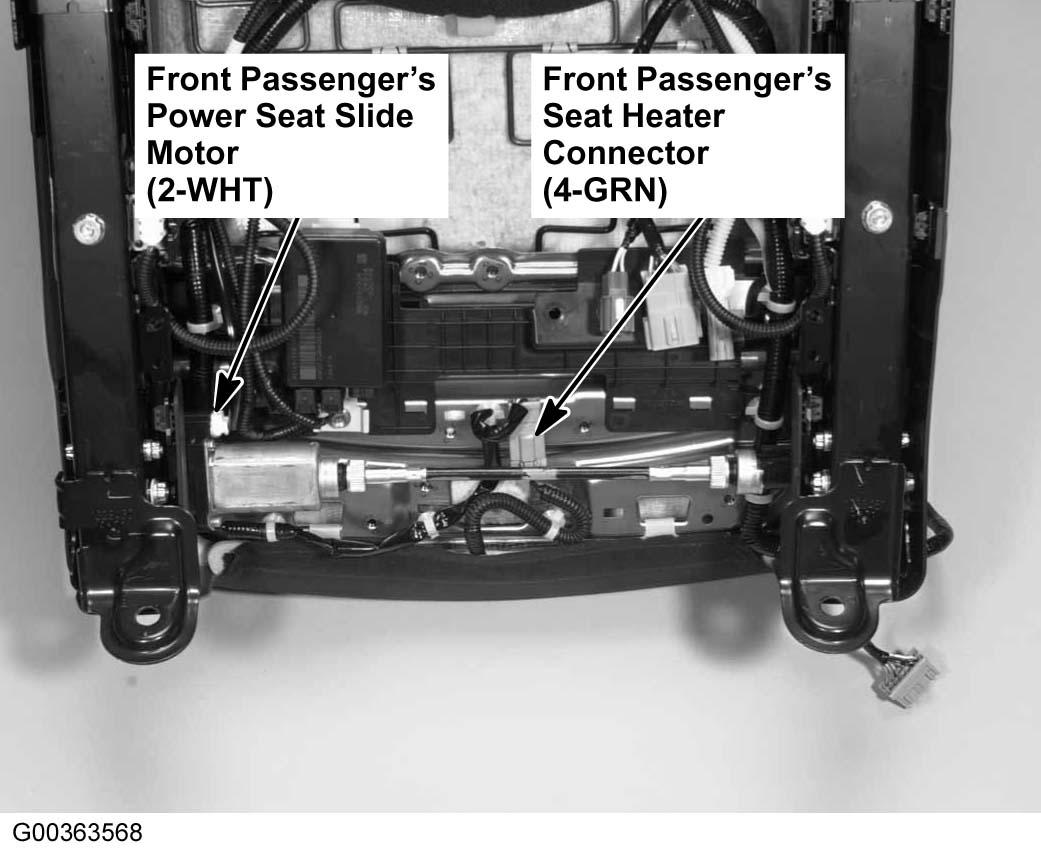

Fig 110: Under Front Passenger's Seat

G00363568

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Under Front Passenger's Seat

G00363569

Courtesy of AMERICAN HONDA MOTOR CO., INC.

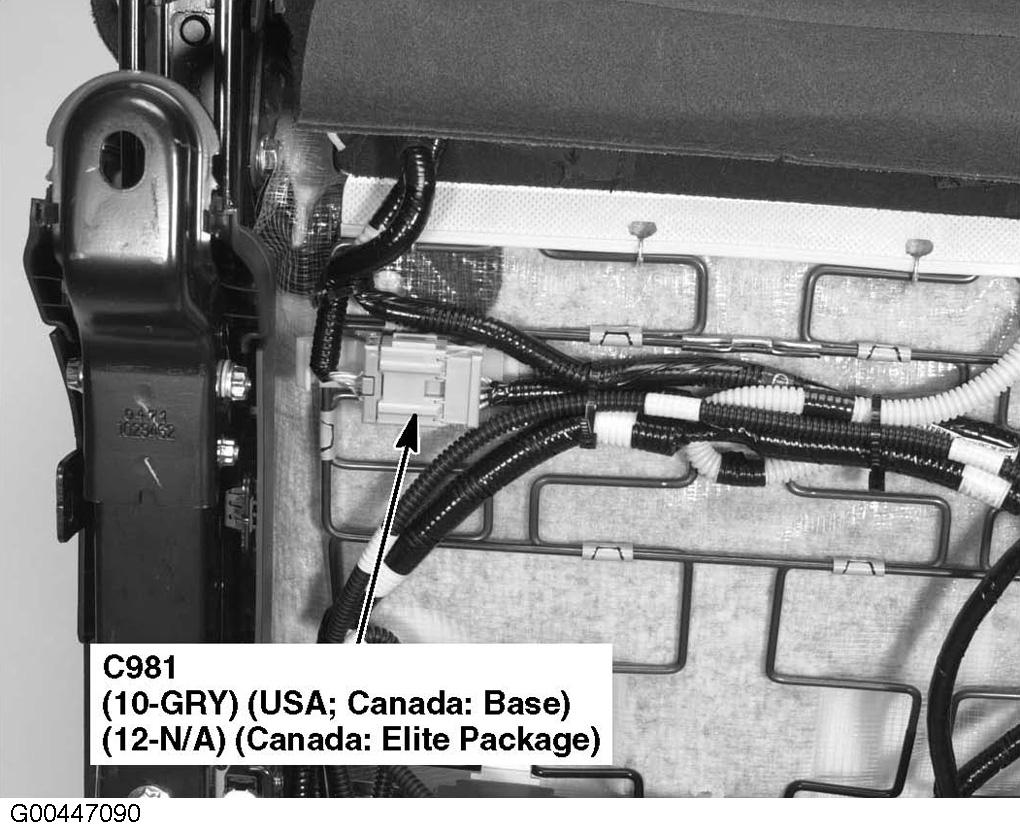

Fig 112: Under Front Passenger's Seat

G00447090

Courtesy of AMERICAN HONDA MOTOR CO., INC.

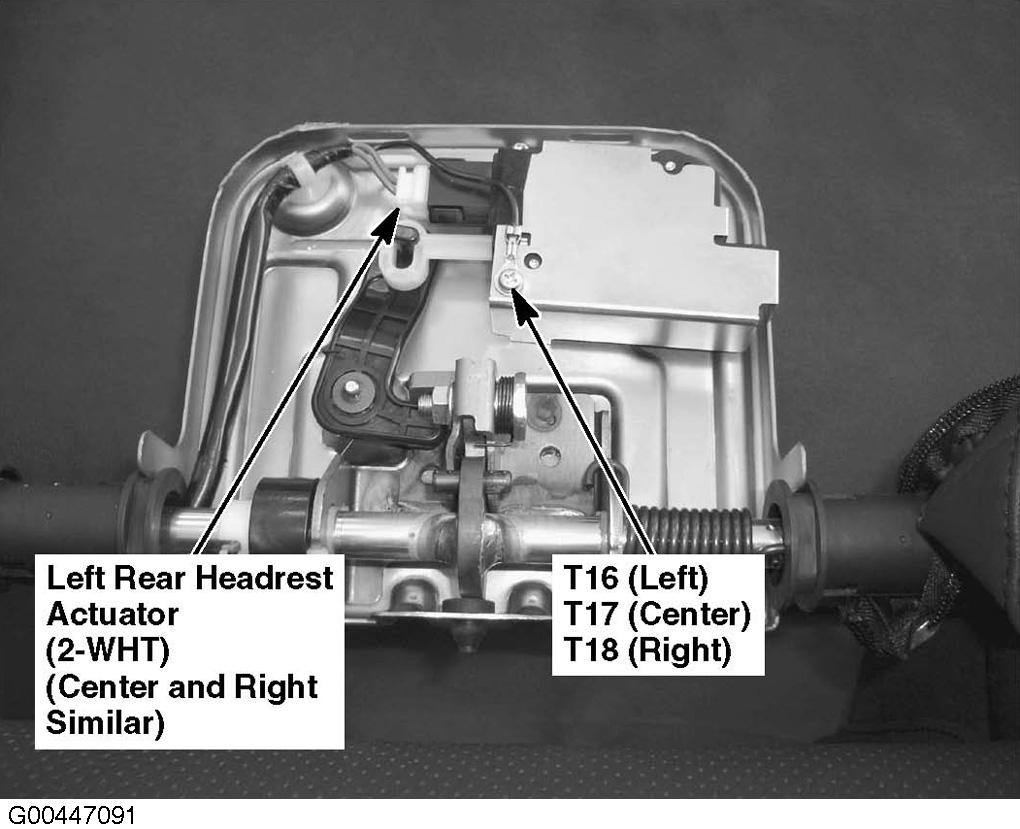

Fig 113: Left Rear Headrest

G00447091

Courtesy of AMERICAN HONDA MOTOR CO., INC.

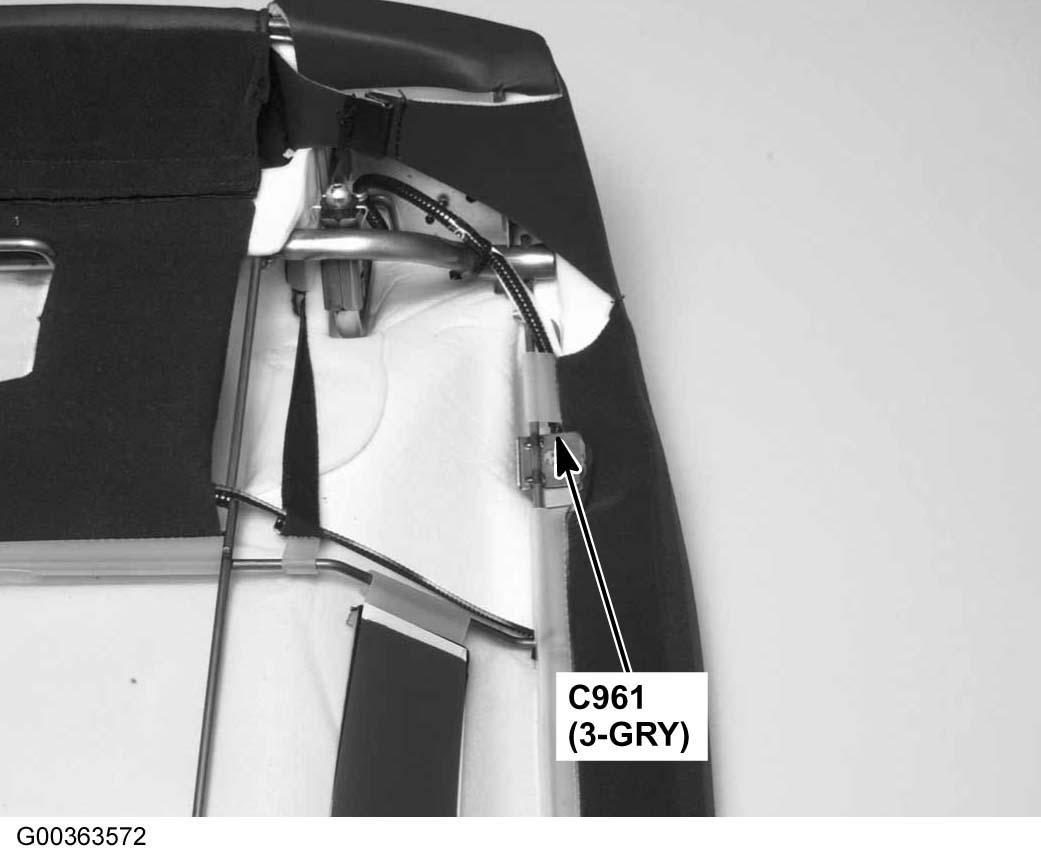

Fig 114: Right Side Of Rear Seat

G00363572

Courtesy of AMERICAN HONDA MOTOR CO., INC.

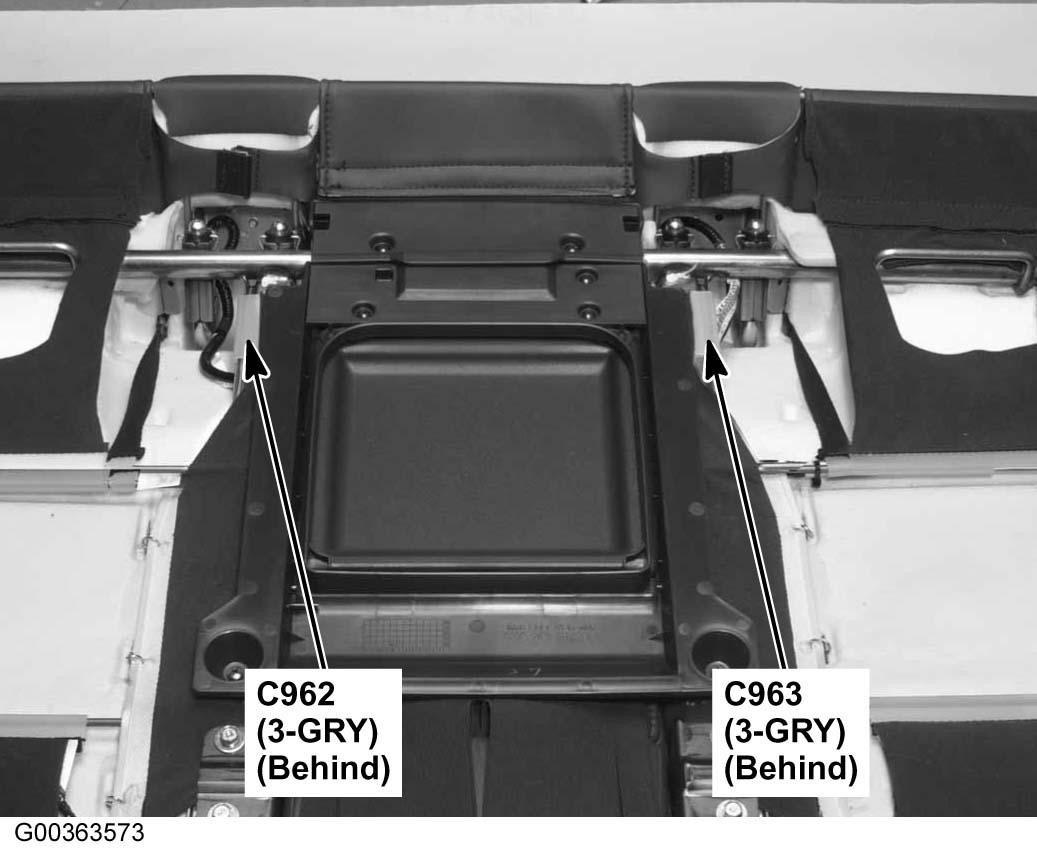

Fig 115: Center Of Rear Seat

G00363573

Courtesy of AMERICAN HONDA MOTOR CO., INC.

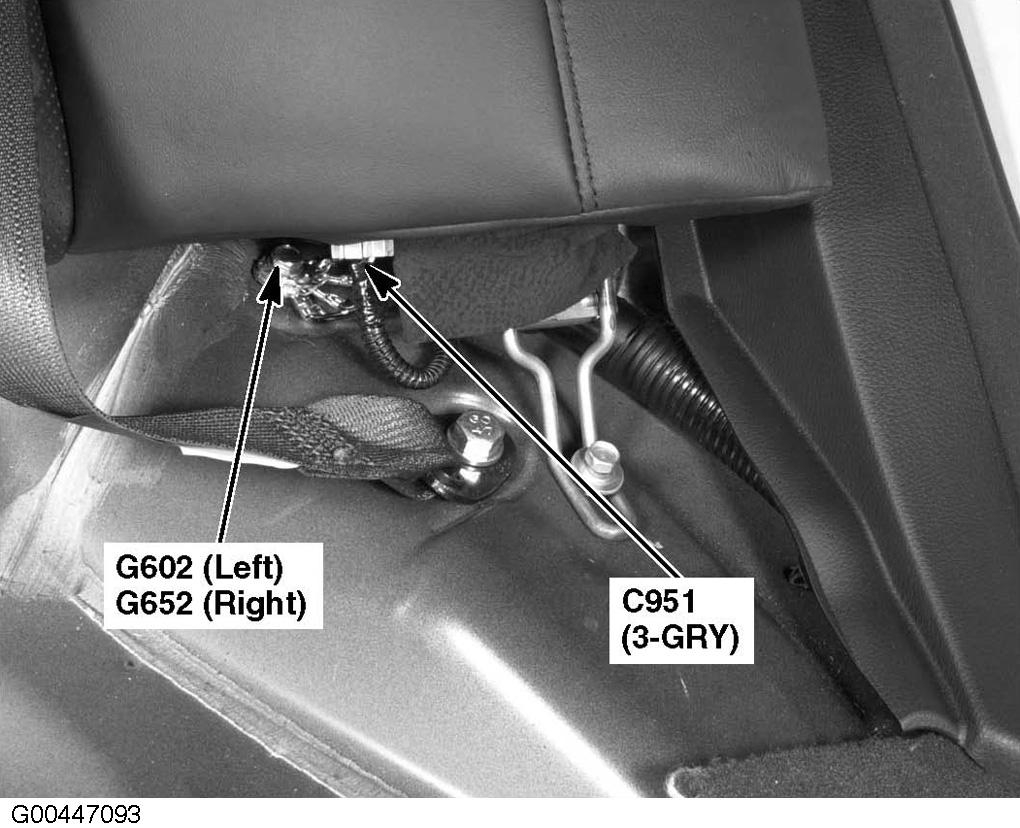

Fig 116: Under Left Side Of Rear Seat (Right Similar)

G00447093

Courtesy of AMERICAN HONDA MOTOR CO., INC.

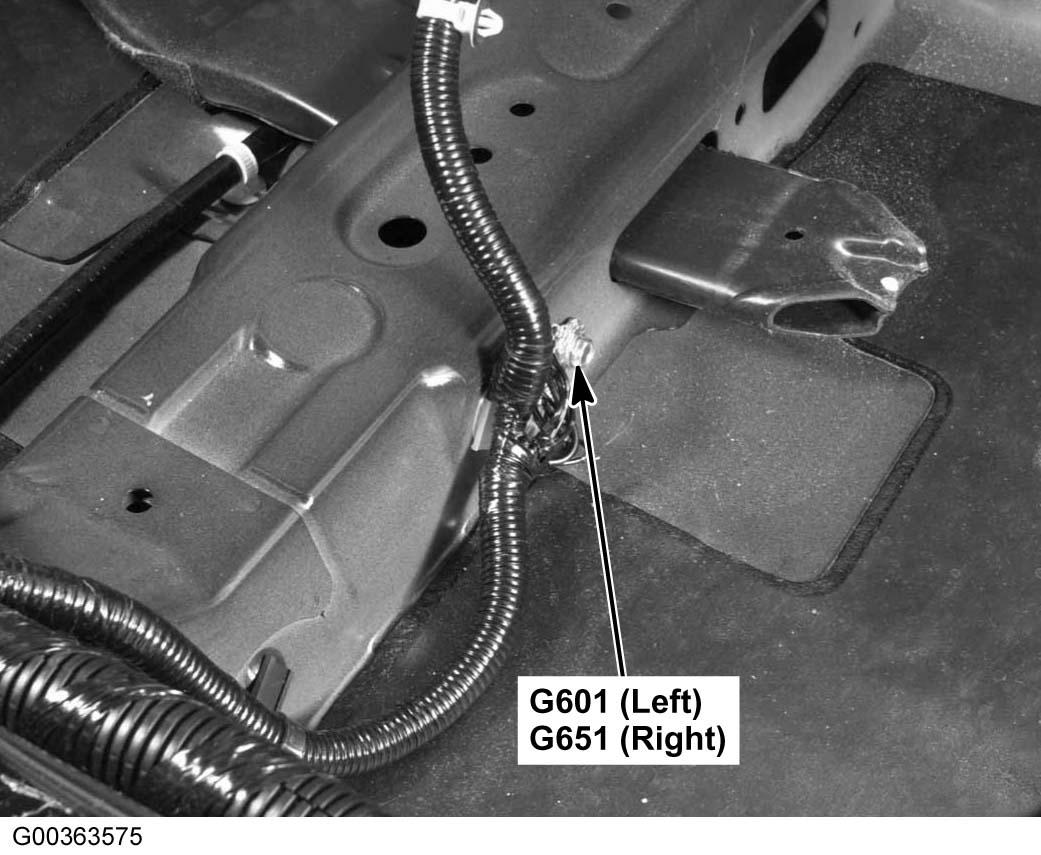

Fig 117: Left Side Of Floor (Right Similar)

G00363575

Courtesy of AMERICAN HONDA MOTOR CO., INC.

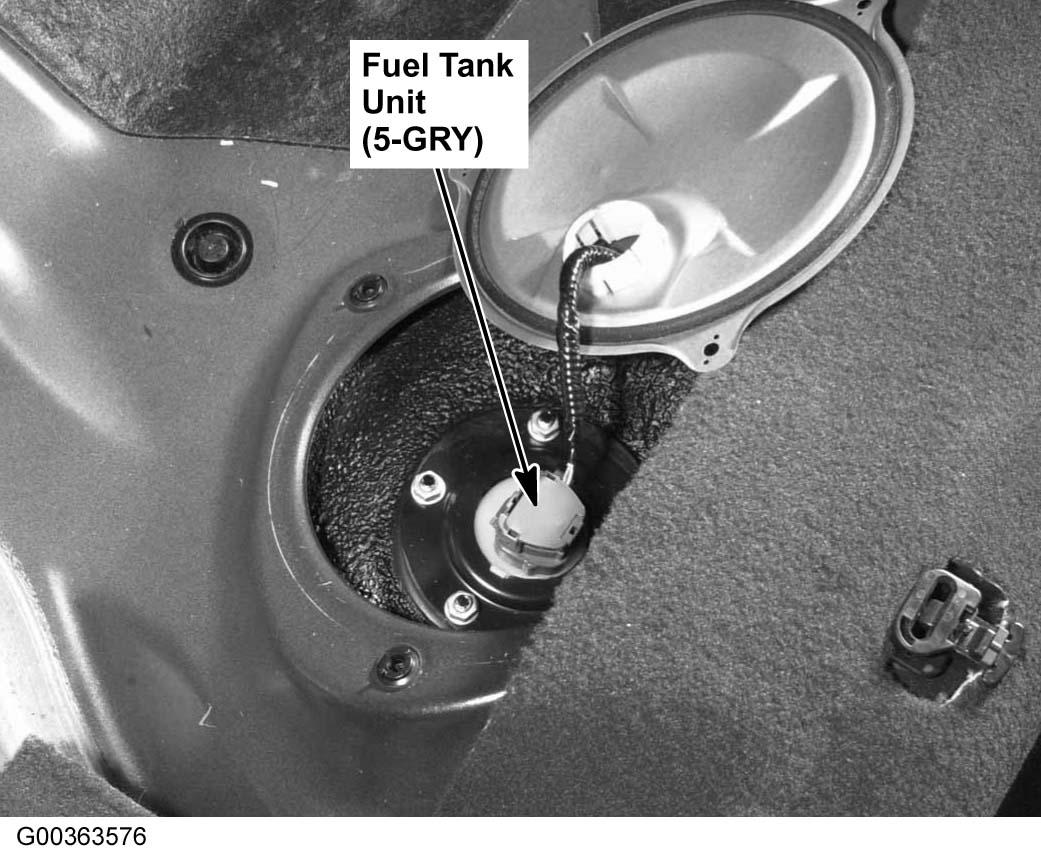

Fig 118: Under Rear Seat

G00363576

Courtesy of AMERICAN HONDA MOTOR CO., INC.

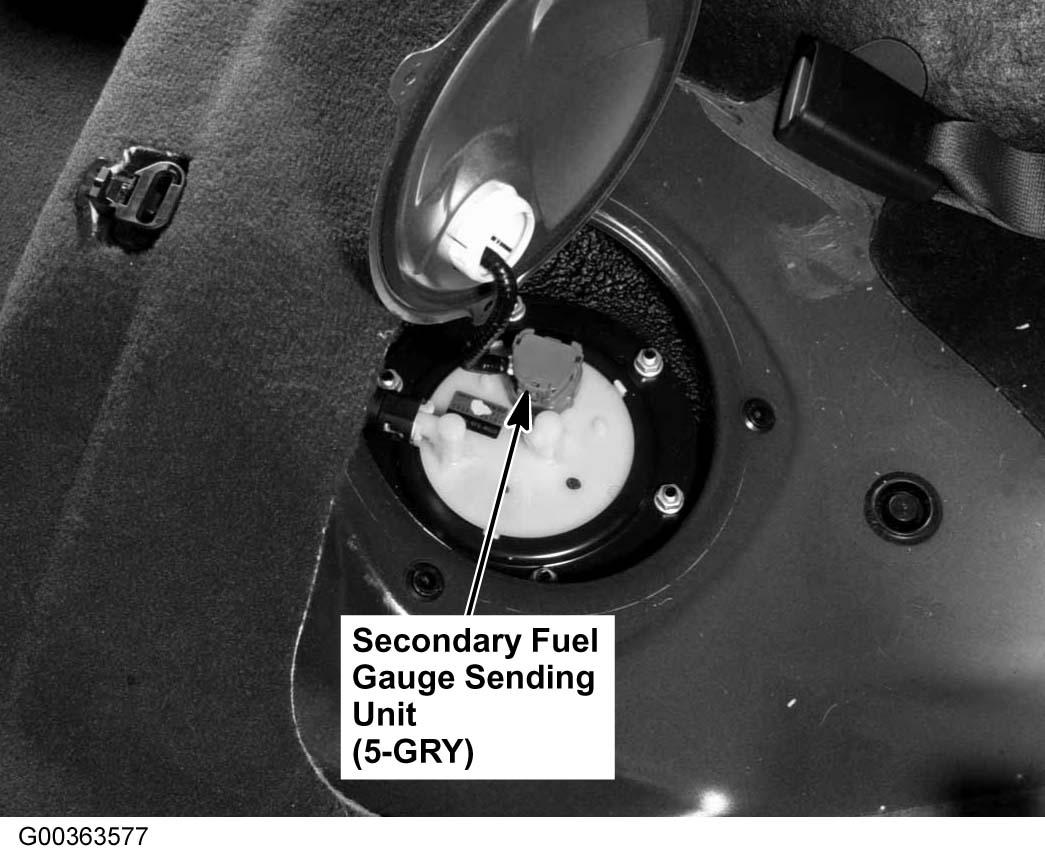

Fig 119: Under Rear Seat

G00363577

Courtesy of AMERICAN HONDA MOTOR CO., INC.

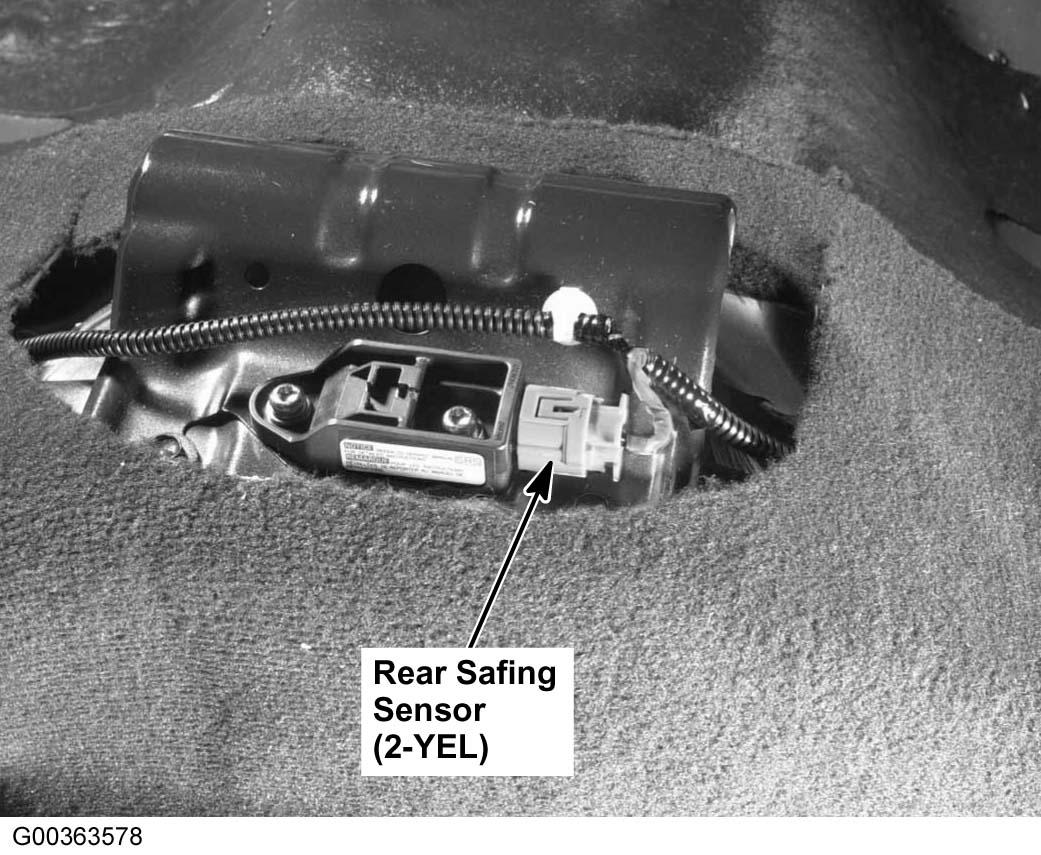

Fig 120: Under Rear Seat

G00363578

Courtesy of AMERICAN HONDA MOTOR CO., INC.

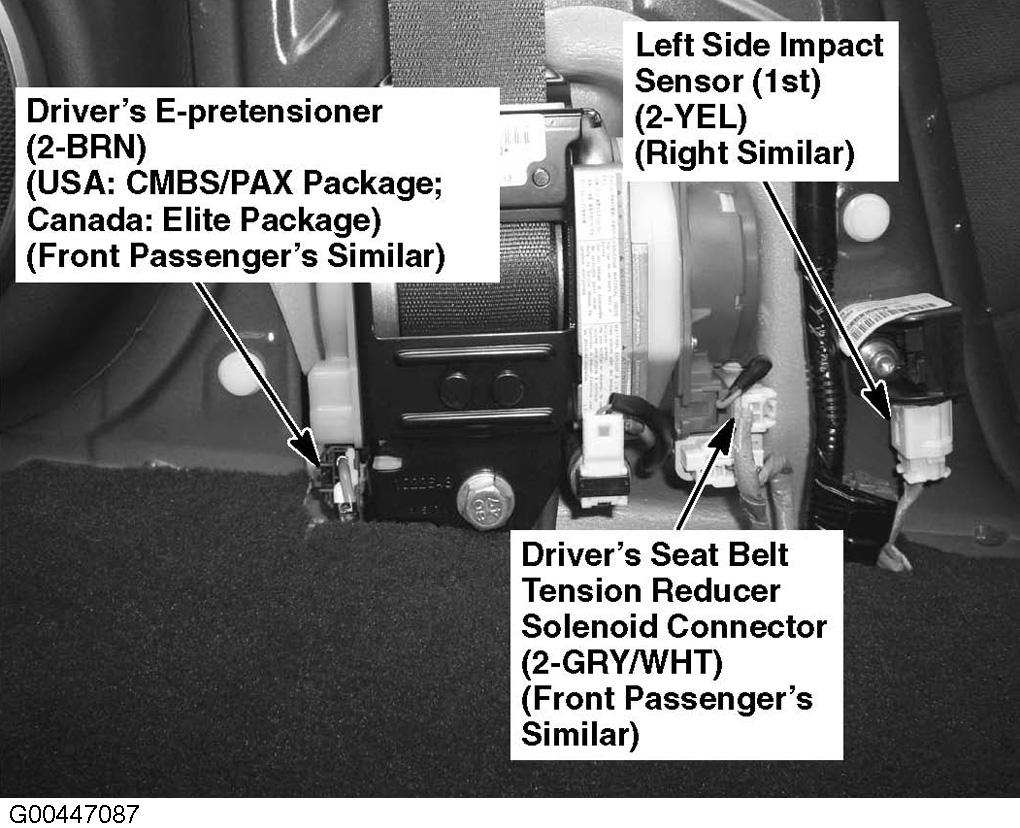

Fig 121: Left "B" Pillar (Right Similar)

G00447087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Left "B" Pillar (Right Similar)

G00363580

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Left "B" Pillar (Right Similar)

G00363581

Courtesy of AMERICAN HONDA MOTOR CO., INC.

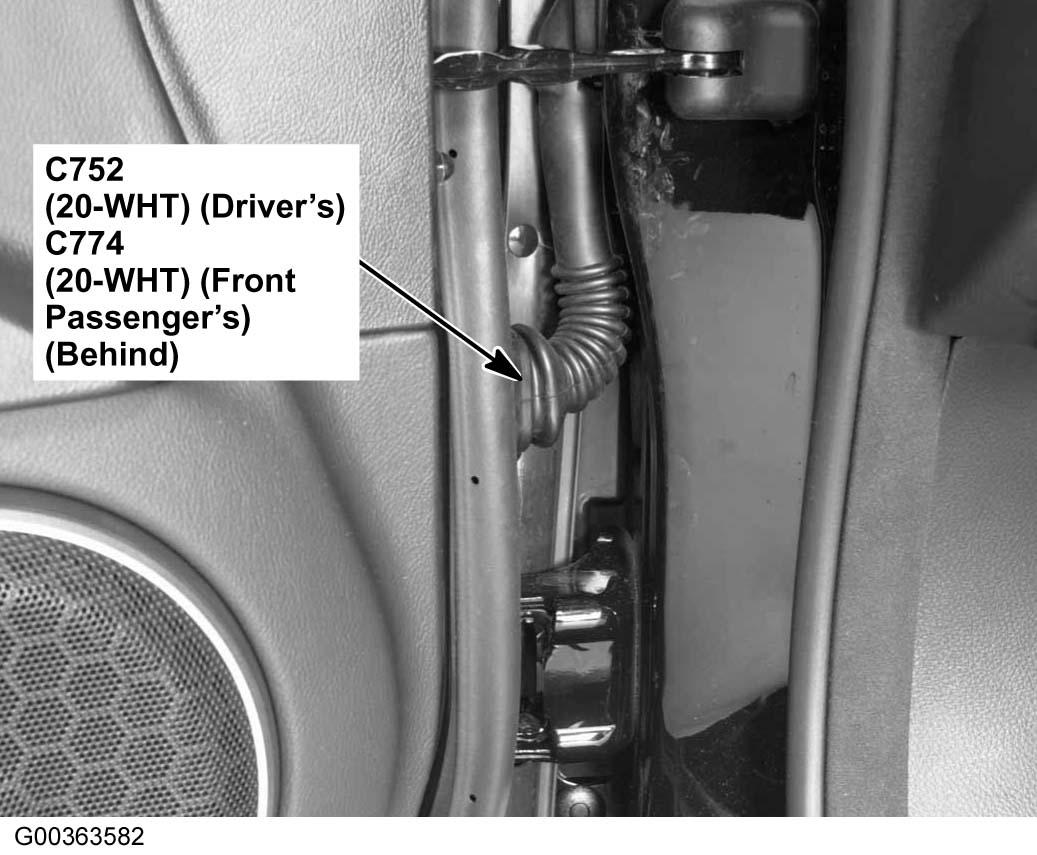

Fig 124: Driver's Door (Front Passenger's Similar)

G00363582

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Driver's Door (Front Passenger's Similar)

G00363583

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Driver's Door (Front Passenger's Similar)

G00363584

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Left Rear Door (Right Similar)

G00363585

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 128: Driver's Door (Front Passenger's Similar)

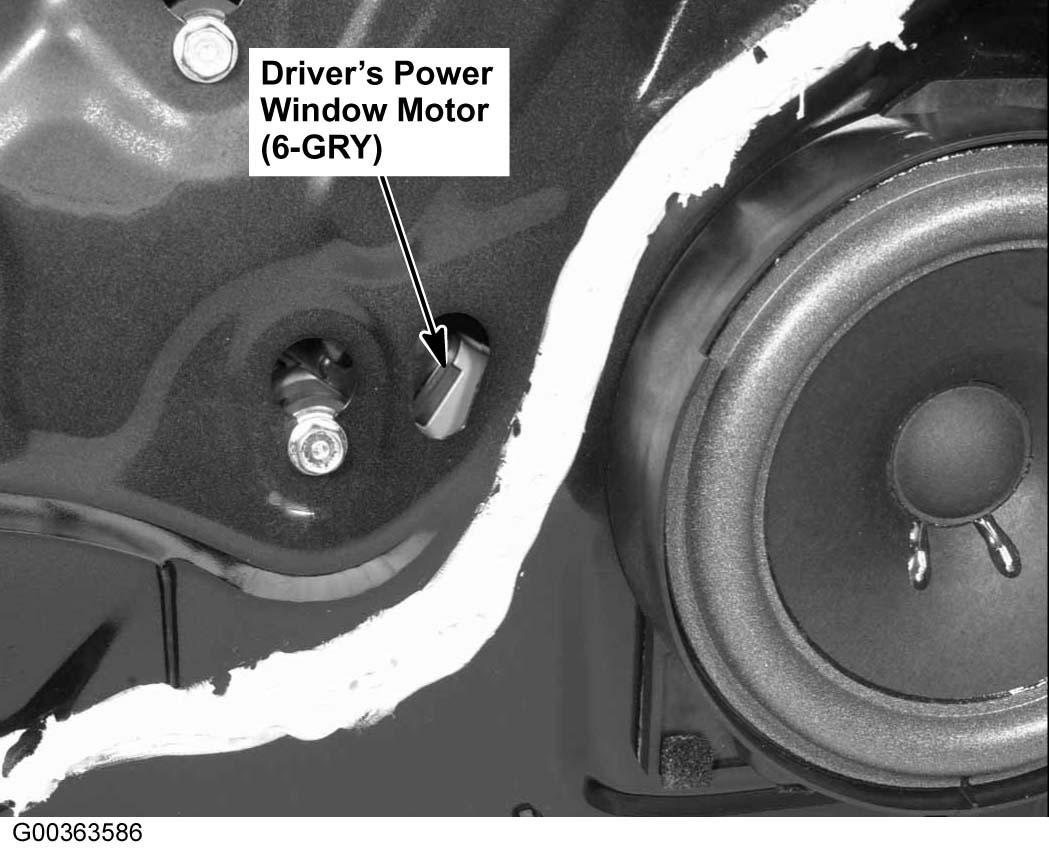

G00363586

Courtesy of AMERICAN HONDA MOTOR CO., INC.

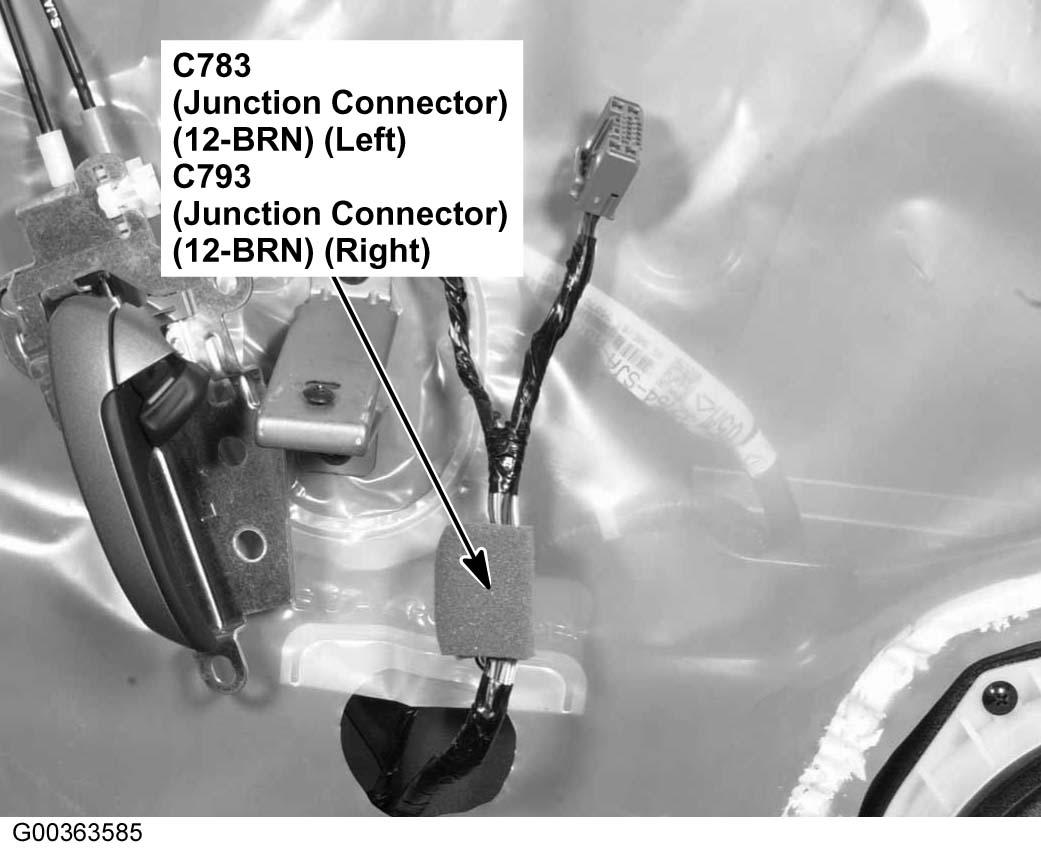

Fig 129: Driver's Door (Front Passenger's Similar)

G00363587

Courtesy of AMERICAN HONDA MOTOR CO., INC.

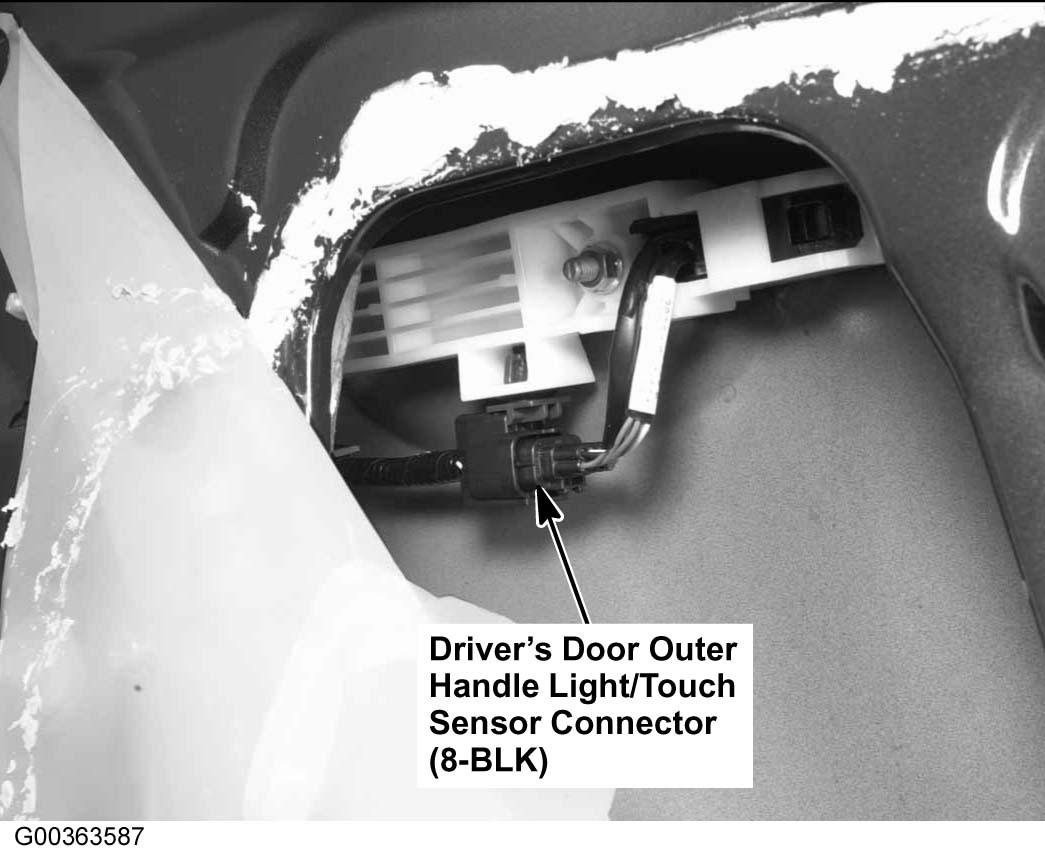

Fig 130: Driver's Door

G00363588

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Front Passenger's Door

G00363589

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Left Rear Door (Right Similar)

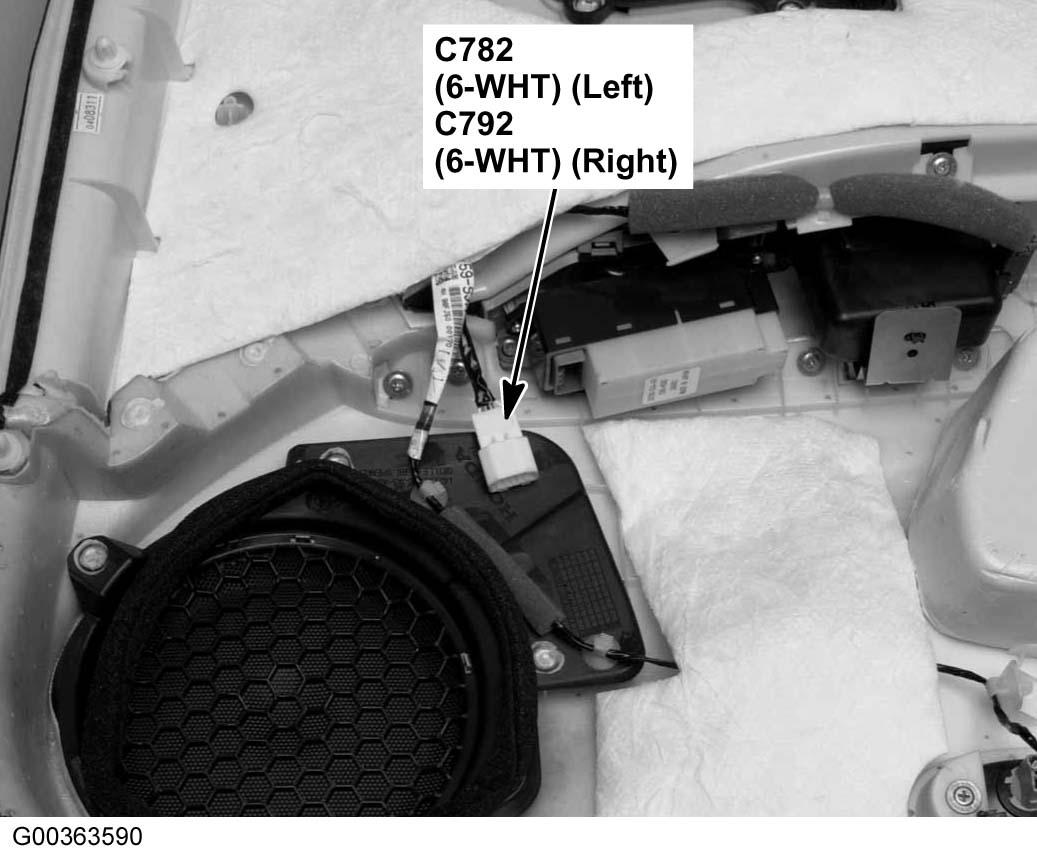

G00363590

Courtesy of AMERICAN HONDA MOTOR CO., INC.

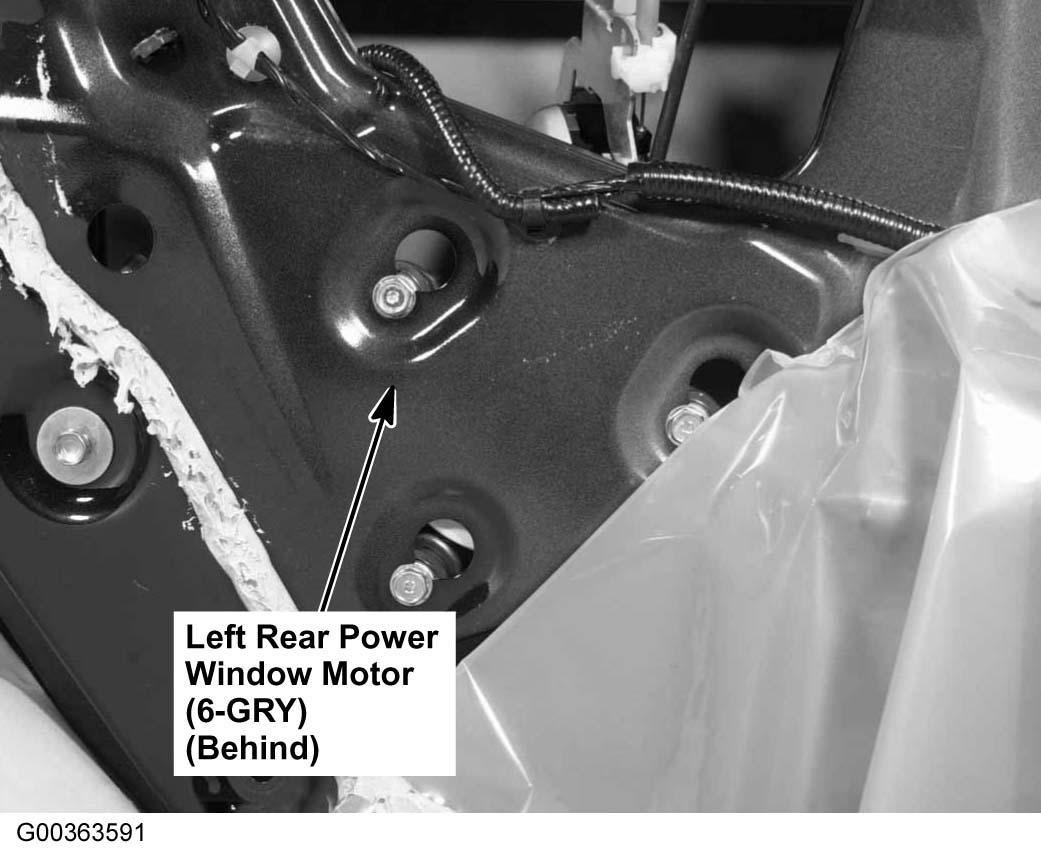

Fig 133: Left Rear Door (Right Similar)

G00363591

Courtesy of AMERICAN HONDA MOTOR CO., INC.

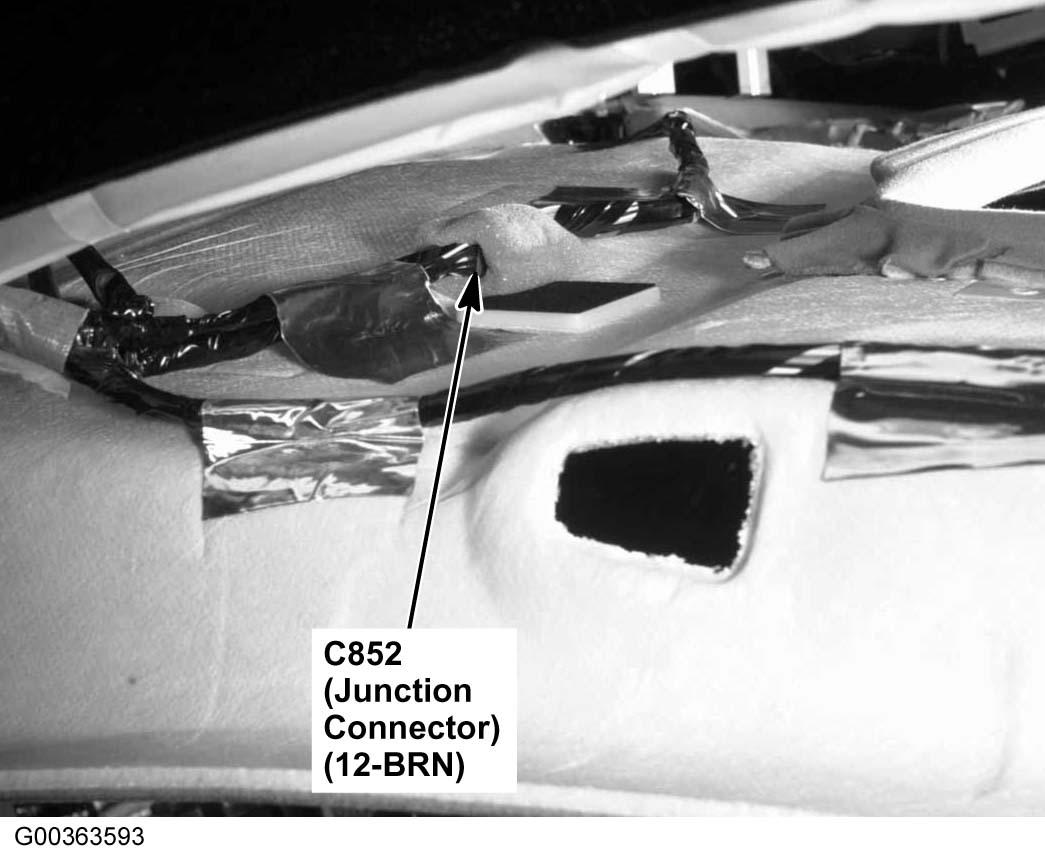

Fig 134: Left Front Of Roof

G00363593

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Front Of Roof

G00447097

Courtesy of AMERICAN HONDA MOTOR CO., INC.

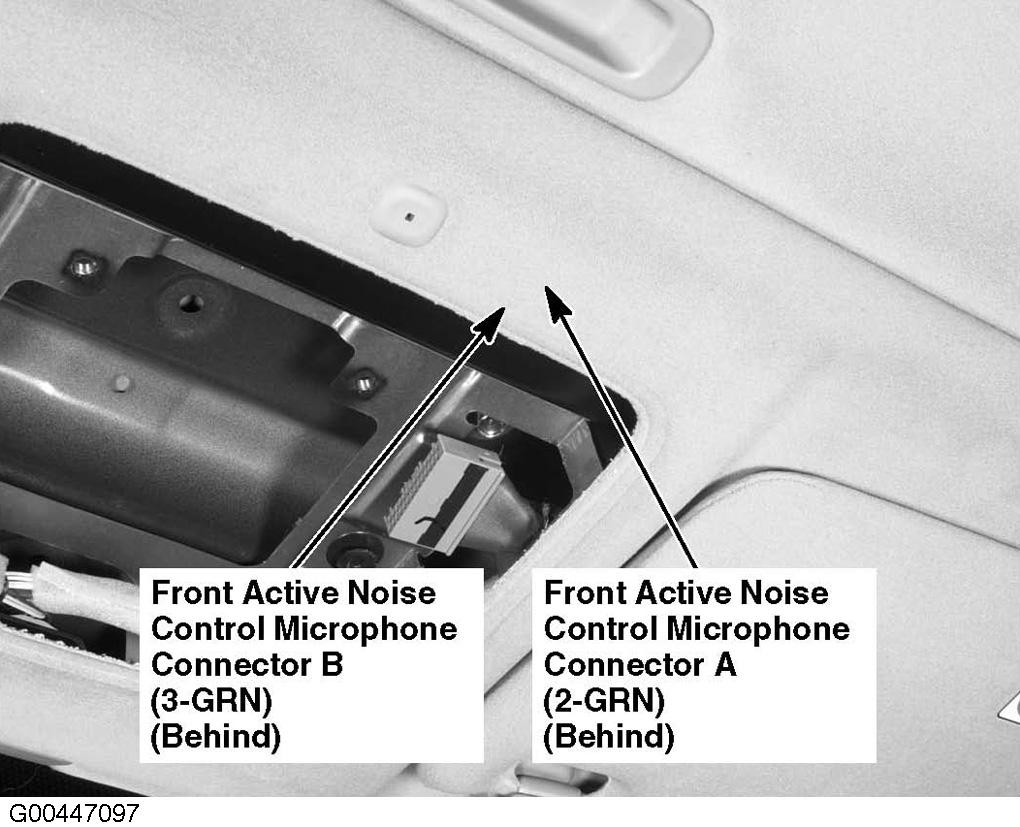

Fig 136: Rear Of Roof (USA: Technology Package)

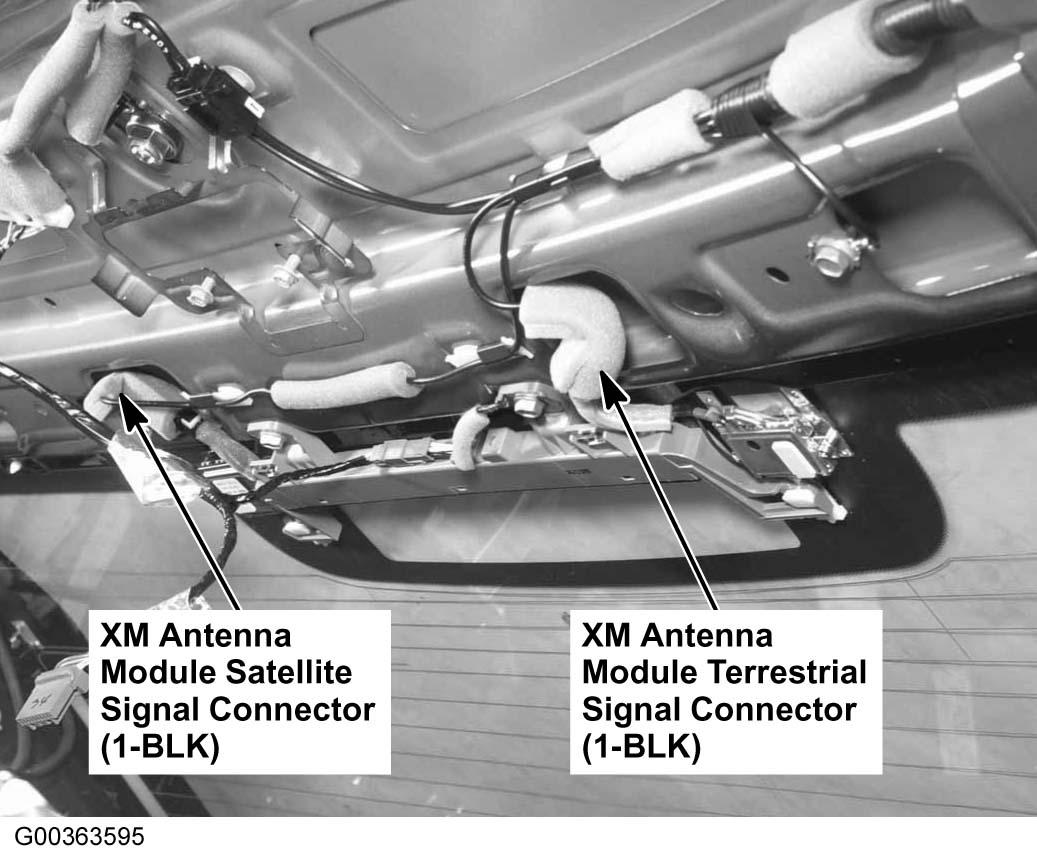

G00363595

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Rear Of Roof

G00447098

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 138: Right "C" Pillar

G00447095

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Right "C" Pillar

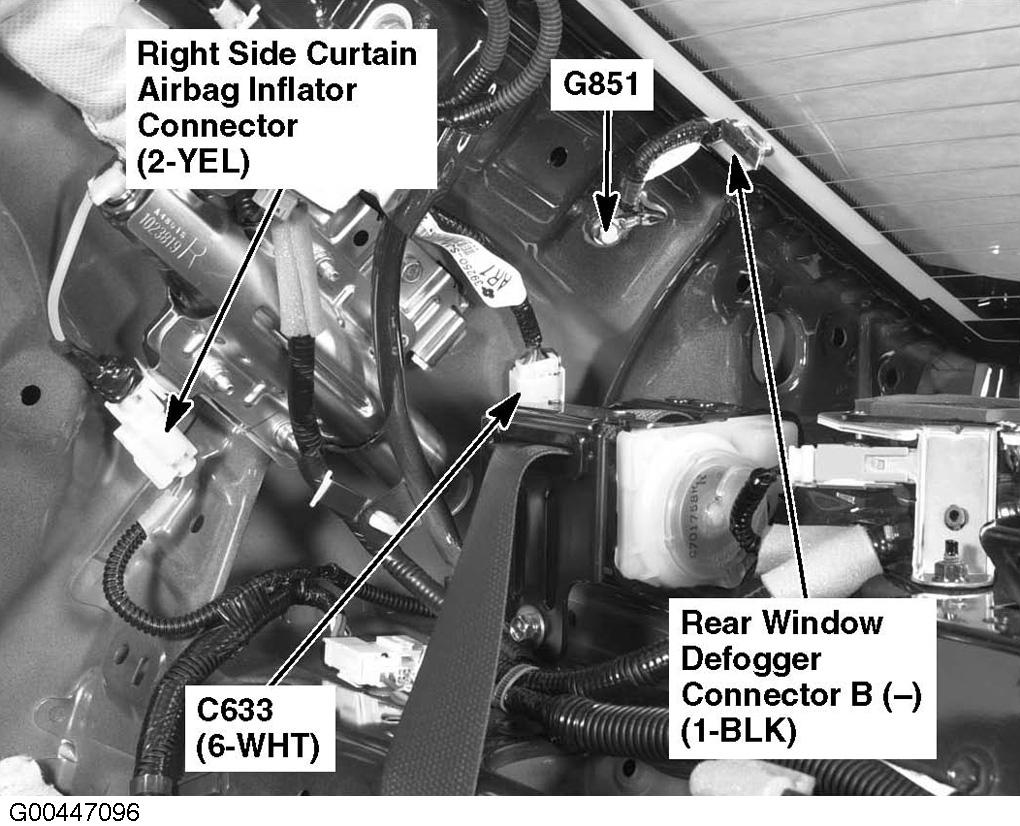

G00447096

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 140: Right "C" Pillar

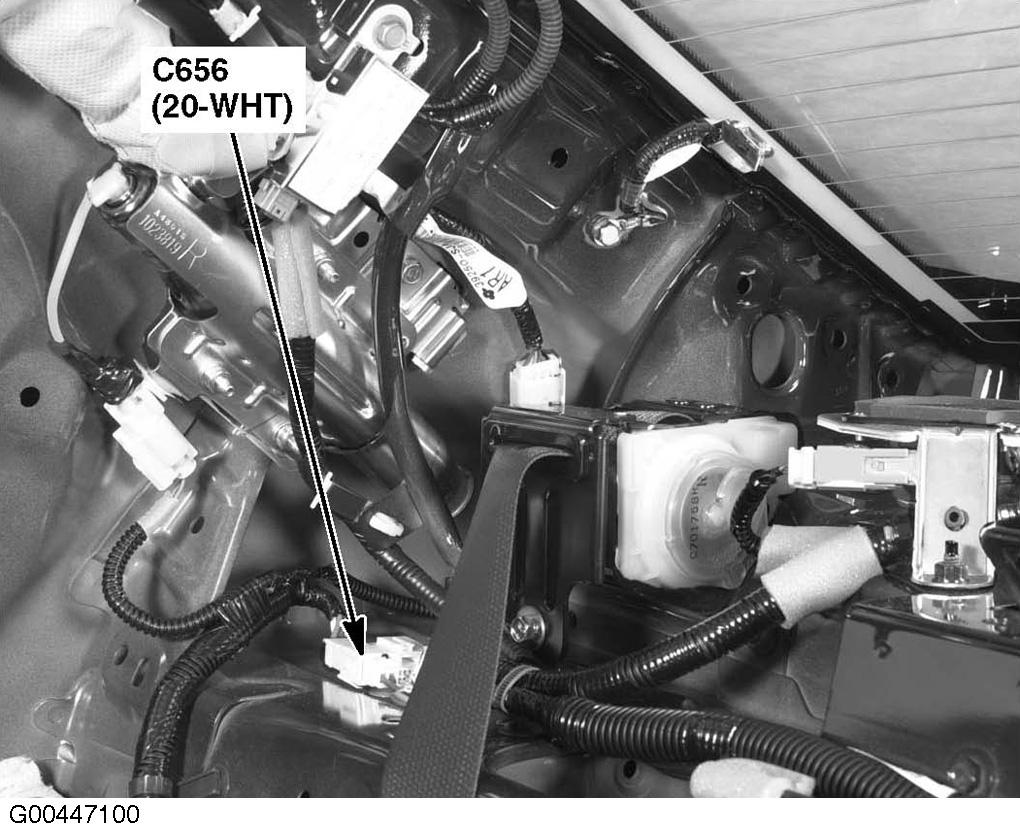

G00447100

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Left "C" Pillar

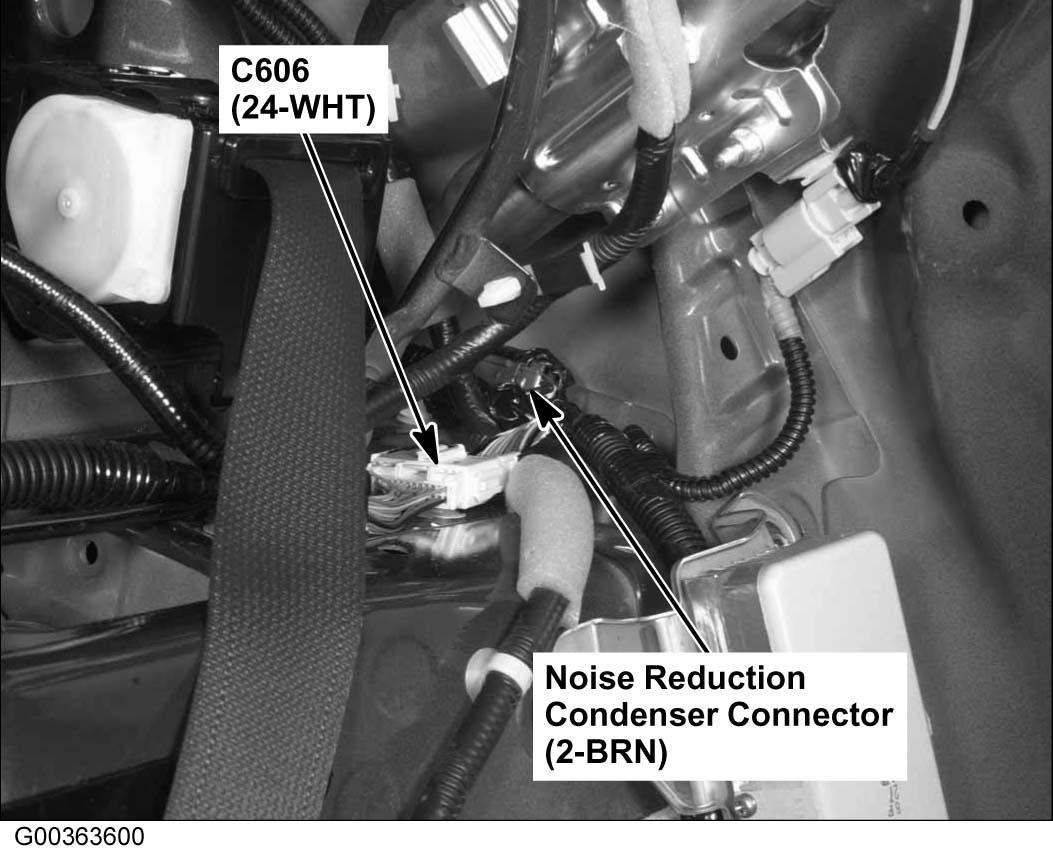

G00363600

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 142: Left "C" Pillar

G00363601

Courtesy of AMERICAN HONDA MOTOR CO., INC.

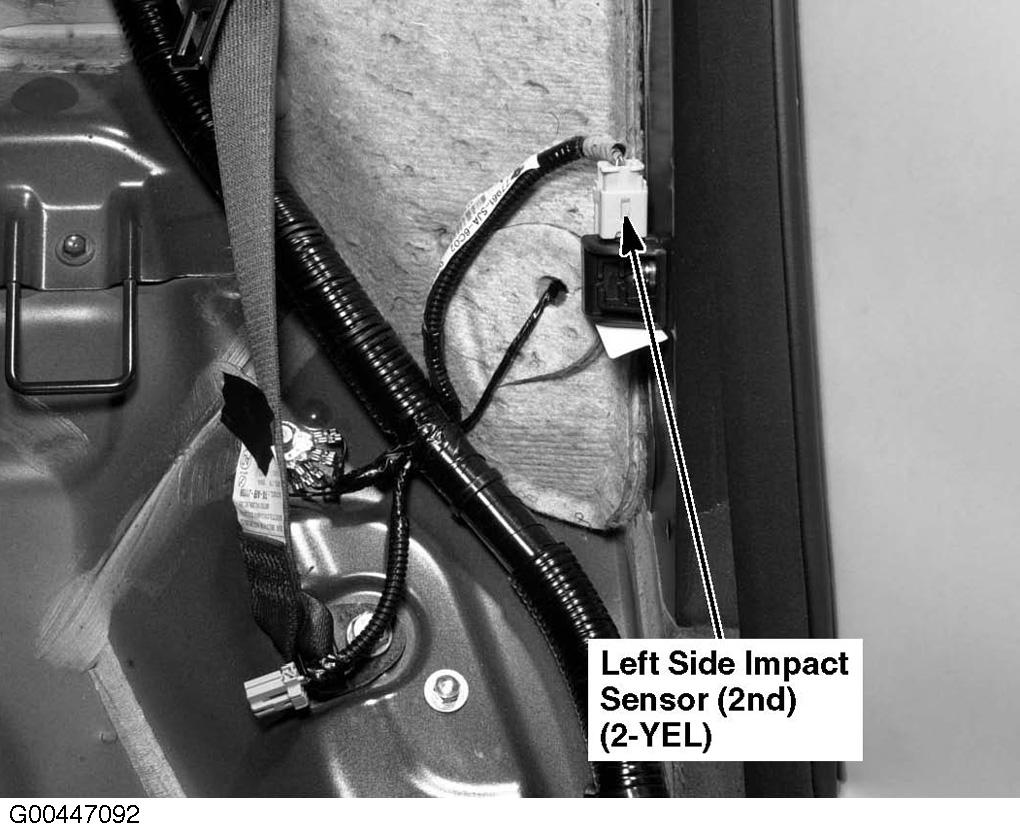

Fig 143: Left "C" Pillar (Right Similar)

G00447092

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 144: Left "C" Pillar

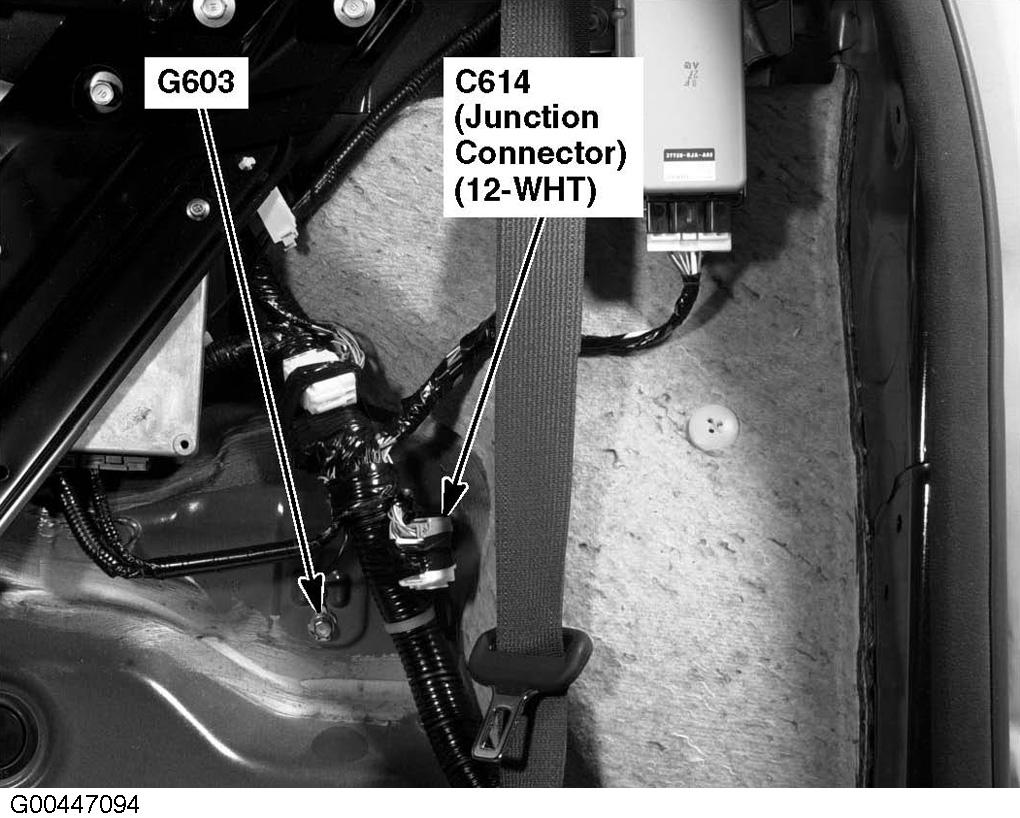

G00447094

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 145: Left "C" Pillar

G00363604

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 146: Behind Rear Seat

G00363605

Courtesy of AMERICAN HONDA MOTOR CO., INC.

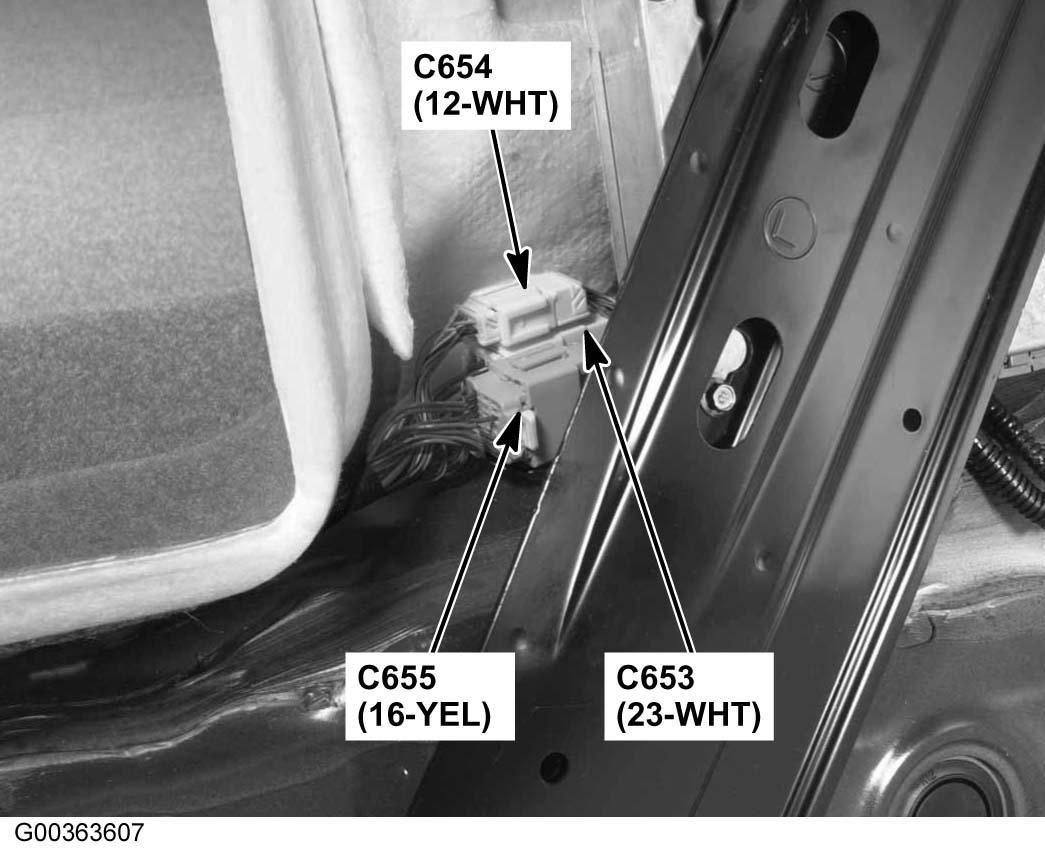

Fig 147: Behind Rear Seat

G00363607

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 148: Behind Rear Seat

G00363608

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 149: Behind Rear Seat

G00363609

Courtesy of AMERICAN HONDA MOTOR CO., INC.

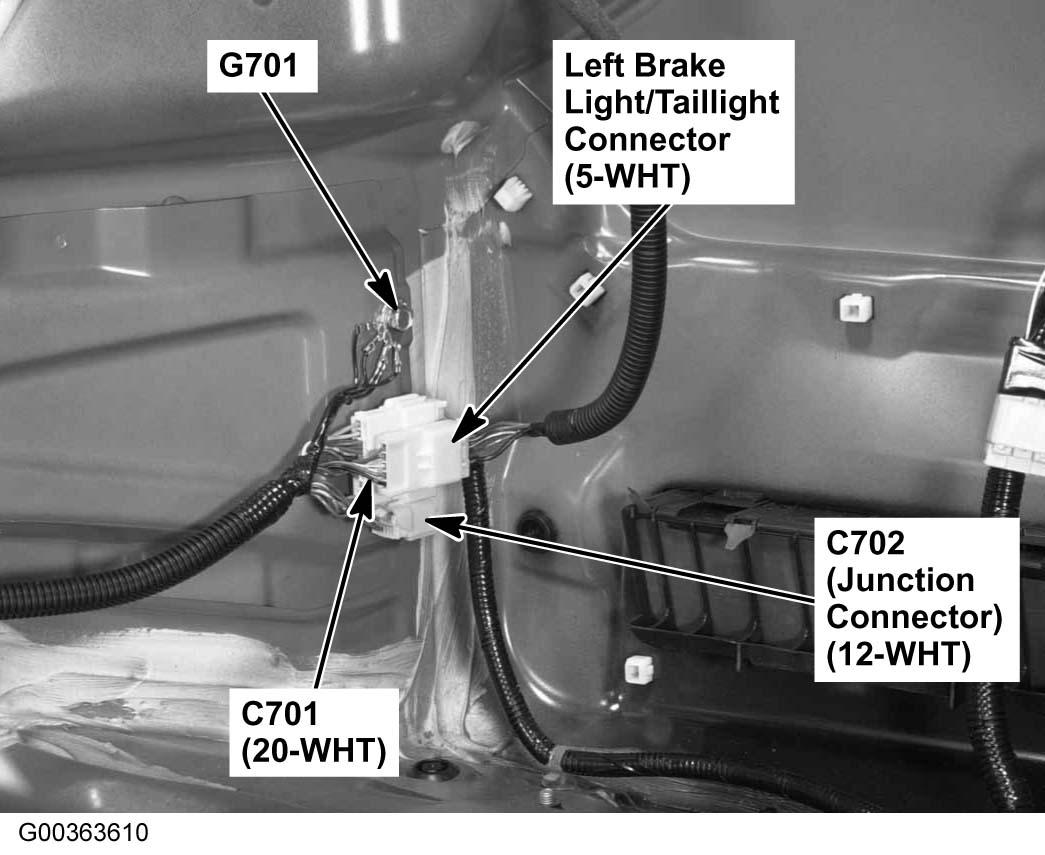

Fig 150: Left Side Of Trunk

G00363610

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 151: Left Side Of Trunk

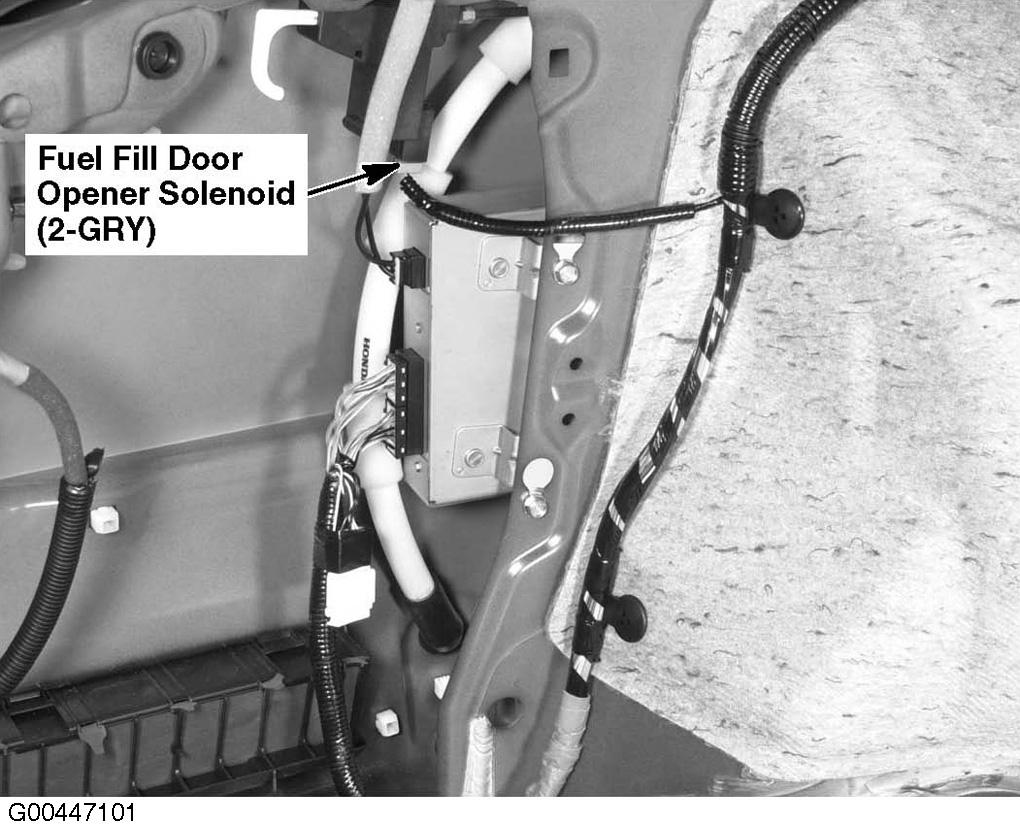

G00447101

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 152: Left Side Of Trunk (USA: Technology Package)

G00363612

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 153: Left Side Of Rear Shelf

G00447099

Courtesy of AMERICAN HONDA MOTOR CO., INC.

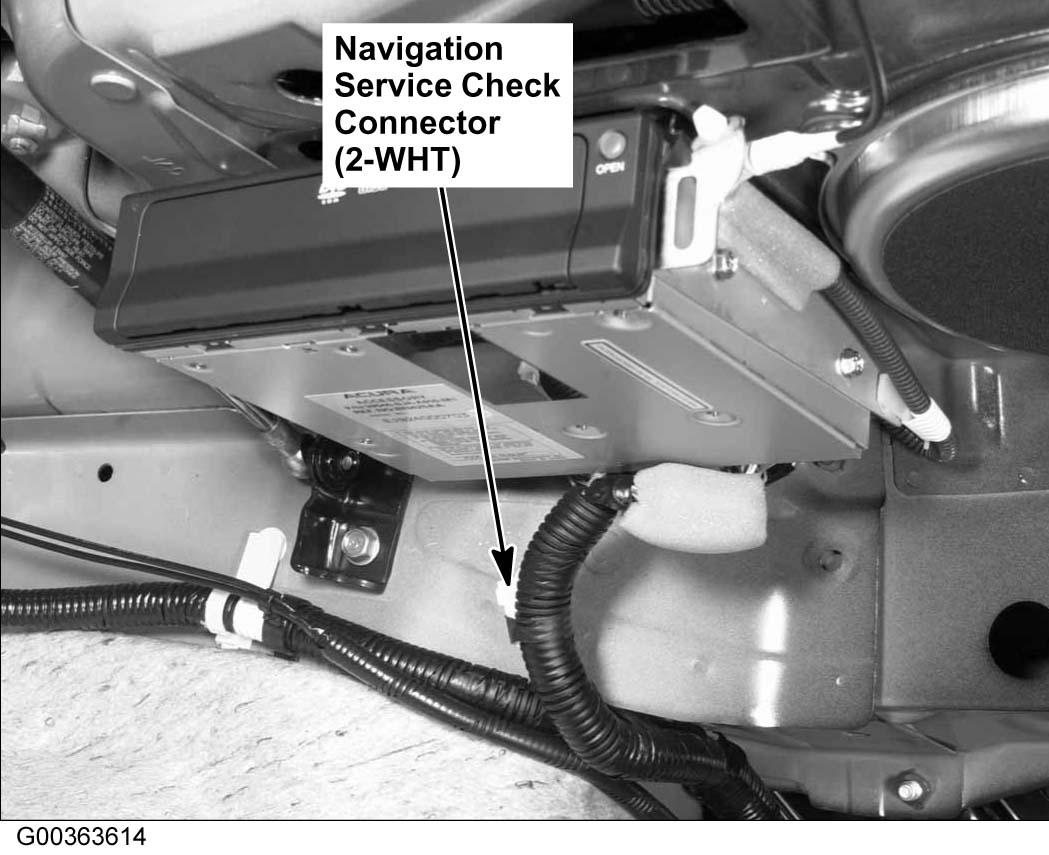

Fig 154: Left Side Of Rear Shelf

G00363614

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 155: Middle Of Rear Shelf

G00363615

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 156: Middle Of Rear Shelf

G00363616

Courtesy of AMERICAN HONDA MOTOR CO., INC.

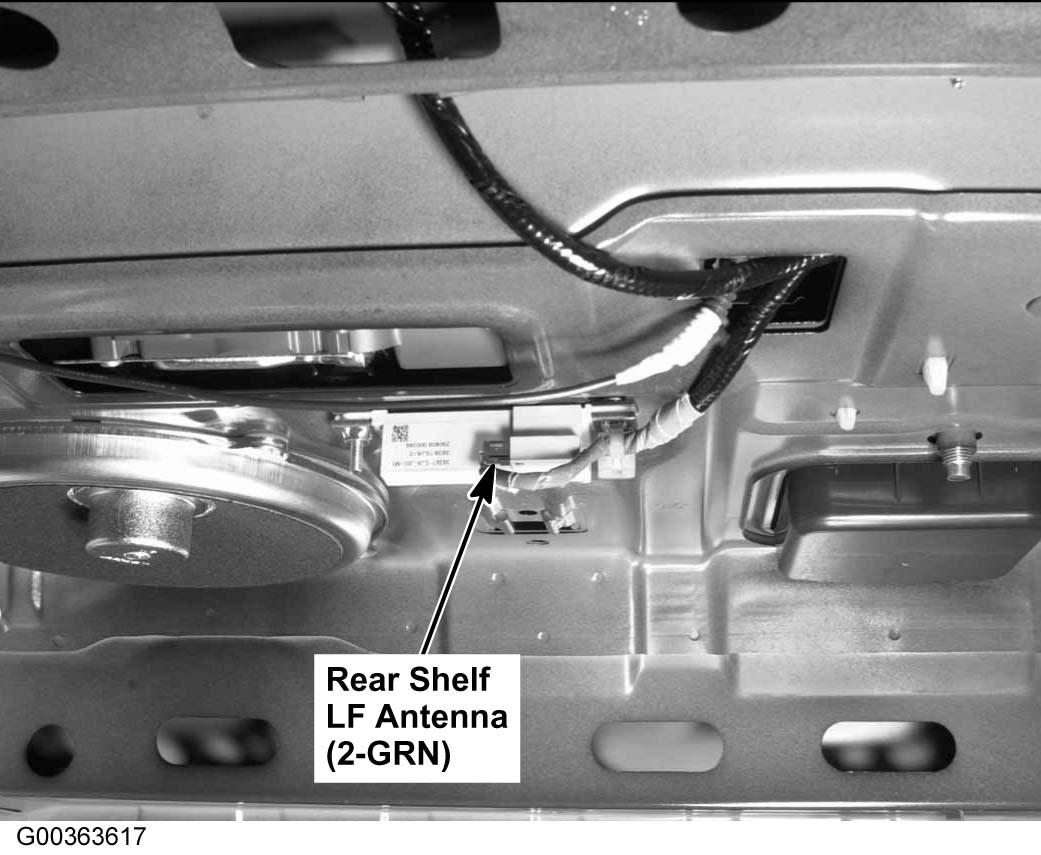

Fig 157: Middle Of Rear Shelf

G00363617

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 158: Right Side Of Rear Shelf

G00447106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

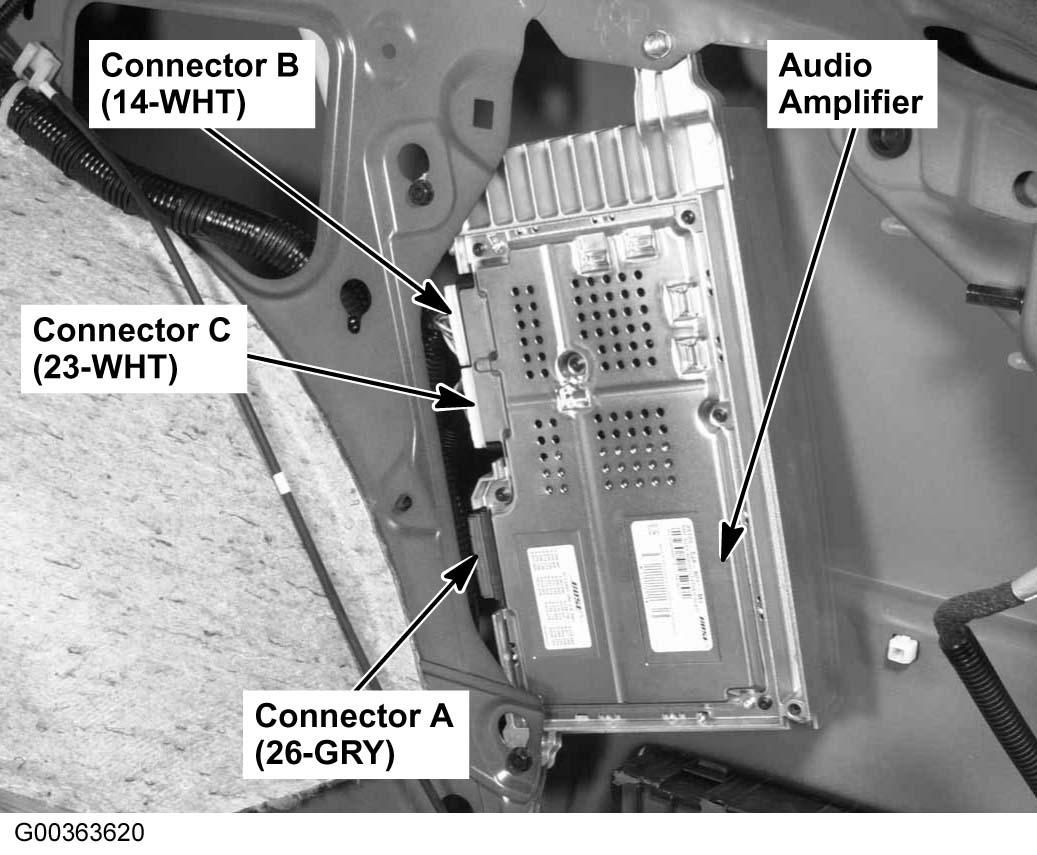

Fig 159: Right Side Of Trunk

G00363620

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 160: Right Side Of Trunk

G00363621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

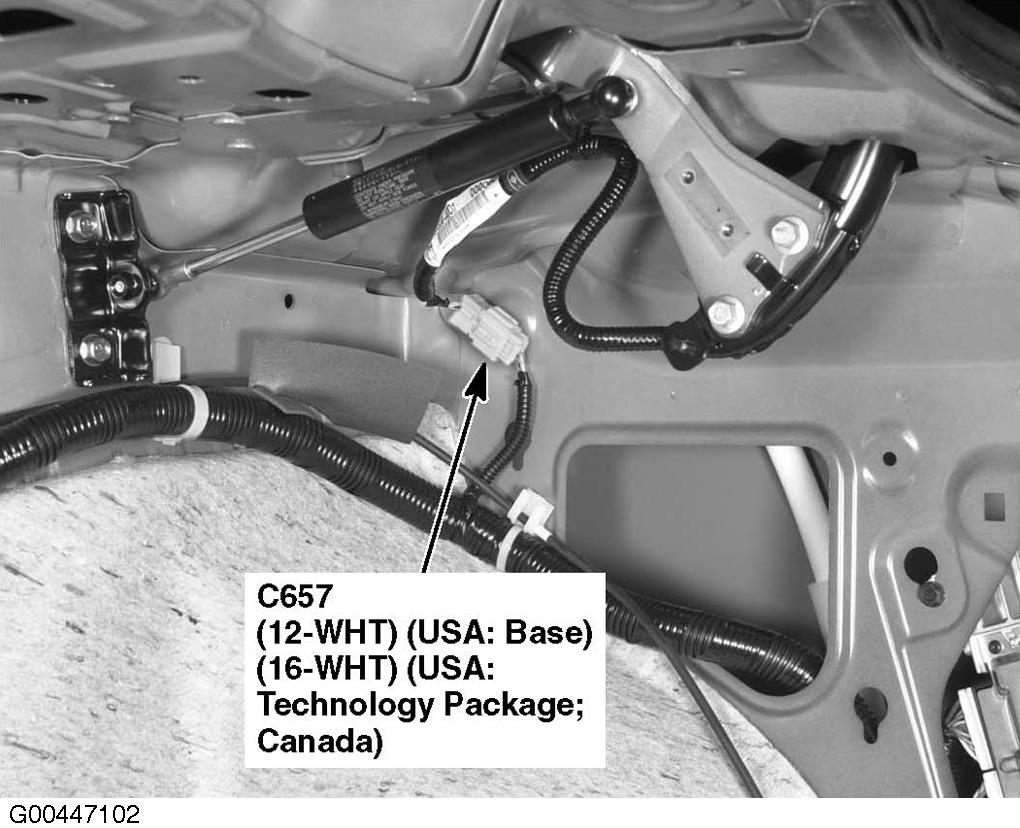

Fig 161: Right Side Of Trunk

G00447102

Courtesy of AMERICAN HONDA MOTOR CO., INC.

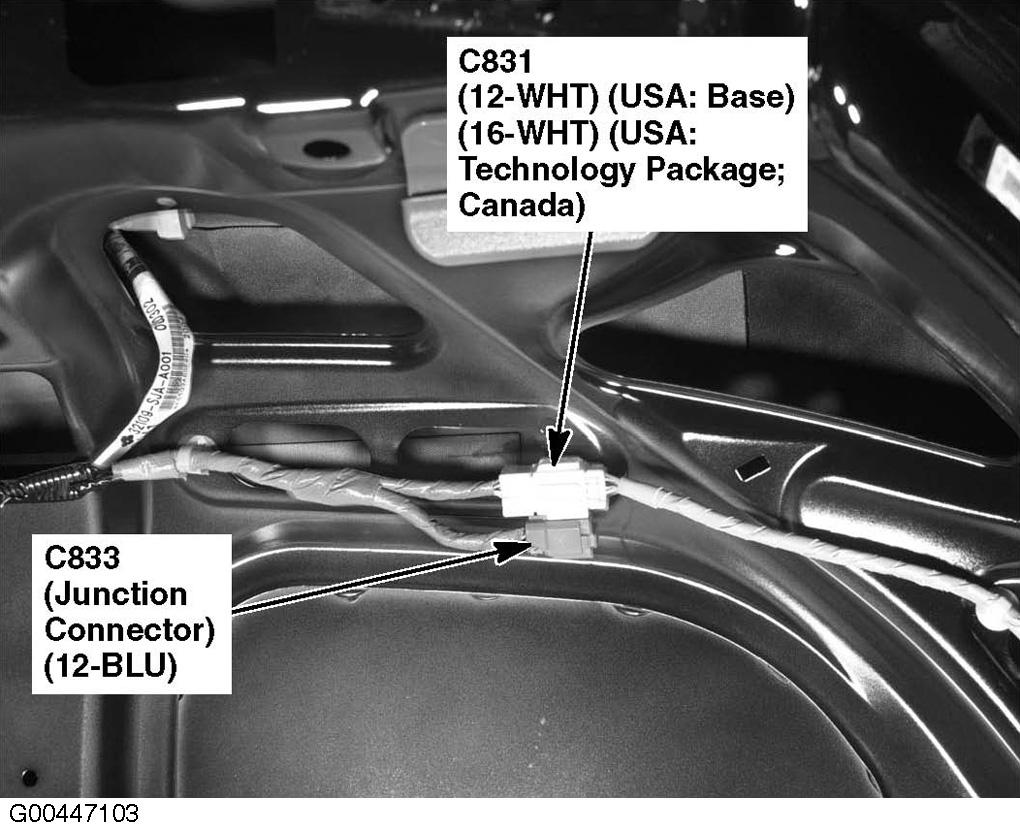

Fig 162: Middle Of Trunk Lid

G00447103

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Behind Middle Of Rear Bumper

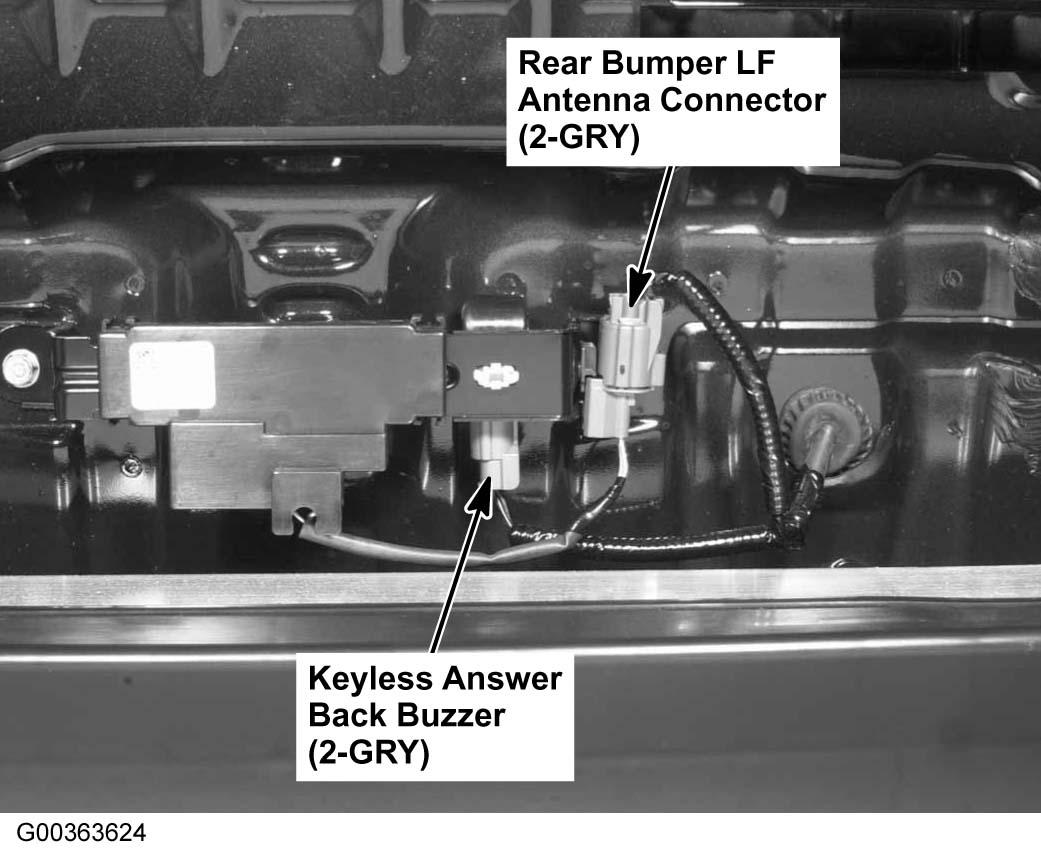

G00363624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

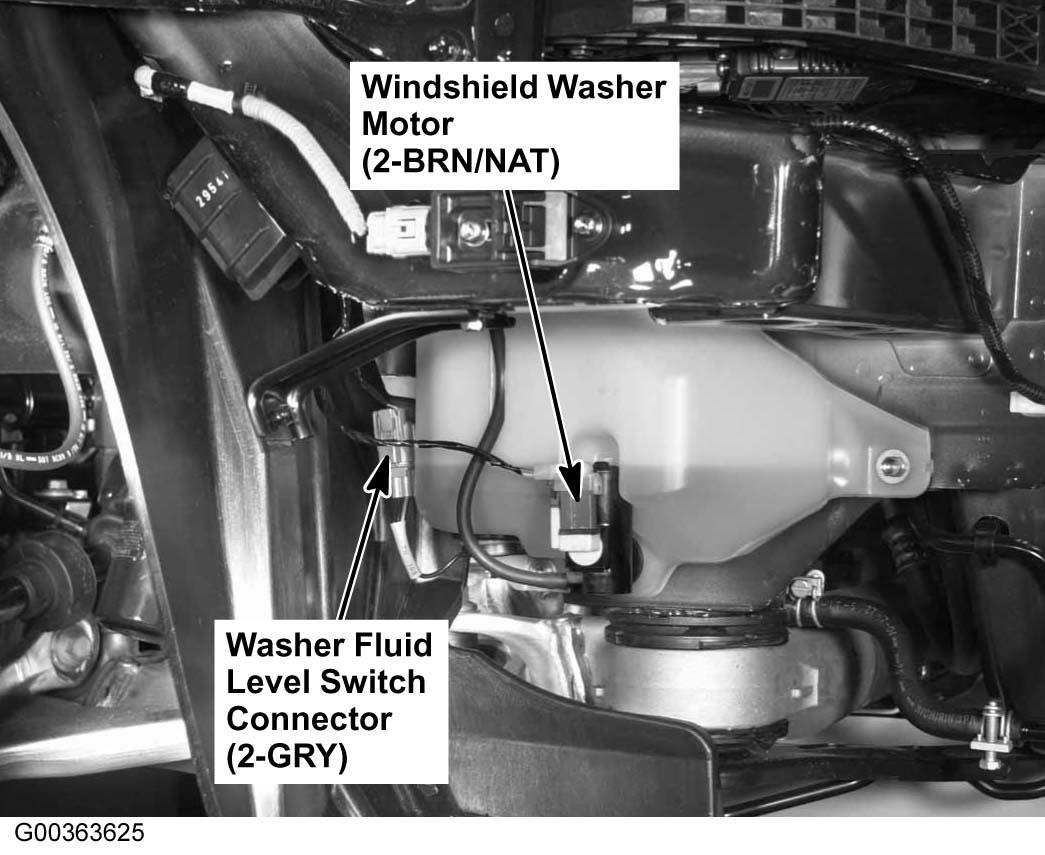

Fig 164: Behind Right Side Of Front Bumper

G00363625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

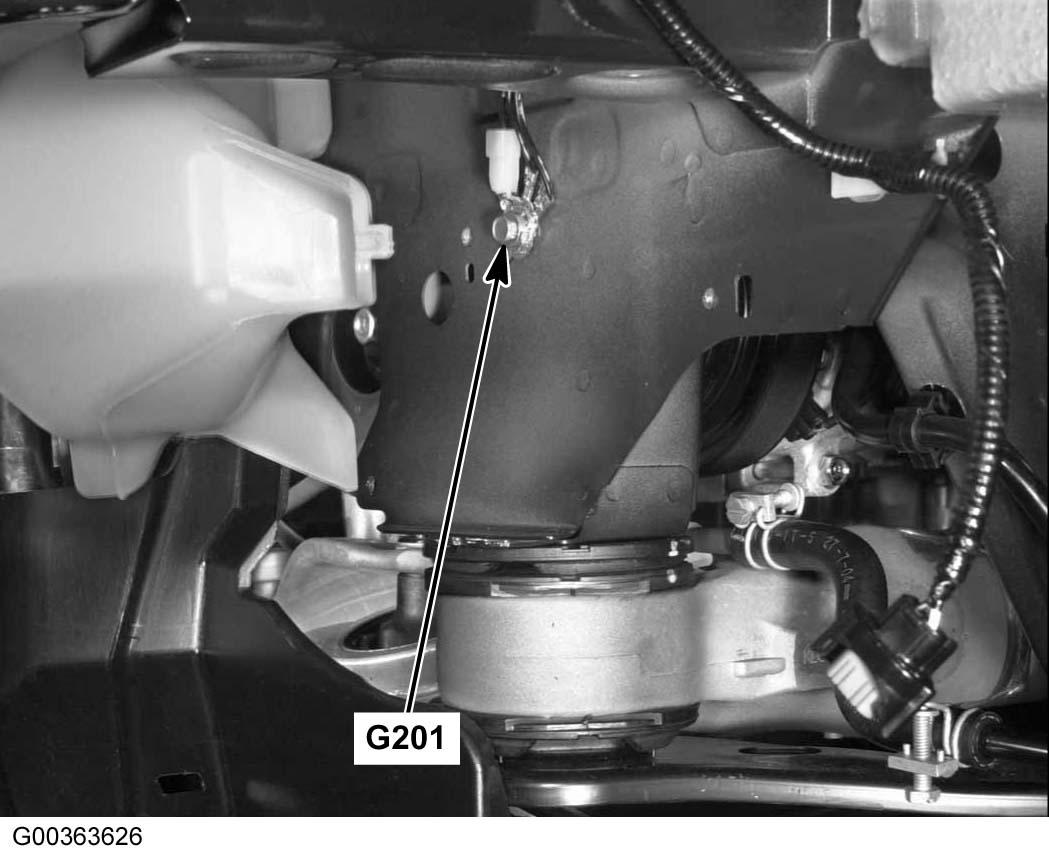

Fig 165: Behind Right Side Of Front Bumper

G00363626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 166: Behind Middle Of Front Bumper

G00447071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

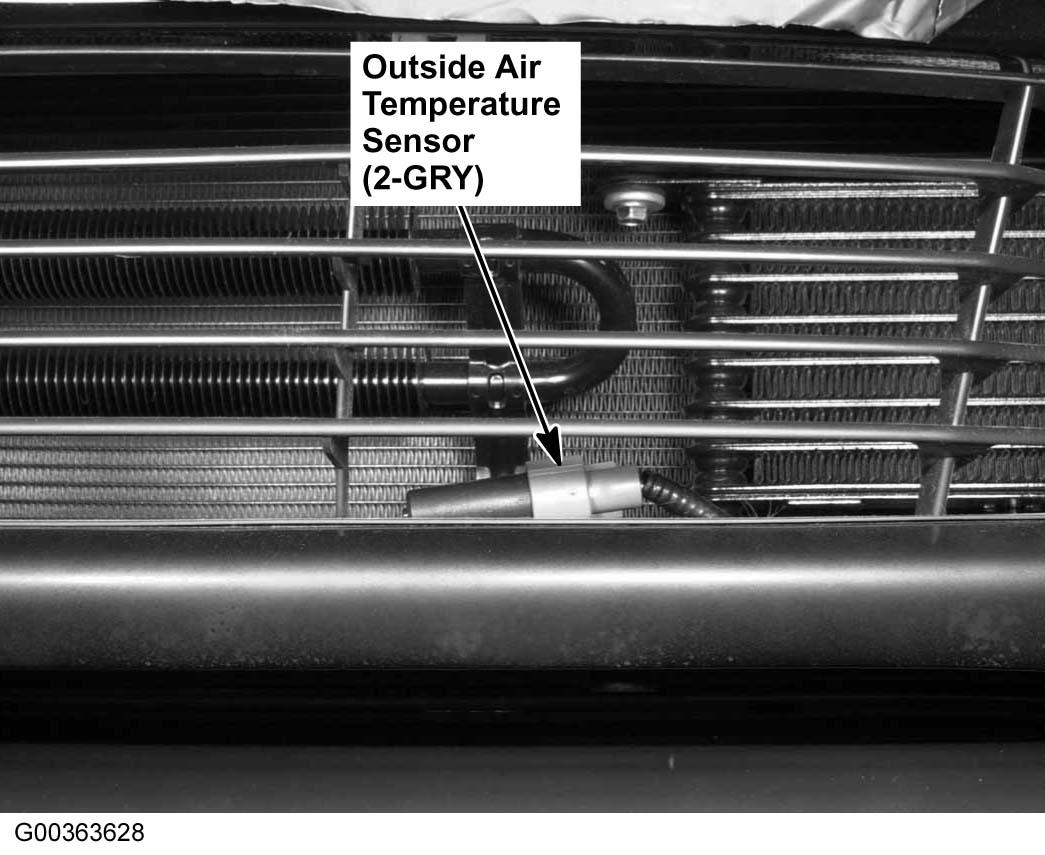

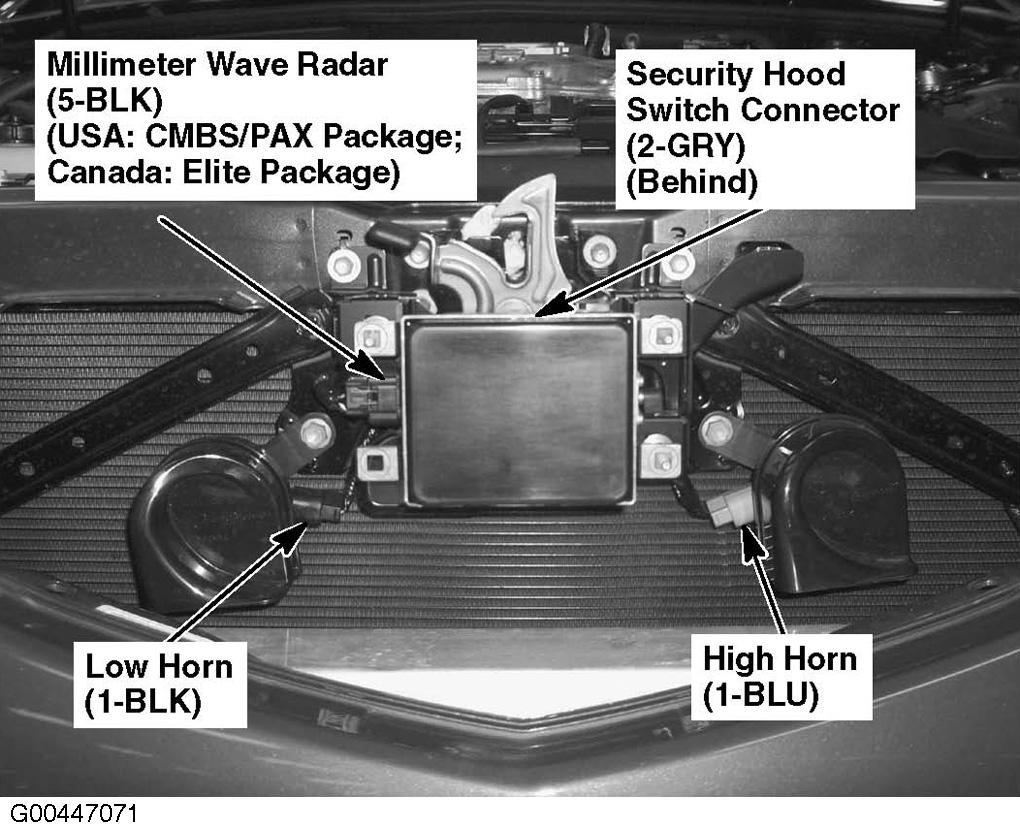

Fig 167: Behind Middle Of Front Bumper

G00363628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 168: Behind Left Side Of Front Bumper (Right Similar)

G00363629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

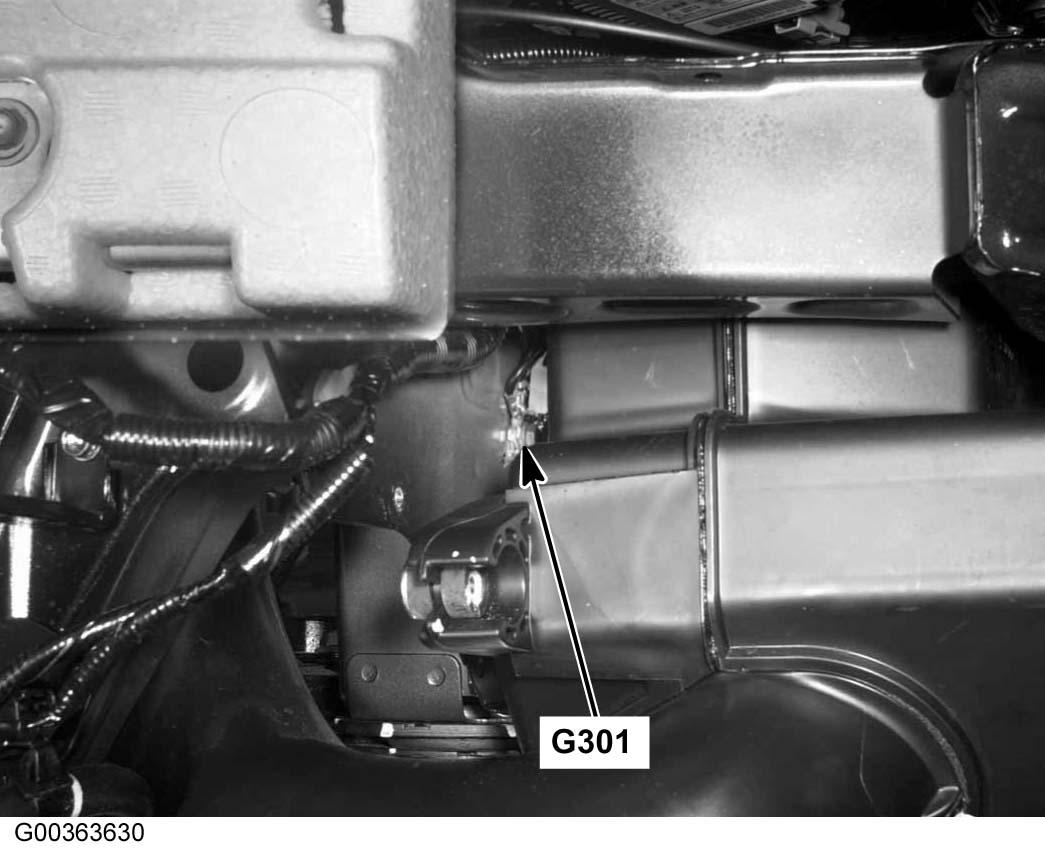

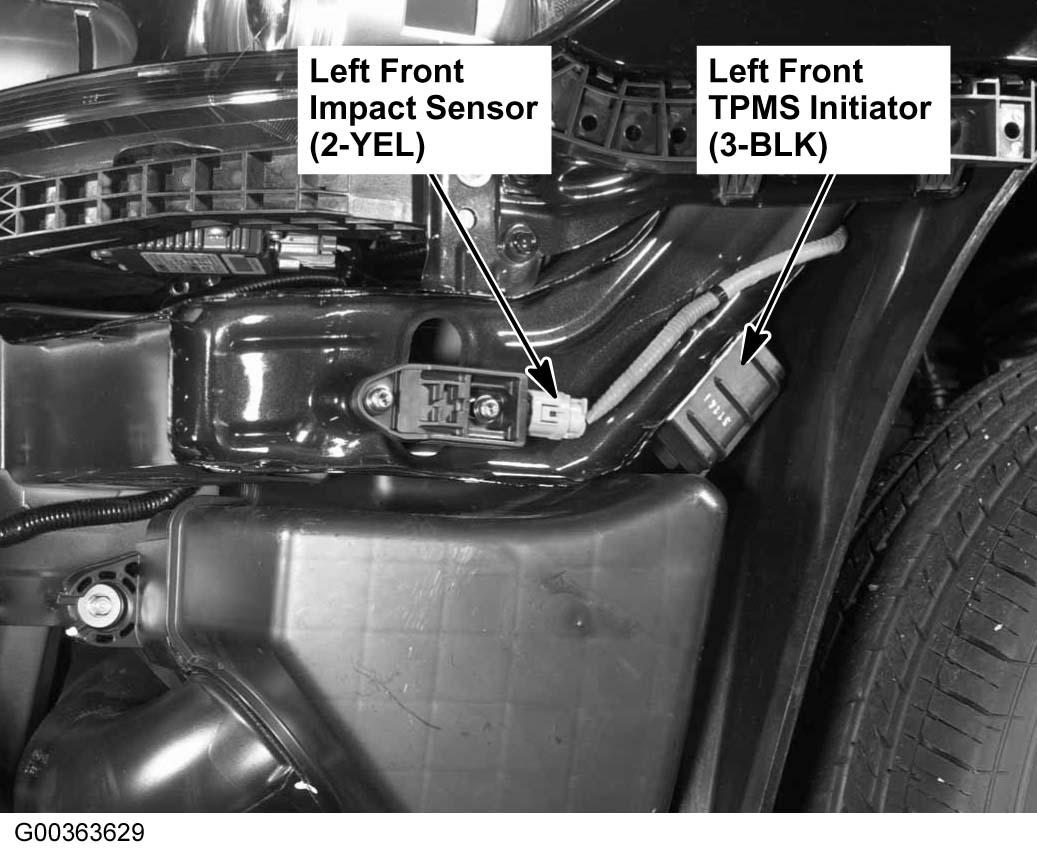

Fig 169: Behind Left Side Of Front Bumper

G00363630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 170: Right Side Of Engine

G00447067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

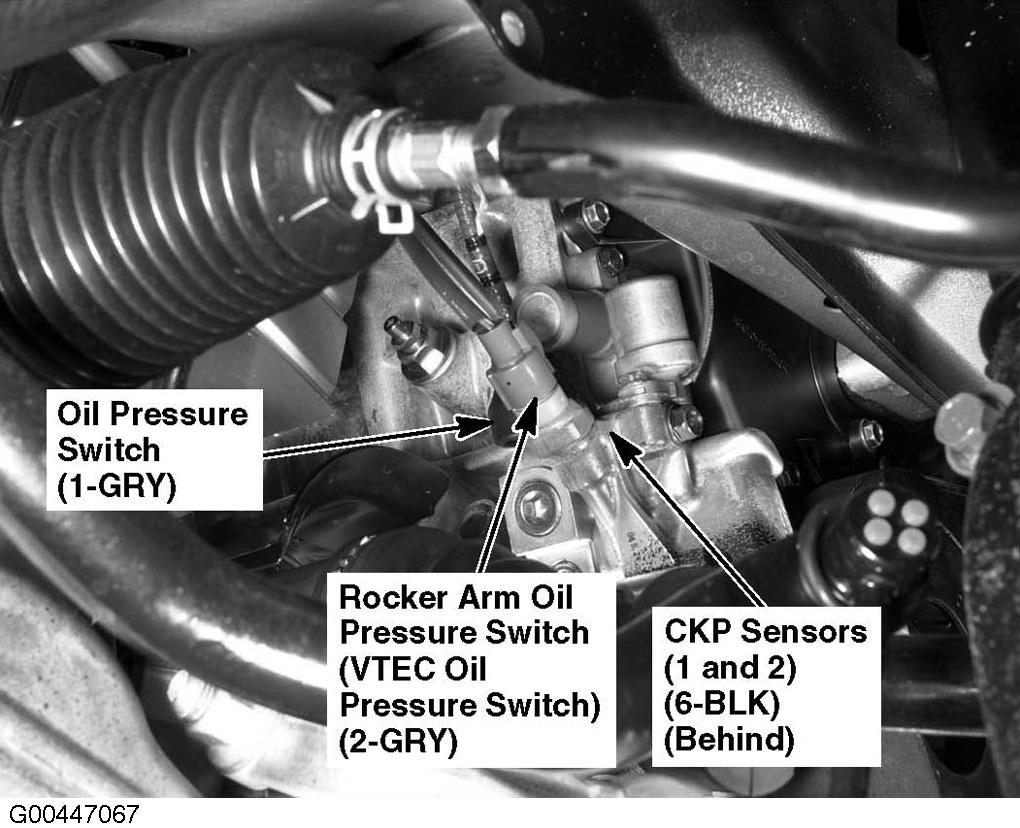

Fig 171: Right Side Of Engine

G00447068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

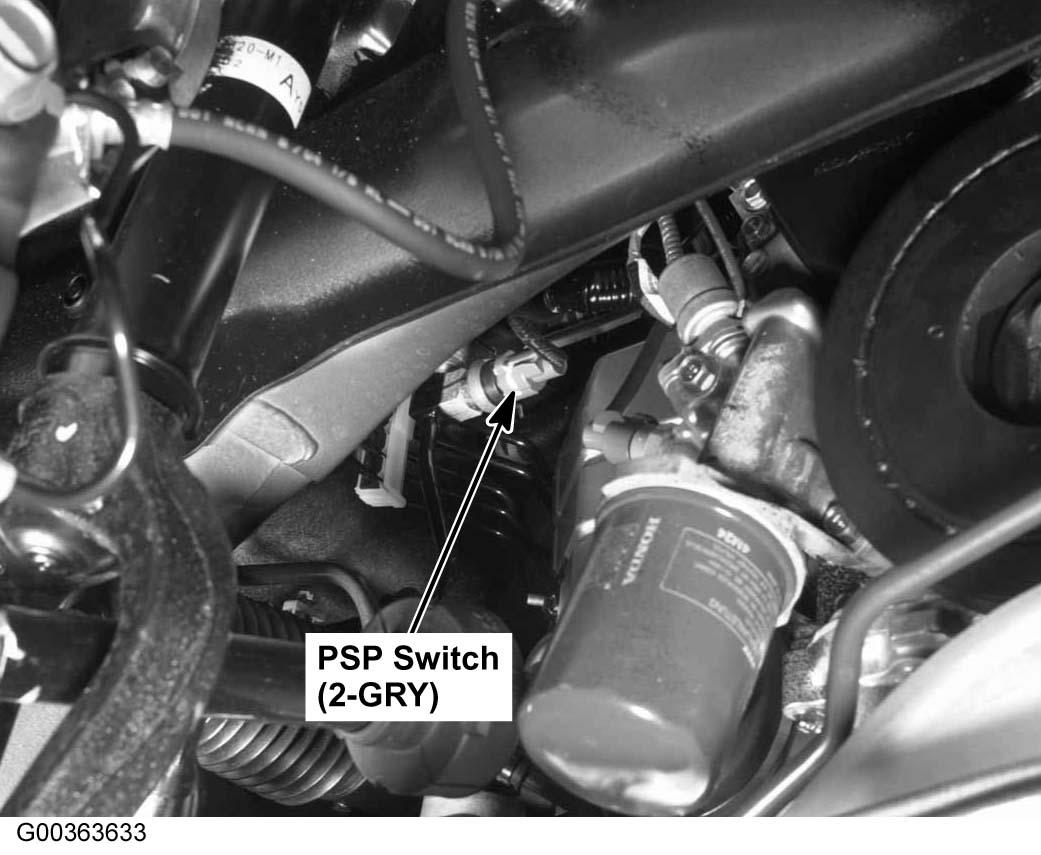

Fig 172: Right Side Of Engine Compartment

G00363633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 173: Right Side Of Engine Compartment

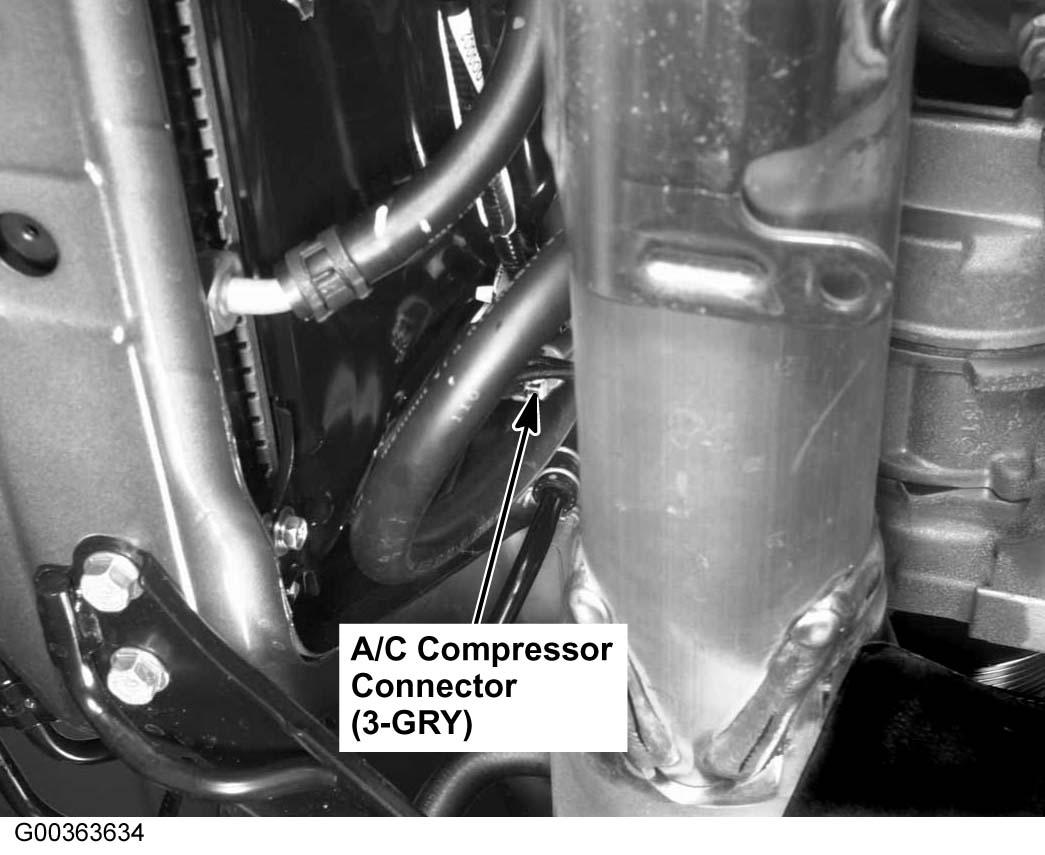

G00363634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 174: Middle Of Engine Compartment

G00363635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

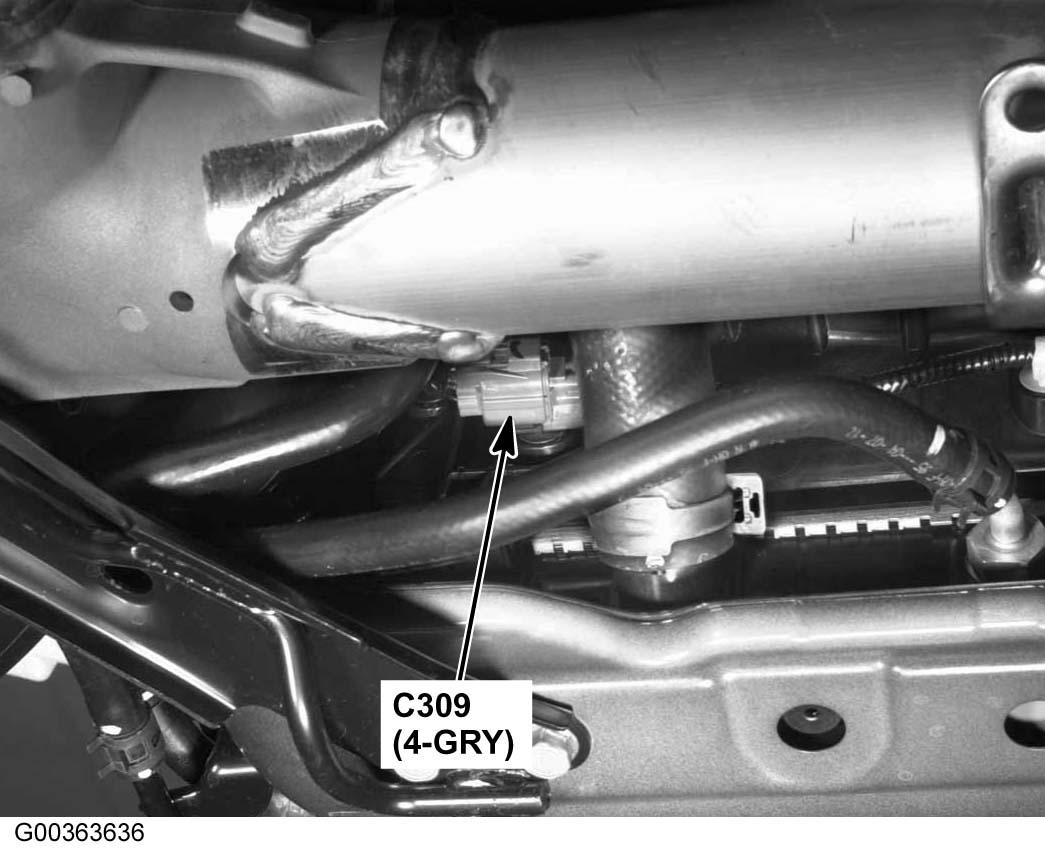

Fig 175: Left Side Of Engine Compartment

G00363636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 176: Left Side Of Engine Compartment

G00363637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

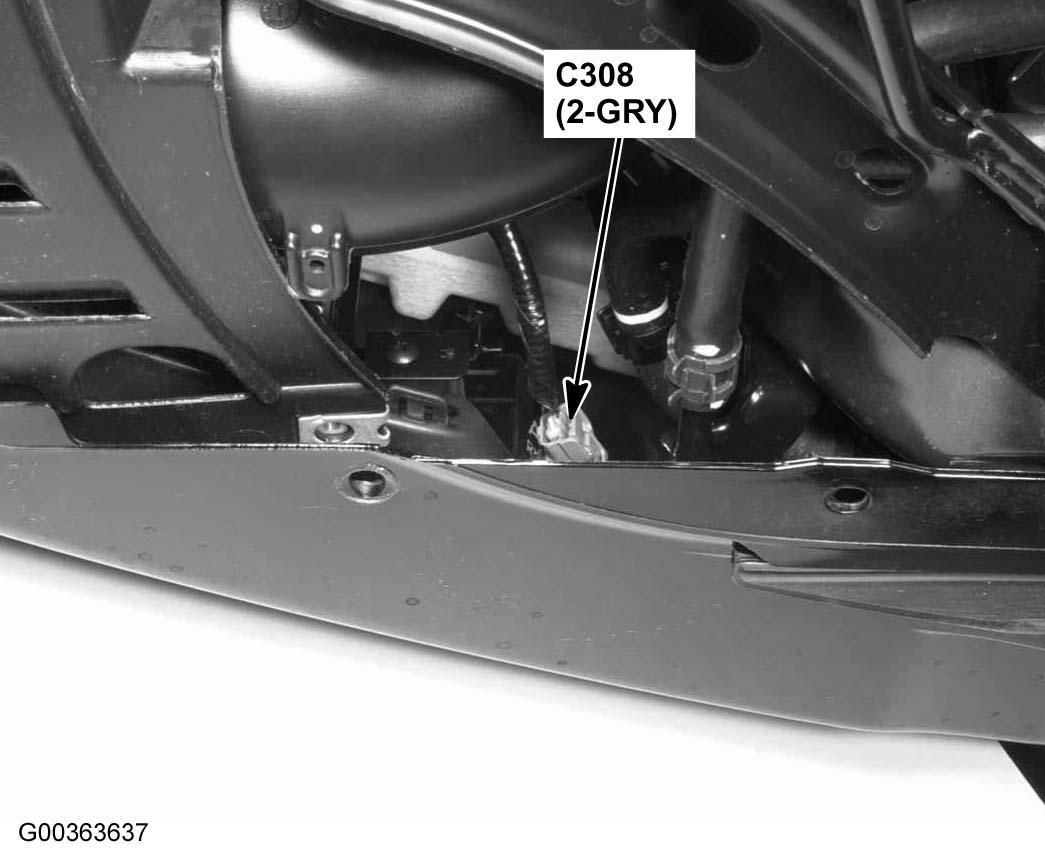

Fig 177: Transmission Housing

G00363638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 178: Left Rear Fenderwell (Right Similar)

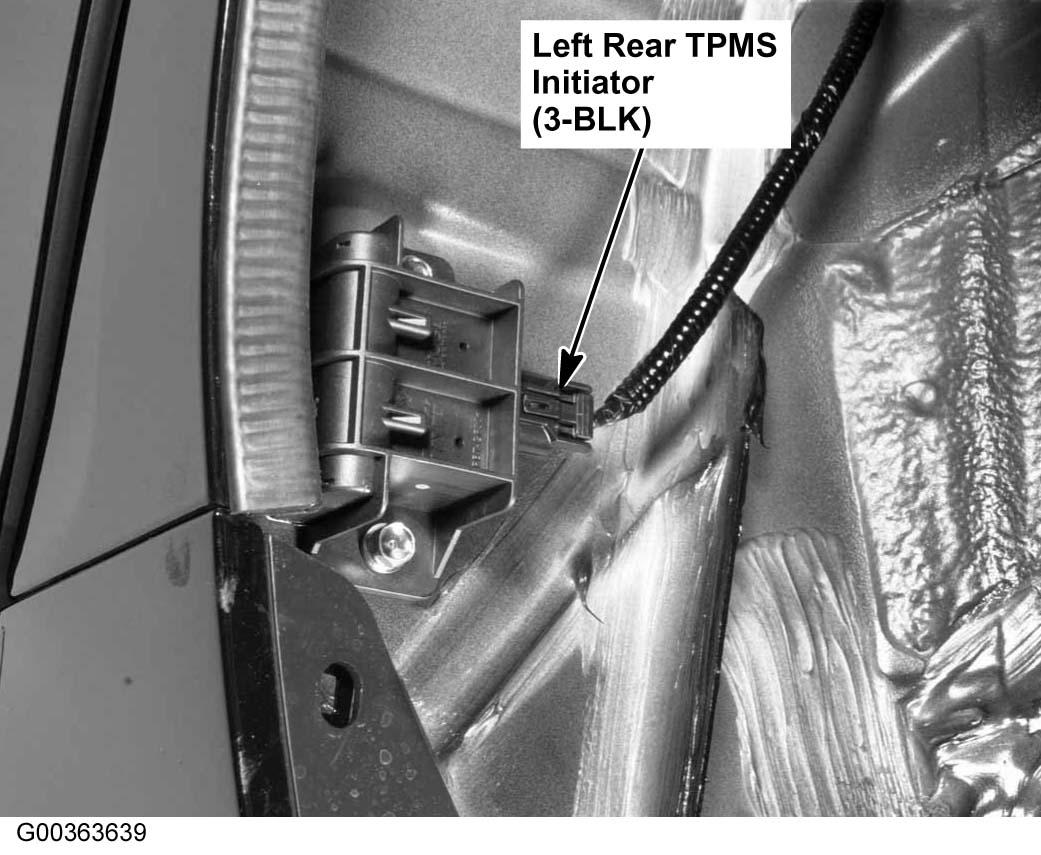

G00363639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

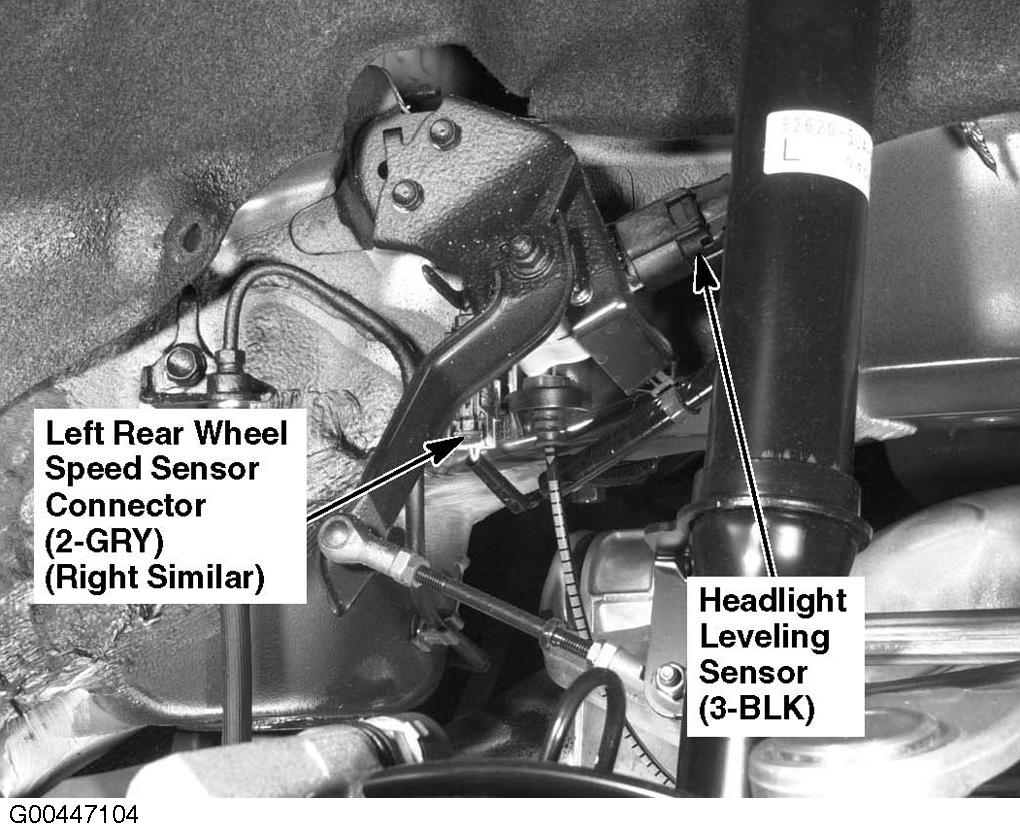

Fig 179: Under Left Rear Of Vehicle

G00447104

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 180: Rear Differential

G00363641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 181: Rear Differential

G00363642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

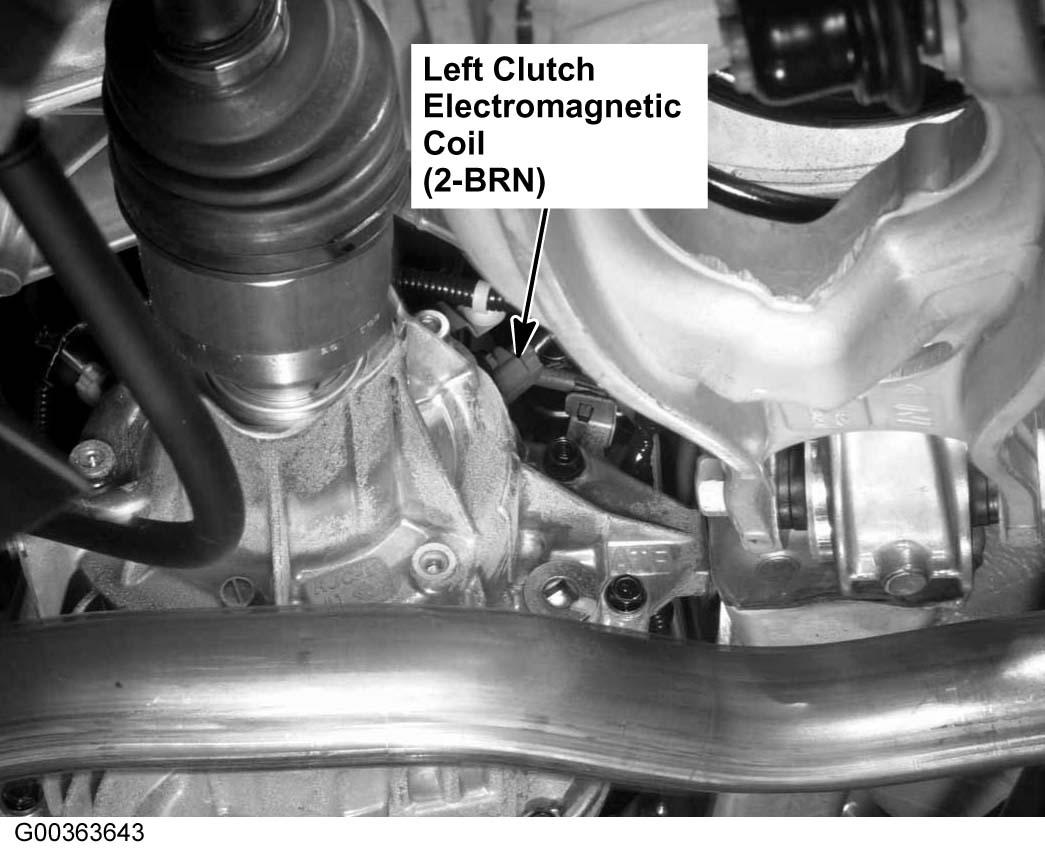

Fig 182: Rear Differential

G00363643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

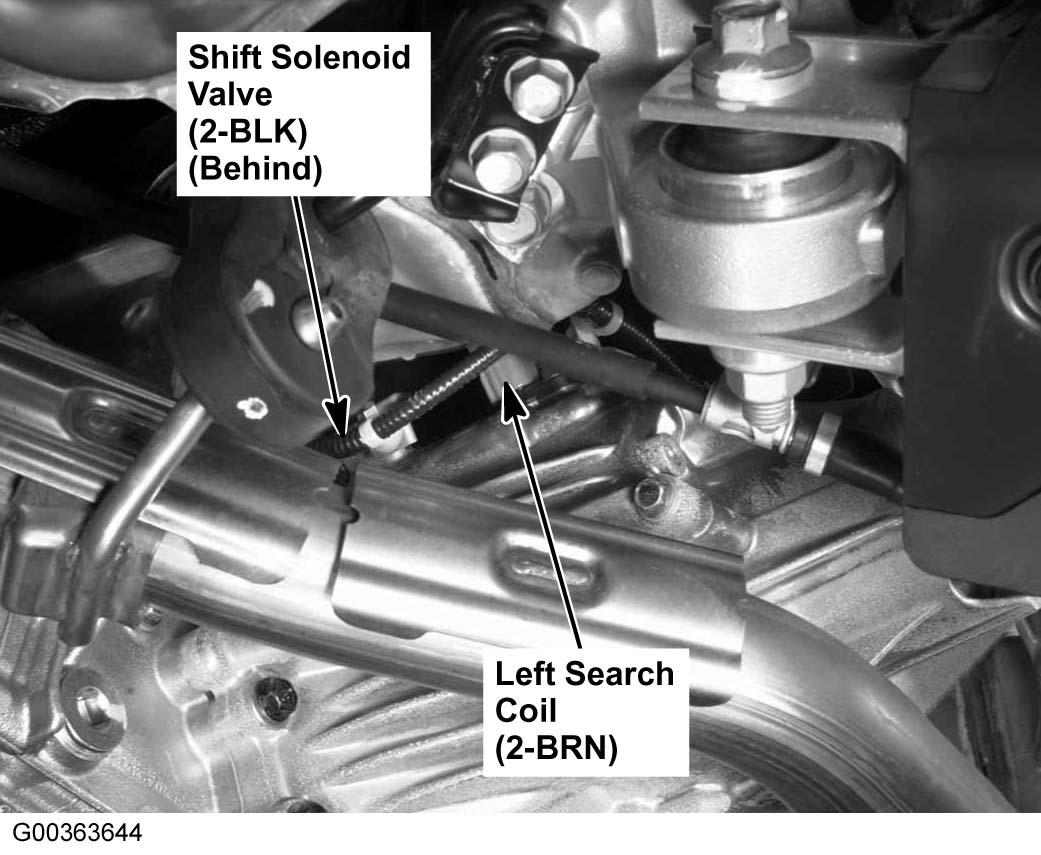

Fig 183: Rear Differential

G00363644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

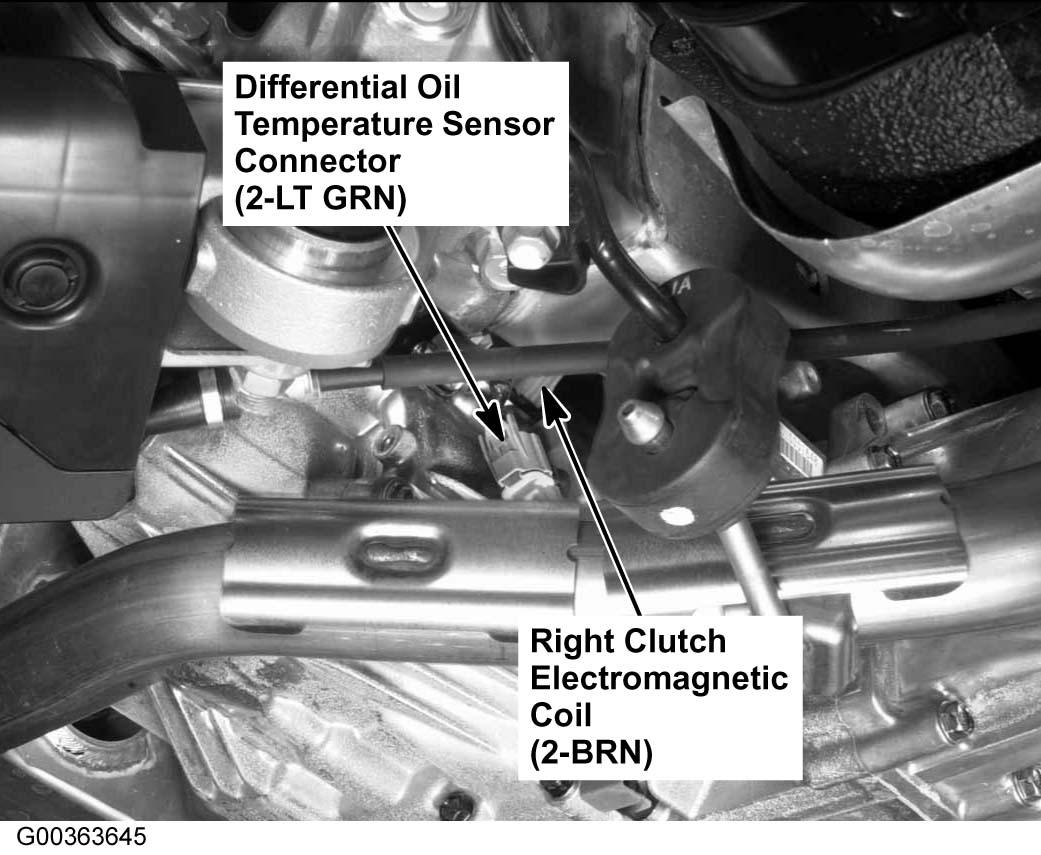

Fig 184: Rear Differential

G00363645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 185: Above Rear Differential

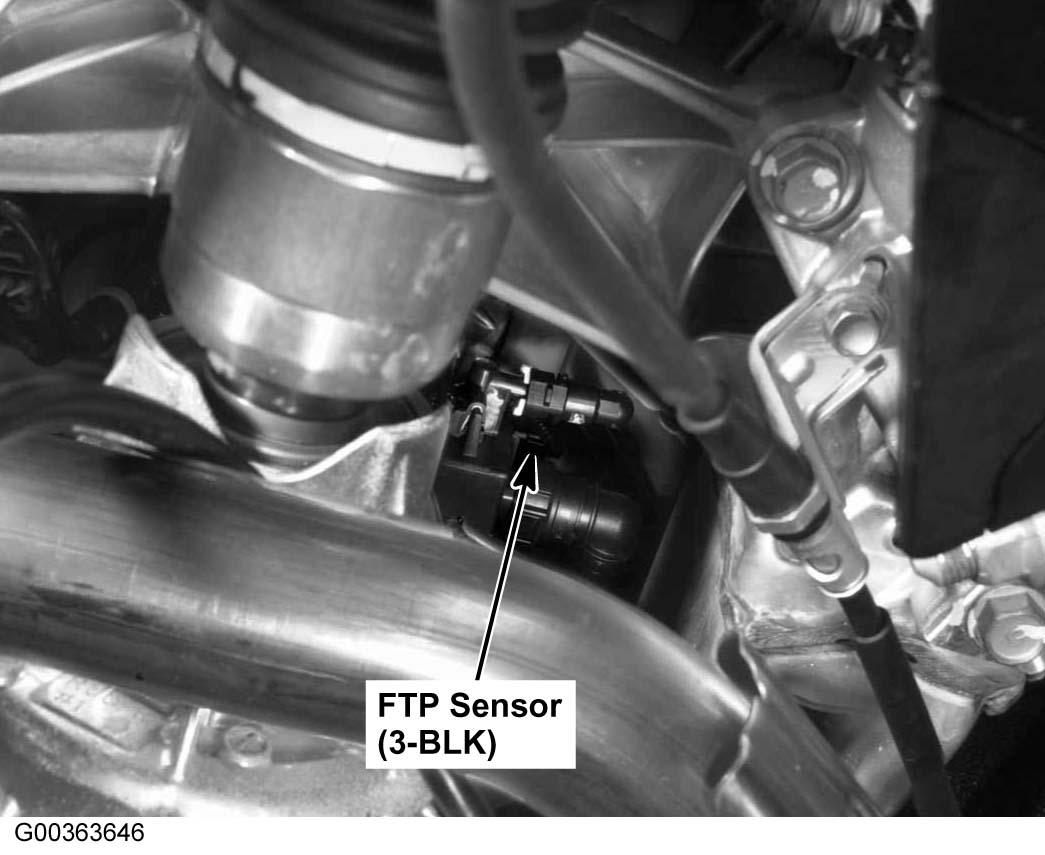

G00363646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 186: Left Rear Of Engine Compartment

G00363648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

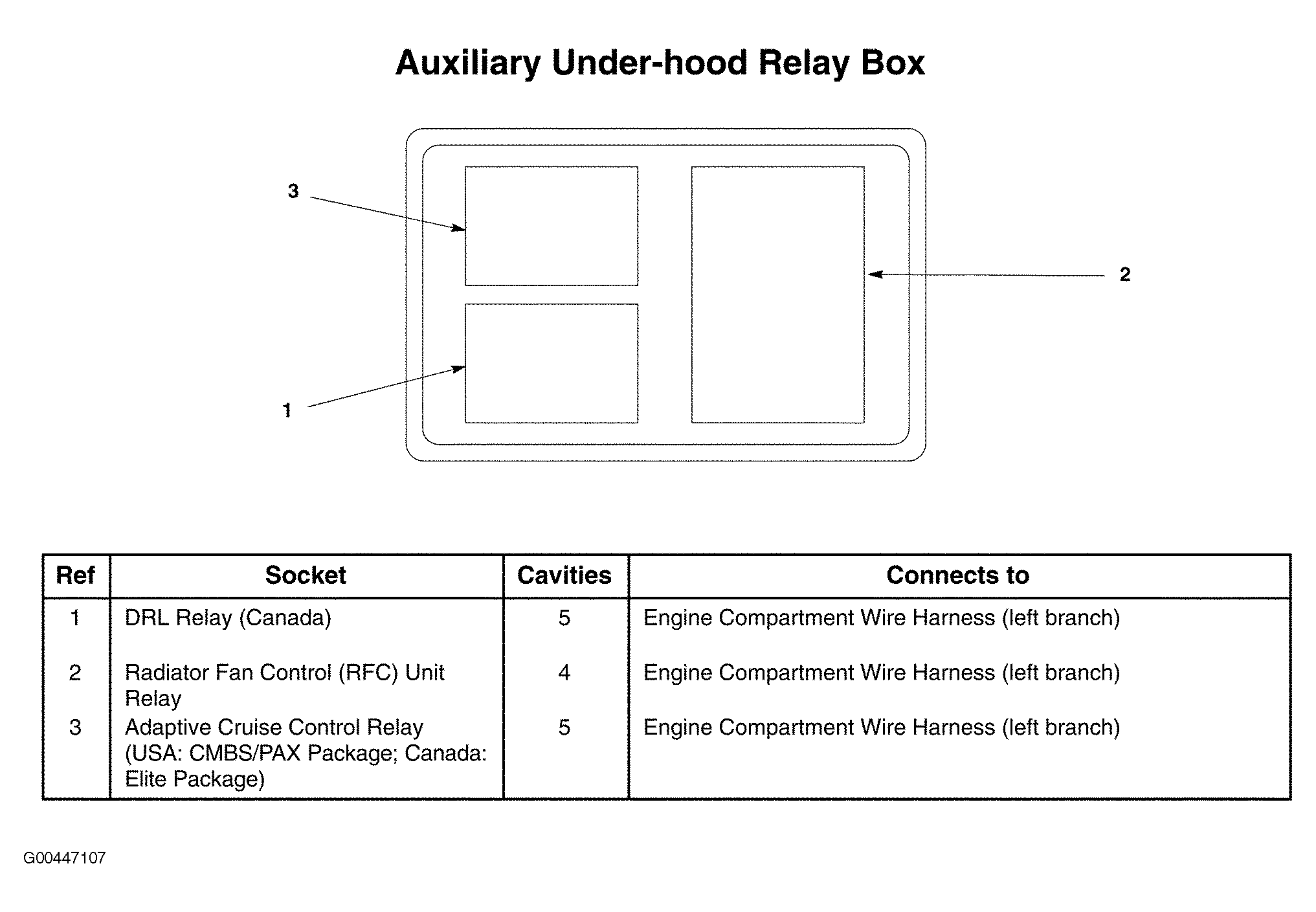

Fig 187: Left Rear Of Engine Compartment

G00447107

Courtesy of AMERICAN HONDA MOTOR CO., INC.

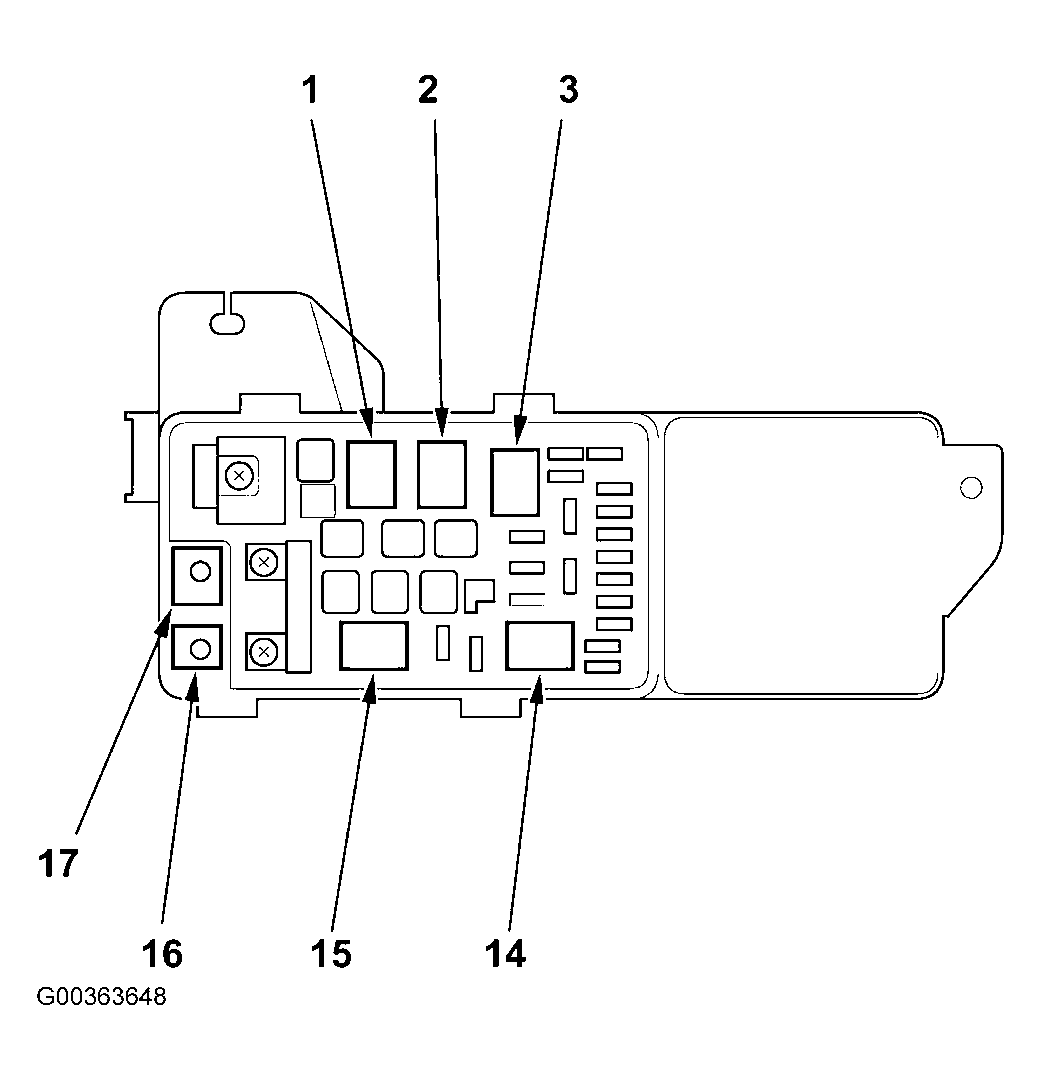

Fig 188: Behind Left Kick Panel

G00363650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

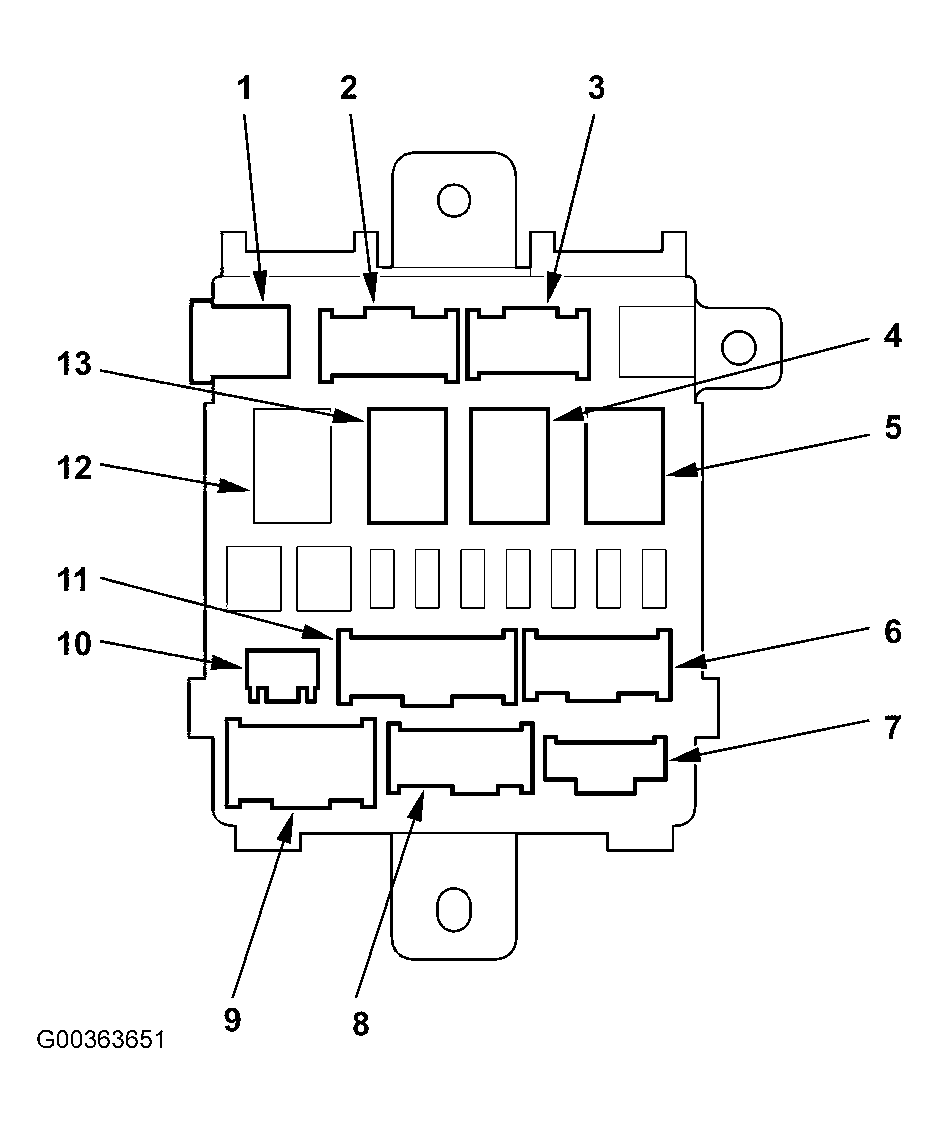

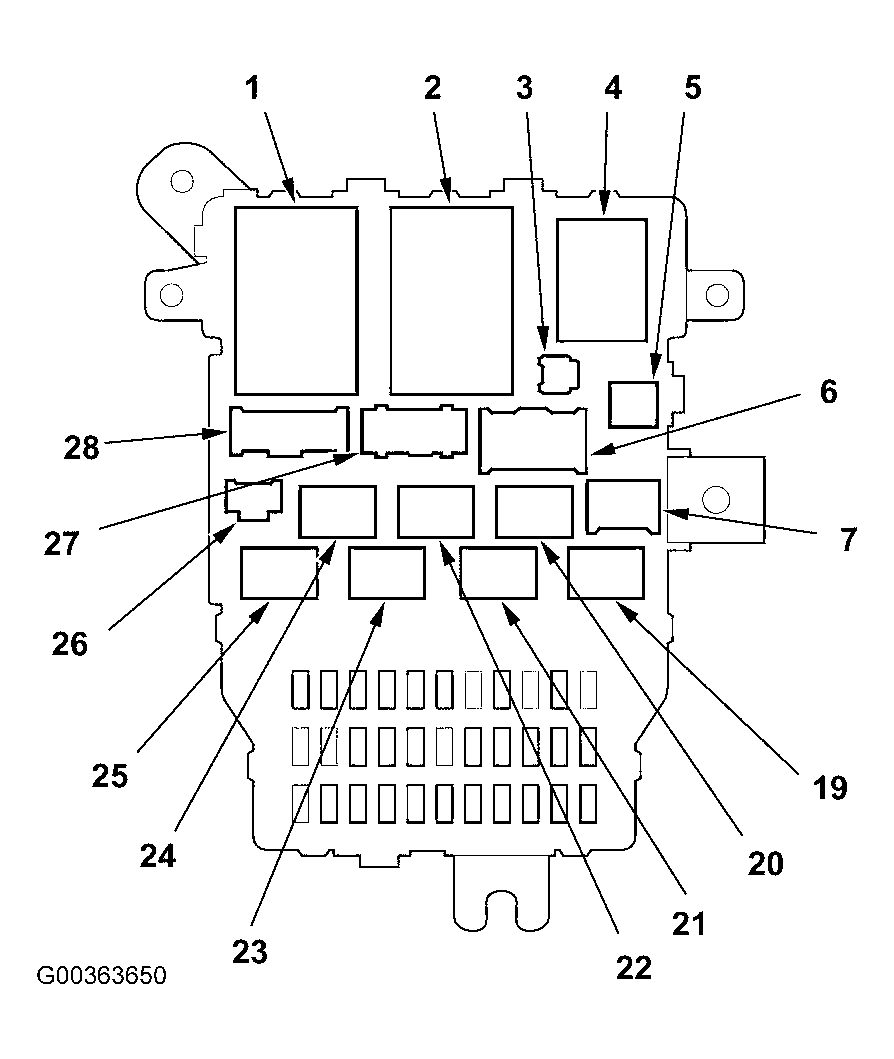

Fig 189: Behind Right Kick Panel

G00363651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

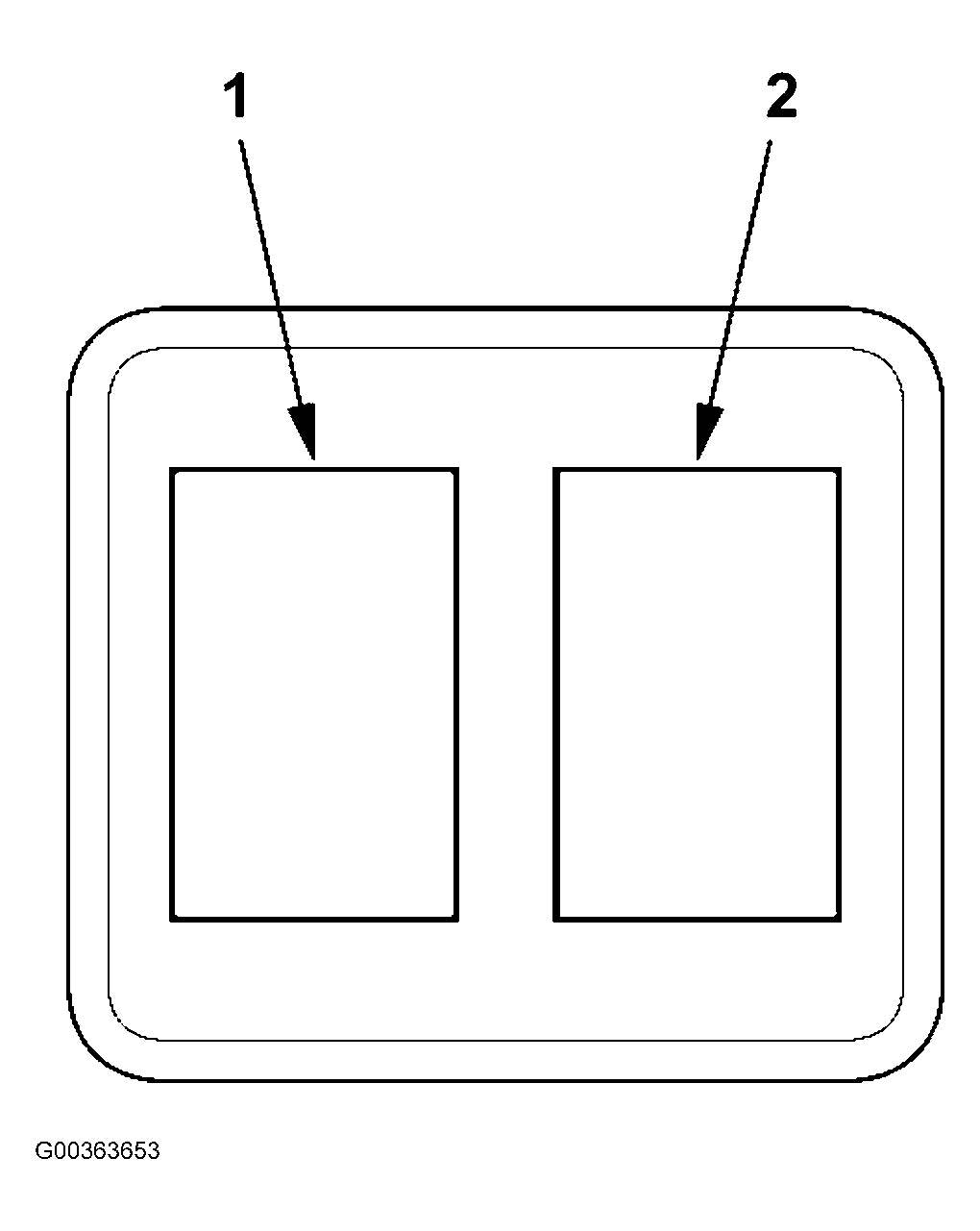

Fig 190: Under Left Side Of Dash

G00363653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 191: Left Side Of Engine Compartment

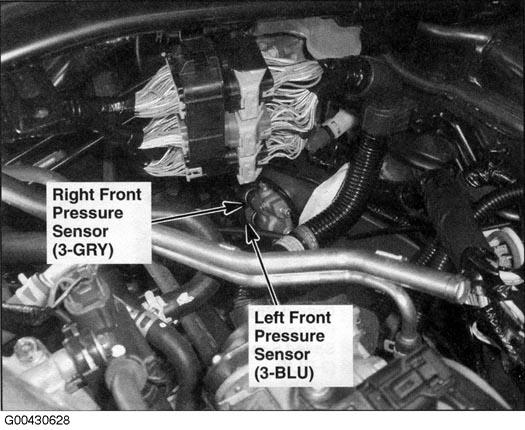

G00430628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

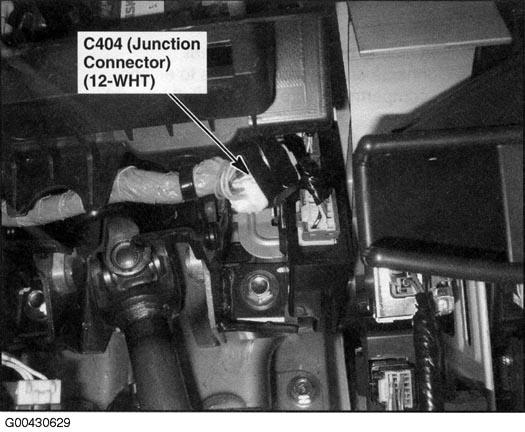

Fig 192: Under Left Side Of Dash

G00430629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 193: Under Middle Of Dash

G00447076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 194: Under Middle Of Dash

G00430631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

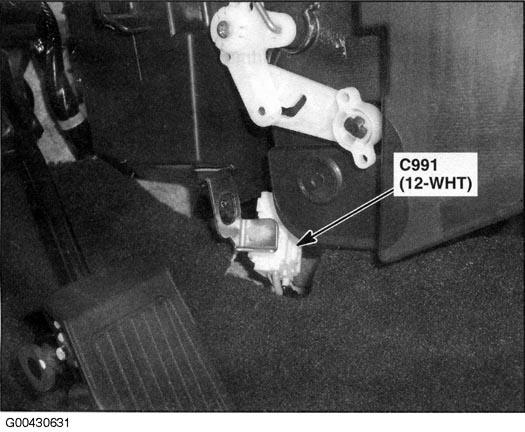

Fig 195: Behind Right Side Of Glove Box

G00447086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 196: Behind Right Kick Panel

G00430633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

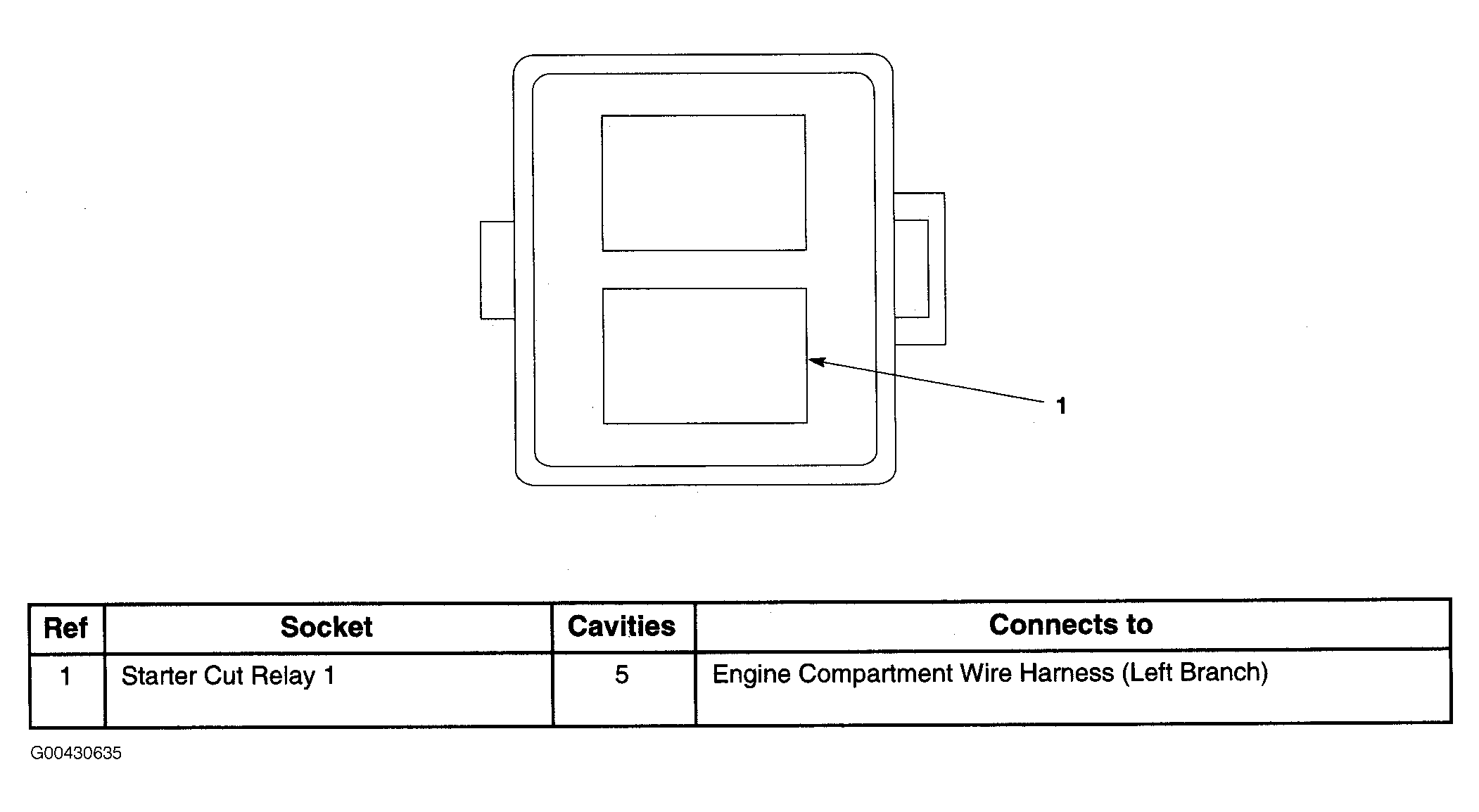

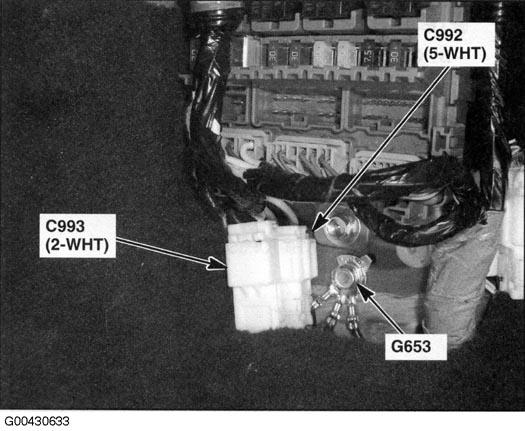

Fig 197: Under Left Side Of Dash

G00430635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

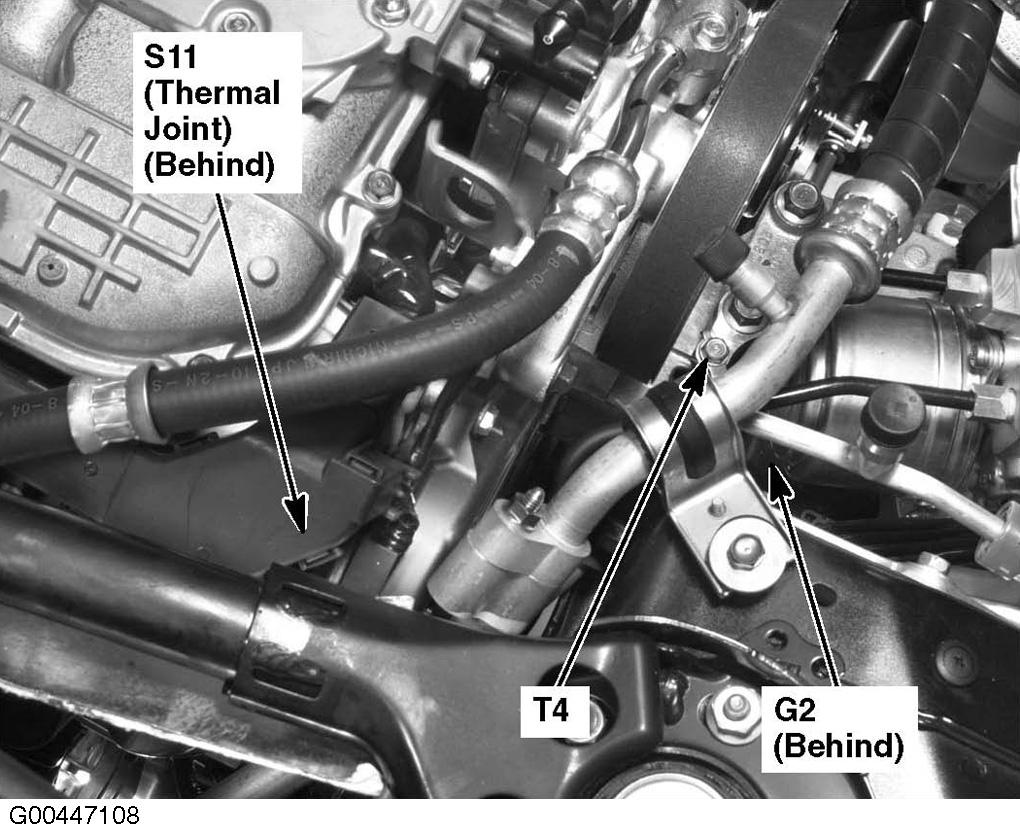

Fig 198: Right Side Of Engine Compartment

G00447108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

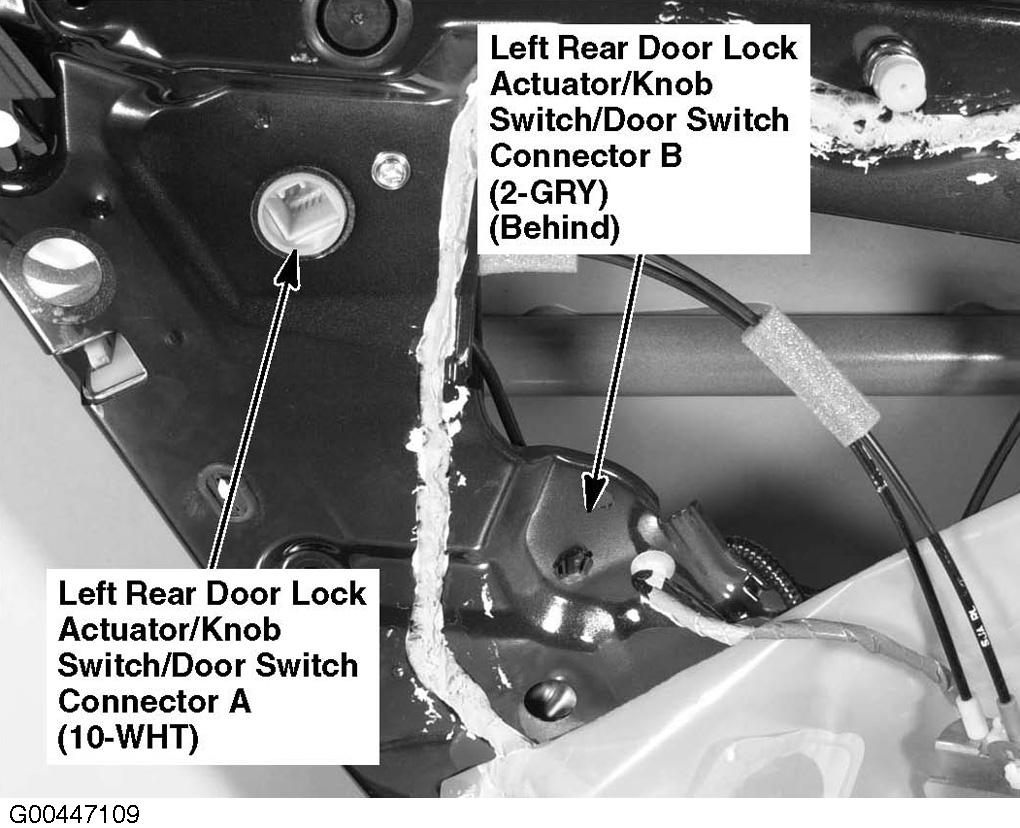

Fig 199: Left Rear Door (Right Similar)

G00447109

Courtesy of AMERICAN HONDA MOTOR CO., INC.

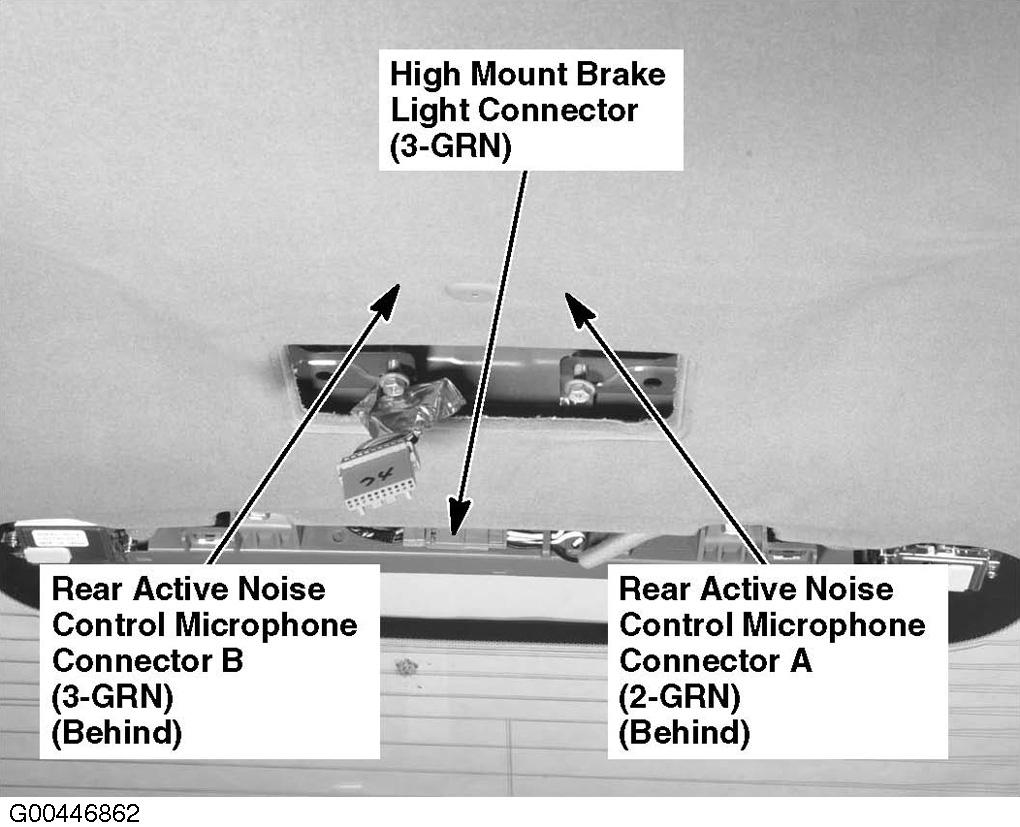

Fig 200: Rear Of Roof

G00446862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 201: Rear Of Roof (USA)

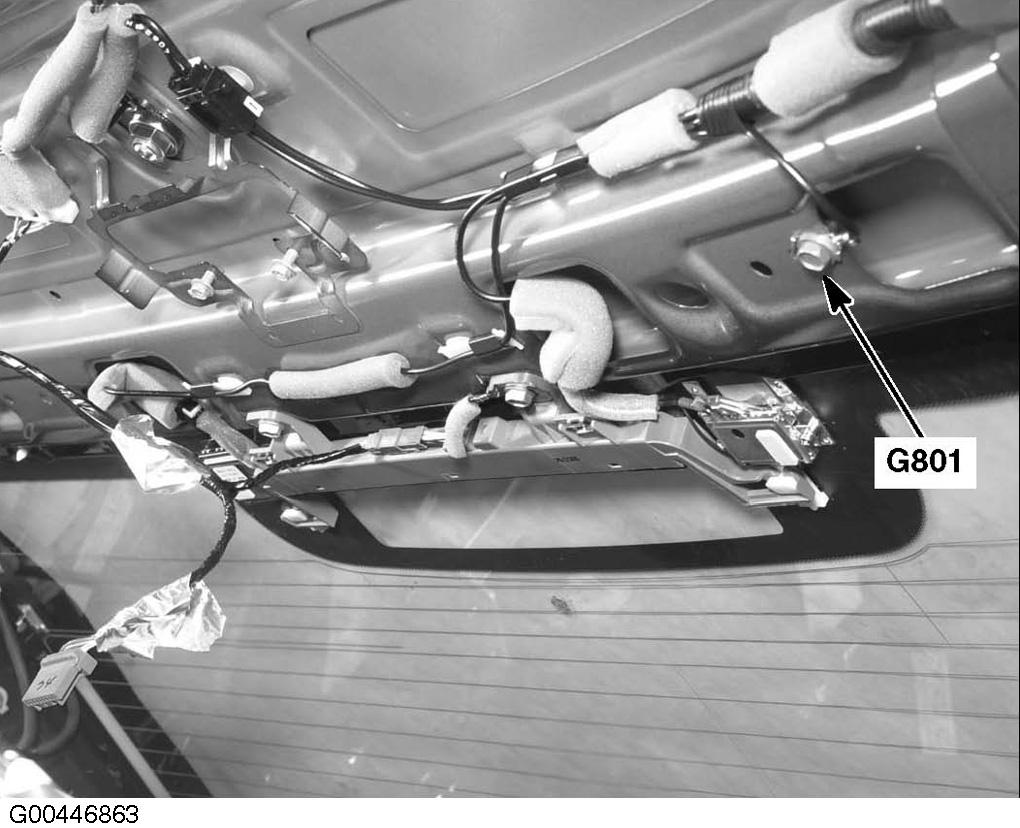

G00446863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

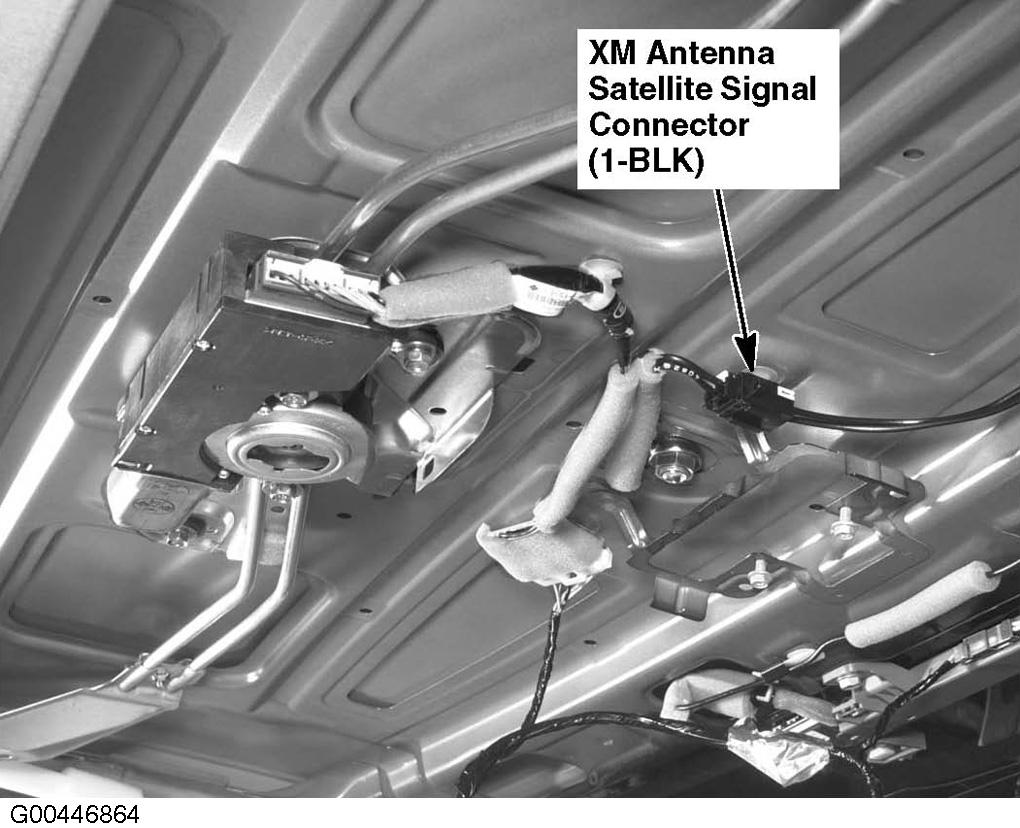

Fig 202: Rear Of Roof (USA: Base)

G00446864

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 203: Left Side Of Trunk (USA: Technology Package)

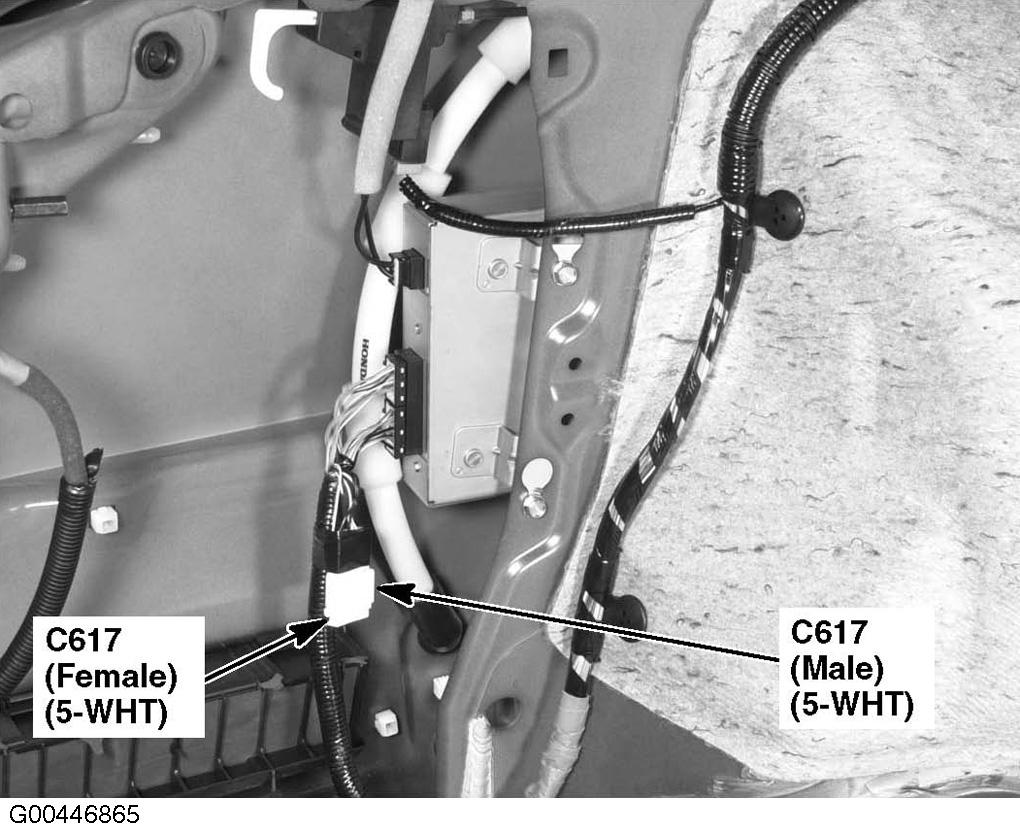

G00446865

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 204: Left Side Of Trunk (USA: Base)

G00446866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

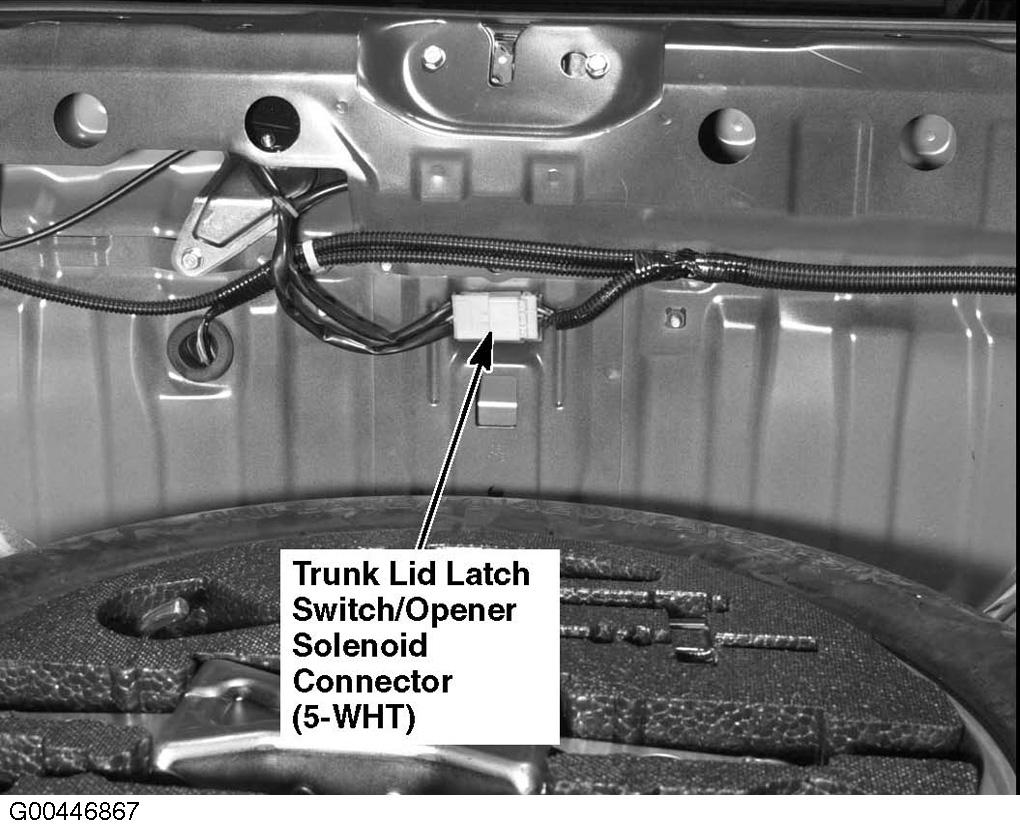

Fig 205: Center Rear Of Trunk

G00446867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

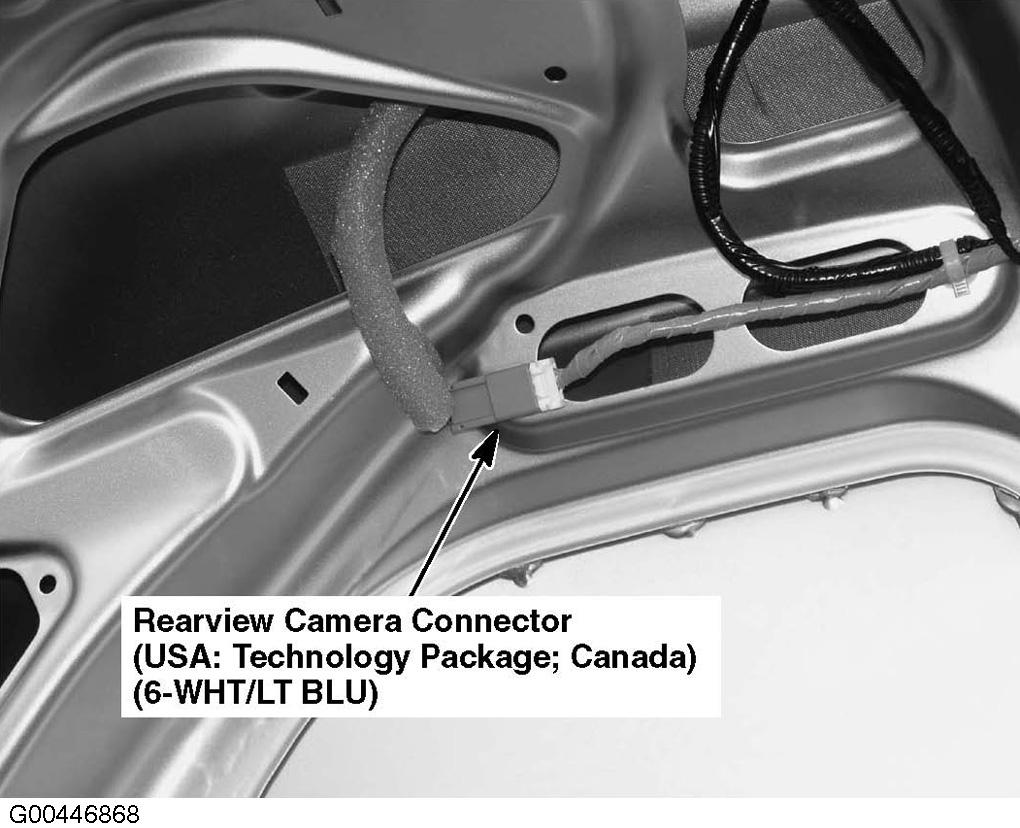

Fig 206: Middle Of Trunk Lid

G00446868

Courtesy of AMERICAN HONDA MOTOR CO., INC.
