Drain Bolt Installation

NOTE: When installing the drain bolt, always use a new washer.

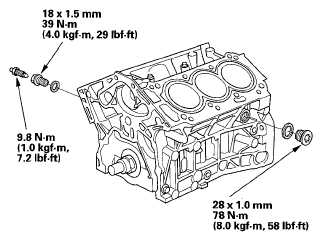

Fig 1: Engine Block Drain Bolts With Torque Specifications
G05494173Courtesy of AMERICAN HONDA MOTOR CO., INC.
