Component Location Index

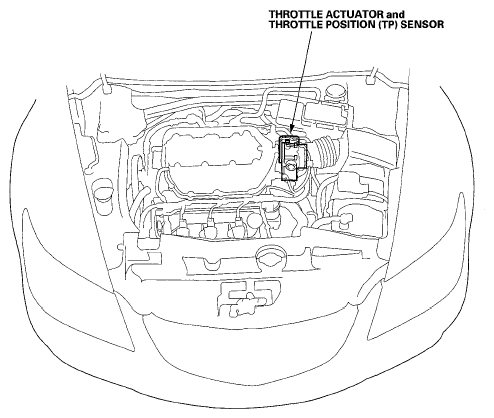

Fig 1: Identifying Electronic Throttle Control System Component Location (1 Of 2)
G05495068Courtesy of AMERICAN HONDA MOTOR CO., INC.

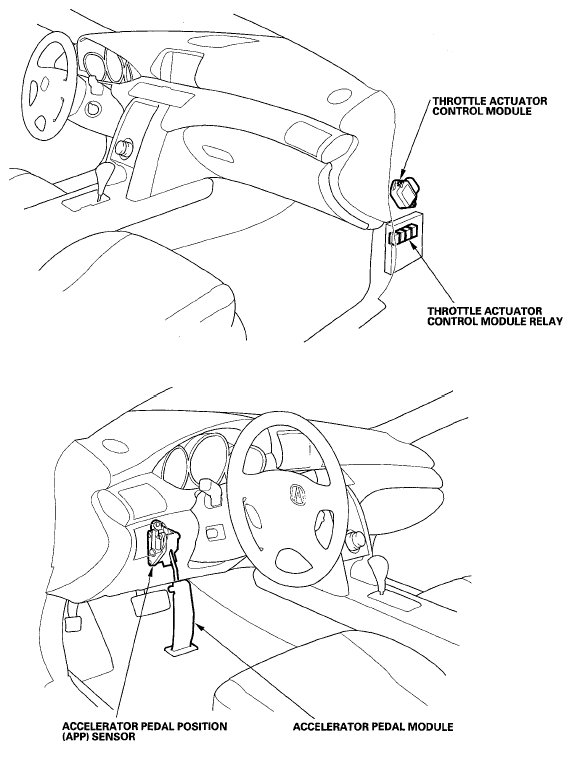

Fig 2: Identifying Electronic Throttle Control System Component Location (2 Of 2)
G05495069Courtesy of AMERICAN HONDA MOTOR CO., INC.
