Ignition Coil Removal/Installation

Remove the engine cover (A), right upper fender trim (B), battery trim (C), left upper fender trim (D), then remove the grille cover (E).

Fig 1: Identifying Engine Cover, Right/Left Upper Fender Trim, Battery Trim And Grille Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

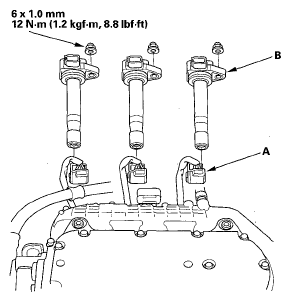

Disconnect the ignition coil connectors (A), then remove the front bank ignition coils (B).

Fig 2: Identifying Ignition Coil Connectors And Front Bank Ignition Coils
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ignition coil connectors (A), then remove the rear bank ignition coils (B).

Fig 3: Identifying Ignition Coil Connectors And Rear Bank Ignition Coils
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
