ECT Sensor 2 Replacement

  1. Remove the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
  2. Disconnect the ECT sensor 2 connector (A).

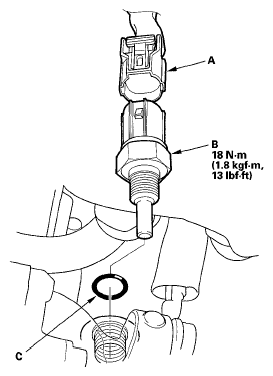

    Fig 1: ECT Sensor Connector And ECT Sensor With Torque Specifications
    G05494505Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove ECT sensor 2 (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT CHECK ).
