Knock Sensor Replacement

  1. Remove the intake manifold (see REMOVAL ).
  2. Remove the fuel rails and the intake runner base.
  3. Disconnect the knock sensor connector (A), then remove the knock sensor (B).

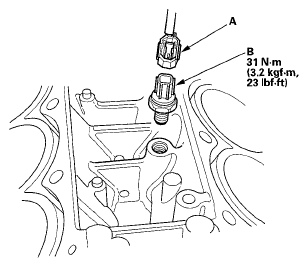

    Fig 1: Knock Sensor Connector And Knock Sensor With Torque Specifications
    G05494507Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
