PCM Replacement

Special Tools Required

• Honda diagnostic system (HDS) tablet tester
• Honda interface module (HIM) and an iN workstation with HDS and CM update software
• HDS pocket tester
• GIMA-600 and an iN workstation with HDS and CM update software

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
   Fig 1: Identifying HDS To Data Link Connector (DLC)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Turn the ignition switch ON (II).
3. Make sure the HDS communicates with the PCM and other vehicle systems. If it doesn't, go to the DLC CIRCUIT TROUBLESHOOTING  . If you are returning from DLC circuit troubleshooting, skip steps 4 through  9,  16 through  18,  21, and  22, then do this after replacing the PCM:
   • Replace the engine oil (see ENGINE OIL REPLACEMENT ) and the engine oil filter (see ENGINE OIL FILTER REPLACEMENT ).
   • Clean the throttle body (see THROTTLE BODY CLEANING ),
4. Select the PGM-FI system with the HDS.
5. Select the INSPECTION MENU with the HDS.
6. Select the ETCS TEST, then select the TP POSITION CHECK, and follow the screen prompts.
   NOTE: If the TP POSITION CHECK indicates FAILED, continue with this procedure.
7. Select the REPLACE PCM MENU, then select READ DATA and follow the screen prompts.
   NOTE:

   • Doing this step copies (READS) the engine oil life data from the original PCM so you can later download (WRITE) it into the new PCM.
   • If READ DATA indicates FAILED, continue with this procedure.
8. Turn the ignition switch OFF.
9. Jump the SCS line with the HDS.
10. Remove the panels (A) (see step 5 under CENTER CONSOLE REMOVAL/INSTALLATION ), and pull back the carpet.

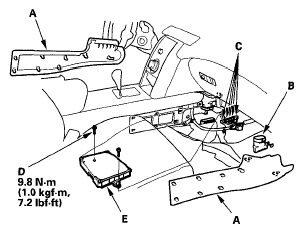

    Fig 2: Panels, PCM Connectors, Ducts And Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the ducts (B).
12. Disconnect the PCM connectors (C).
13. Remove the bolts (D), then remove the PCM (E).
14. Install the parts in the reverse order of removal.
15. Turn the ignition switch ON (II).
16. Manually input the VIN to the PCM with the HDS.
    NOTE: DTC P0630 "VIN Not Programmed or Mismatch" may be stored because the VIN has not been programmed into the PCM, ignore it, and continue this procedure.
17. If the READ DATA (engine oil life) failed in step  7, go to step  20. Otherwise, go to step 18.
18. Select the PGM-FI system with the HDS.
19. Select the REPLACE PCM MENU, then select WRITE DATA and follow the screen prompts.
    NOTE: If the WRITE DATA indicates FAILED, continue this procedure.
20. Select IMMOBI system with the HDS.
21. Enter the immobilizer code with the PCM replacement procedure in the HDS, it allows you to start the engine.
22. If the TP POSITION CHECK failed in step  6, clean the throttle body (see THROTTLE BODY CLEANING ), then go to step 23.
23. If the READ DATA failed in step  7 or the WRITE DATA failed in step  19, replace the engine oil (see OIL PRESSURE TEST ) and engine oil filter (see ENGINE OIL FILTER REPLACEMENT ), then go to step 24.
24. Select PGM-FI system, and reset the PCM with the HDS.
25. Update the PCM if it does not have the latest software (see UPDATING THE PCM ).
26. Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).
27. Do the CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN LEARN ).
