Park Pin Switch Replacement

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the transmission gear selection switch/park pin switch/A/T gear position indicator panel light connector (A), then remove the connector from the shift lever.

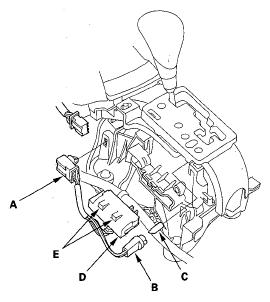

    Fig 1: Identifying A/T Gear Position Indicator Panel Light Connector And Gear Selection Switch
    G05495807Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the A/T gear position indicator panel light bulb socket (B), then remove the bulb (C) from the socket.
  4. Remove the transmission gear selection switch/park pin switch (D) by releasing the lock tabs (E).
  5. Install the new switch assembly in the shift lever.
  6. Install the bulb in the socket, then install the socket in the A/T gear position indicator panel.
  7. Install the switch connector on the shift lever, then connect the connector.
  8. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
