Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

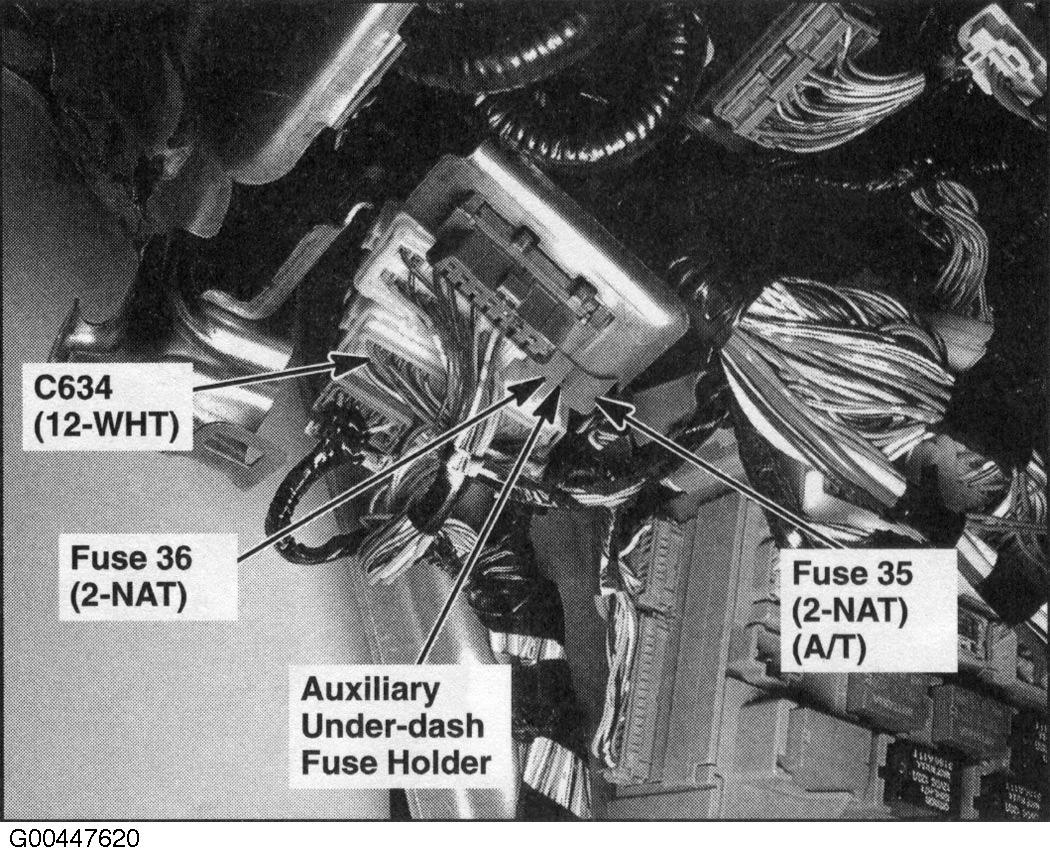

| Auxiliary Under-Dash Fuse Holder | Under left side of dash. See Figure. |
| Back-Up Sensor In-Line Fuse | Left side of trunk lid. See Figure. |
| Under-Dash Fuse/Relay Box | Behind left end of dash. See Figure. |

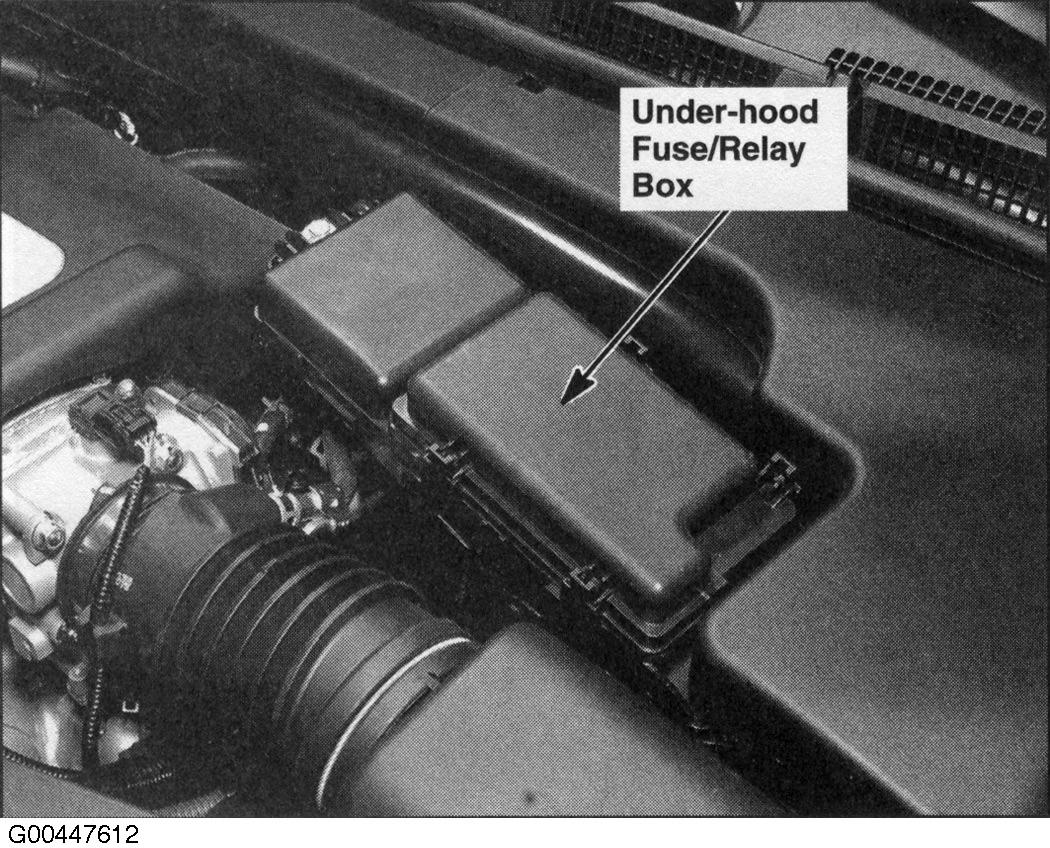

| Under-Hood Fuse/Relay Box | Left rear of engine compartment. See Figure. |
| Under-Hood Multi-Relay Box | Right side of engine compartment. See Figure. |
