Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

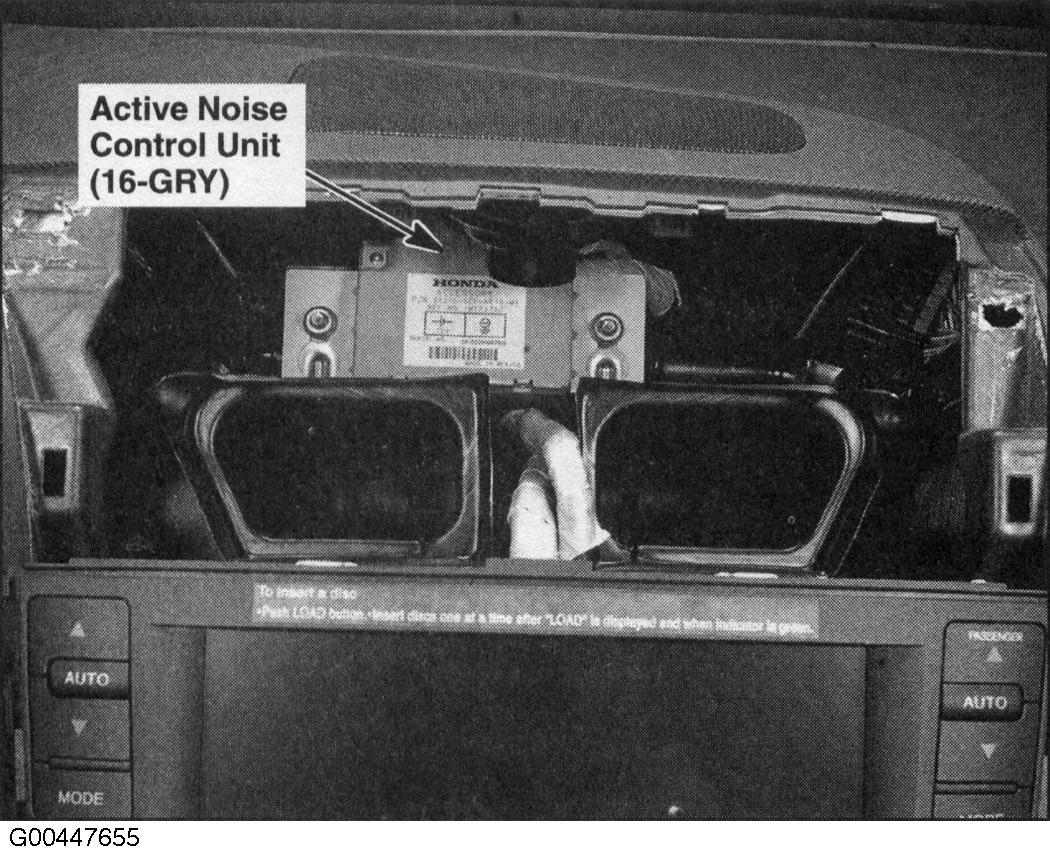

| Active Noise Control Unit | Under middle of dash. See Figure. |

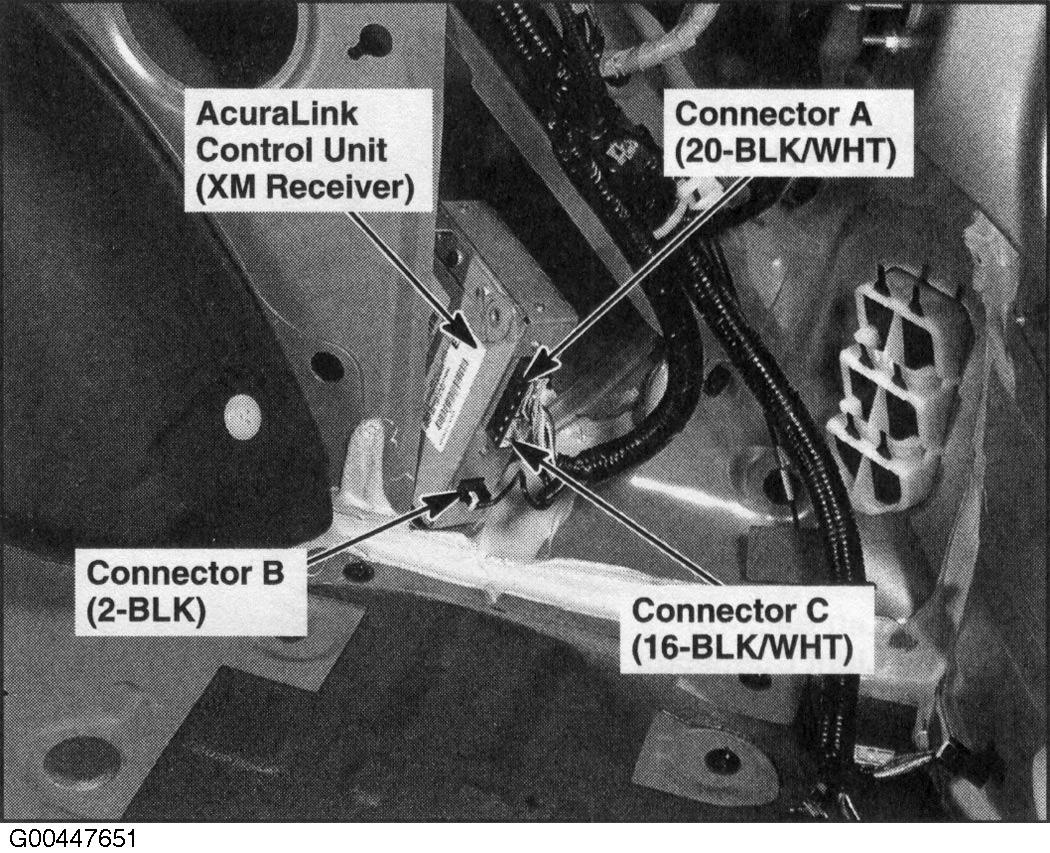

| AcuraLink Control Unit (XM Receiver) | Right side of trunk. See Figure. |

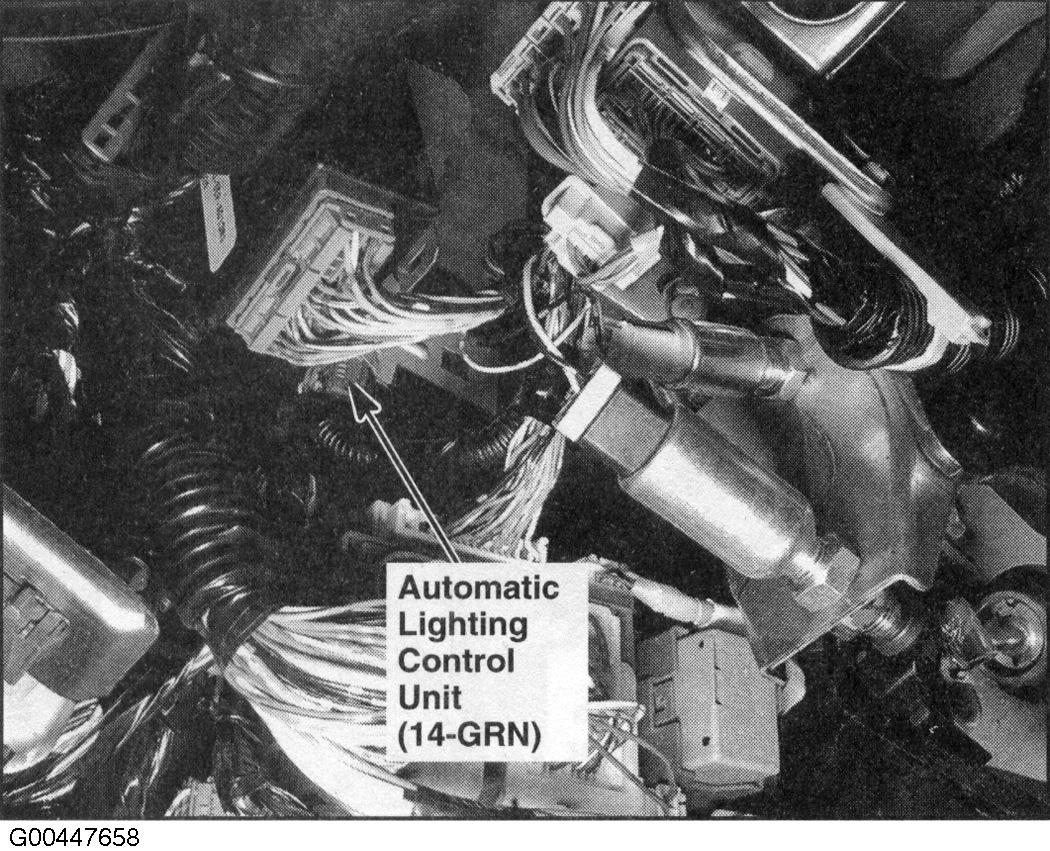

| Automatic Lighting Control Unit | Under left side of dash. See Figure. |

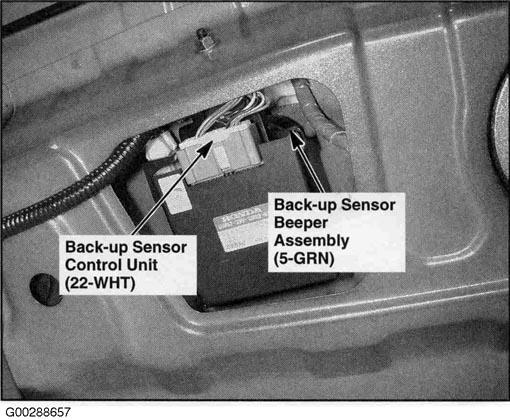

| Back-Up Sensor Control Unit | Left side of rear shelf. See Figure. |

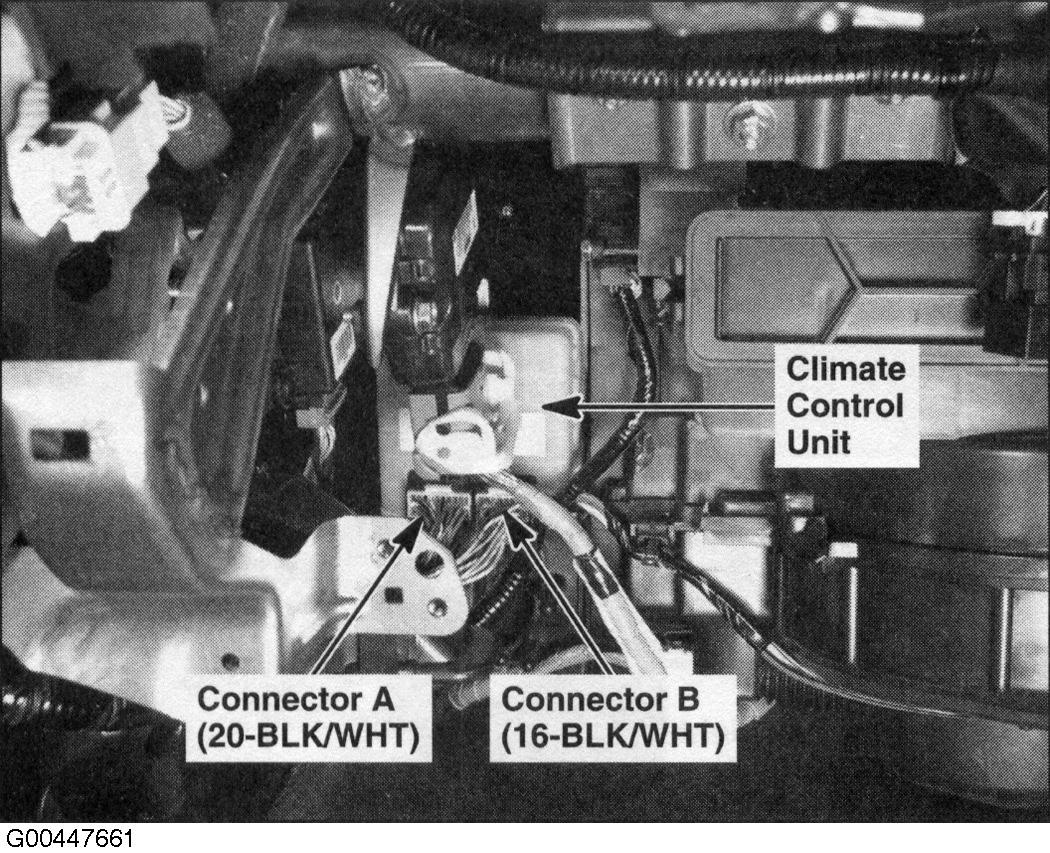

| Climate Control Unit | Behind glove box. See Figure. |

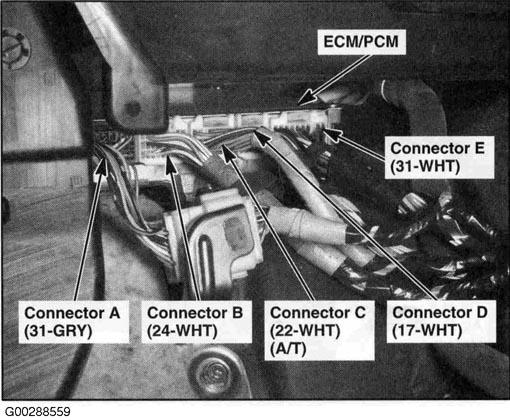

| ECM/PCM | Behind center of dash. See Figure. |

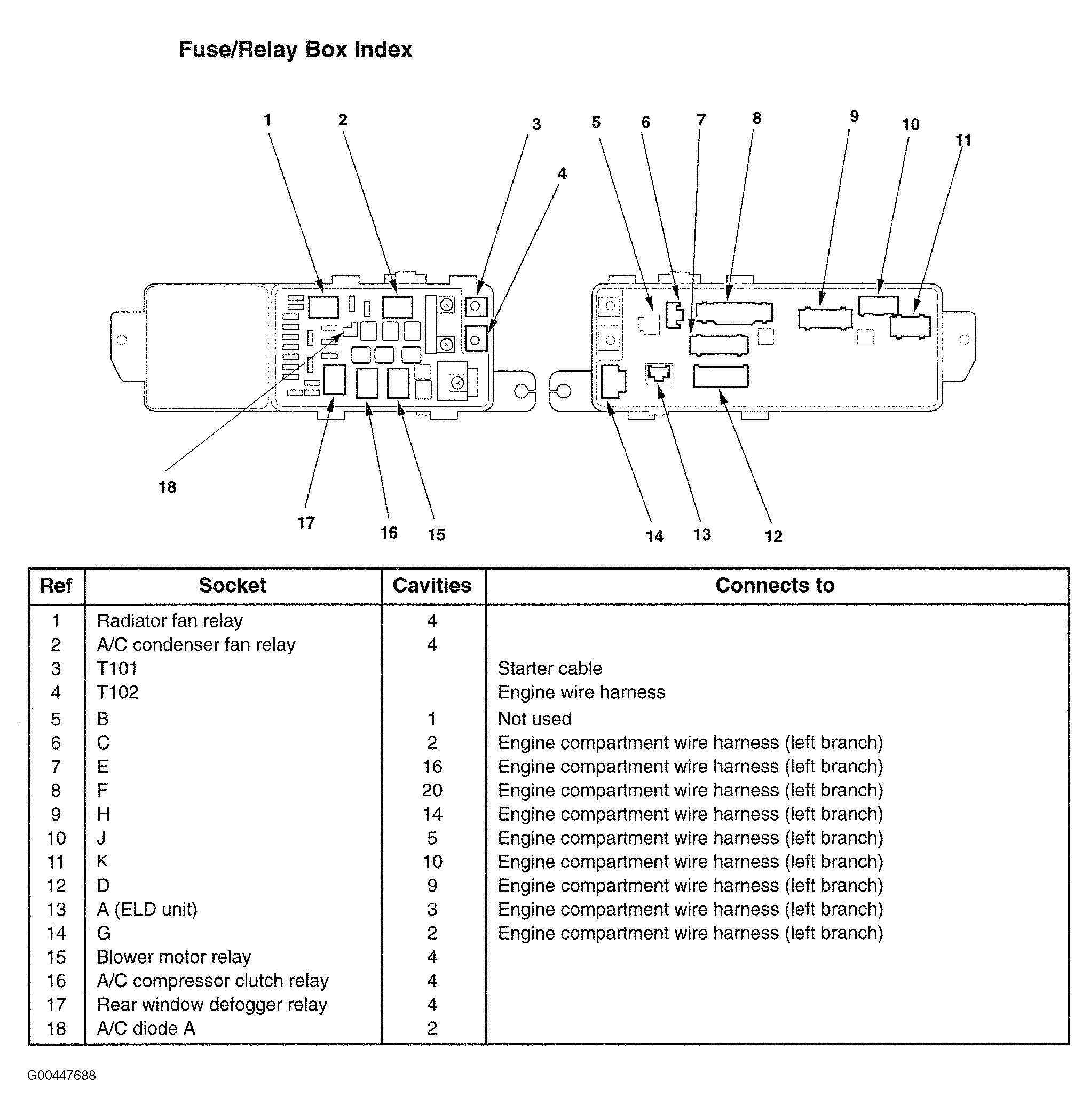

| ELD Unit | On under-hood fuse/relay box. See Figure. |

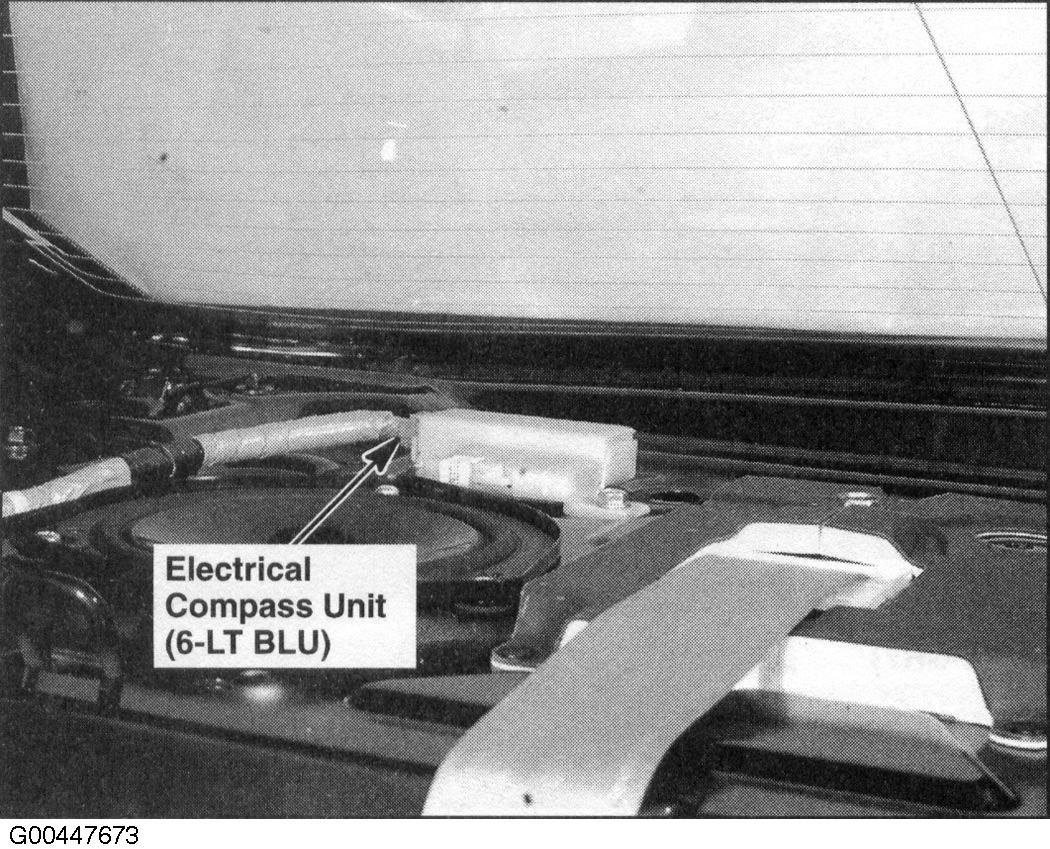

| Electrical Compass Unit | Right side of rear shelf. See Figure. |

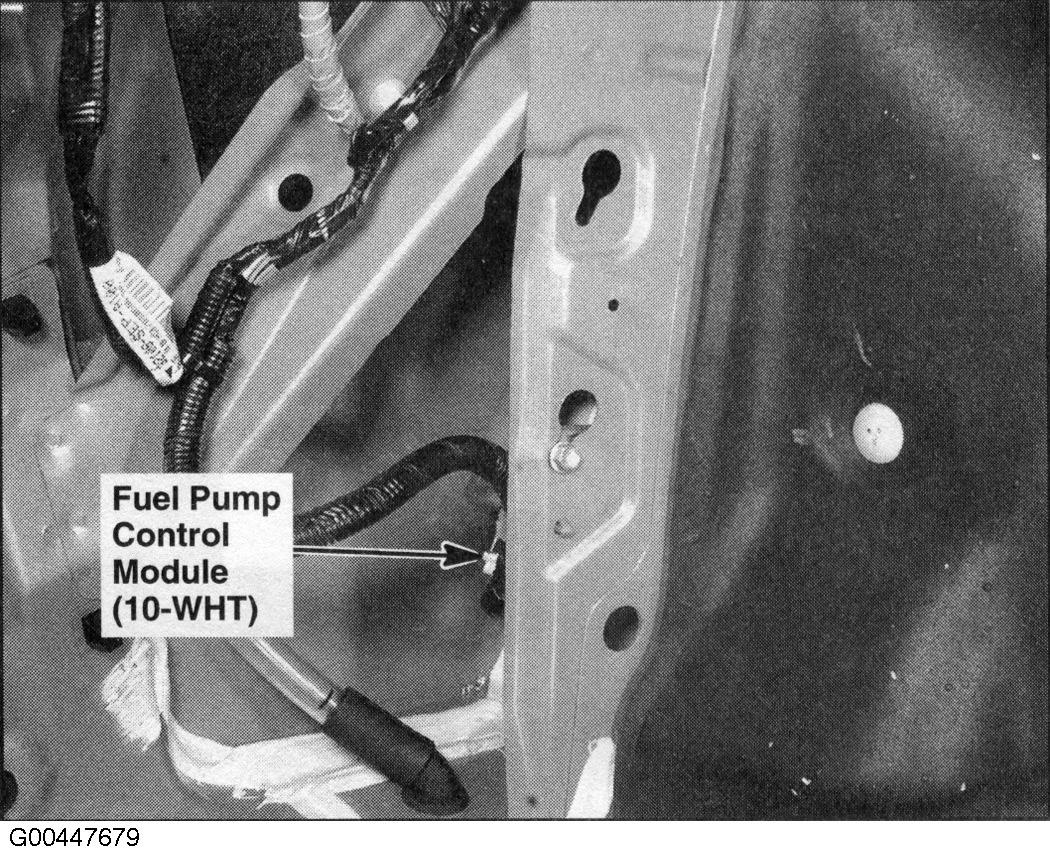

| Fuel Pump Control Module | Left side of trunk. See Figure. |

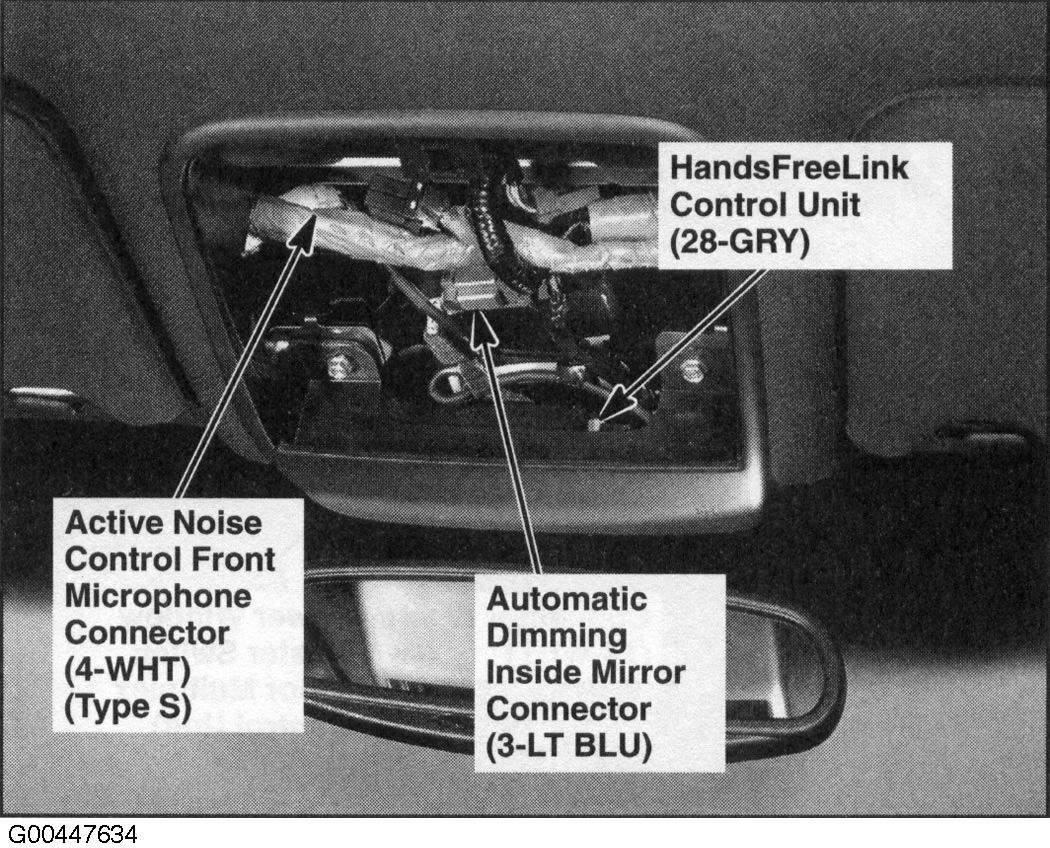

| Hands Free Control Unit | Front of roof. See Figure. |

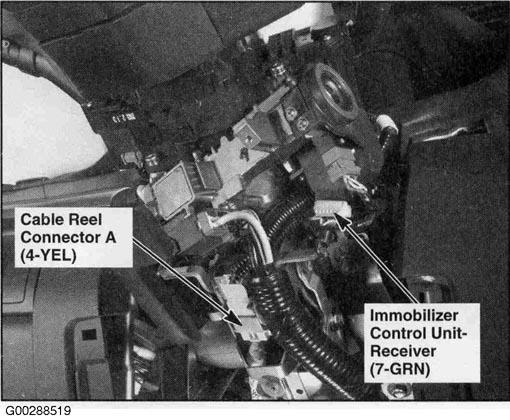

| Immobilizer Control Unit Receiver | On right side of steering column. See Figure. |

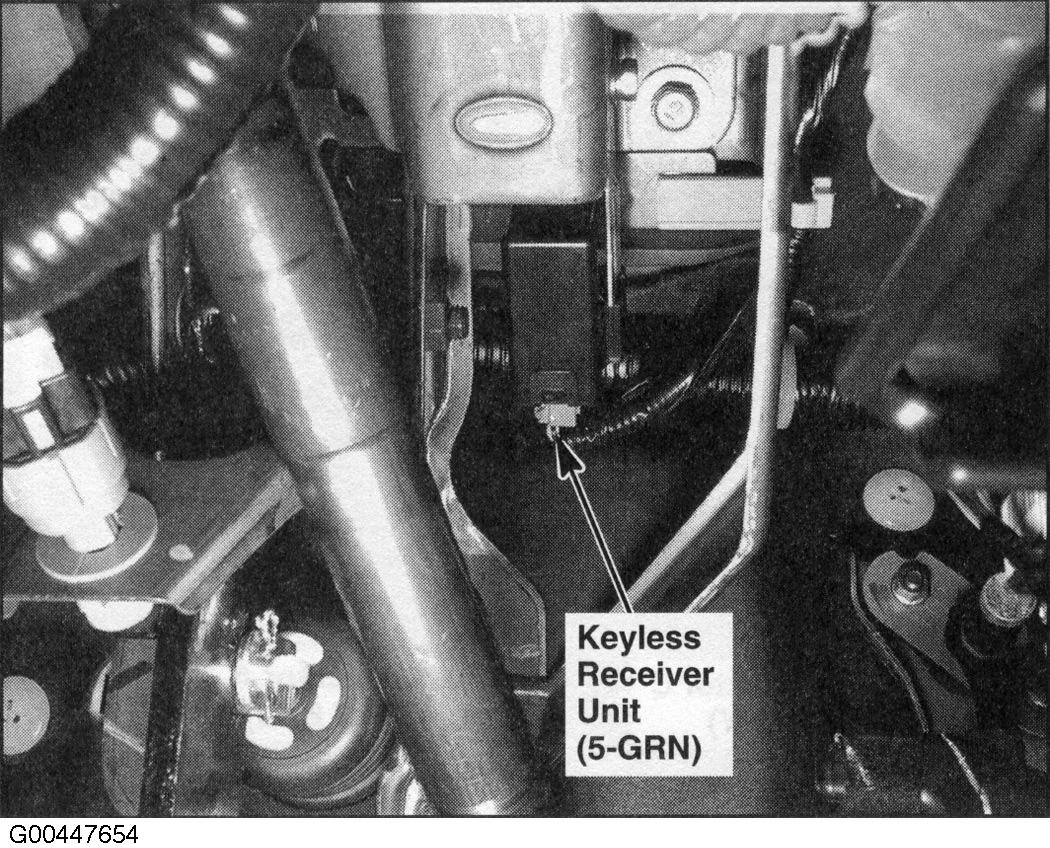

| Keyless Receiver Unit | Under left side of dash. See Figure. |

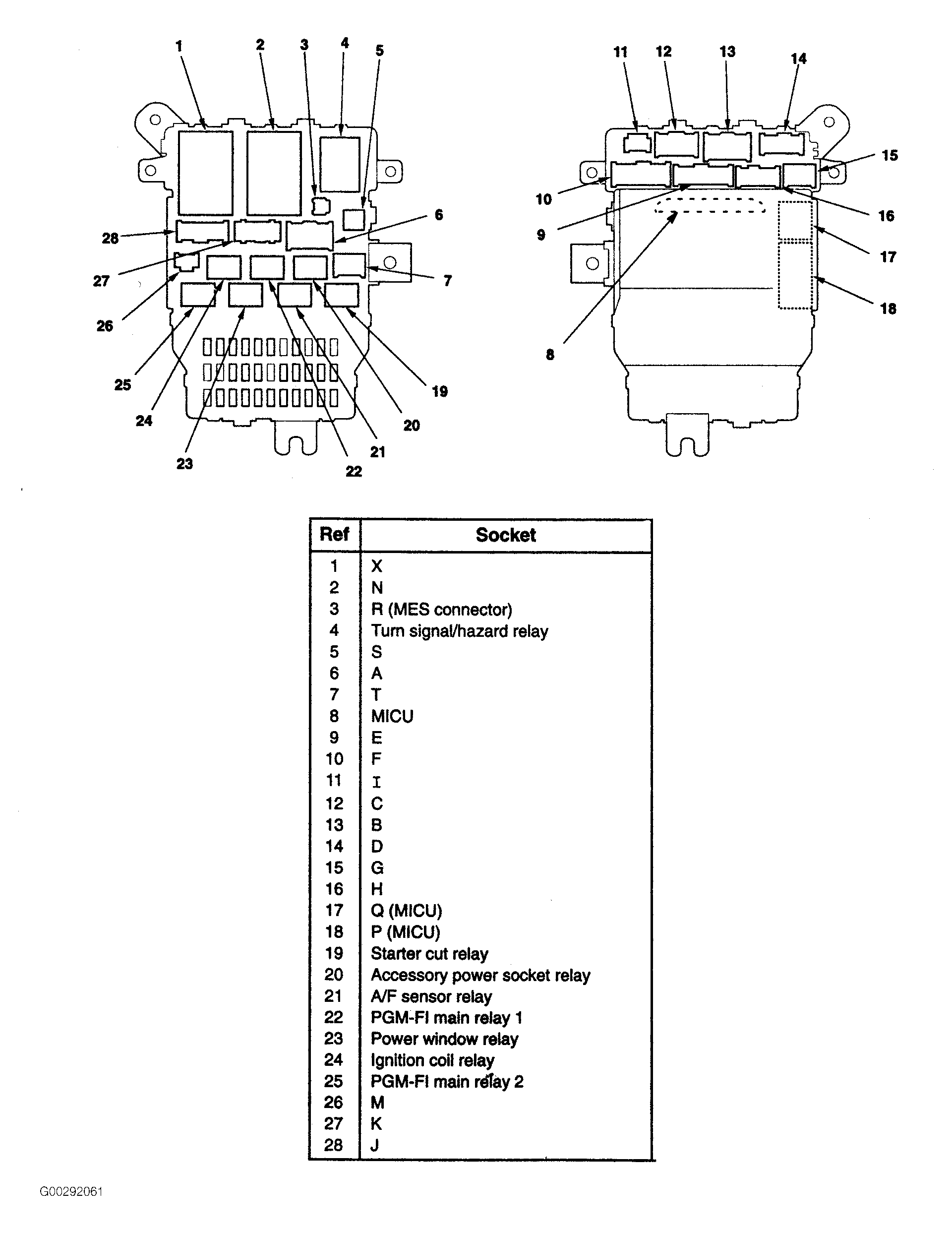

| MICU | On under-dash fuse/relay box. See Figure. |

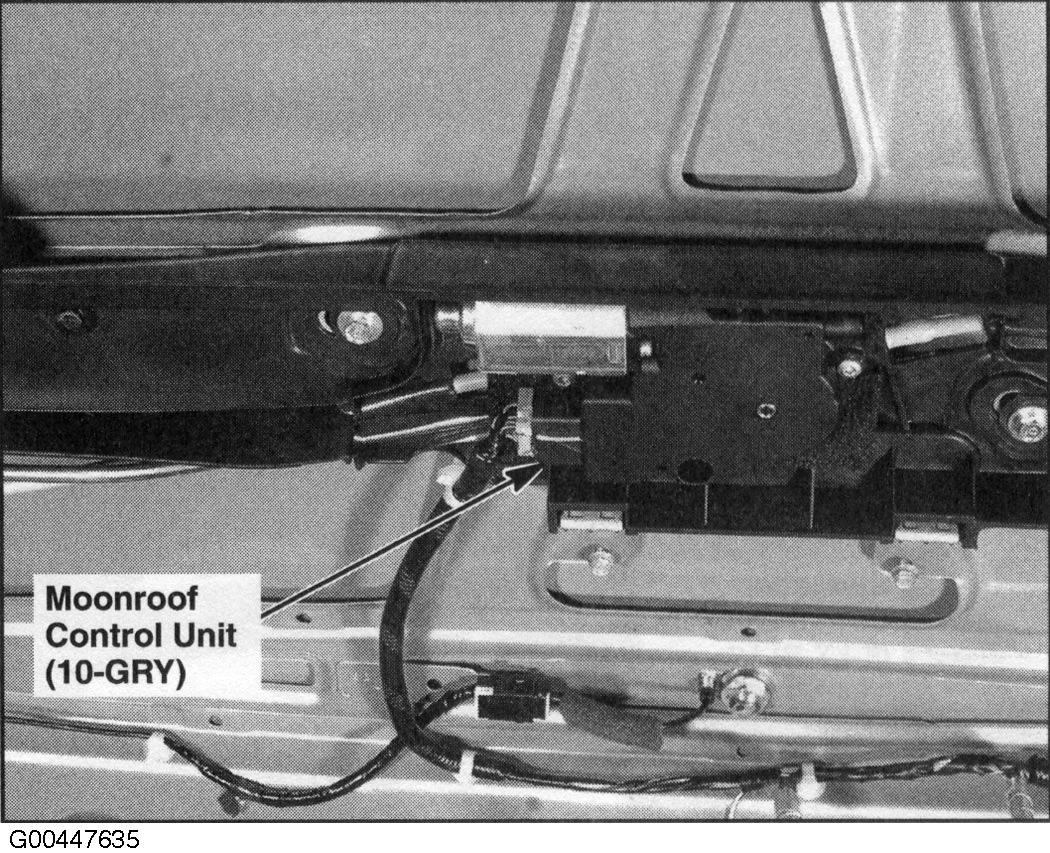

| Moonroof Control Unit | Rear of roof. See Figure. |

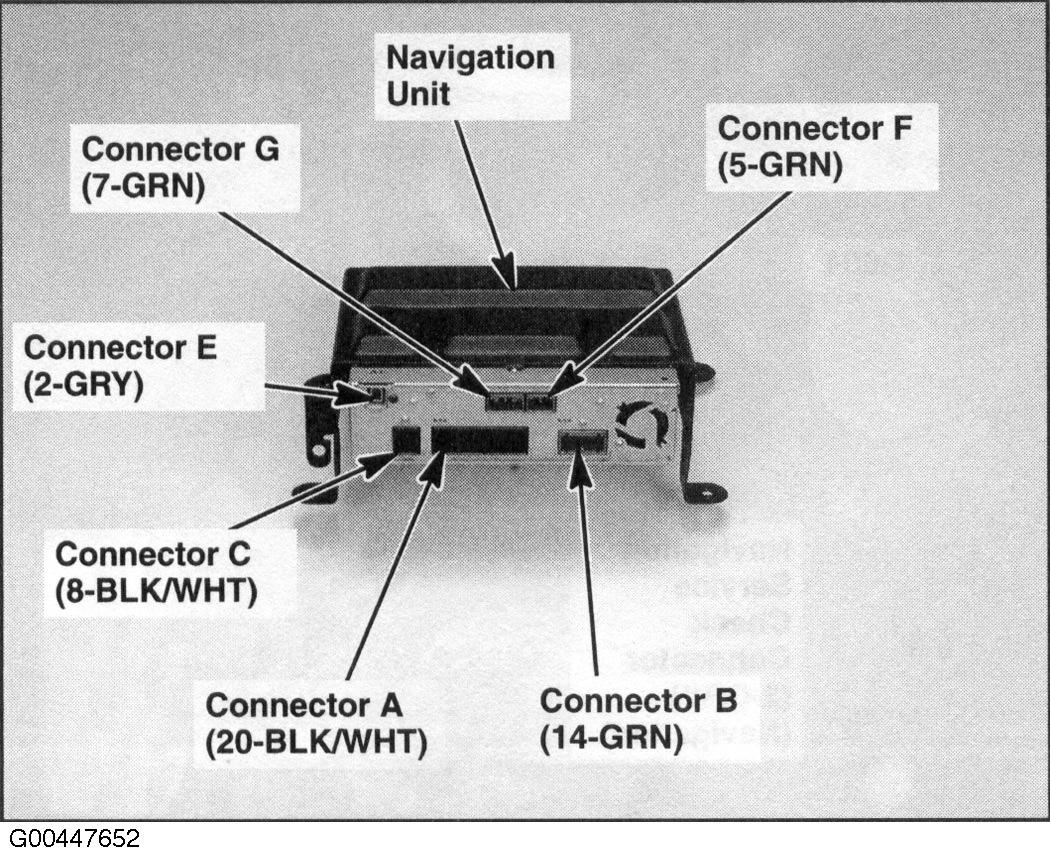

| Navigation Unit | In trunk, below left side of package tray. See Figure. |

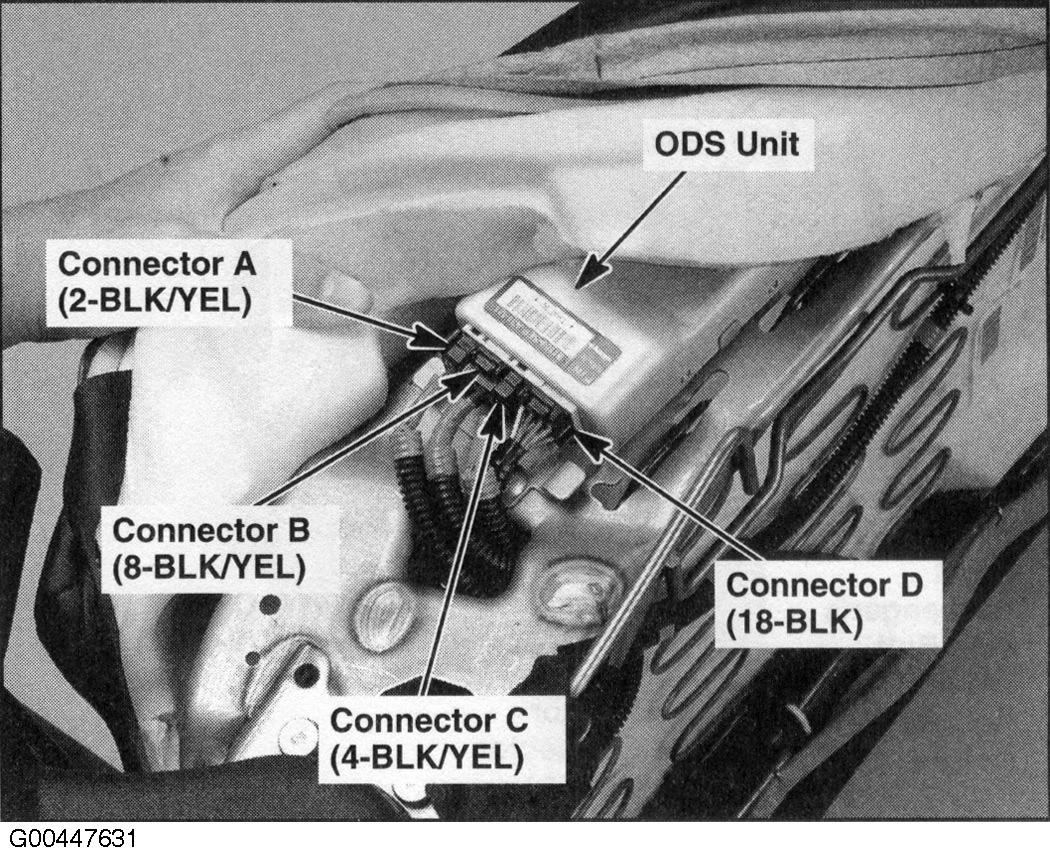

| ODS Unit | On left side of front passenger's seat. See Figure. |

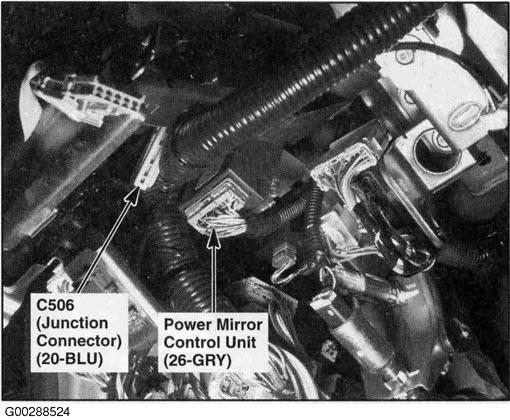

| Power Mirror Control Unit | Under left side of dash. See Figure. |

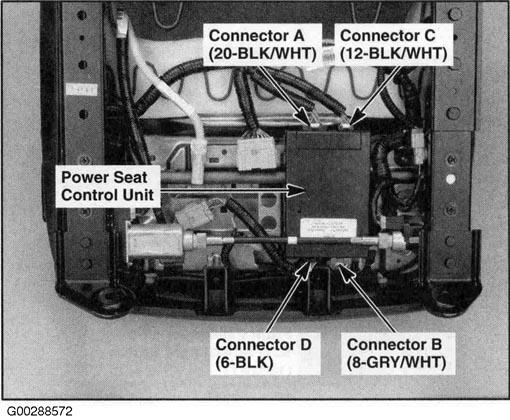

| Power Seat Control Unit | Under driver's seat. See Figure. |

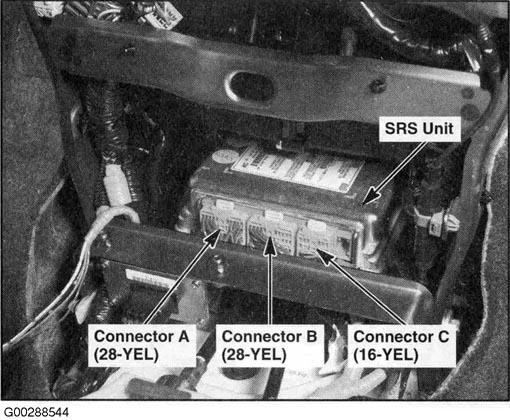

| SRS Unit | Under lower middle of dash. See Figure. |

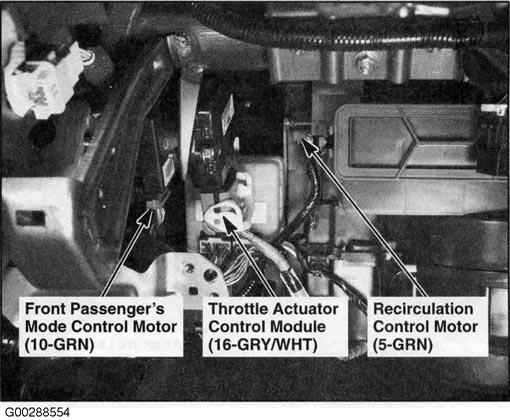

| Throttle Actuator Control Module | Behind glove box. See Figure. |

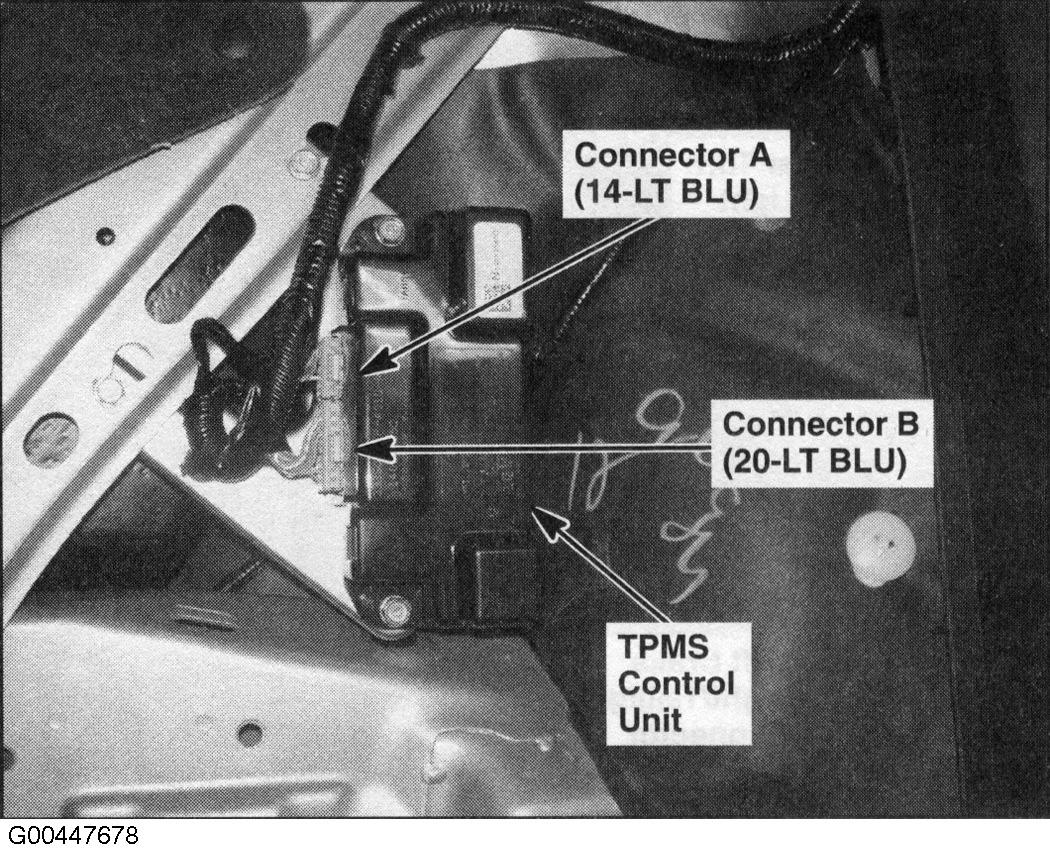

| TPMS Control Unit | Behind left rear seat back. See Figure. |

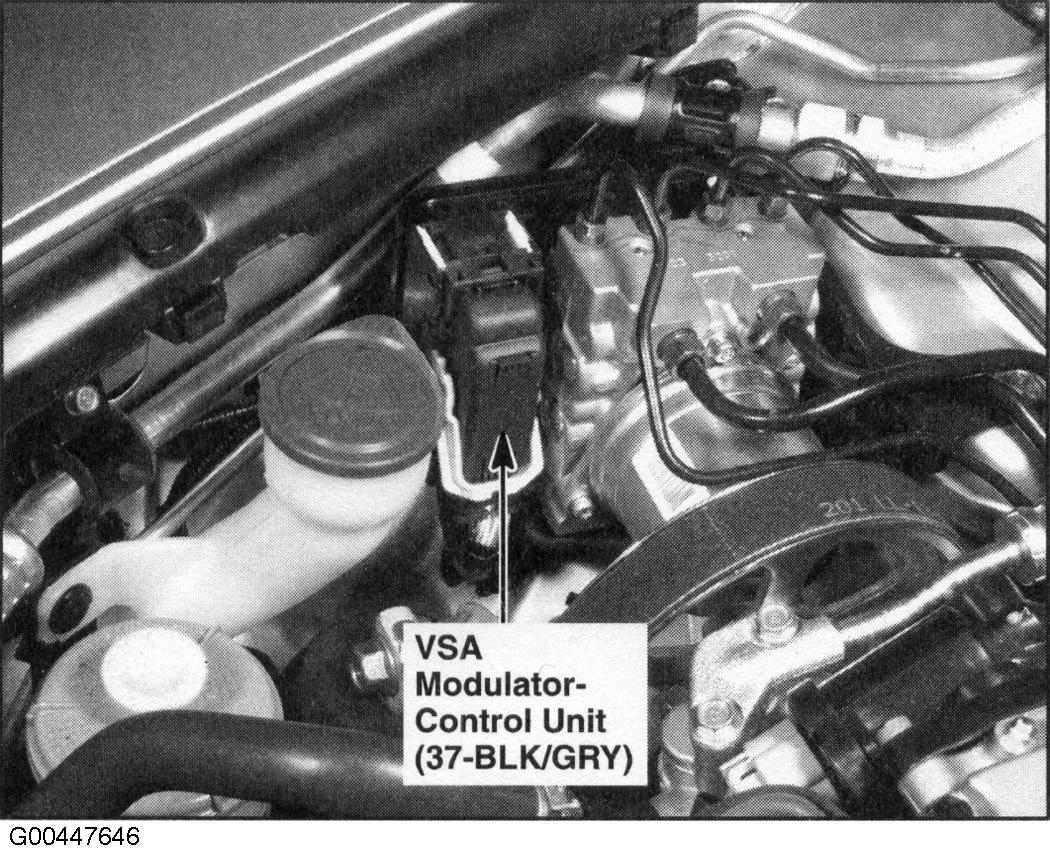

| VSA Modulator Unit | On right side of engine compartment. See Figure. |

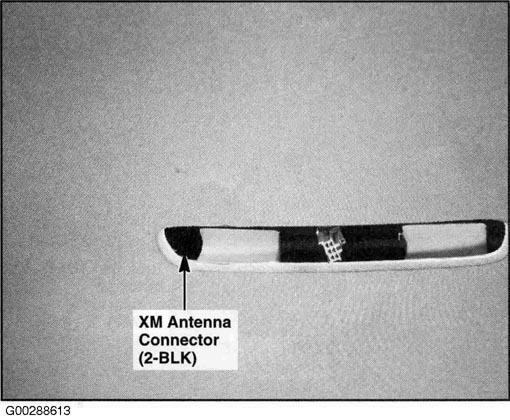

| XM Antenna Connector | Rear of roof. See Figure. |
