Relays And Control Unit Locations: Dashboard

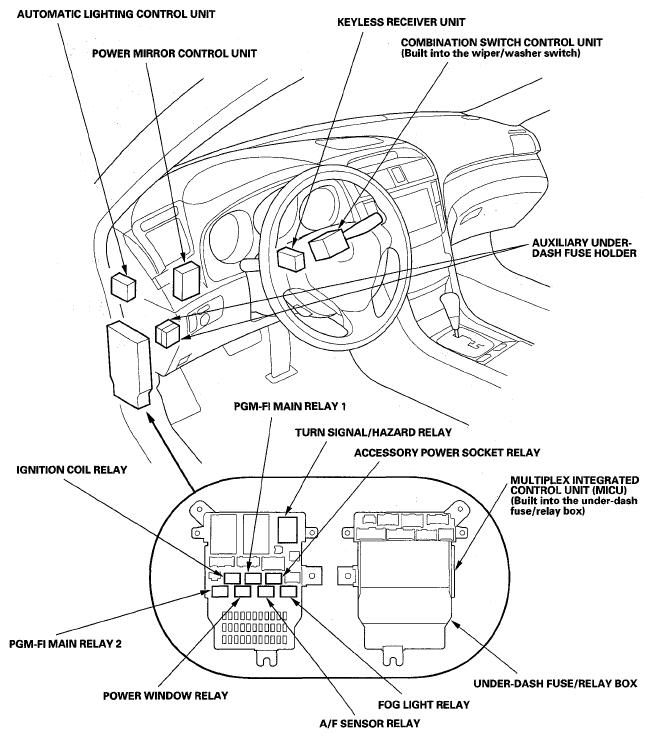

Fig 1: Identifying Dashboard Relay And Control Locations (1 Of 3)
G05462560
Fig 2: Identifying Dashboard Relay And Control Locations (2 Of 3)
G05462561
Fig 3: Identifying Dashboard Relay And Control Locations (3 Of 3)
G05462562
