Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Circuit Diagram
>>
A/T model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A/T model

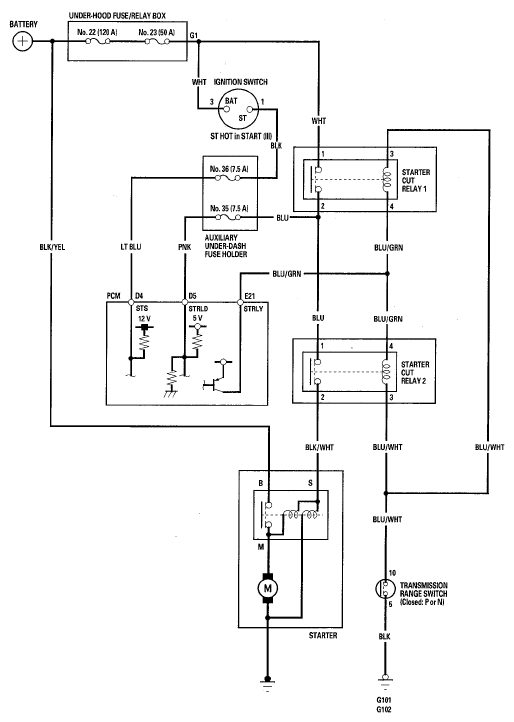

Fig 1: Starting System - Circuit Diagram (A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
