A/T model: Disassembly/Reassembly

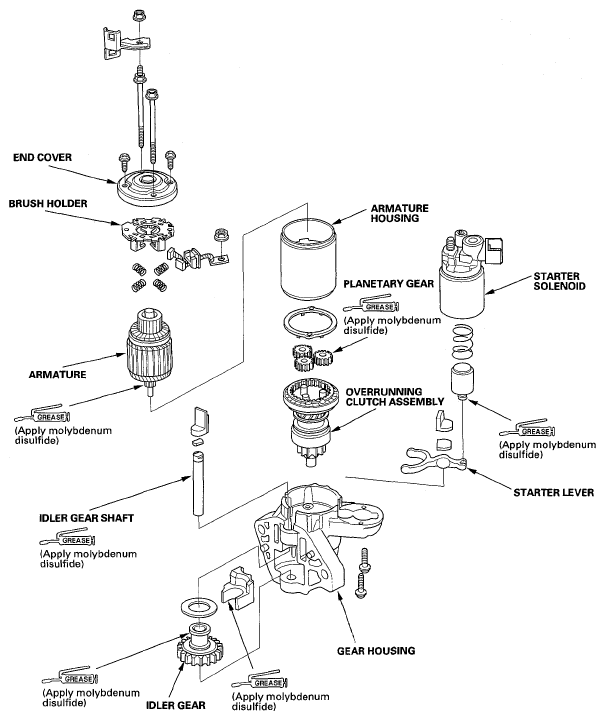

Fig 1: Identifying Starting System Components - A/T Model
G05457417Courtesy of AMERICAN HONDA MOTOR CO., INC.
