M/T model: Disassembly/Reassembly

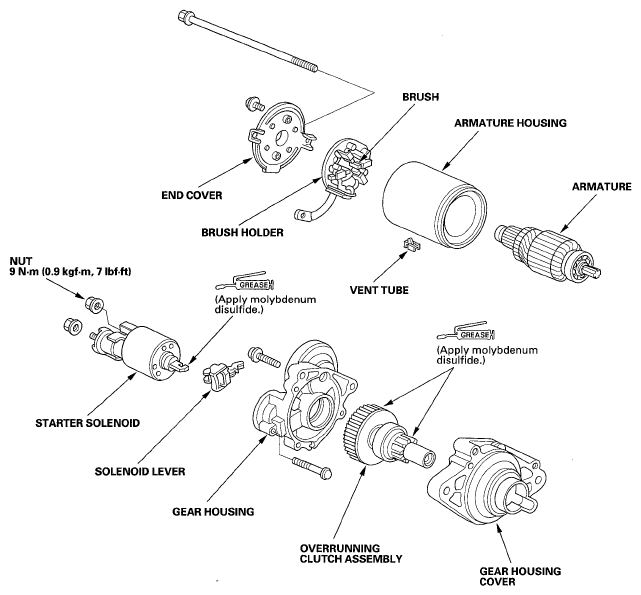

Fig 1: Starting System Replacement Components - M/T Models With Torque Specifications
G05457401Courtesy of AMERICAN HONDA MOTOR CO., INC.
