Drain Bolt Installation

NOTE: When installing the drain bolts, always use new washers.

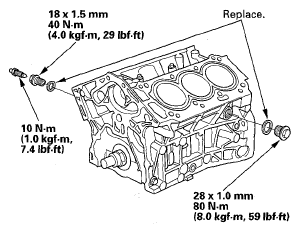

Fig 1: Drain Bolt With Torque Specifications
G05457801Courtesy of AMERICAN HONDA MOTOR CO., INC.
