Component Location Index

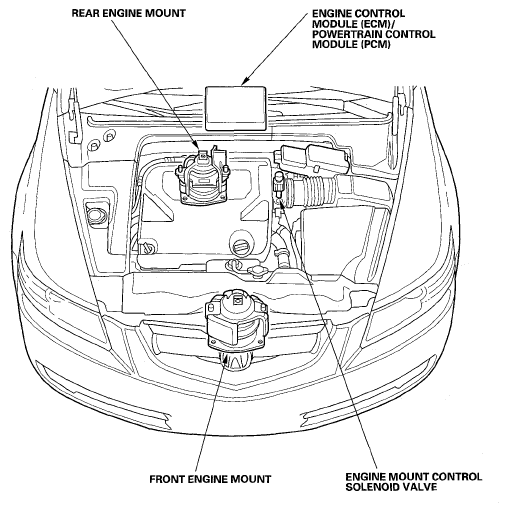

Fig 1: Identifying Engine Mount Control System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
