Fuel Tank Replacement: Installation

  1. Install the tank straps (A), and tighten the bolts (B).
    Fig 1: Tank Straps And Bolts With Torque Specifications
    G05458328Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Place a jack or support under the rear suspension subframe. Install the rear suspension subframe with new mounting bolts, aligning the pins (A) with the holes in the subframe.

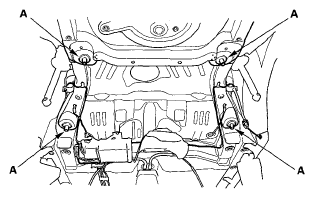

    Fig 2: Identifying Rear Suspension Subframe With Mounting Bolts
    G05458329Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal.
  4. After installation, do a wheel alignment (see WHEEL ALIGNMENT ).
