Component Location Index

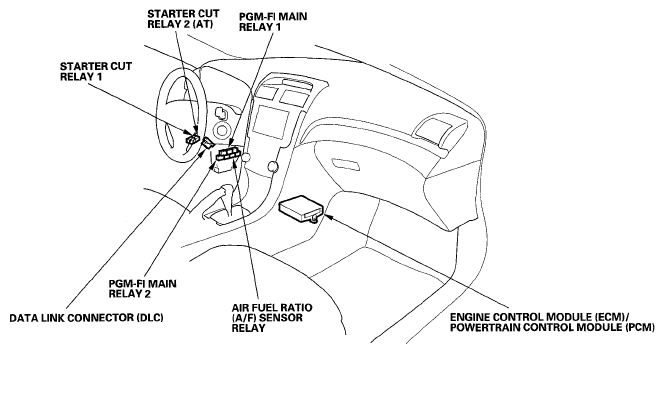

Fig 1: PGM-FI System - Component Location Index (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

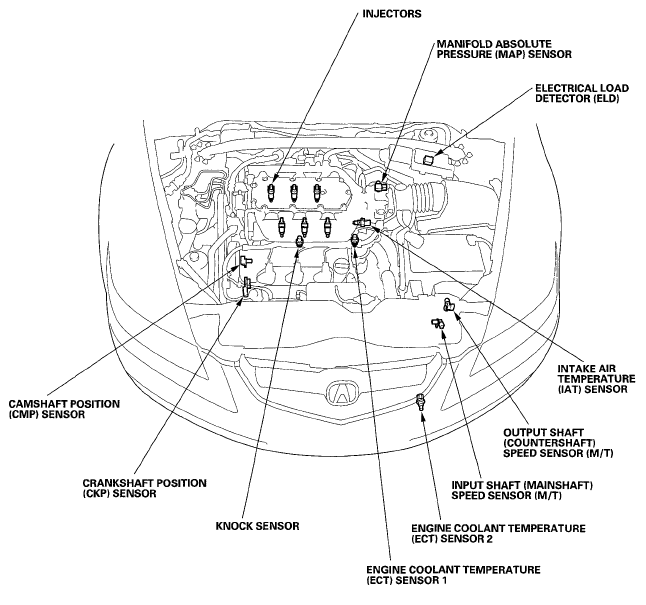

Fig 2: PGM-FI System - Component Location Index (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

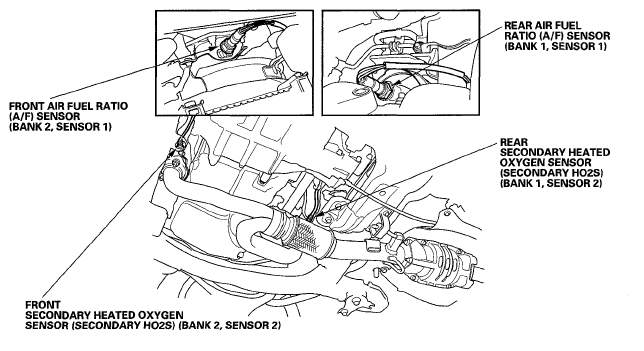

Fig 3: PGM-FI System - Component Location Index (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
