Knock Sensor Replacement

  1. Remove the engine cover (see step 1 on REMOVAL ).
  2. Remove the fuel rails and the injector base (see INJECTOR BASE REMOVAL AND INSTALLATION ).
  3. Disconnect the knock sensor IP connector (A), then remove the knock sensor (B).

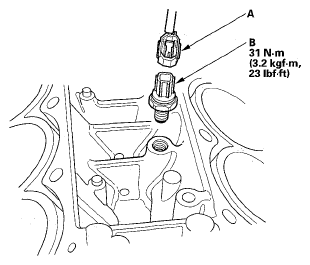

    Fig 1: Knock Sensor With Torque Specifications
    G05458143Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
