Rear Bank(Bank 1}

  1. Disconnect the rear secondary HO2S 4P connector (A), then remove the rear secondary HO2S (B).

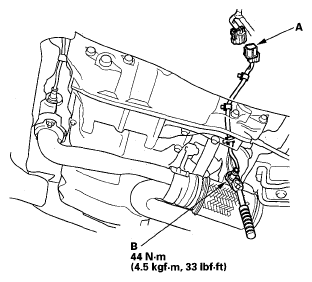

    Fig 1: Removing Front Secondary HO2S With Torque Specifications
    G05458137Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the parts in the reverse order of removal.
