Component Location Index

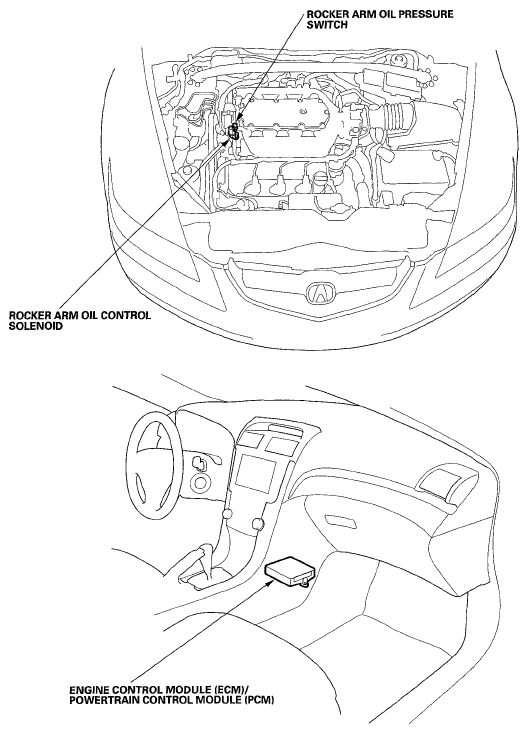

Fig 1: VTEC Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
