ATF Cooler Replacement

  1. Remove the splash shield.
  2. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Disconnect the ATF cooler hoses (A) from the ATF cooler lines (B).
    Fig 1: ATF Cooler Hoses And ATF Cooler Lines With Torque Specifications
    G05459091Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the ATF cooler assembly (C).
  5. If needed, remove the ATF cooler (A) from the stay (B).

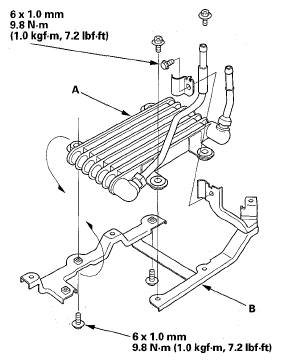

    Fig 2: ATF Cooler, Stay And ATF Cooler Assembly With Torque Specifications
    G05459092Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the ATF cooler assembly in the reverse order of removal. If the ATF cooler hoses are disassembled from the ATF cooler, reassemble the ATF cooler hoses referring to the ATF cooler hose replacement (see ATF COOLER HOSE REPLACEMENT  ).
  7. Connect the ATF cooler hoses (see ATF COOLER HOSE REPLACEMENT  ).
  8. Install the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  9. Install the splash shield.
