ATF Temperature Sensor Replacement

  1. Remove the splash shield.
  2. Drain the automatic transmission fluid (ATF) (see step 4 on ATF REPLACEMENT  ).
  3. Disconnect the ATF temperature sensor connector (A), then remove the connector from the connector bracket (B).

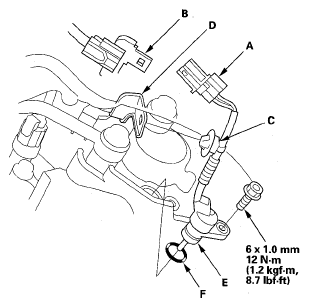

    Fig 1: Locating ATF Temperature Sensor Connector With Torque Specifications
    G05458994Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the harness clamp (C) from its bracket (D).
  5. Remove the ATF temperature sensor (E).
  6. Install a new O-ring (F) on a new ATF temperature sensor, and install the ATF temperature sensor.
  7. Check the connector for rust, dirt, or oil. Connect the connector securely, and install it on its bracket.
  8. Install the harness clamp on its bracket.
  9. Refill the transmission with ATF (see step 7 on ATF REPLACEMENT  ).
  10. Install the splash shield.
