Shift Cable Adjustment

  1. Remove the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION ).
  2. Shift the transmission into R.
  3. Remove the nut securing the shift cable end.
    Fig 1: Identifying Shift Lever Assembly
    G05459104Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Press the holder lock release (A), and pull out the socket holder (B) to remove the shift cable (C) from the shift lever bracket base (D). Do not remove the shift cable by pulling the shift cable guide (E).
    Fig 2: Identifying Holder Lock Release, Socket Holder, Shift Cable And Shift Lever Bracket Base
    G05459105Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Push the shift cable until it stops, then release it. Pull the shift cable back one step so that the shift position is in R. Do not hold the shift cable guide (A) to adjust the shift cable (B).
    Fig 3: Identifying Shift Cable Guide And Shift Cable
    G05459106Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Turn the ignition switch to ON (II), and check that the R position indicator comes on.
  7. Turn the ignition switch to LOCK (0).
  8. Place the shift lever in R, then insert a 6.0 x 100.0 mm (0.24 x 3.94 in.) pin (A) through the positioning hole (B) on the shift lever bracket base, through the positioning hole (C) on the shift lever, and into the positioning hole (D) on the shift lever bracket base. The shift lever is secured in R.
    Fig 4: Identifying Pin, Positioning Hole And Hole
    G05459107Courtesy of AMERICAN HONDA MOTOR CO., INC.

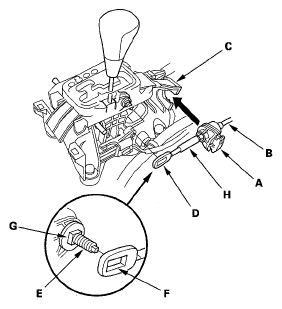

  9. Align the socket holder (A) on the shift cable (B) with the slot in the bracket base (C), then slide the holder into the base. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole (F) with the square fitting (G) at the bottom of the stud. Push the holder until it snaps securely in place. Do not install the shift cable by holding the shift cable guide (H).
    Fig 5: Aligning Socket Holder On Shift Cable With Slot In Bracket Base
    G05459108Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Check that the shift cable end (A) is properly installed on the mounting stud (B).

    Properly Installed:

    Fig 6: Identifying Shift Cable End And Mounting Stud - Properly Installed
    G05459109Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Improperly Installed:

    Fig 7: Identifying Shift Cable End And Mounting Stud - Improperly Installed
    G05459110Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. If improperly installed, remove the shift cable from the bracket base, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the bracket base.
  12. Install and tighten the nut.
    Fig 8: Nut With Torque Specifications
    G05459111Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.
  14. Move the shift lever to each position, and check that the A/T gear position indicator follows the transmission range switch.
  15. Push the shift lock release, and check that the shift lever releases.
  16. Reinstall the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION ).
