Power Window Motor

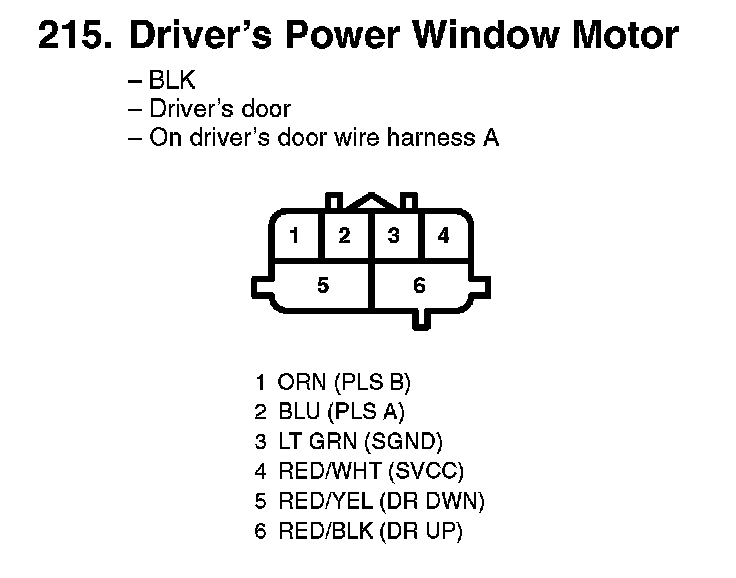

215. Driver's Power Window Motor:

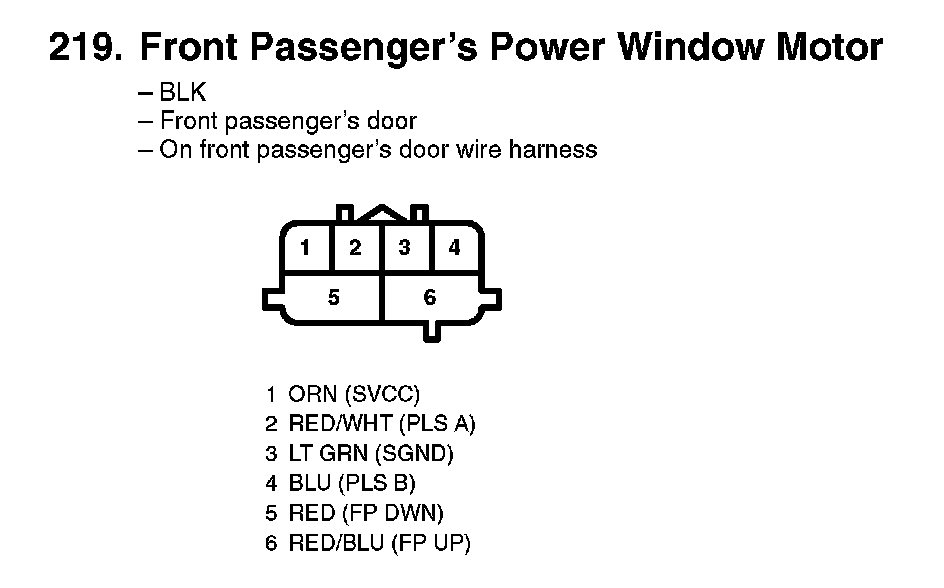

219. Front Passenger's Power Window Motor:

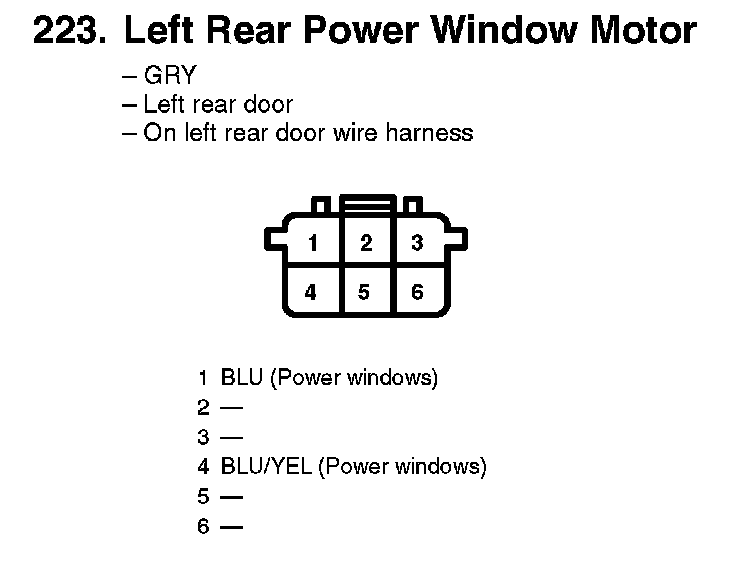

223. Left Rear Power Window Motor:

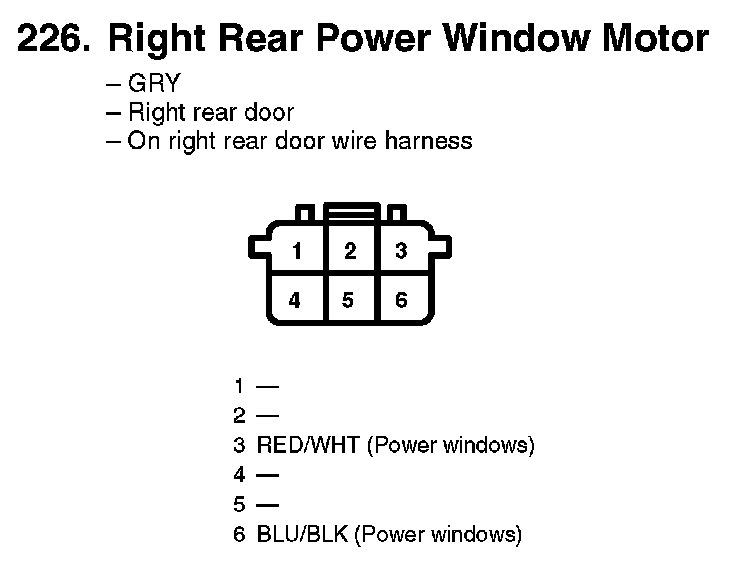

226. Right Rear Power Window Motor:
