Relay Box

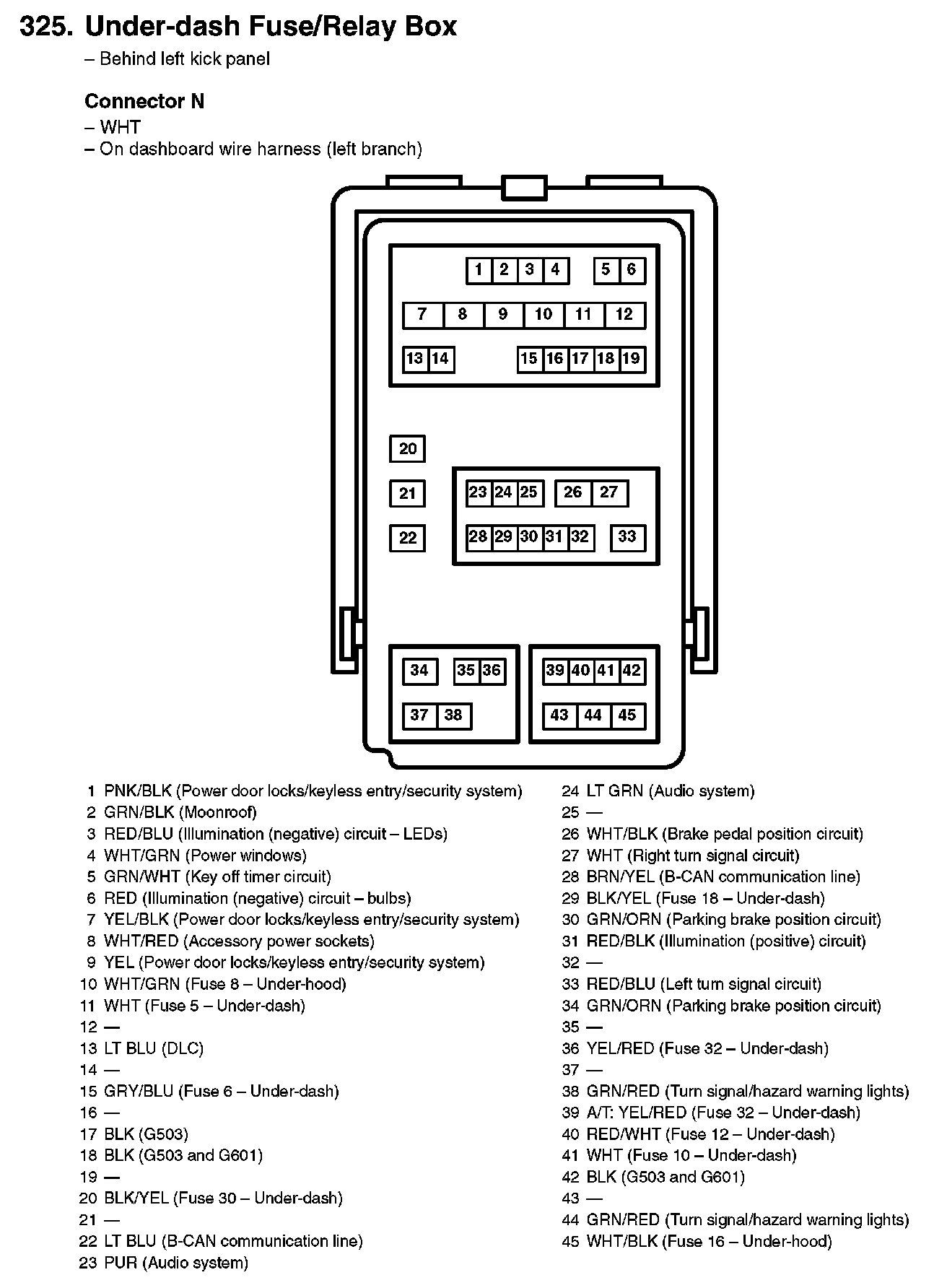

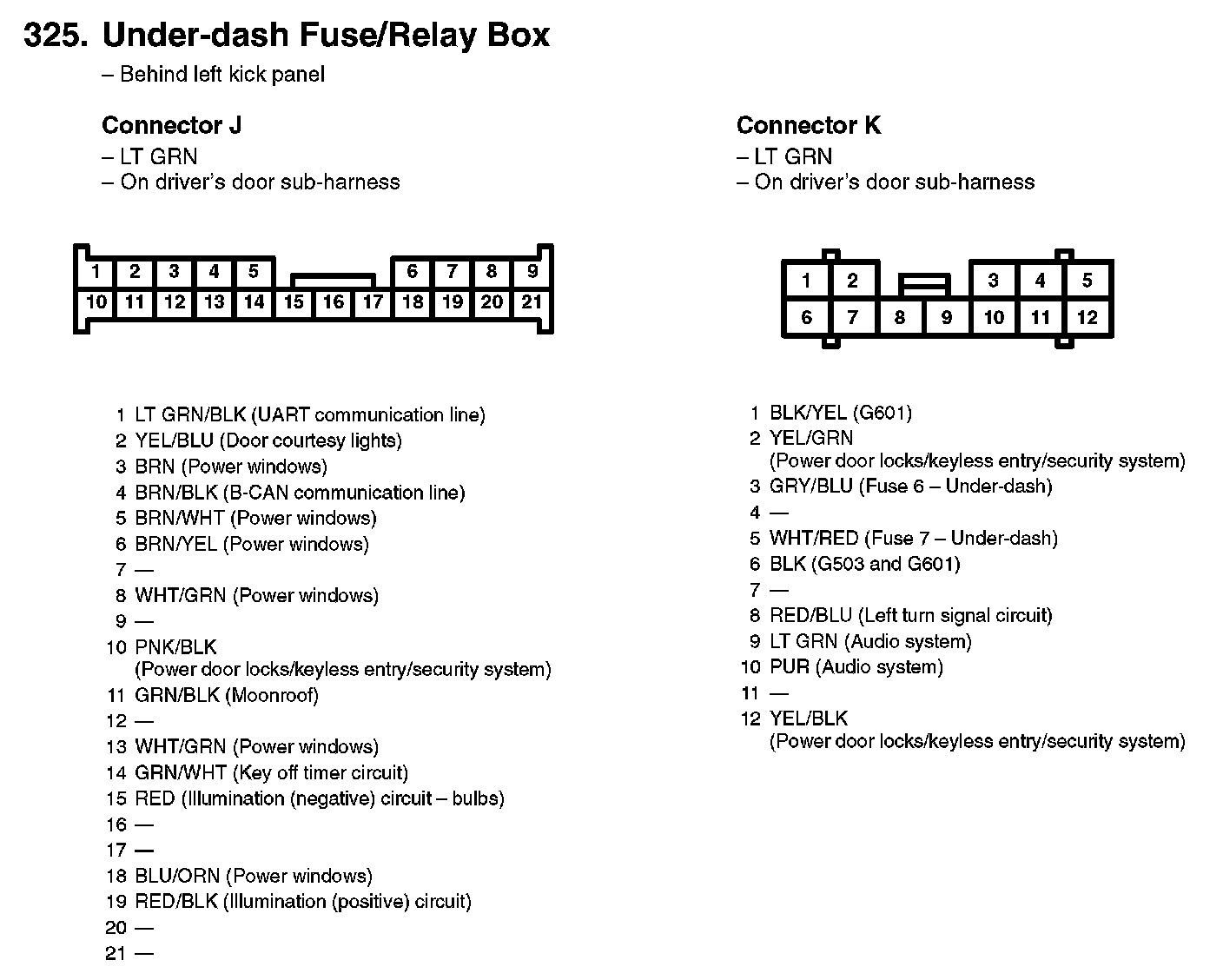

325. Under-dash Fuse/Relay Box:

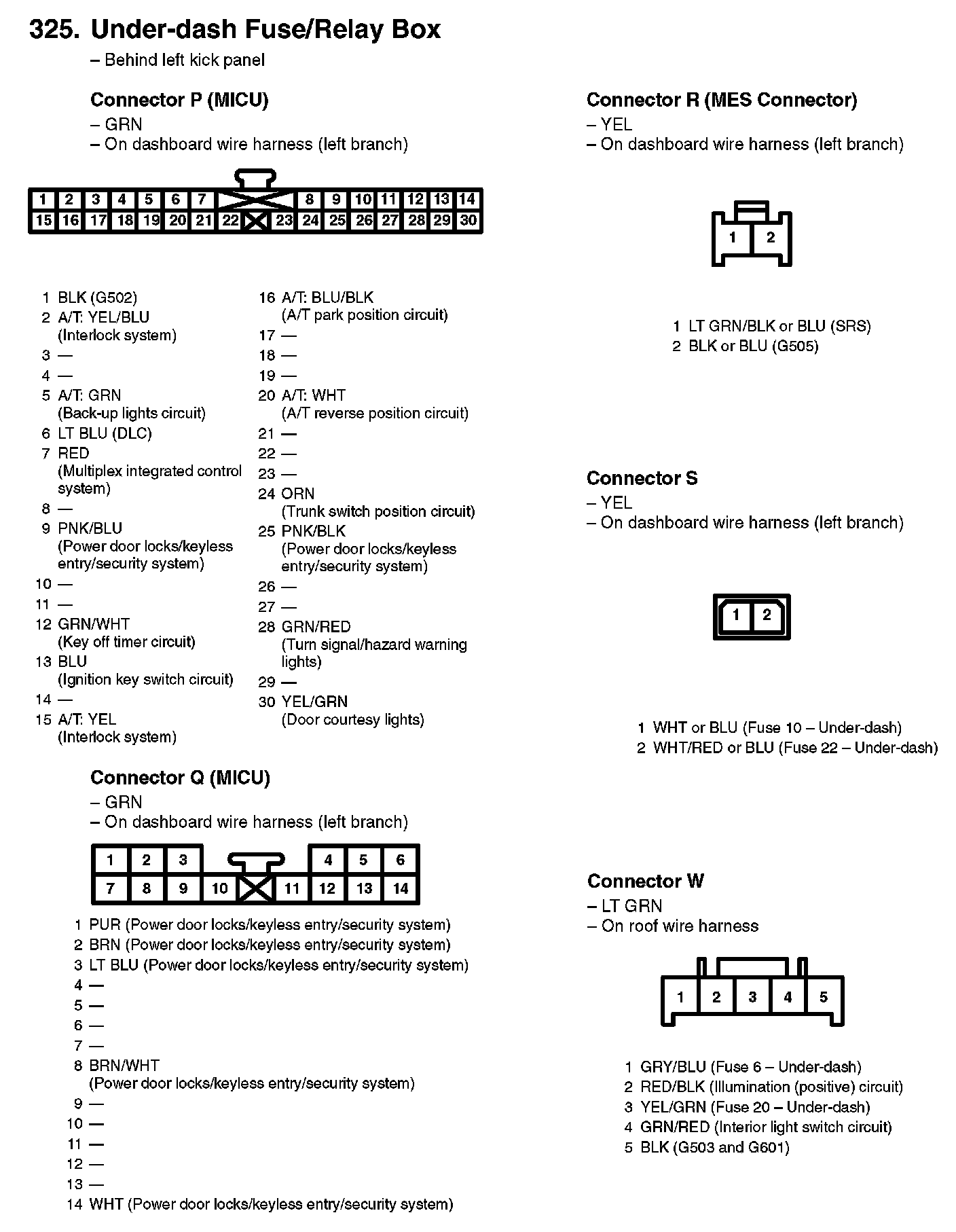

325. Under-dash Fuse/Relay Box:

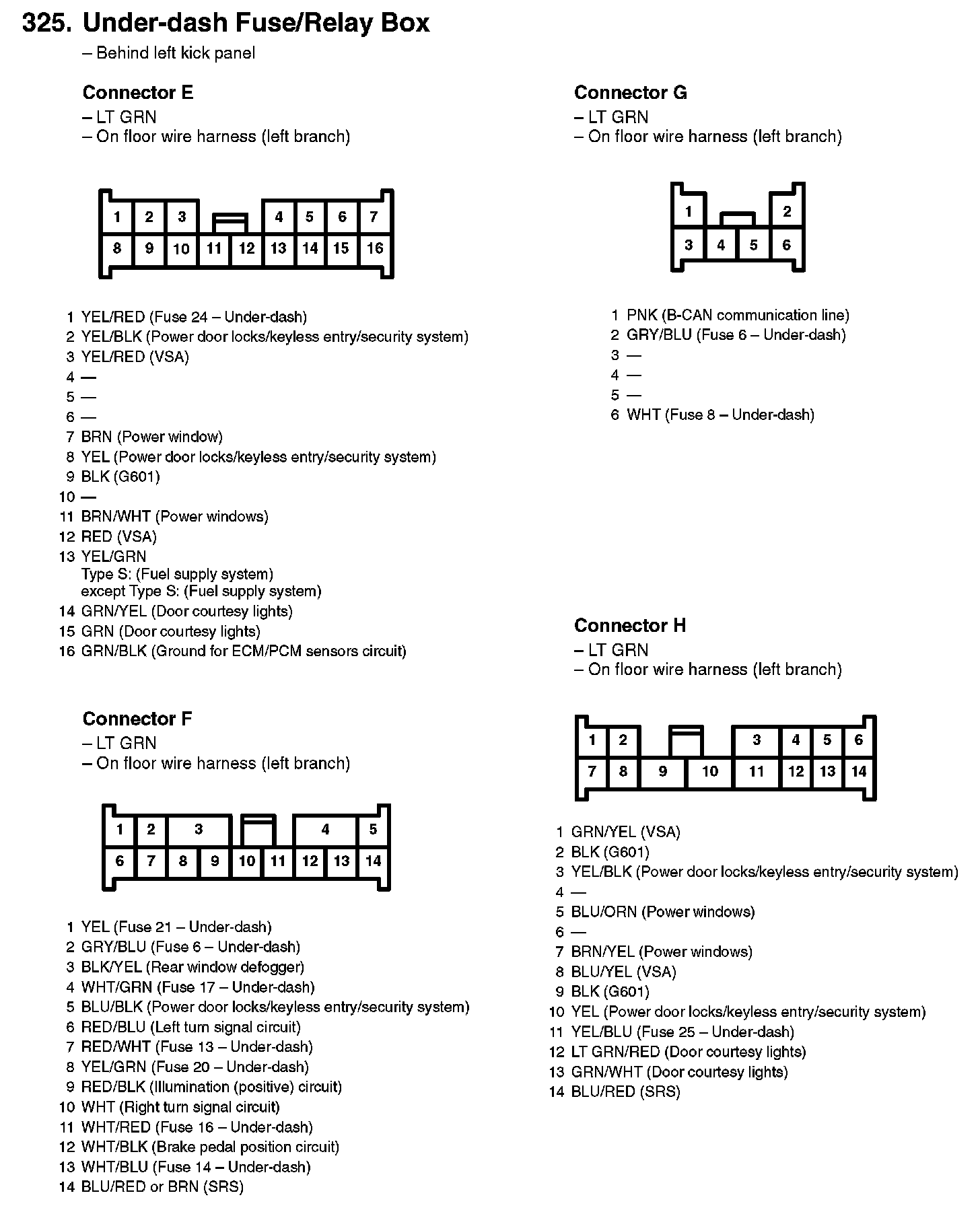

325. Under-dash Fuse/Relay Box:

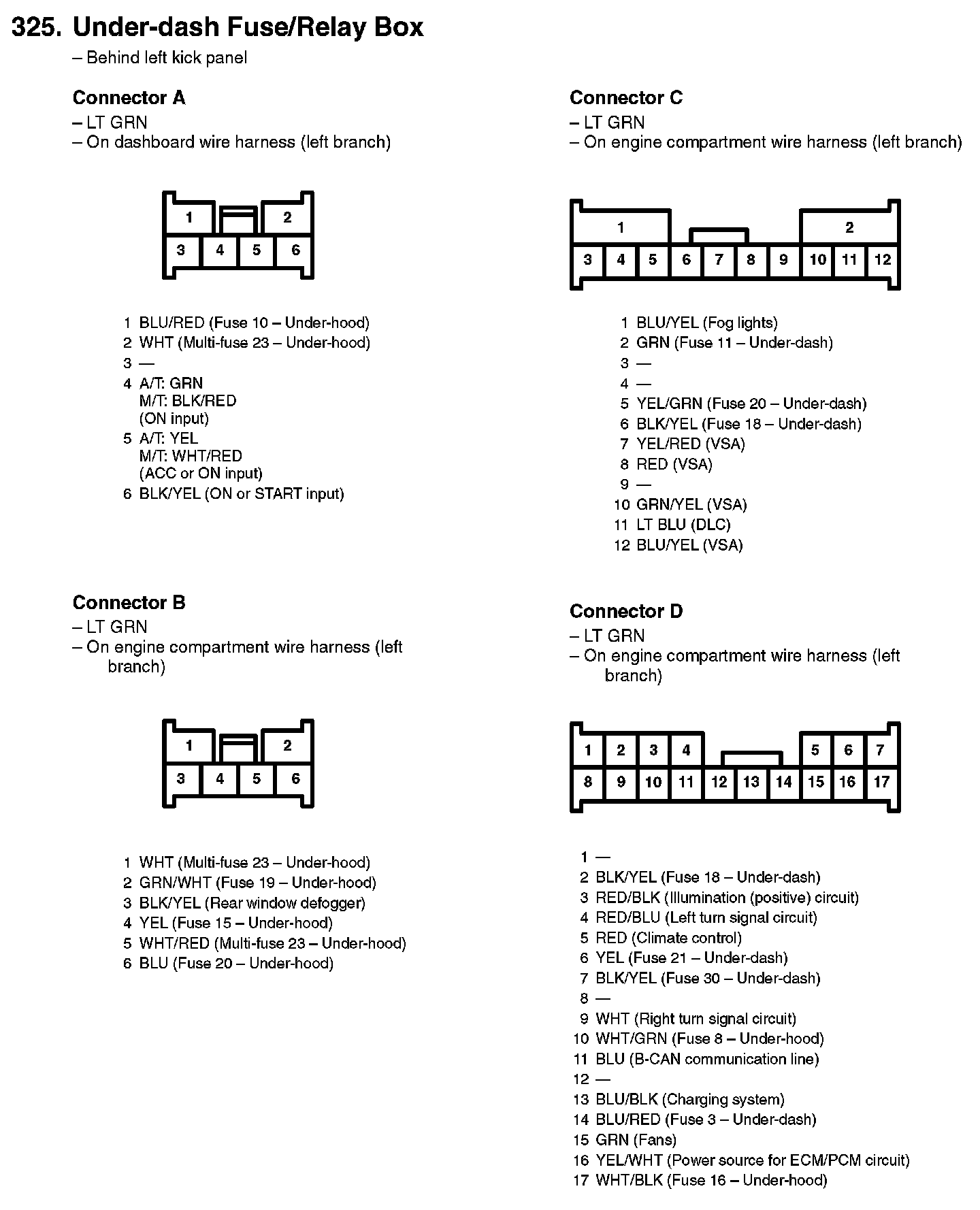

325. Under-dash Fuse/Relay Box:

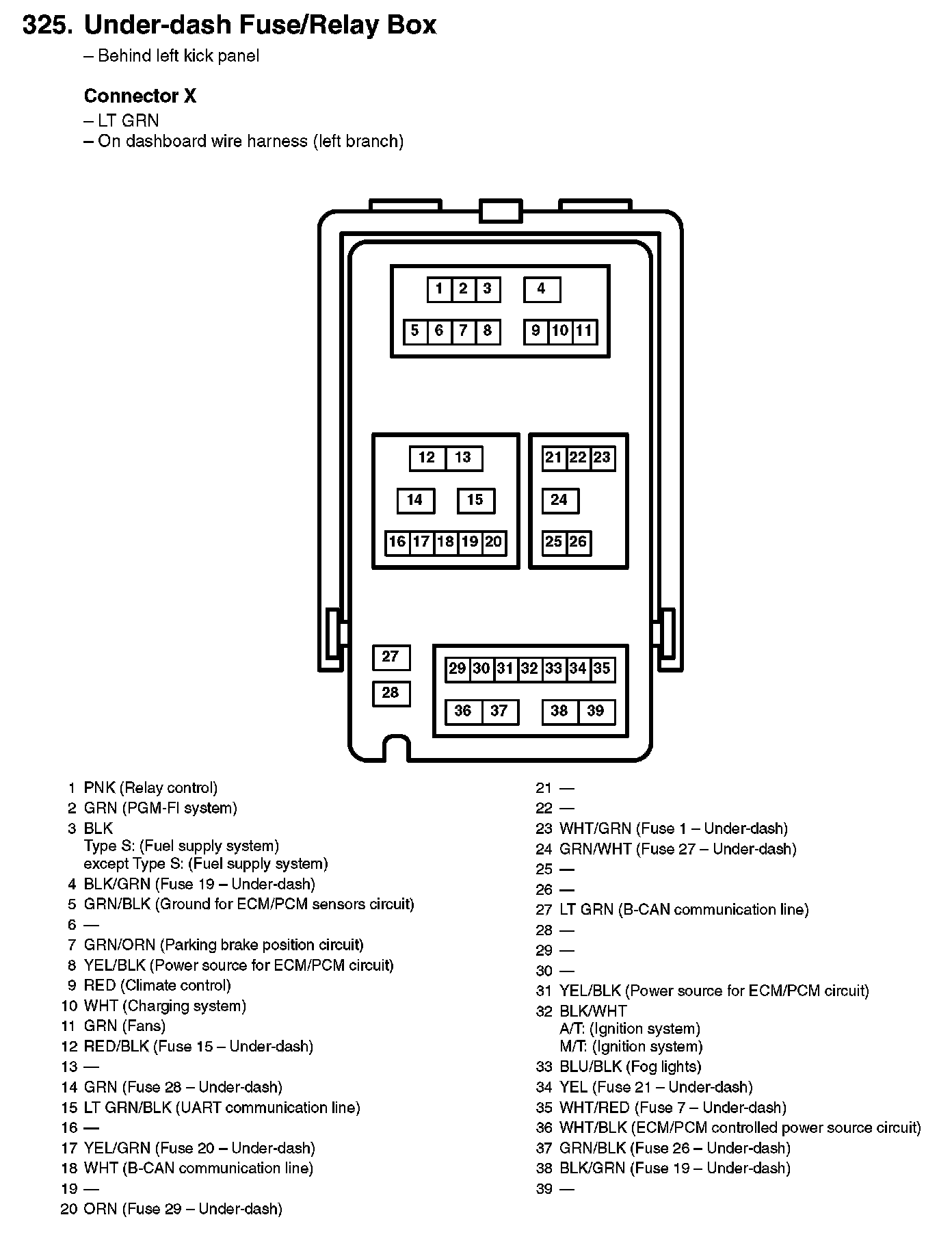

325. Under-dash Fuse/Relay Box:



325. Under-dash Fuse/Relay Box:

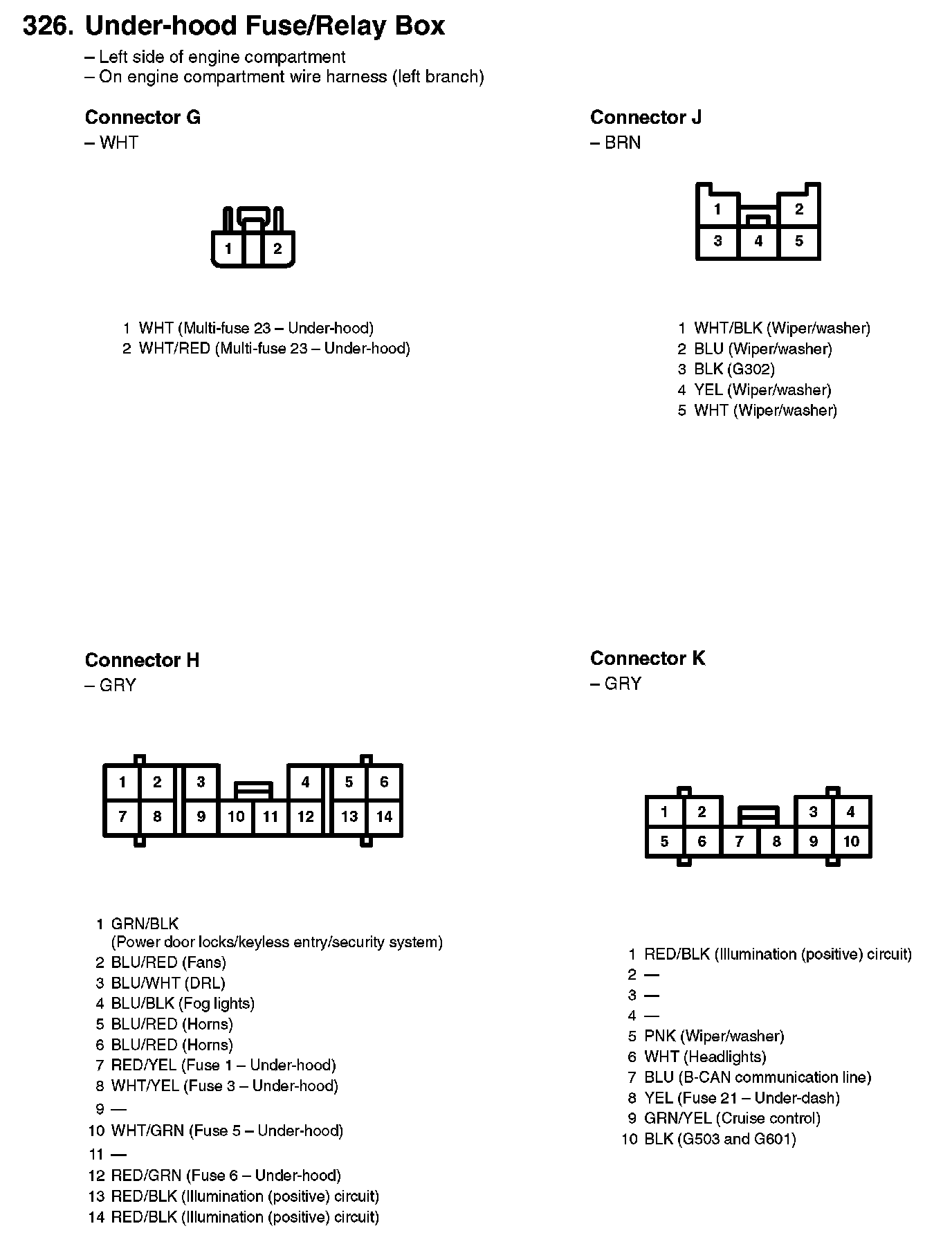

326. Under-hood Fuse/Relay Box:

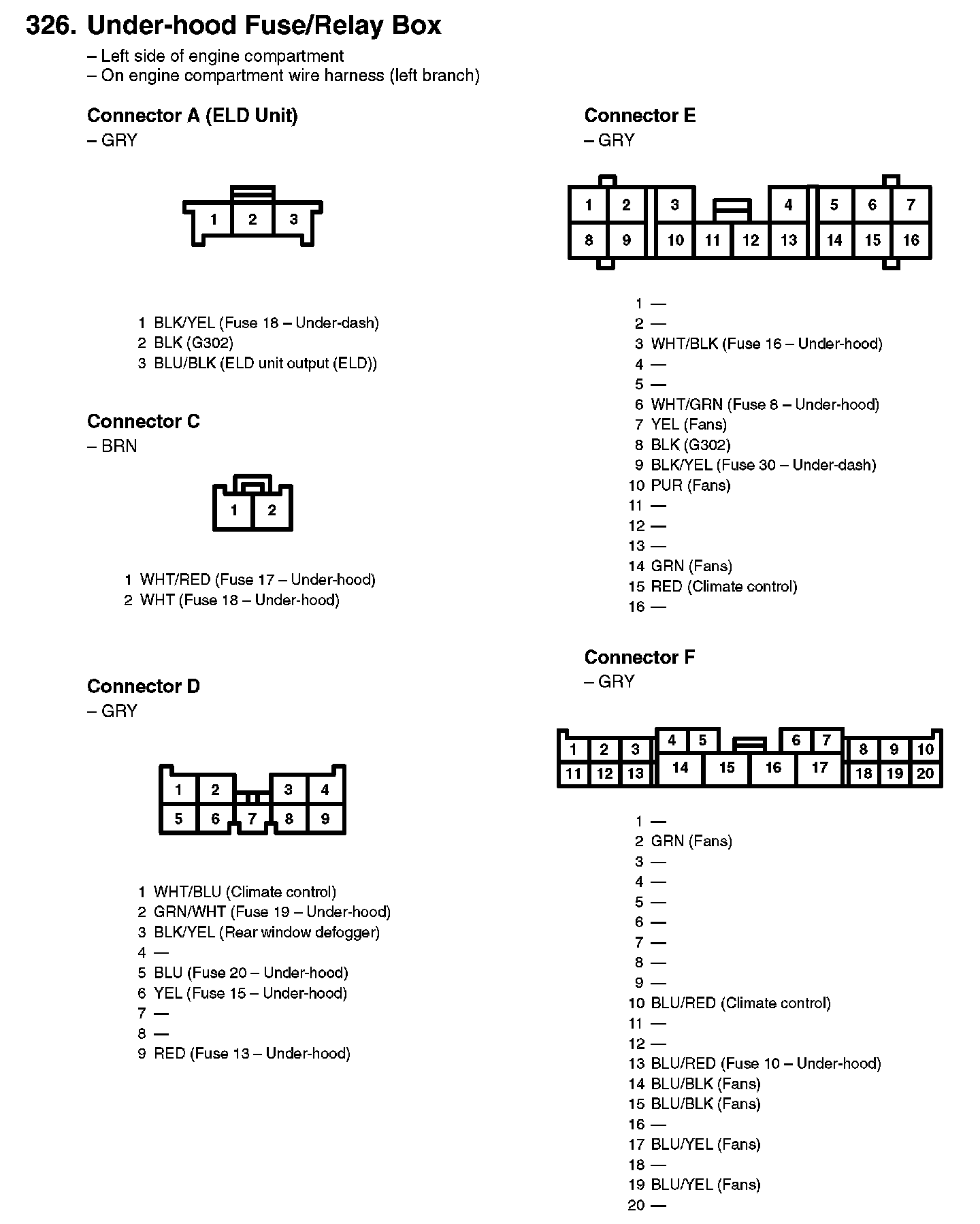

326. Under-hood Fuse/Relay Box:

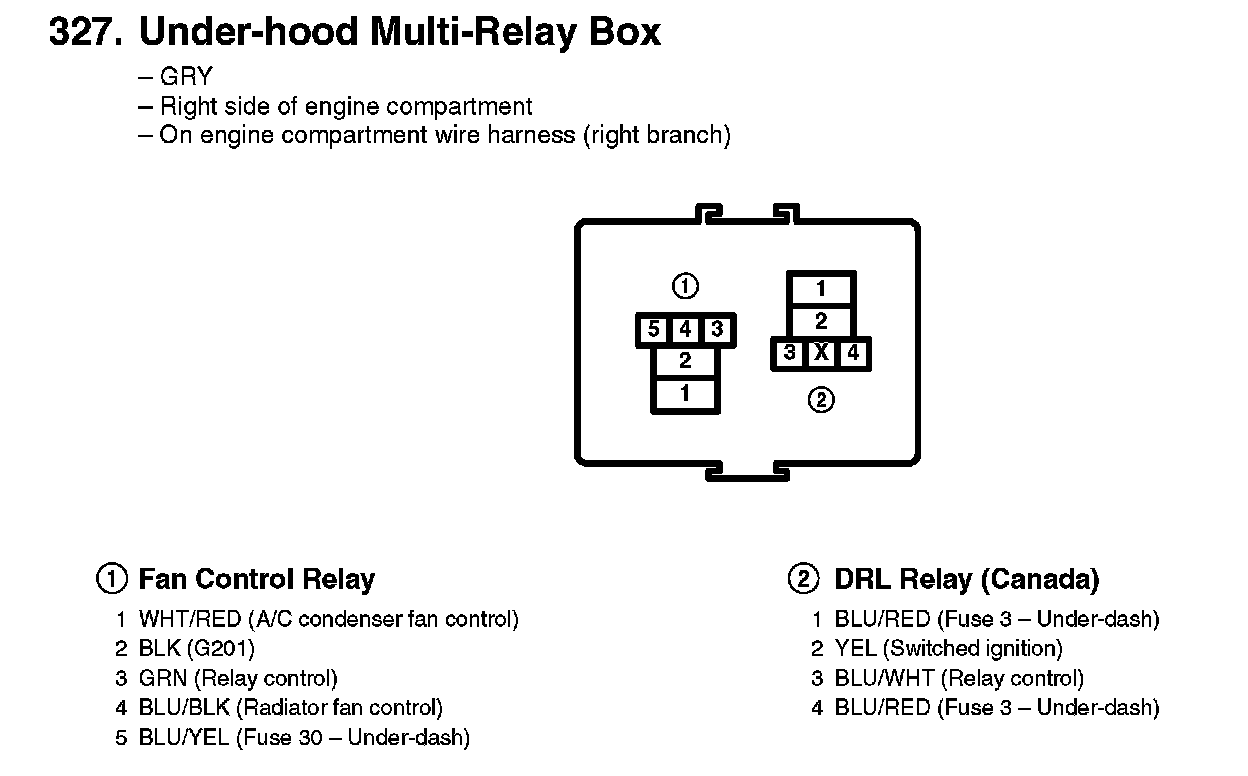

327. Under-hood Multi-Relay Box:
