Wheel Speed Sensor

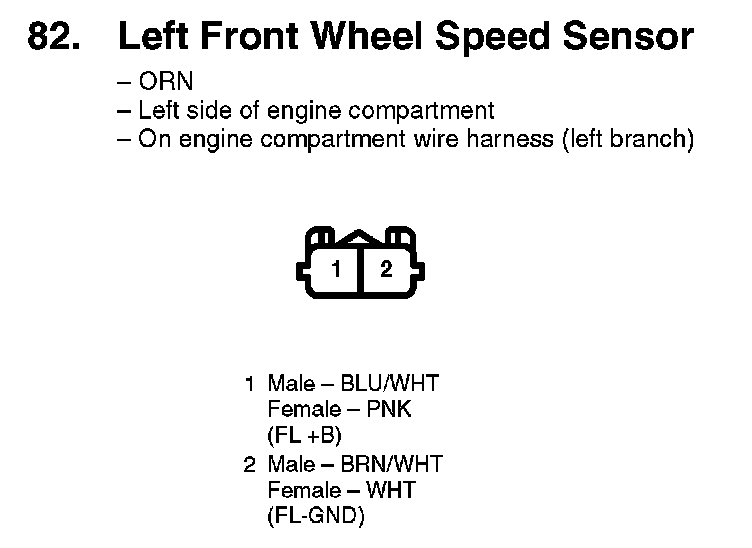

82. Left Front Wheel Speed Sensor:

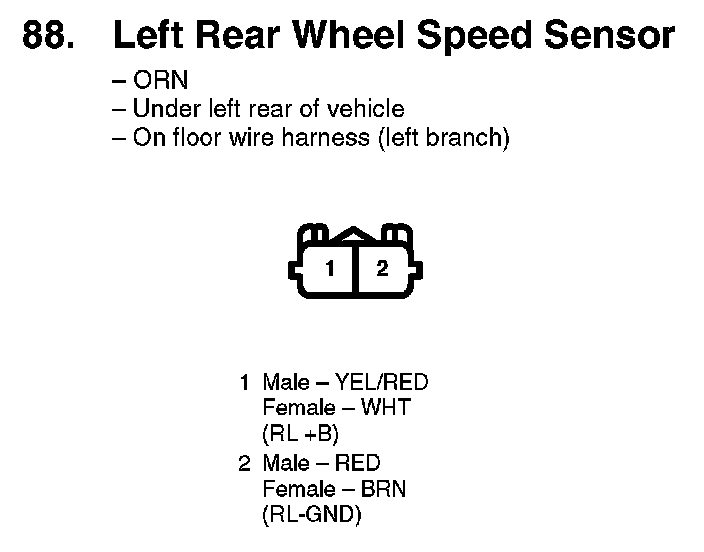

88. Left Rear Wheel Speed Sensor:

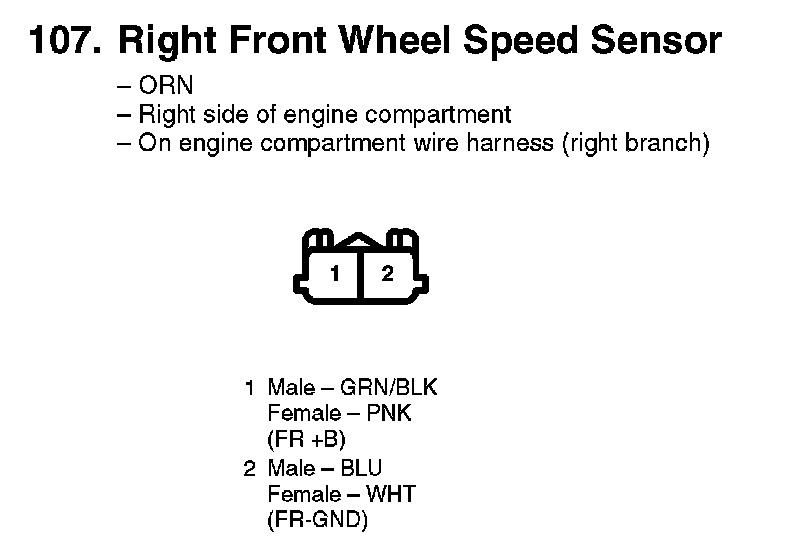

107. Right Front Wheel Speed Sensor:

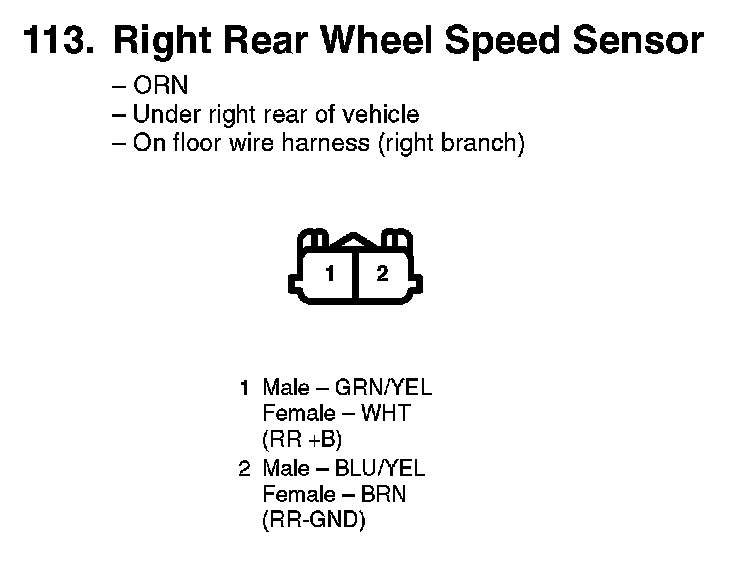

113. Right Rear Wheel Speed Sensor:
