Throttle Actuator Control Module Sub-harness

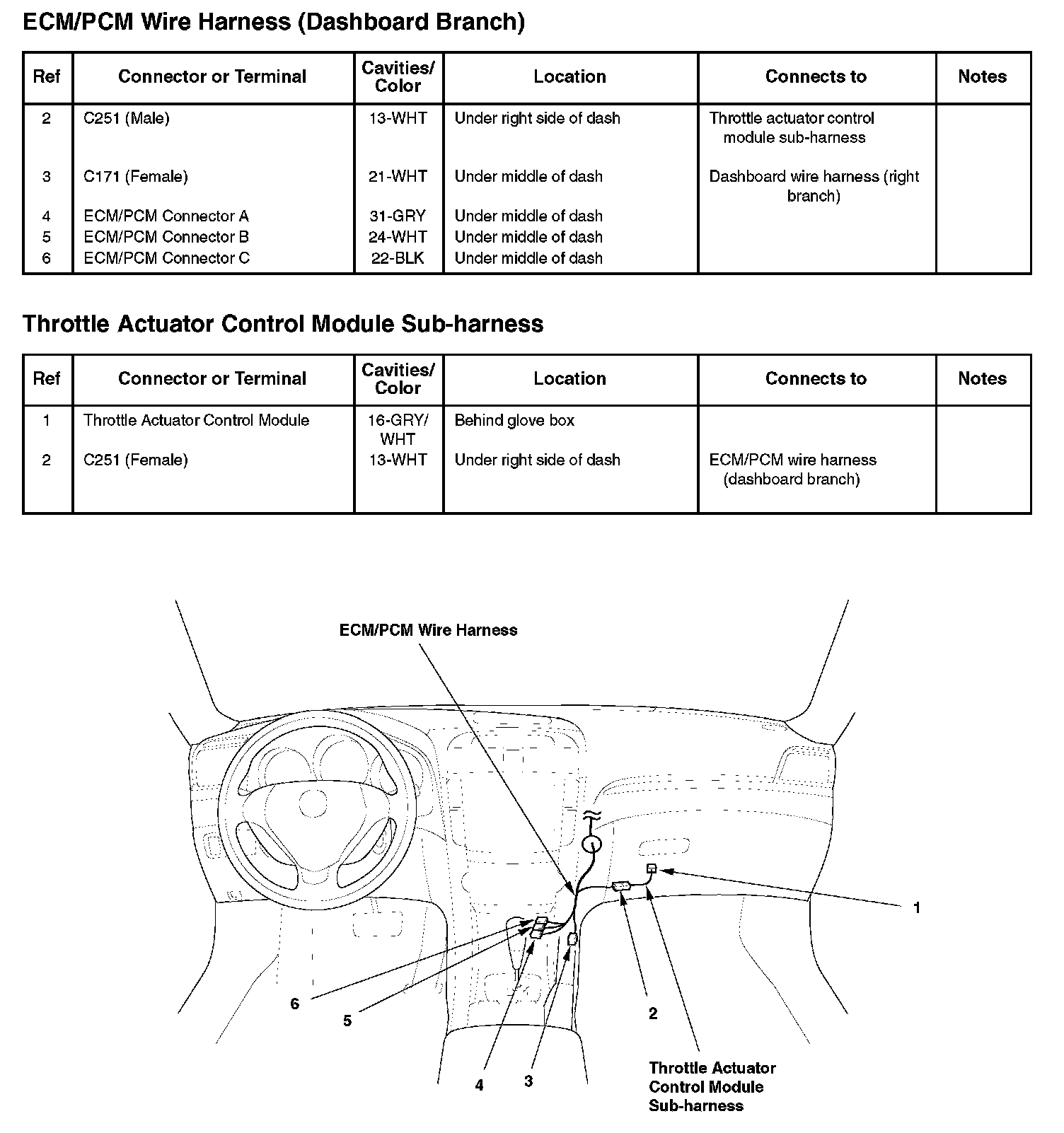

ECM/PCM Wire Harness (Dashboard Branch)/Throttle Actuator Control Module Sub-harness:
