Throttle Actuator Control Module Subharness

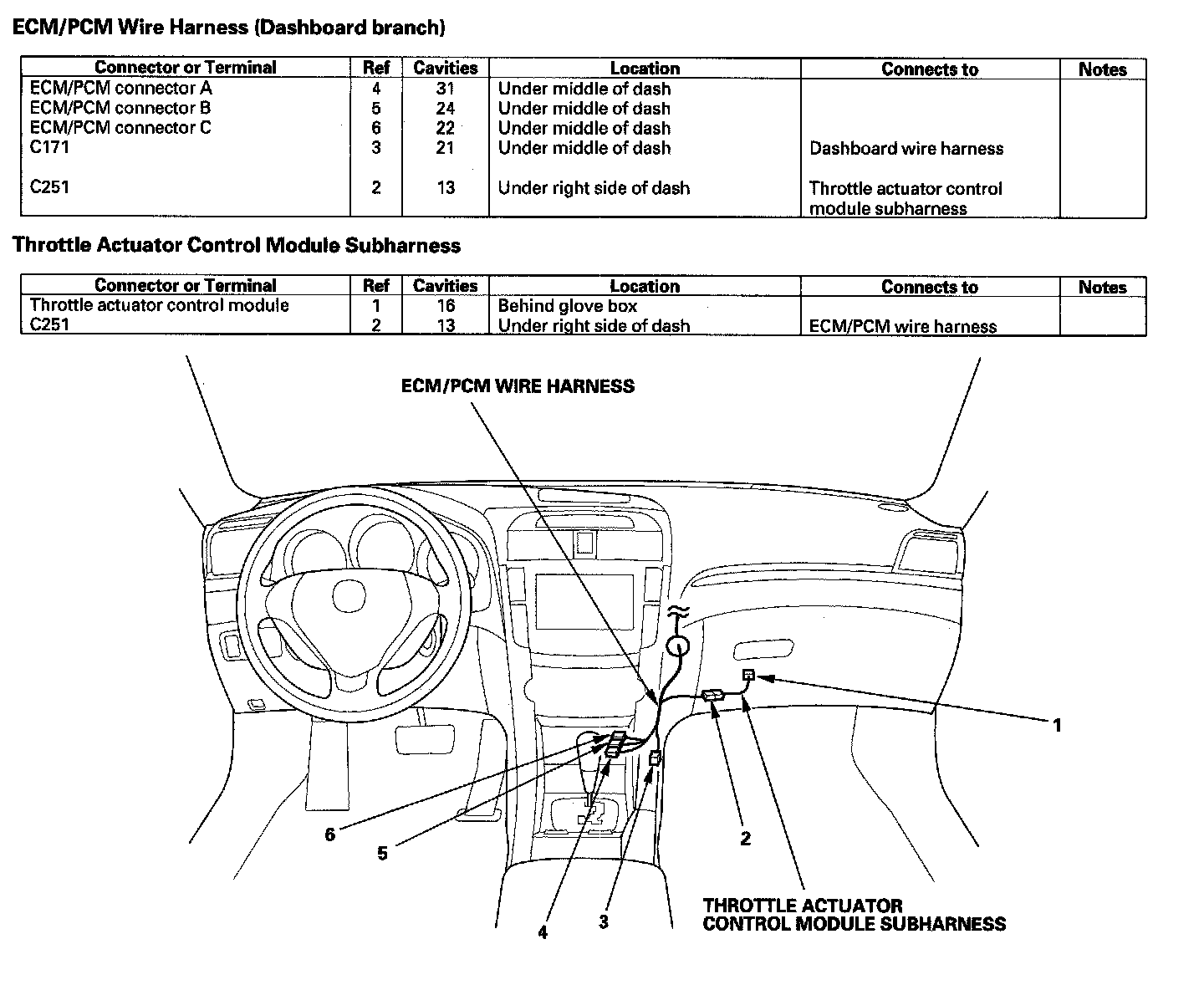

ECM/PCM Wire Harness (Dashboard Branch) / Throttle Actuator Control Module Subharness:
