ECT Sensor 1

ECT Sensor 1 Replacement

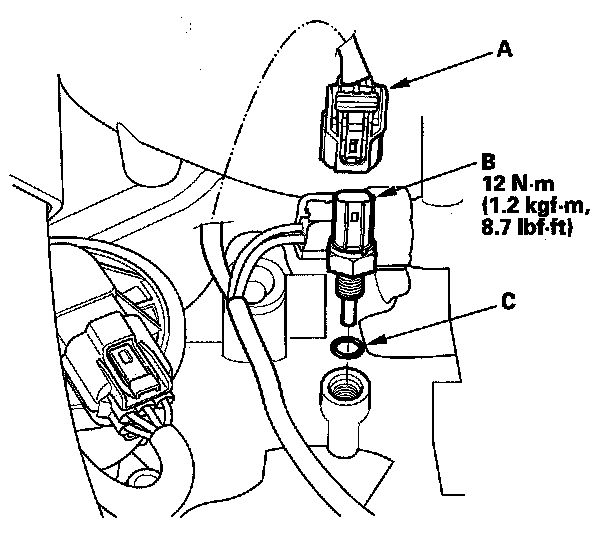

1. Drain the engine coolant.
2. Remove the air cleaner.




3. Disconnect the ECT sensor 1 2P connector (A).
4. Remove ECT sensor 1 (B).
5. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant.
