Oxygen Sensor: Diagrams

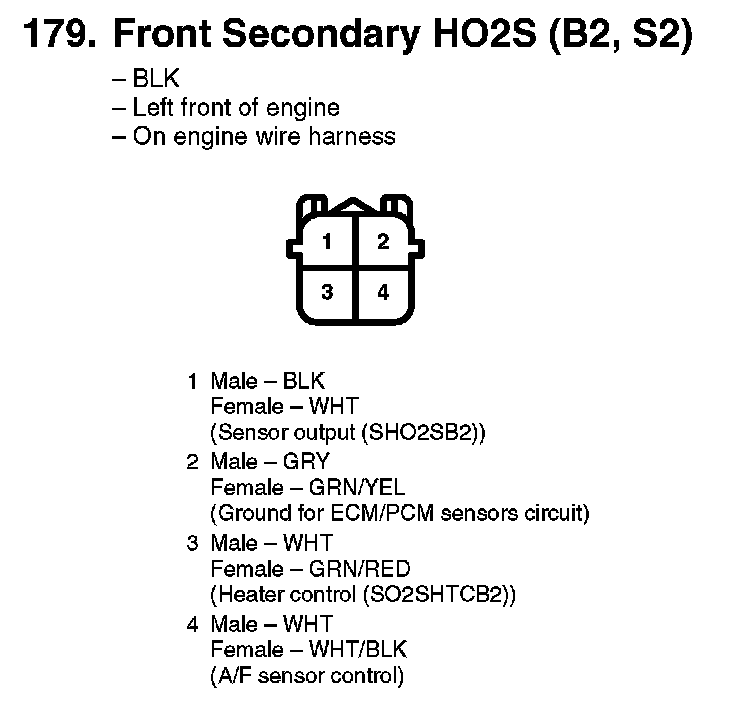

179. Front Secondary HO2S (B2, S2):

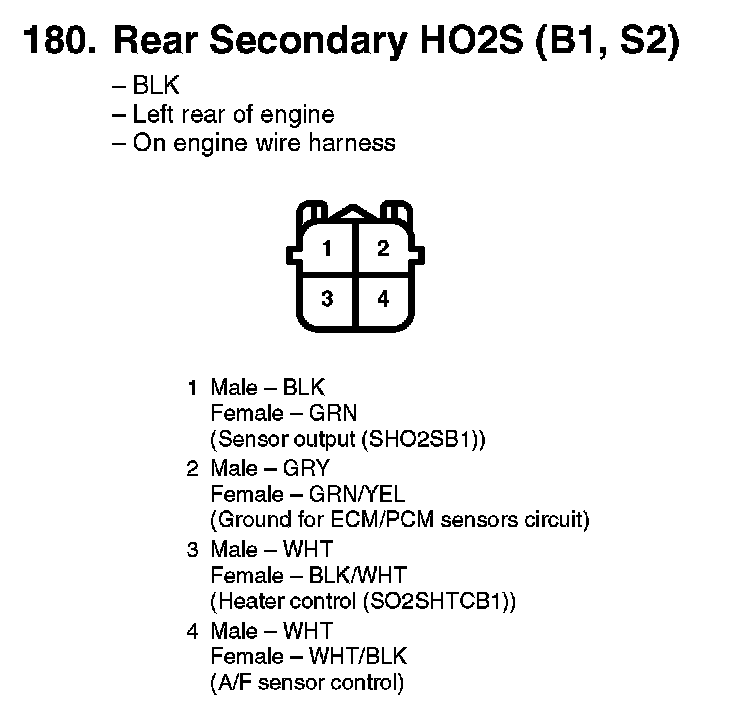

180. Rear Secondary HO2S (B1, S2):

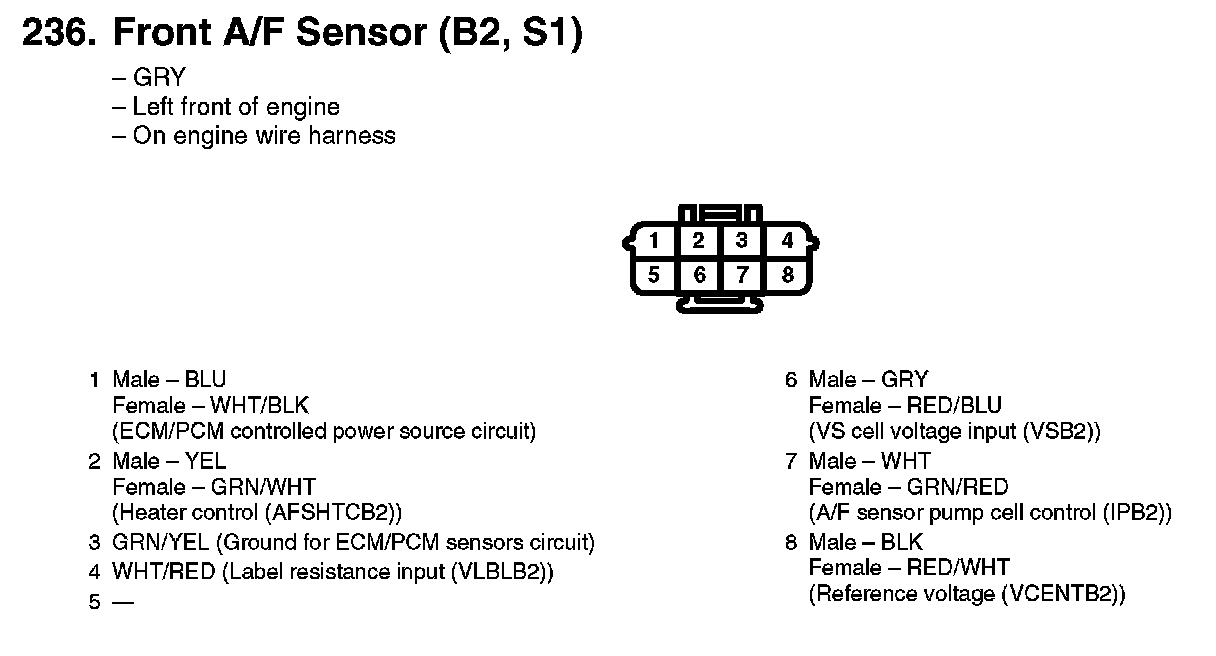

236. Front A/F Sensor (B2, S1):

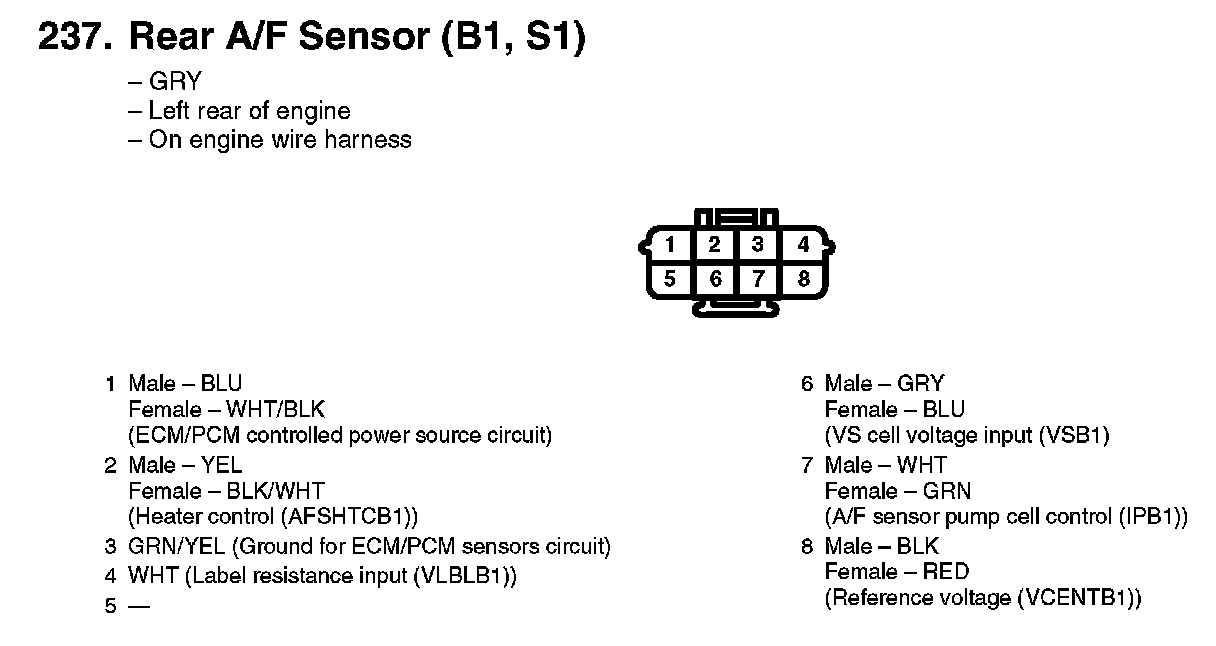

237. Rear A/F Sensor (B1, S1):
