Instrument Panel Control Module: Locations

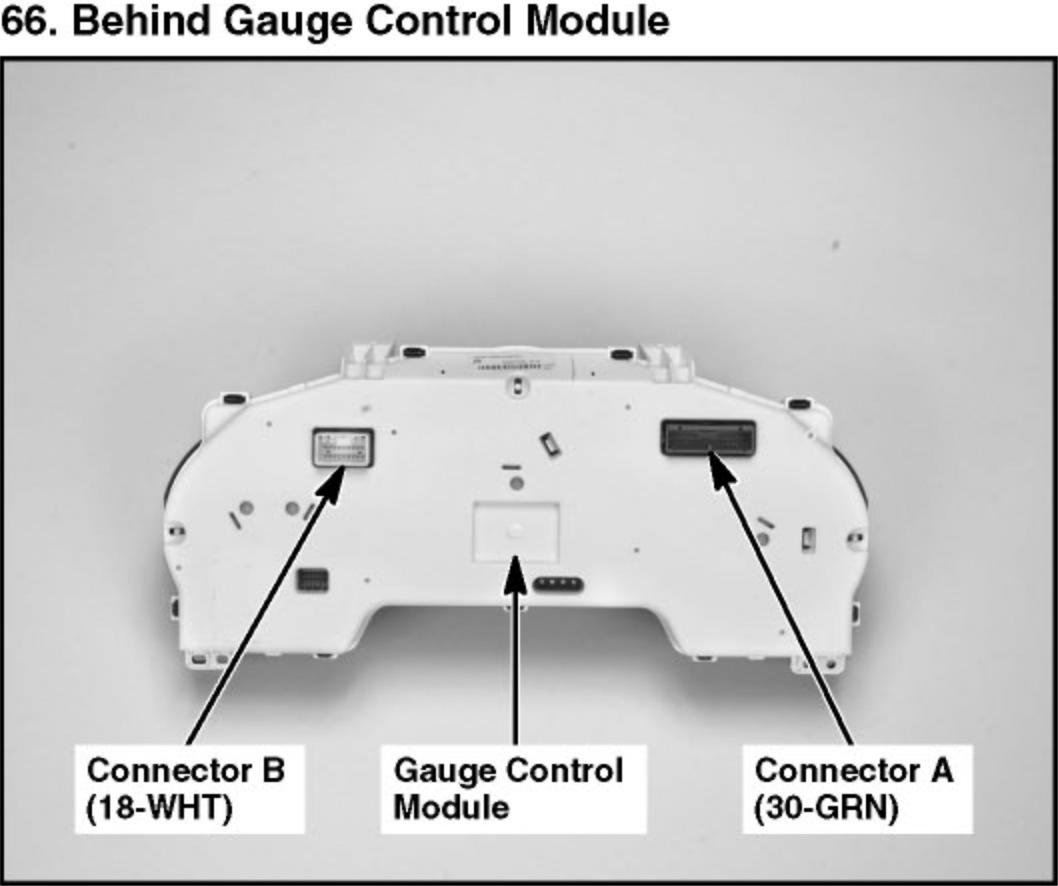

66. Behind Gauge Control Module:

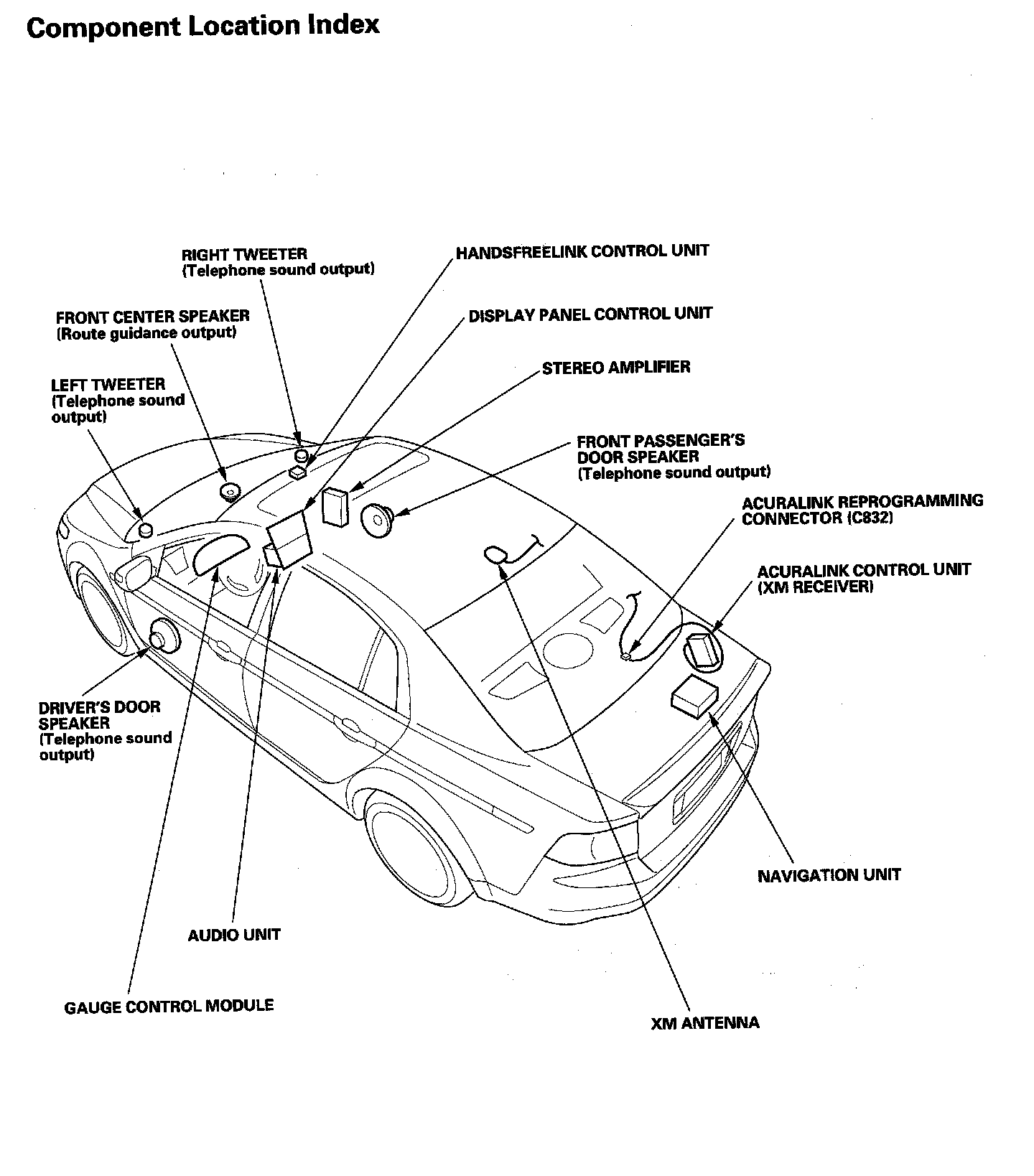

AcuraLink Component Location Index:

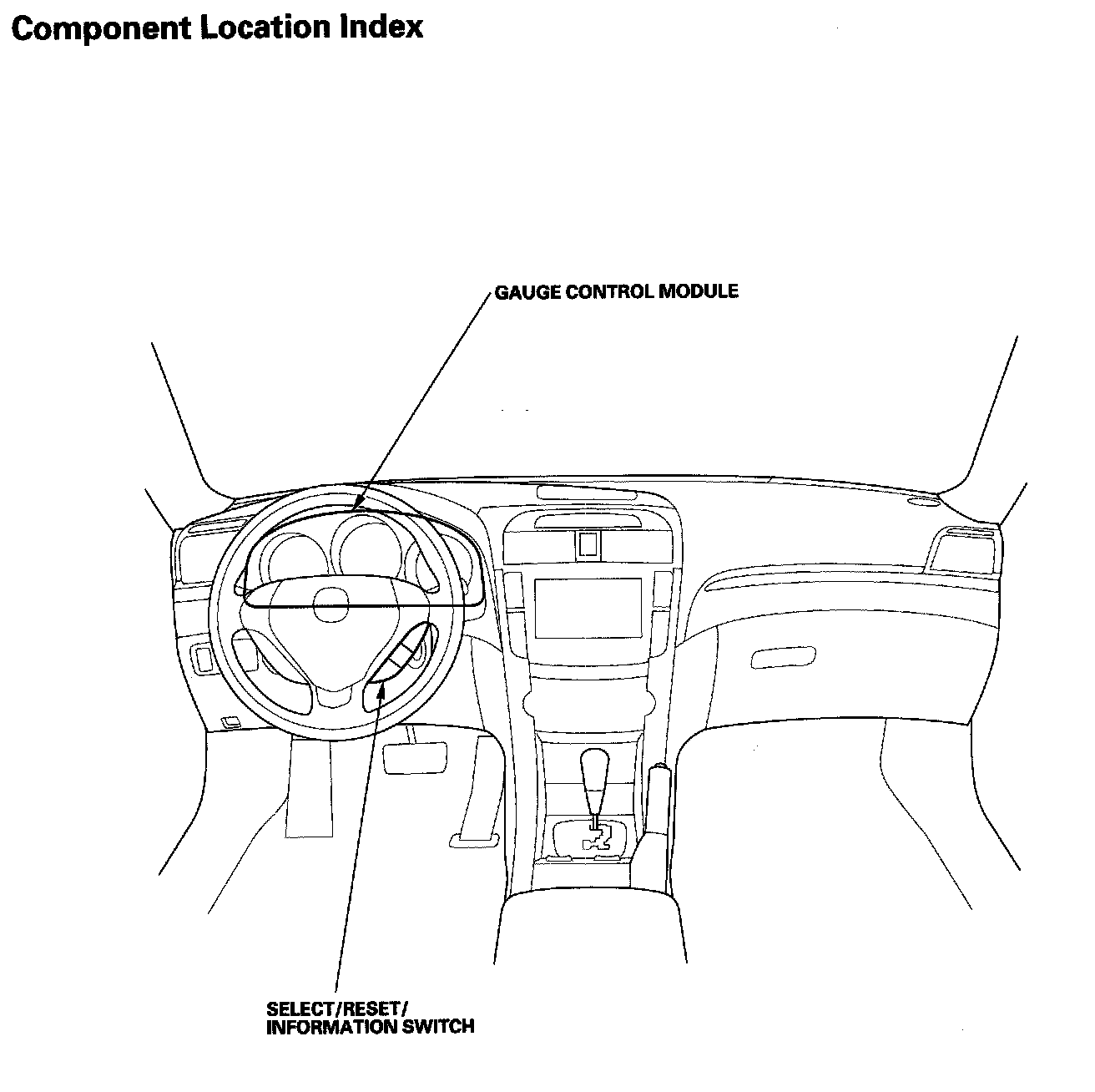

Gauges Component Location Index:
