Alignment

Camber
Camber angle:
Front -0° 30' ± 30'
Rear -1° 00' ± 30'
(Maximum difference between the right and left side 0° 45')

Caster
Caster angle 3° 17' ± 45'
(Maximum difference between the right and left side 0° 45')


Toe-in
Front toe-in 0 ± 2 mm (0 ± 0.08 in.)
Rear toe-in 0 ± 2 mm (0 ± 0.08 in.)

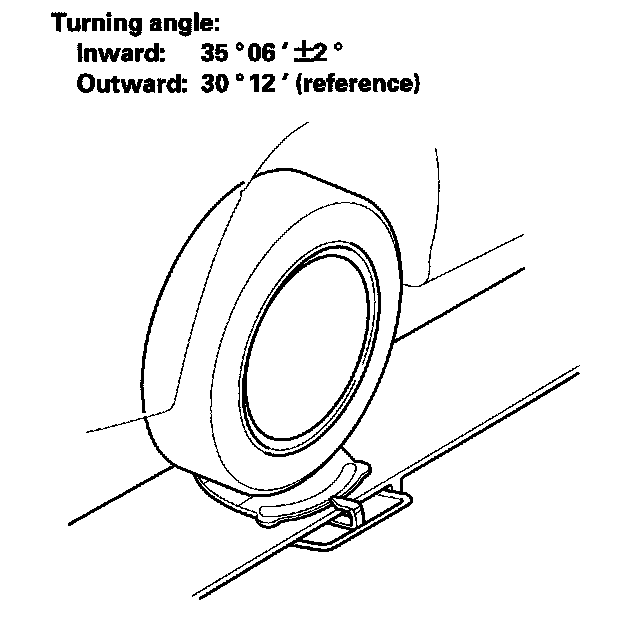

Turning Angle
