Torque Specifications

Main Bearing Cap





Tighten the bearing cap bolts, and then the bearing cap side bolts to the specified torque in the sequence as shown. Repeat the torque sequence again to make sure the bolts are properly torqued.

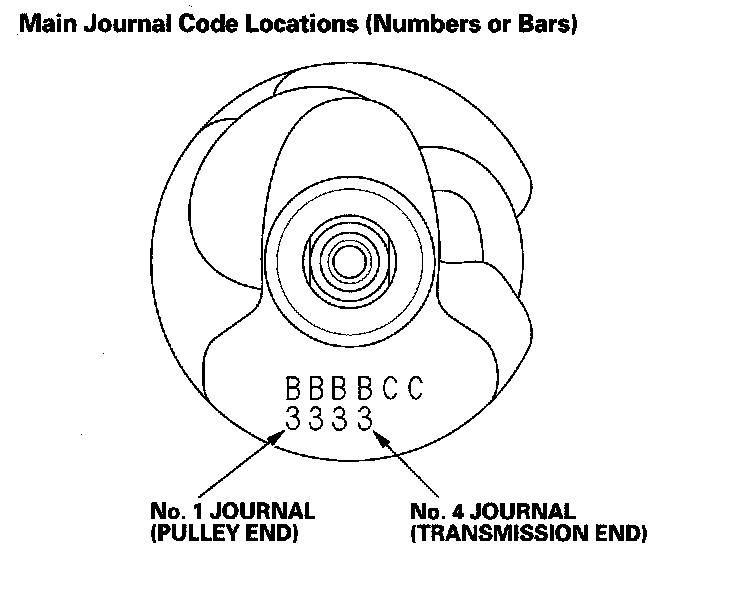

Main Bearing Size Codes









Crankshaft Pulley
Tightening Torque 65 Nm (6.5 kgf-m, 47 lbf-ft) + 60°
