Intake Manifold

Intake Manifold

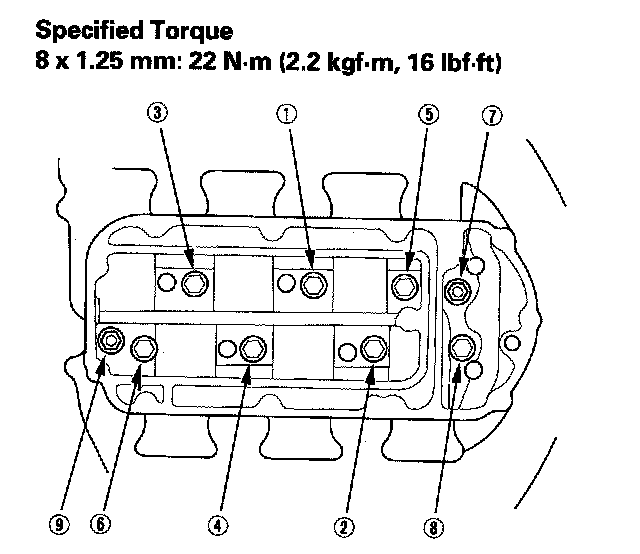

Install the intake manifold. Tighten the bolts and nuts sequentially in two or three steps.
