DTC P0685: Engine Control Module (ECM)/Powertrain Control Module (PCM) Power Control Circuit Malfunction: Notes

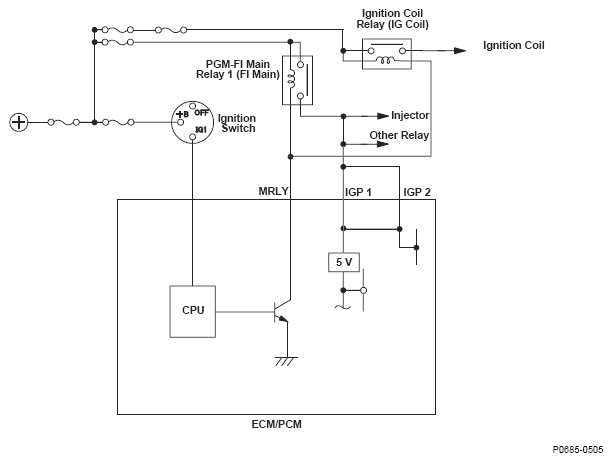

Fig 1: ECM/PCM Power Control - Circuit Diagram
G04839027
