ECT Sensor/ECT Sensor 1 Replacement
- Drain the engine coolant; '04-05 models (see
COOLANT REPLACEMENT
), '06-08 models (see
'06-08 MODELS
).
- Remove the air cleaner (see
AIR CLEANER REMOVAL/INSTALLATION
).
- Remove the EVAP canister purge valve (see
EVAP CANISTER REPLACEMENT
).
- Unbolt the under-hood fuse/relay box bolt and move the box aside.

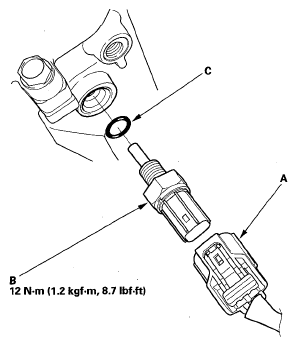

- Disconnect the ECT sensor/ECT sensor 1 2P connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the ECT sensor/ECT sensor 1 (B).
- Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant; '04-05 models (see
COOLANT REPLACEMENT
), '06-08 models (see
'06-08 MODELS
).
