Power Seat Control Module: Locations

Relay And Control Unit Locations Door And Seat:



Multiplex Integrated Control System Component Location Index:

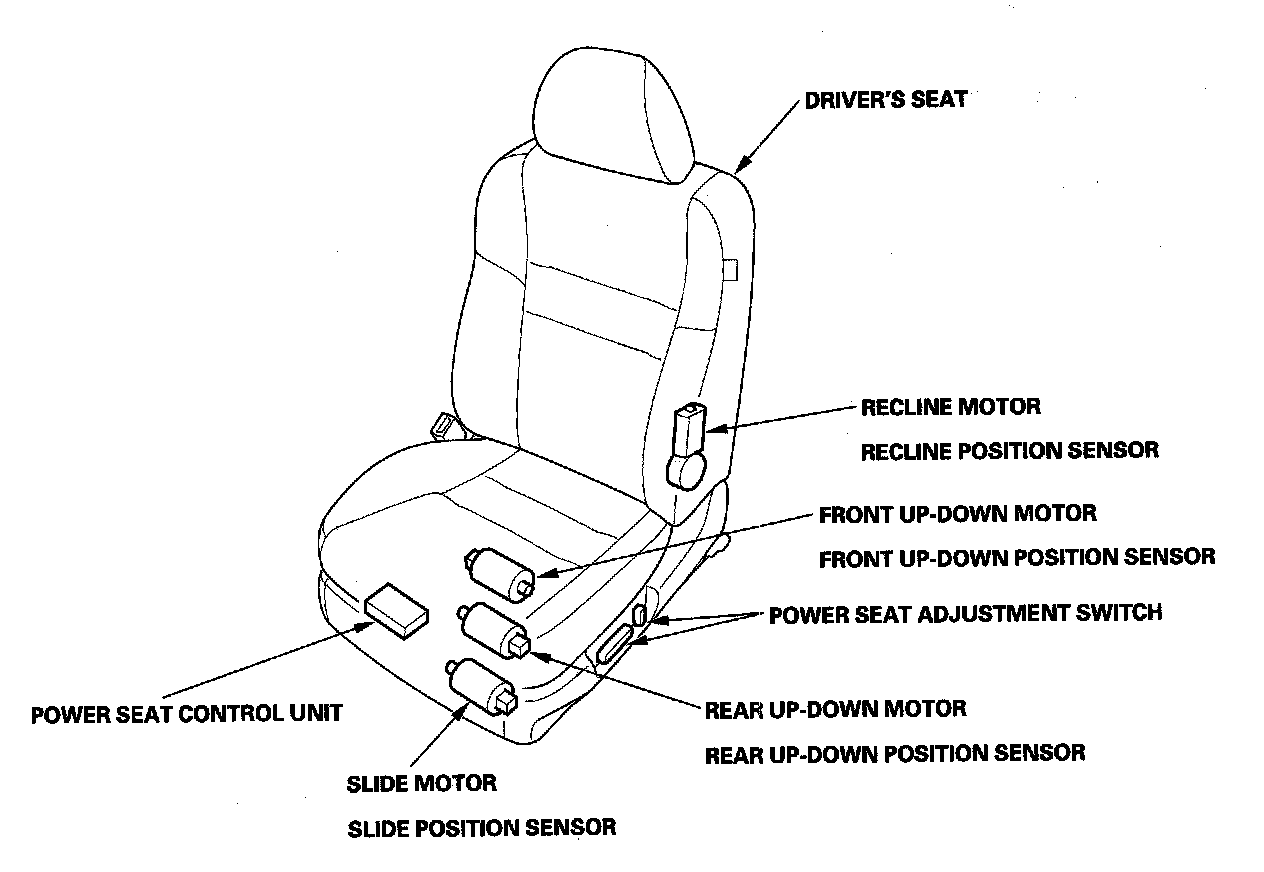

Driving Position Memory System (DPMS) Component Location:

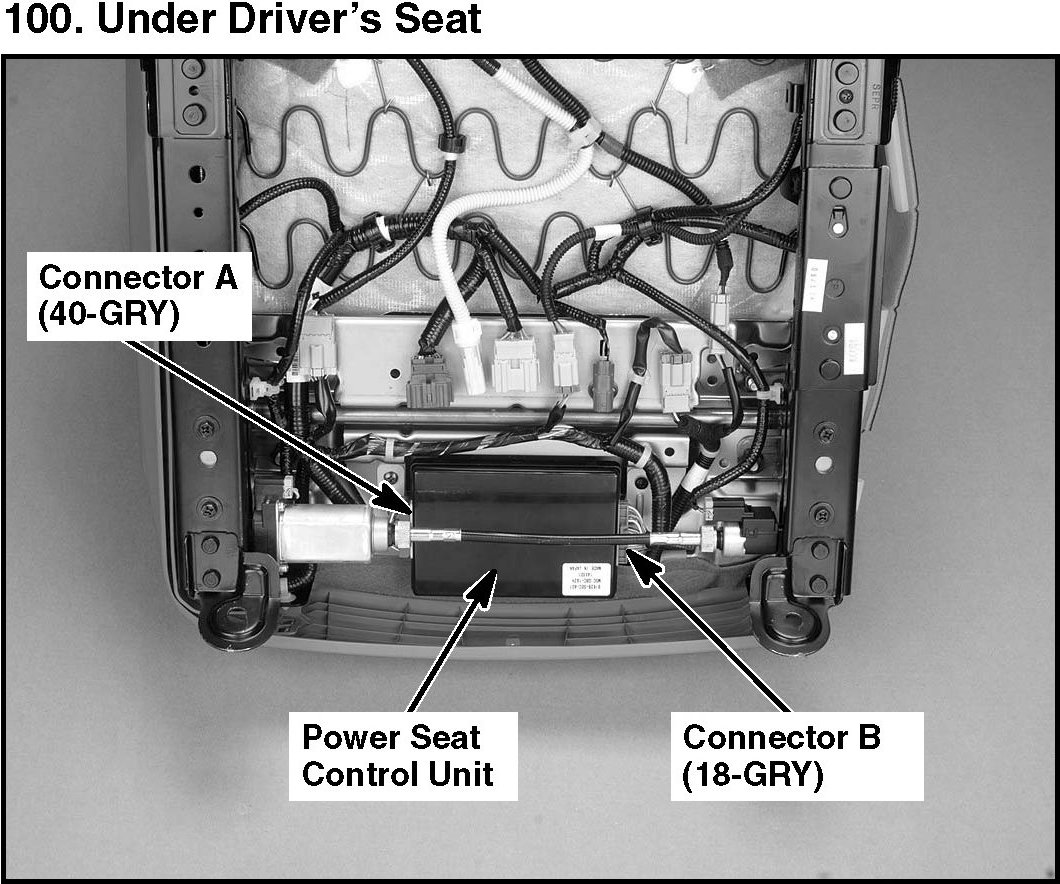

100. Under Driver's Seat:
