Electronic Brake Control Module
VSA Modulator-
control Unit
Inputs and Outputs for 47P Connector

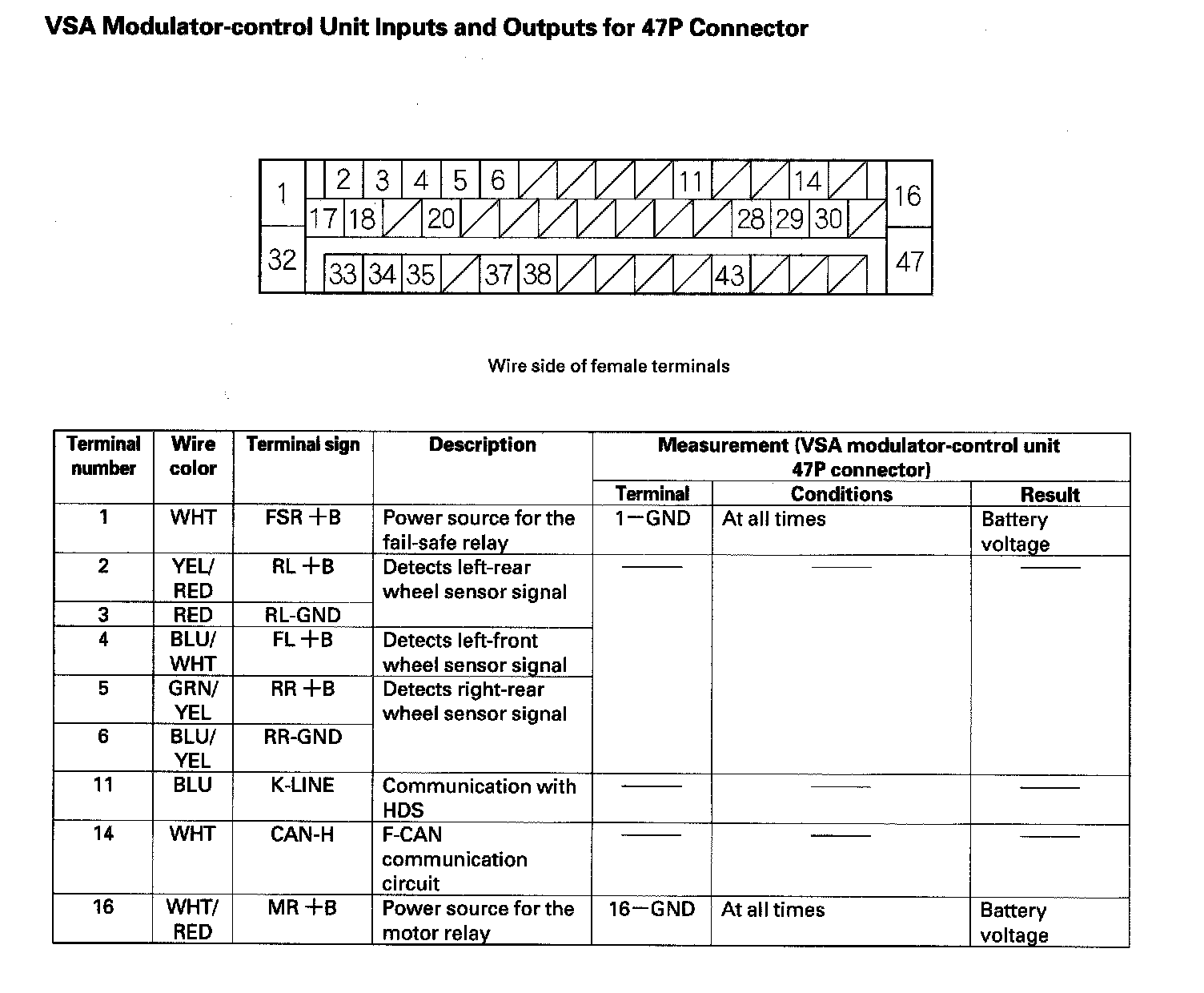

VSA Modulator-control Unit Inputs And Outputs For 47P Connector (Part 1):

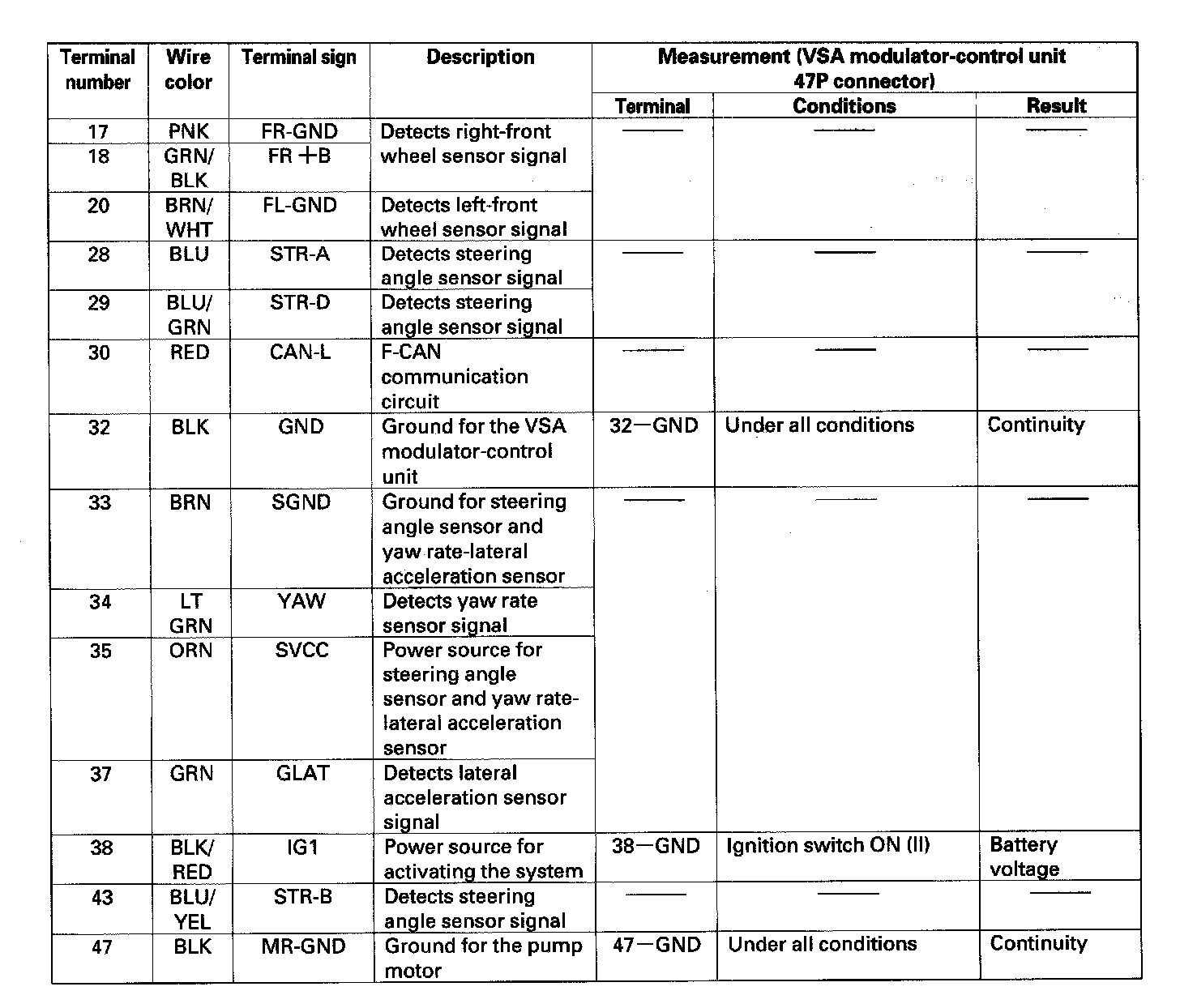

VSA Modulator-control Unit Inputs And Outputs For 47P Connector (Part 2):
