Impact Sensor

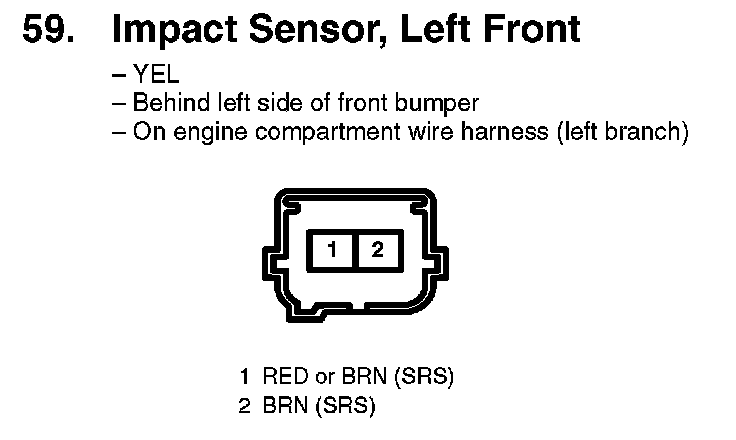

59. Impact Sensor, Left Front:

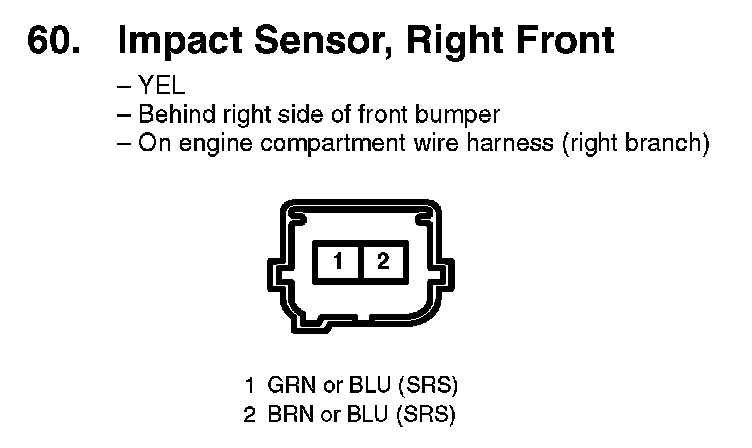

60. Impact Sensor, Right Front:

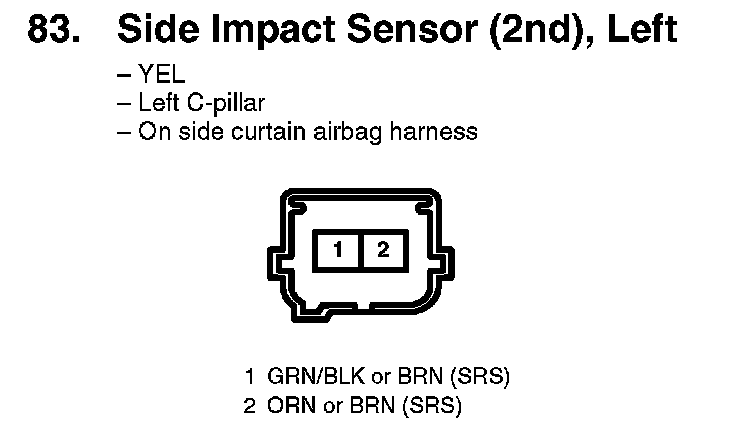

83. Side Impact Sensor (2nd), Left:



84. Side Impact Sensor (2nd), Right:

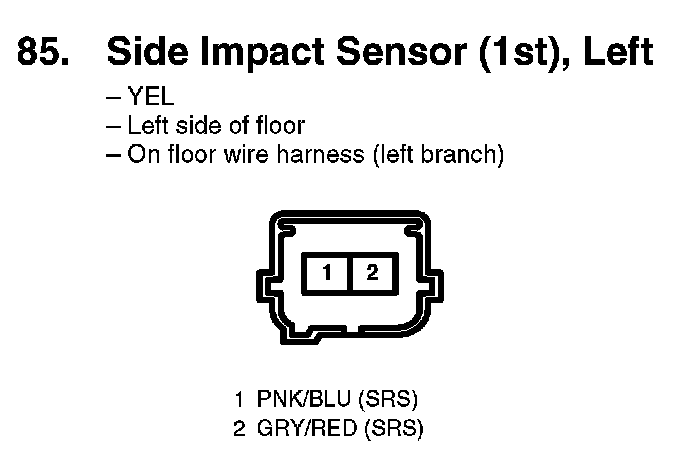

85. Side Impact Sensor (1st), Left:



86. Side Impact Sensor (1st), Right:
