Wheel Speed Sensor

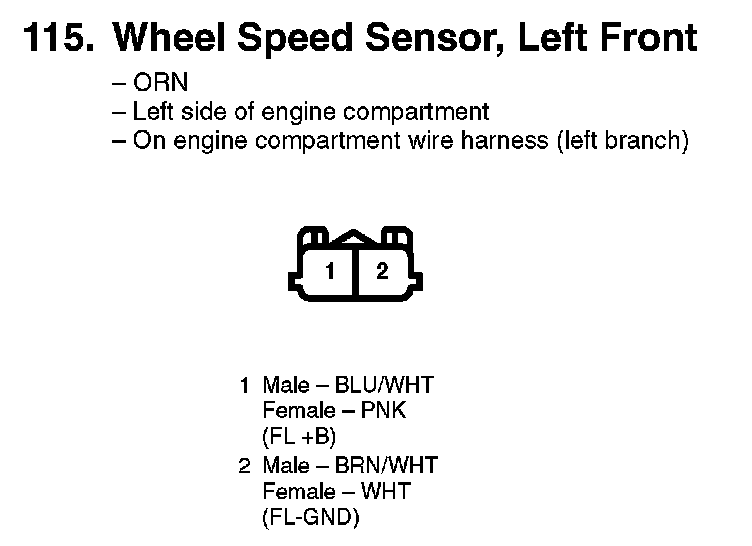

115. Wheel Speed Sensor, Left Front:

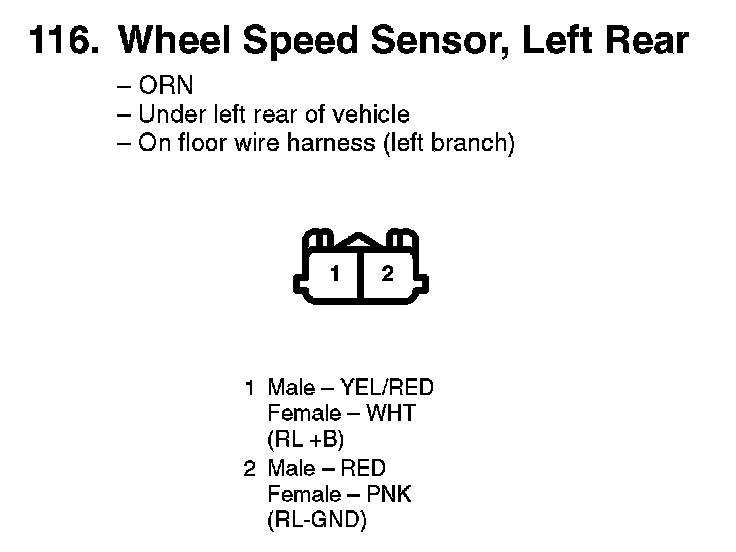

116. Wheel Speed Sensor, Left Rear:

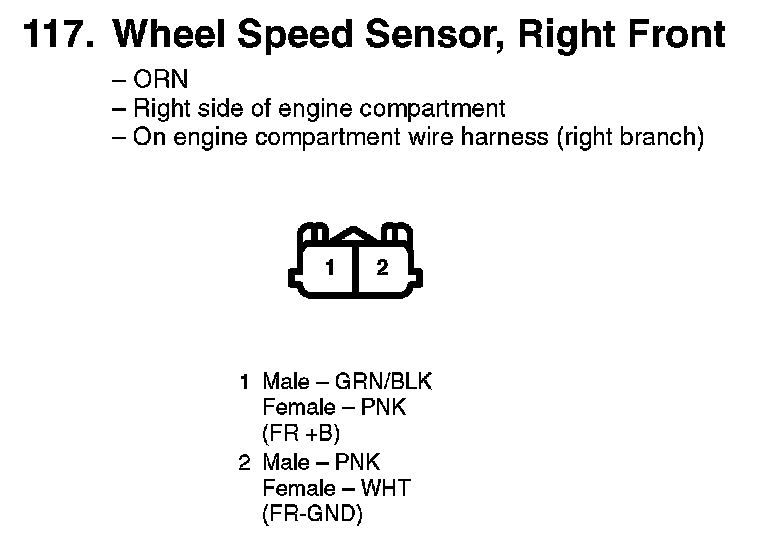

117. Wheel Speed Sensor, Right Front:

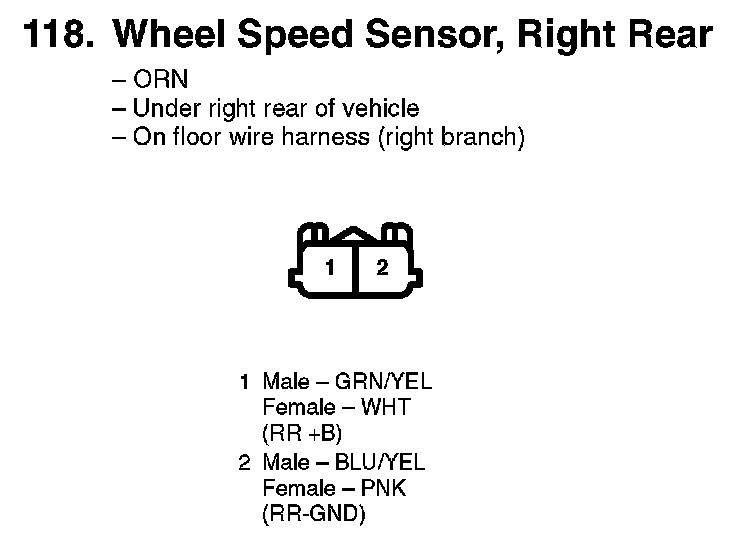

118. Wheel Speed Sensor, Right Rear:
