Heating and Air Conditioning: Locations

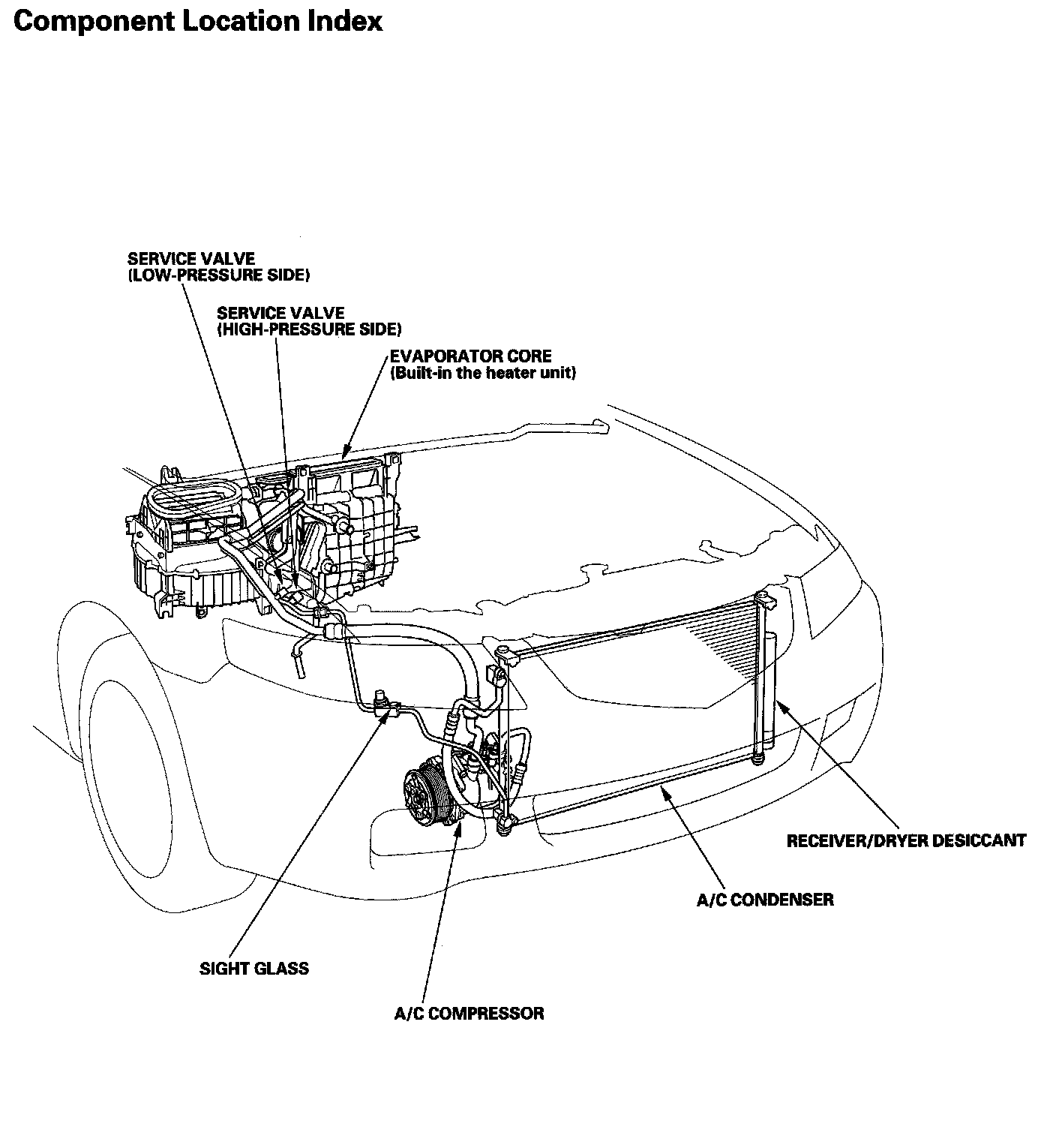

Climate Control Component Location Index:



Climate Control Component Location Index:

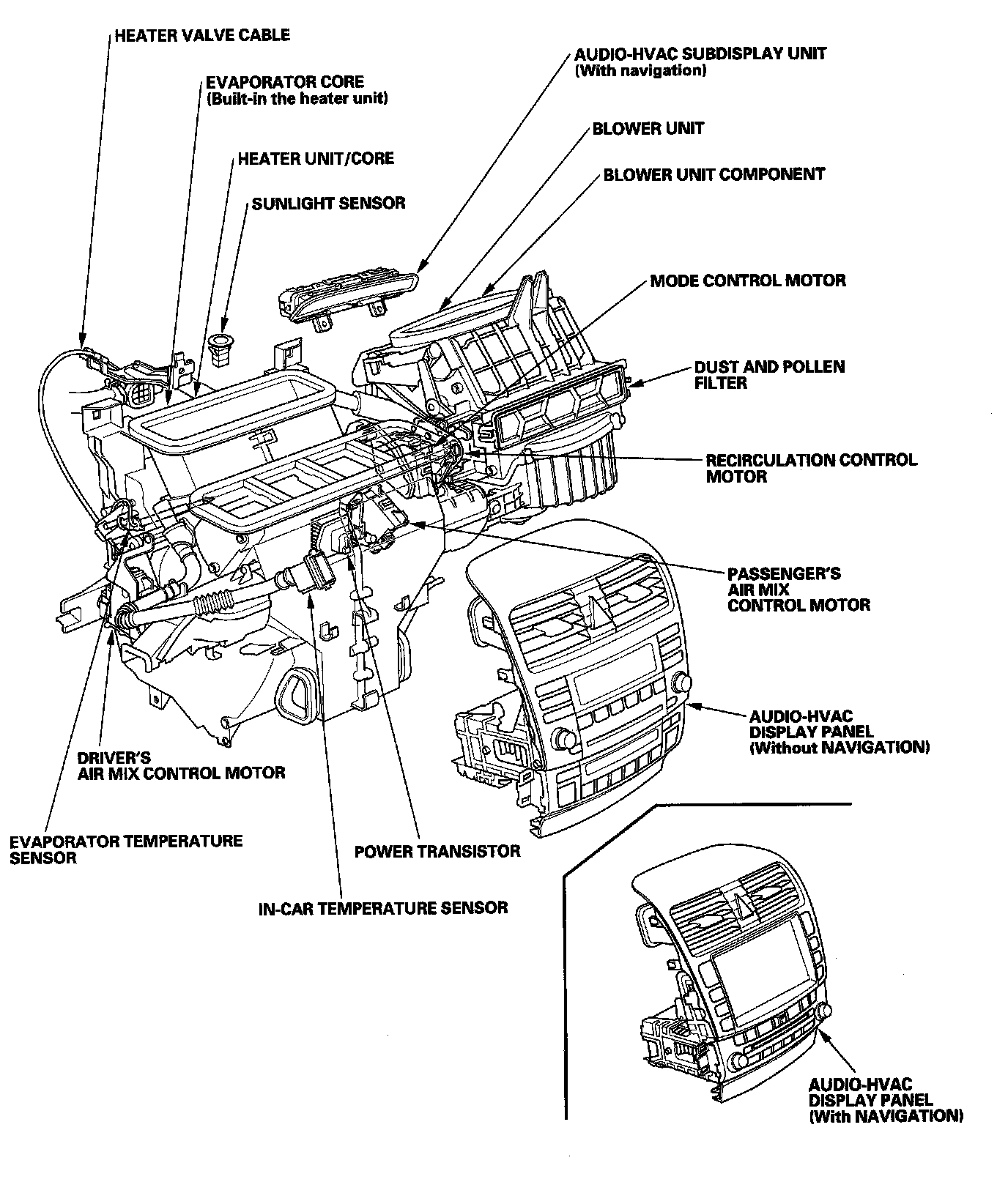

Climate Control Component Location:
