Throttle Actuator Control Module Sub-Harness

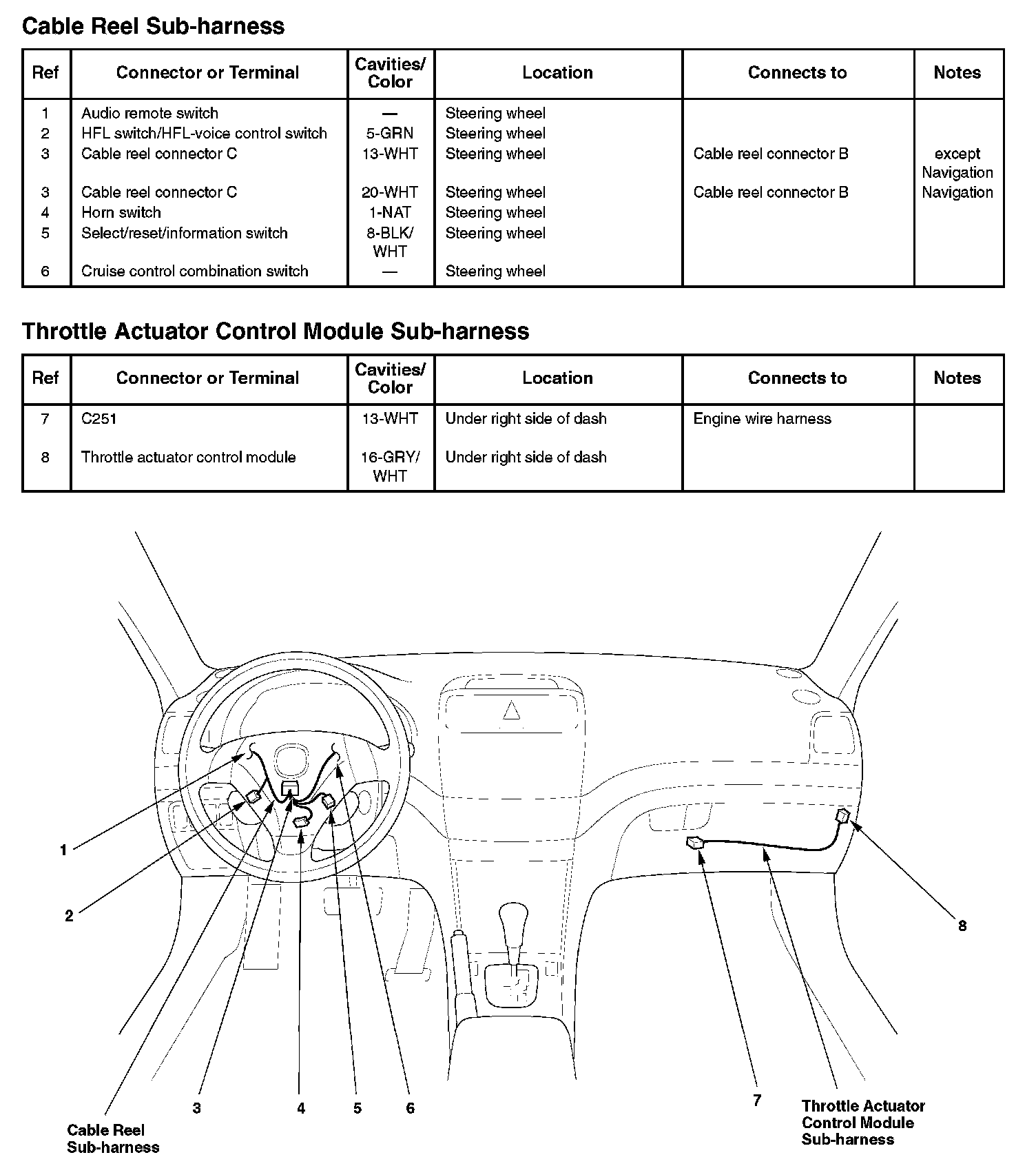

Cable Reel Sub-harness/Throttle Actuator Control Module Sub-harness:
