Electronic Throttle Control System

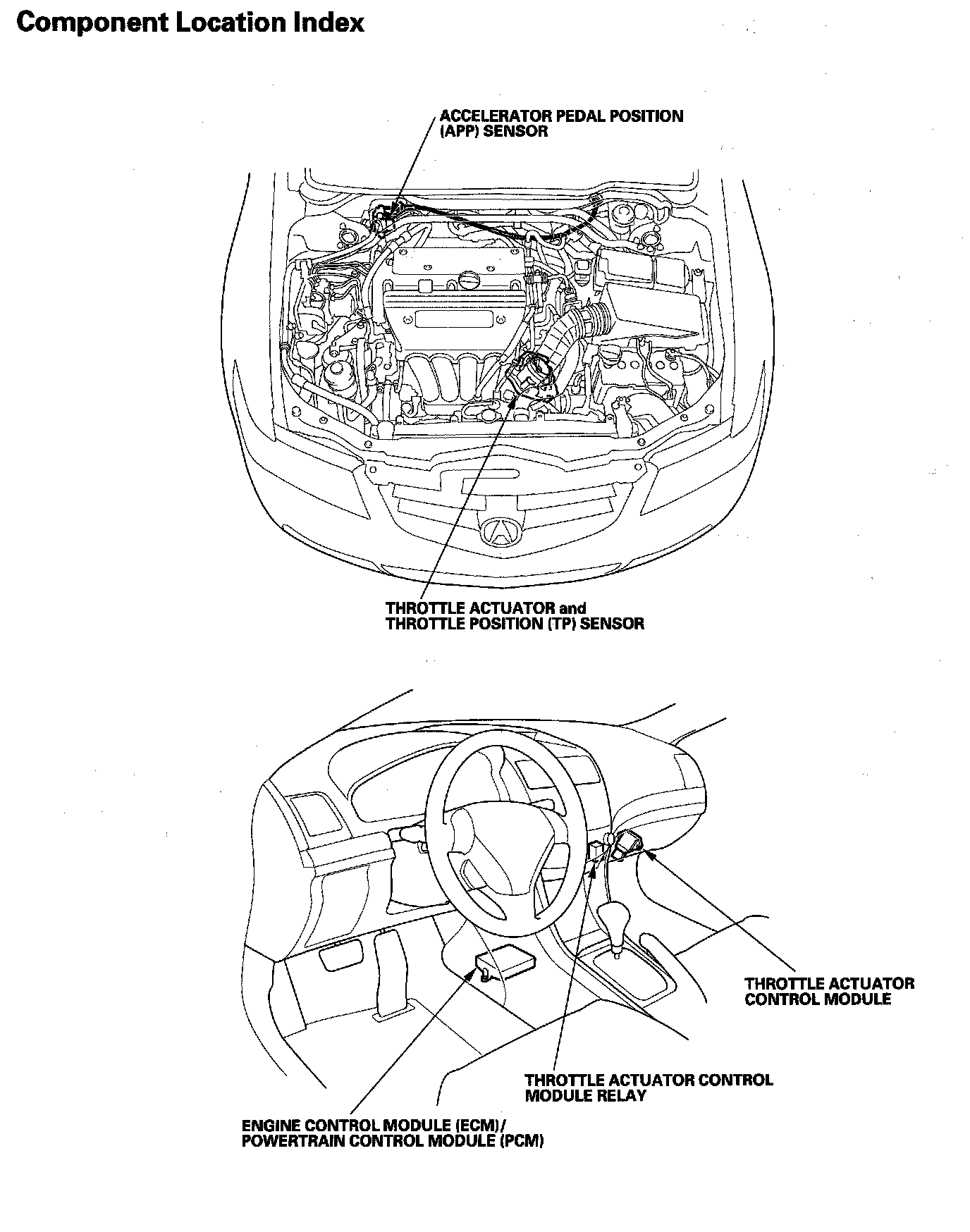

Electronic Throttle Control System Component Location Index:

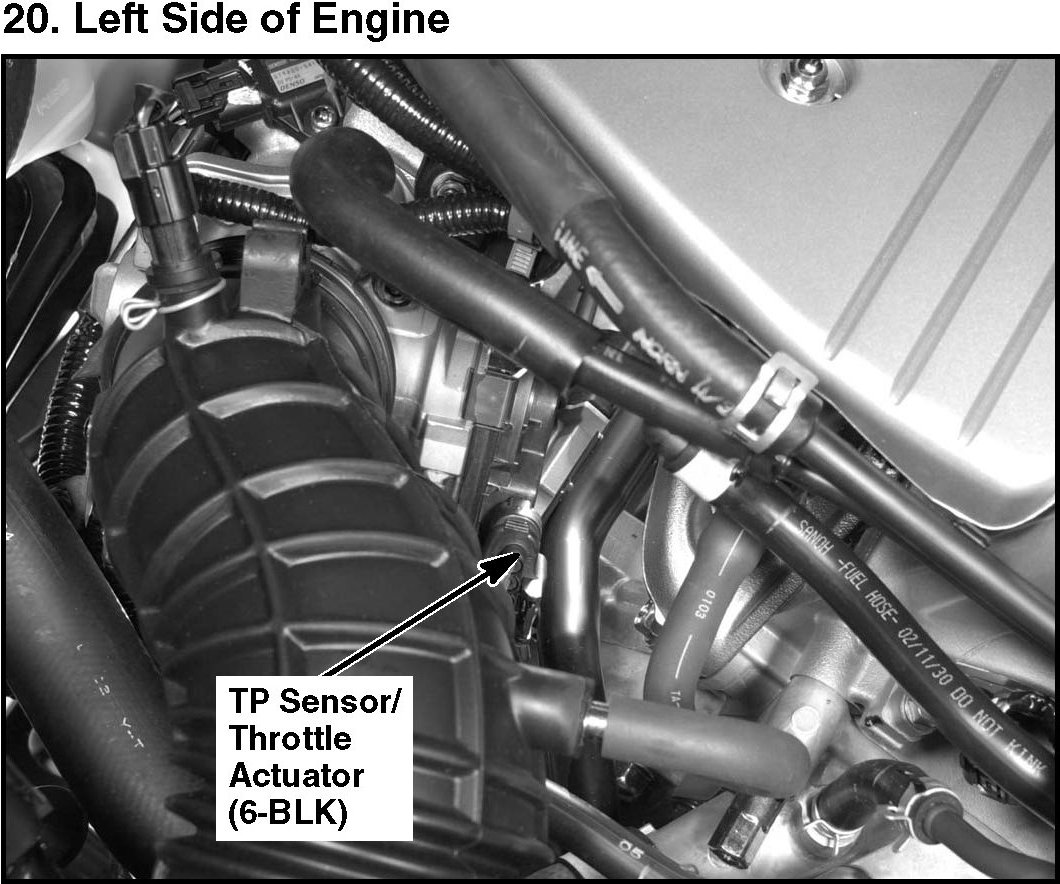

20. Left Side Of Engine:
