System Specifications

Timing chain tensioner

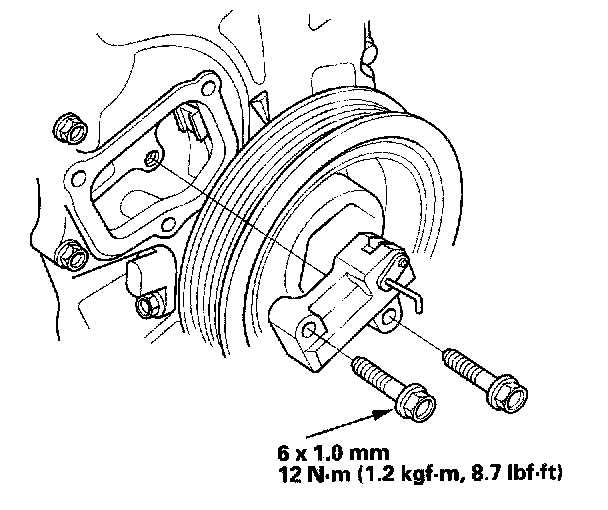

Install the auto-tensioner.

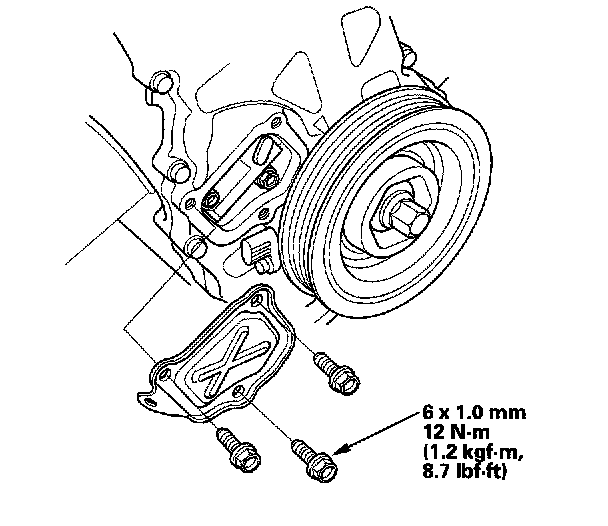

Timing cover





Install the chain case cover.

NOTE:
Wait at least 30 minutes before filling the engine with oil.
Do not run the engine within 3 hours after installing the chain case cover.

Crankshaft pulley

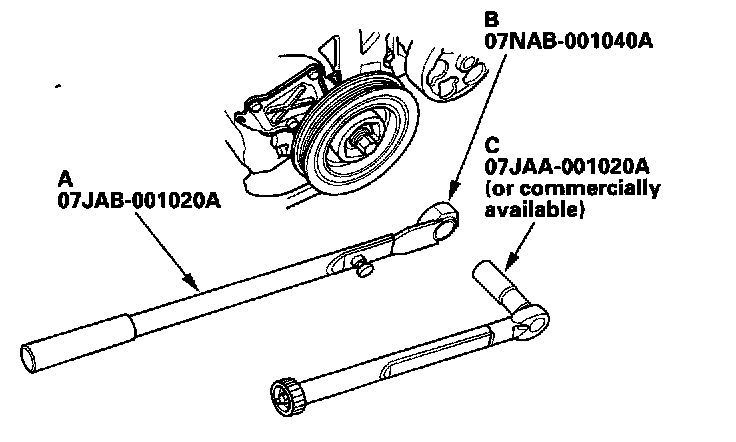

Install the crankshaft pulley, and hold the pulley with holder handle (A) and holder attachment (B).
Tighten the bolt to 49 Nm (5.0 kgf-m, 36 ft. lbs.) with a torque wrench and 19 mm socket (C). Do not use an impact wrench. Tighten the pulley bolt an additional 90 degrees.
