Front Passenger's Power Window Switch Test

Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the 14P connector from the front passenger's power window switch.

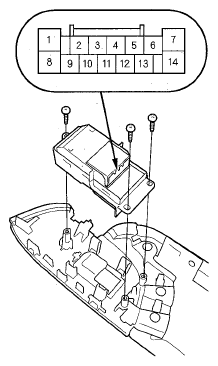

Fig 1: Identifying Front Passenger's Power Window Switch And 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: Checking For Continuity Betqween Terminals In Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
