Control Unit: Locations

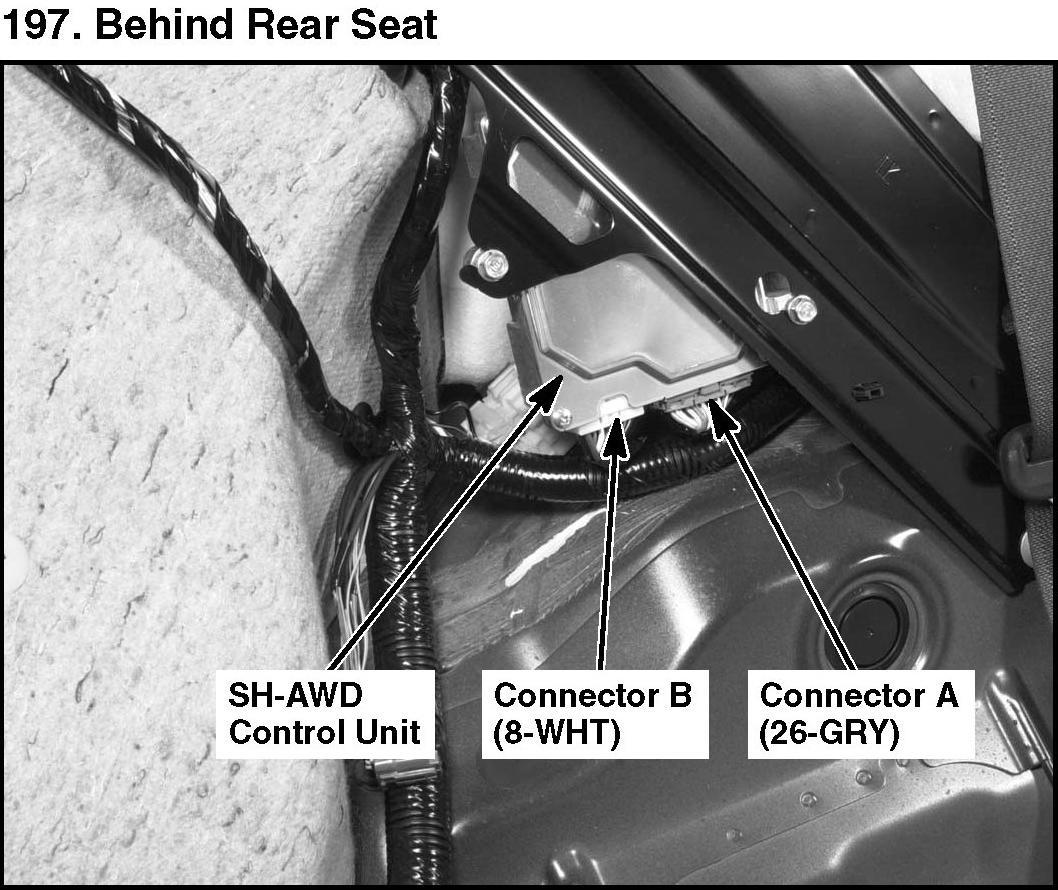

197. Behind Rear Seat:

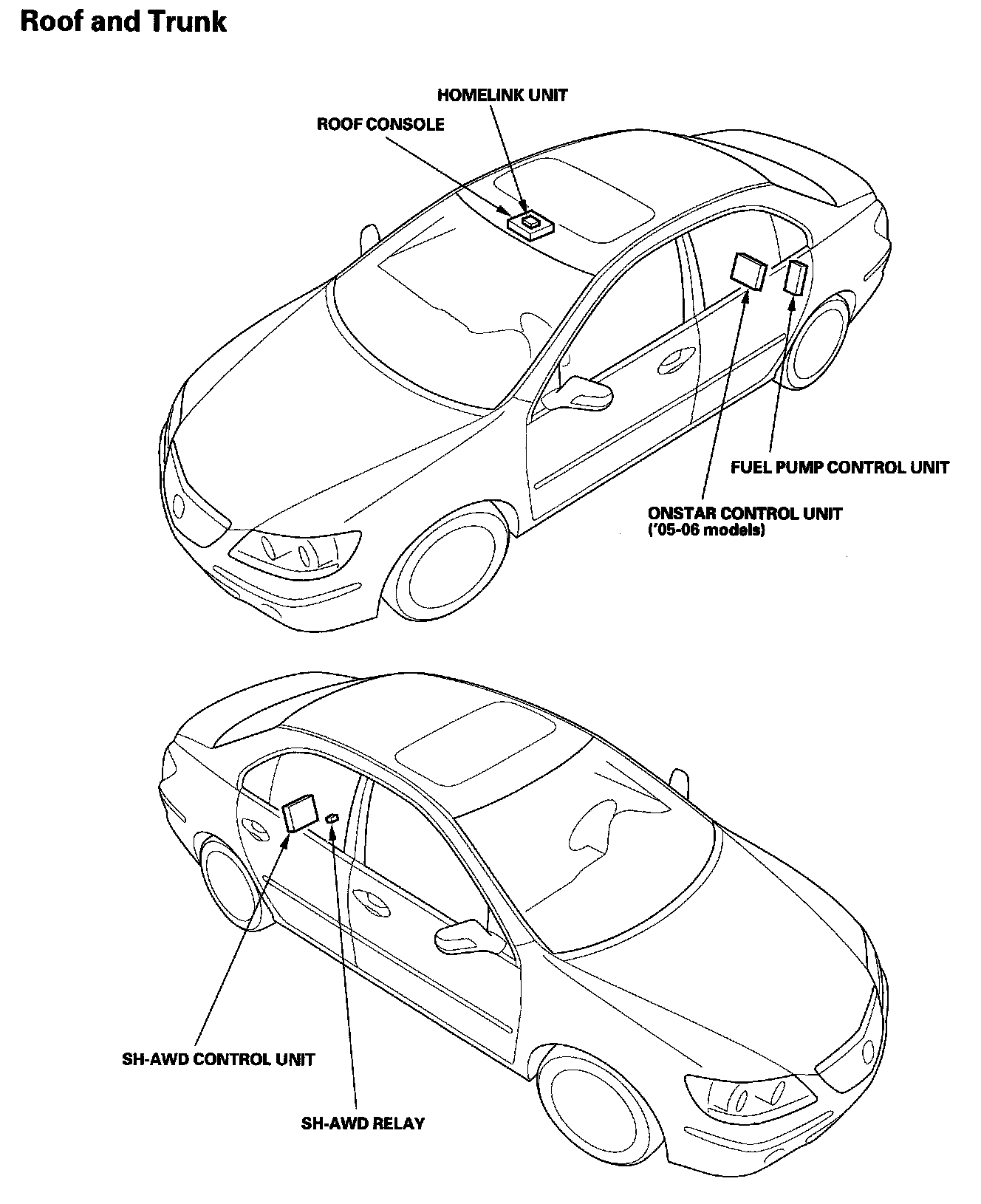

Relay And Control Unit Locations Roof And Trunk:



Rear Differential Component Location Index:
