Component Location Index

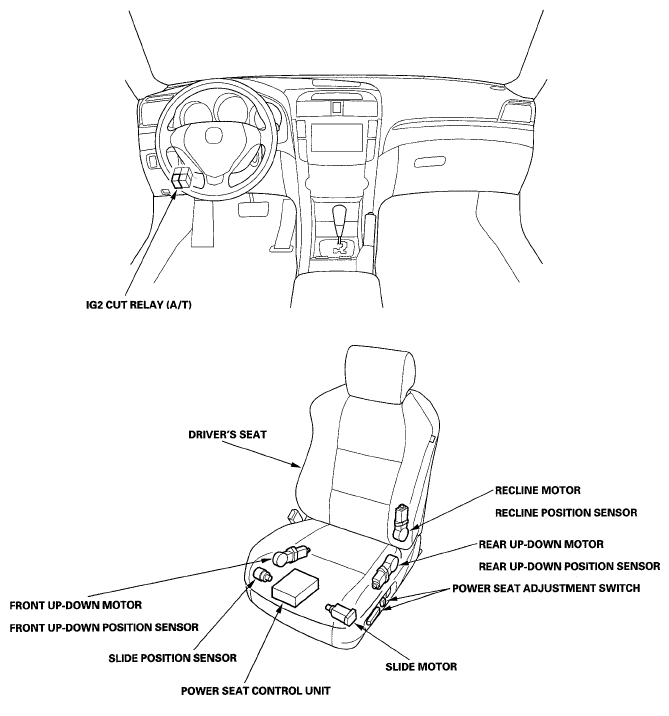

Fig 1: Identifying Driver Position Memory System (DPMS) Components Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

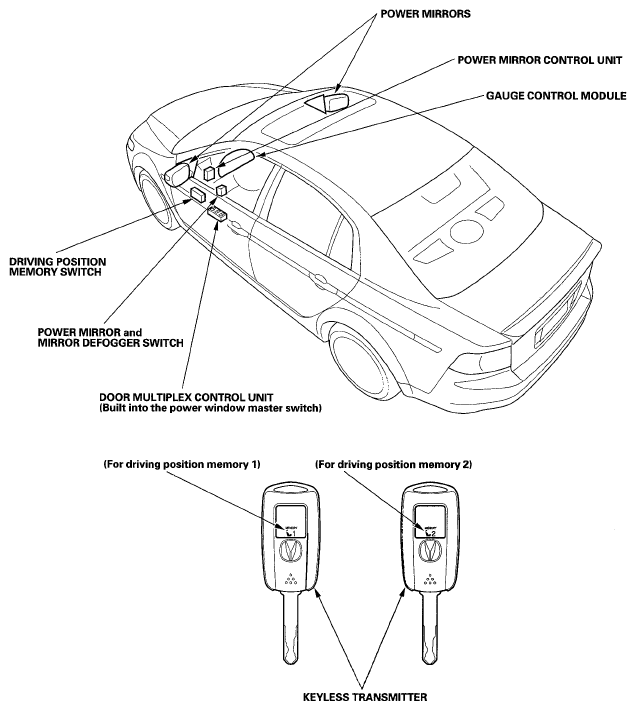

Fig 2: Identifying Driver Position Memory System (DPMS) Components Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
