Power Seat Adjustment Switch Test/Replacement

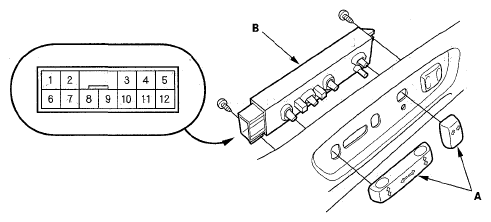

- Remove the power seat adjustment switch knobs (A) and recline cover from the driver's power seat (see
FRONT SEAT DISASSEMBLY/REASSEMBLY
), then remove the two screws and the power seat switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the 12P connector from the power seat adjustment switch (B).
- Reinstall the adjustment switch knobs to the switch.

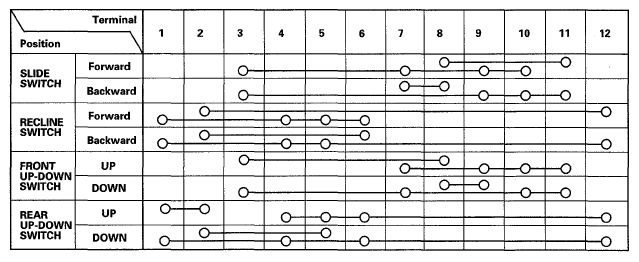

- Check for continuity between the terminals in each switch position according to the table.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the continuity is not as specified, replace the switch.
